DINUY IT KNX 001 Quick Start Manual

Wireless 1-channel switch

Advertisement

Quick Links

IT KNX 001
IT KNX 001
3min
1min
5min
3s
INT
F
P
A
B
R
L
N
5
6
7
8
1
2
3
4
E
TELERRUPTOR 1 CANAL INALÁMBRICO
ESPECIFICACIONES TÉCNICAS
Tensión Alimentación
230V~ 50Hz
Consumo propio
35mA
Capacidad de corte
16A 250V cosφ=1
Temporización
3 segundos - 10 minutos
Emisión codificada en 868,4MHz con
Radiofrecuencia
PRA>8mW y una penetración de 100m
(campo abierto)
Compatible con
KNX-RF: CH_Light_Actuator_Scene (0103h)
Montaje
Raíl DIN
Protección ambiental
IP20
Tª Funcionamiento
-10ºC ~ +45ºC
Dimensiones
1 módulo de anchura (17,5mm)
DESCRIPCIÓN
Se trata de un actuador RF-KNX que emula el funcionamiento del canal (channel codee)
CH_Light_Actuator:Scene 0x103.
Se compone de: LED indicador (A), selector de tiempo (B), pulsador de configuración (C)
y selector de modos (D).
CARACTERÍSTICAS
Selector de modos para la programación de enlaces y configuración:
- B: borrado de un enlace del canal receptor.
- P: programación de un enlace del canal receptor o del canal transmisor.
- F: funcionamiento normal.
- A: funcionamiento normal con función de repetidor.
- R: borrado de todos los enlaces de los canales transmisor y receptor.
Funcionamiento como telerruptor o interruptor temporizado.
Posibilidad de activar la función repetidor.
Posibilidad de conectar un pulsador auxiliar para:
- Control local de la carga de mecanismo.
- Control remoto vía RF de otro u otros mecanismos receptores RF asociados.
Compatible con protocolo KNX ISO-IEC 1453-2. incorporando dos objetos:
- El pulsador auxiliar responde al objeto CH_PB_Toggle 0x02.
- El actuador responde al objeto CH_Light_Actuator_Scene 0x103.
INSTALACIÓN
Instale el actuador de acuerdo al esquema de conexión mostrado.
La conexión del pulsador auxiliar (E) es opcional. Dependerá su instalación de si se
requiere de un pulsador de control local de la carga conectada al interruptor de RF o de
si se requiere el control remoto vía RF de otro u otros mecanismos receptores RF
asociados.
FUNCIONAMIENTO
A.-Funcionamiento a través de su pulsador auxiliar (E)
El funcionamiento del IT KNX 001 desde un pulsador externo es el siguiente: cualquier
pulsación corta (<300mseg) del pulsador auxiliar tiene como consecuencia:
- Un cambio, ON u OFF del estado anterior en que se encontraba la carga local
conectada.
- El envío, vía radio, de un mensaje de ON u OFF, en concordancia con el cambio de
estado que realiza la carga local.
Los tipos de comandos enviados son compatibles con el objeto "CH_PB_Toggle 0x02"
(0002h).
B.-Funcionamiento a través de su canal receptor RF
La carga conectada al IT KNX 001 puede gobernarse remotamente, vái radio, desde un
dispositivo transmisor RF programado.
Los tipos de comandos aceptados son compatibles con el objeto RF-KNX CH_Light_
Actuator_Scene 0x103.
GB
WIRELESS 1-CHANNEL SWITCH
TECHNICAL DATA
Power supply
230V~ 50Hz
Consumption
35mA
Breaking capacity
16A 250V cosφ=1
Time delay
3 sec - 10 min
Codified transmission in 868,4MHz with
Radio-Frequency
ERP>8mW and a coverage of 100m
(in the free field)
Compatible with
KNX-RF: CH_Light_Actuator_Scene (0103h)
Mointing
DIN-rail
Protection degree
IP20
Working temperature
-10ºC ~ +45ºC
Dimensions
1 module wide (17,5mm)
DESCRIPTION
It is based on a RF-KNX actuator which emulates the working mode of the channel
codee CH_Light_Actuator:Scene 0x103.

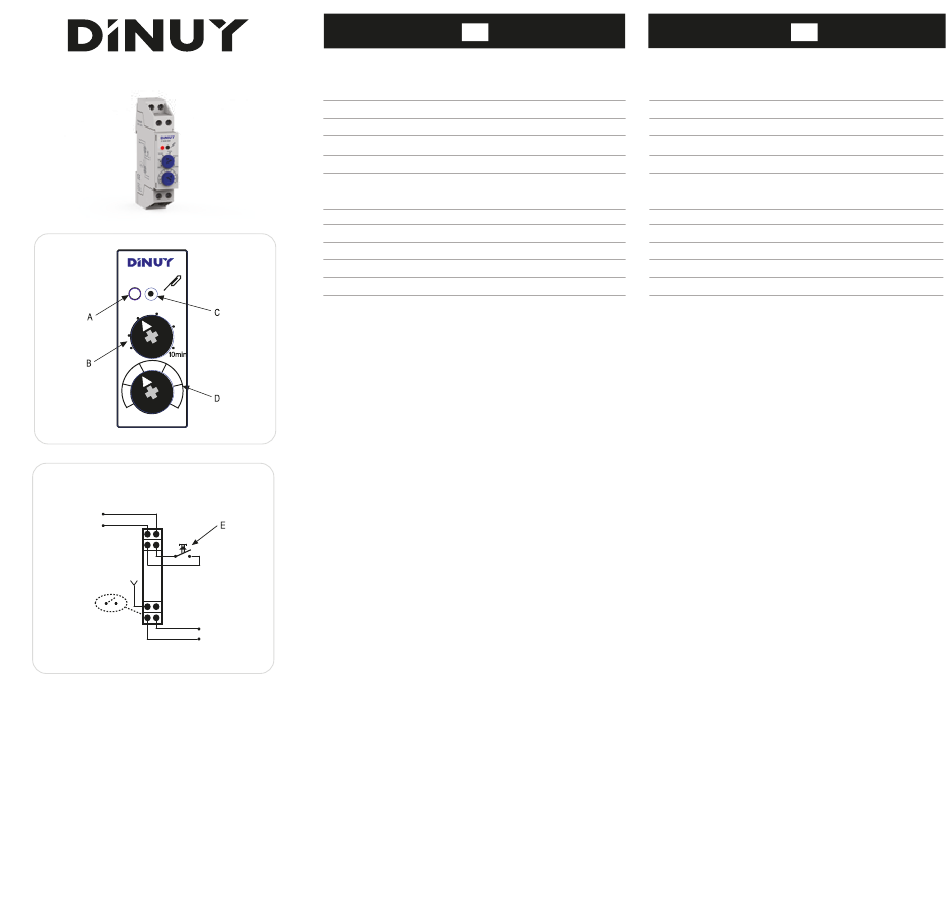

It is composed by: LED (A), time selector (B), commissioning pushbutton (C) and
working mode selector switch (D).
CHARACTERISTICS
Working mode selector switch for the setting-up and commissioning:
- B: delete a link from the receiver channel.
- P: link programming of the transmitter or receiver channel.
- F: normal operation.
- A: normal operation with repeater function.
- R: delete all links from the transmitter and receiver channels.
Operation as impulse relay or time switch.
Possibility of working as RF signals repeater.
Possibility of wiring an additional wired pushbutton to:
- Local control of the load connected to the device.
- Remote control, vía RF, of one or several linked receivers.
Compatible with ISO-IEC 1453-2 KNX protocol. Two objects:
- The auxiliary pushbutton answers to the object CH_PB_Toggle 0x02.
- The actuator answers to the object CH_Light_Actuator_Scene 0x103.
INSTALLATION
Install the actuator according to the wiring diagram.
The auxiliriary pushbutton (E) is optional. It depends on if the installation requires a
local control for the load connected to the IT KNX 001 or if it is necessary to control
remotely other linked RF-KNX devices.
WORKING MODES
A.-Operation with the external pushbutton (E)
Any short press (<300msec) of the pushbutton has as the effect of:
- The change of the precious state of the load connected to the IT KNX 001:
ON or OFF.
- The transmission of an ON or OFF message, in concordance with the
change of the load. The messages are compatible with the RF-KNX object
"CH_PB_Toggle 0x02" (0002h).
B.-Operation through its receiver channel
The load connected to theIT KNX 001 can be controlled remotely with a RF
transmitter..
The accepted messages are compatible with the RF-KNX object RF-KNX
CH_Light_Actuator_Scene 0x103.
