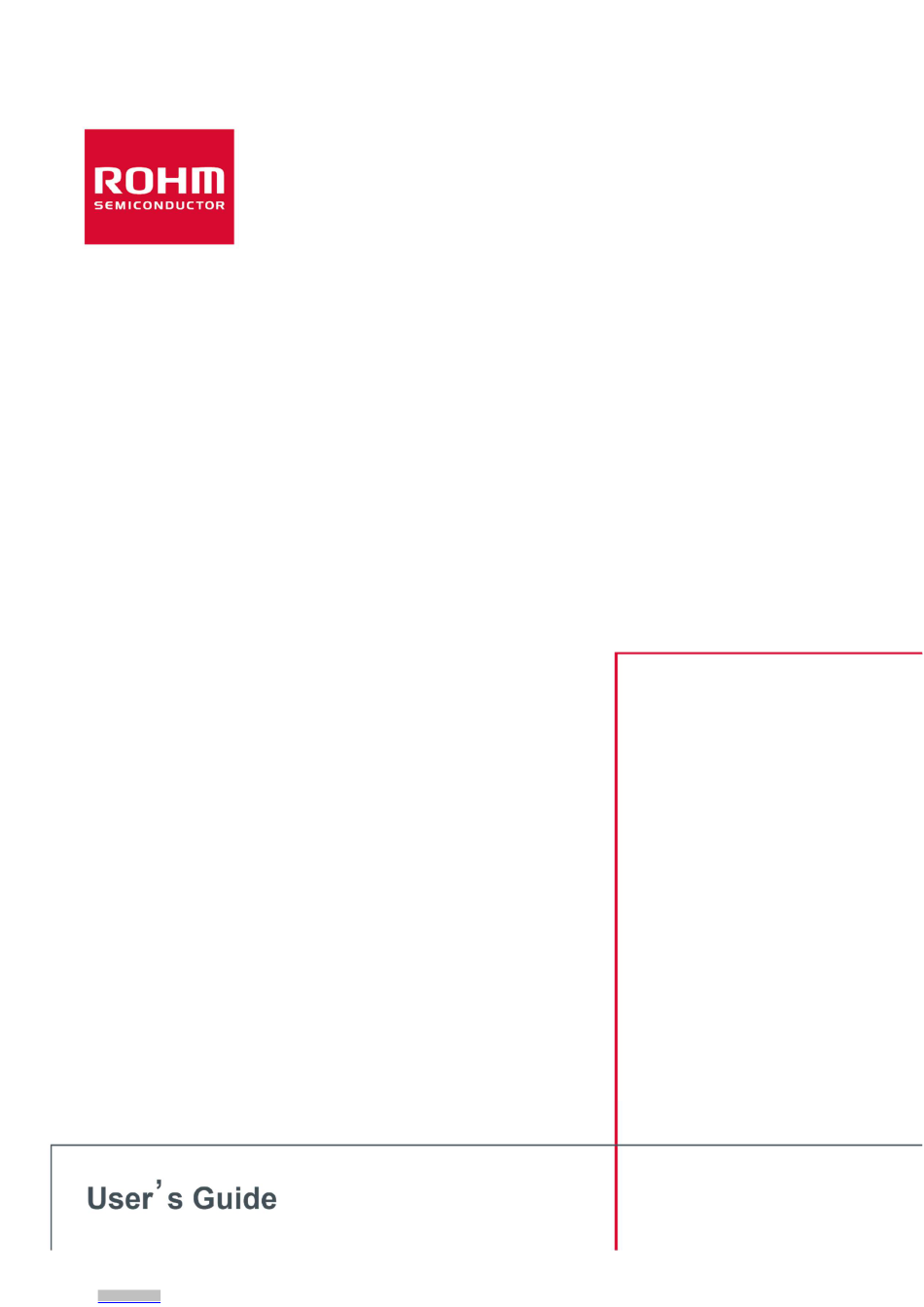

- Page 1 Isolation Fly-back Conveter PWM method Output Power 5W BM2P094F-EVK-001 Arrow.com. Downloaded from...
- Page 2 [8] Be sure to wear insulated gloves when handling is required during operation. After Use [9] The ROHM Evaluation Board contains the circuits which store the high voltage. Since it stores the charges even after the connected power circuits are cut, please discharge the electricity after using it, and please deal with it after confirming such electric discharge.
- Page 3 Innovations Embedded Board No:BM2P094F-EVK-001 c 2013 ROHM Co.,Ltd. All Rights Reserved Confidential 66UG080E Rev.001 Arrow.com. Downloaded from...
- Page 4 Unit Condition Voltage Input Frequency 50/60 No Load Input Power Vin：AC100V/230V Voltage Vout 4.75 5.25 Current Iout Output Ripple Voltage Vripple 20MHz Bandwidth Efficiency Output：5V 1A 40mm Confidential c 2013 ROHM Co.,Ltd. All Rights Reserved 66UG080E Rev.001 Arrow.com. Downloaded from...
-
Page 5: Application Schematic
Application Schematic Board No:BM2P094F-EVK-001 Confidential c 2013 ROHM Co.,Ltd. All Rights Reserved 66UG080E Rev.001 Arrow.com. Downloaded from... -
Page 6: Component List
ROHM 0 Ω MCR03EZPJ000 ROHM 10 Ω MCR10EZPJ100 ROHM EE13 XE2494Y ALPHATRANS TL431BCLP LTV-817-B LITEON BLUE LC-2-G-SKY MAC8 BLUE LC-2-G-SKY MAC8 5V/1A LC-22-G-RED MAC8 BLACK LC-2-G-BLACK MAC8 Confidential c 2013 ROHM Co.,Ltd. All Rights Reserved 66UG080E Rev.001 Arrow.com. Downloaded from... - Page 7 Transformer:YPP1181 (EE13) NＰ2 Insulation tape Core： Tomita 2G8-EE13x12x6.3 or compatible Bobbin： Tomita TBB347 Vertical/Terminal Pins 5-5(10pins) or compatible AL-Value： 79.1 nH/N Inductance(1-3pin)： 1.336 ｍH±15% Coil Terminal Turns Wire Winding Method ‘1-2 2UEW 0.2 FIT（密） ‘6-10 TEX-E 0.4 1 Layer FIT（密） ‘5-4 2UEW 0.2 1 Layer FIT（密）...
-
Page 8: Measurement Data
4.985 77.2 0.032 5.007 0.102 5.007 0.01 0.050 49.0 1.668 5.002 0.25 1.250 75.0 3.288 4.995 2.498 76.0 4.894 4.989 0.75 3.742 76.5 6.516 4.983 4.983 76.5 Confidential c 2013 ROHM Co.,Ltd. All Rights Reserved 66UG080E Rev.001 Arrow.com. Downloaded from... - Page 9 Conduction EMI Board No:BM2P094F-EVK-001 Vin：AC100V/50Hz Vout：5V 1A Vin：AC230V/50Hz Vout：5V 1A Confidential c 2013 ROHM Co.,Ltd. All Rights Reserved 66UG080E Rev.001 Arrow.com. Downloaded from...
- Page 10 Specific Applications). Unless otherwise agreed in writing by ROHM in advance, ROHM shall not be in any way responsible or liable for any damages, expenses, or losses incurred by you or third parties arising from the use of ROHM Products for Specific Applications.
