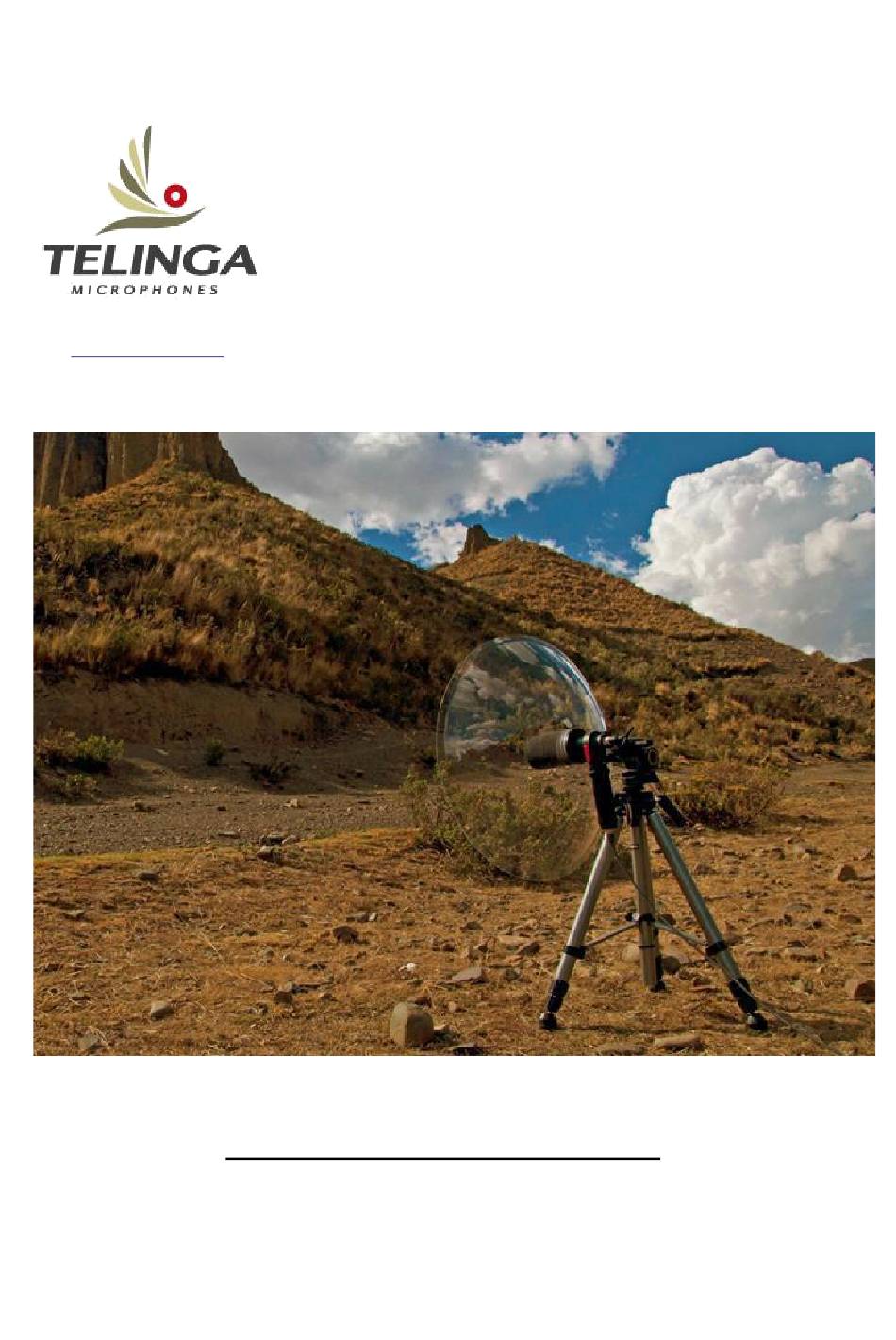

- Page 1 V.0.9 2019 INT. PRO-9 MK2 / PRO-X System Manual...
- Page 2 Black ring Microphone without thread. Stereo MK3 Tripod Mount insert holder. Fastening bolt. Gray Gray ring tube. with thread. TELINGA Y-CABLE TUCHEL 7- POLE TO 3 PIN XLR (PRO-9 MK2) OR 3,5 MINIJACK CABLE (PRO-X) TO YOUR PREAMP MIC INPUT L/R.
- Page 3 * FOR PRO-9 MK2 ENABLE (+48V) PHANTOM POWER ON YOUR PREAMP / DEVICE. * FOR TELINGA PRO-X ENABLE PLUG IN POWER ALSO KNOW AS ”PIP”. ASSEMBLING / INSTALLING (AS PICTURE ABOVE) 1. Connect the microphone and it´s mounting kit (gray tube with black and...
- Page 4 RECOMMENDED MICROPHONE FOCUS POSITIONS. Setting up the correct focus is very easy! To set the correct focus of your TELINGA STEREO MICROPHONE please mount the microphone in the dish with the front of the microphone aligned with the opening of the dish. The transparent 6” round plate of the microphone separating left and right channels should be positioned vertically, not horizontal.
- Page 5 Place a constant sound source, such as a small FM-radio, a portable speaker system or such at medium distance 30 meters / 100 feets or so, away from the parabola - now use your Telinga as a "radar", move it side to side and learn how it performs by using your ears!
- Page 6 (Photo: POS.2 = middle position, enables LOW CUT) THE TELINGA PRO-9 MK2 HANDLE (ONLY) TOGGLE SWITCH POS. 1 ”NORMAL” STARTING POSITION / NO FILTERING Toggle switch positioned TOWARDS you. Recommended during light or no wind, and when no traffic noise is audible. At this position you get the full frequency range from the microphone and dish.
- Page 7 TELINGA STEREO MK3 MICROPHONE The Stereo MK3 microphone has an Equivalent Noise Level of aprx. 12 dB(A) only. Thereby, it does great justice to the dynamic range of modern sound preamps and devices. The focused sound will be picked up in mono, while the background will be presented in stereo.
- Page 8 FOCUS Smaller than actual size. Microphone movable for optimal performance. LEFT RIGHT Focused LEFT channel microphone RIGHT channel microphone sound The plate will separate the two sides. The dish STEREO MK3: The plate separates the two sides from each other, while the focus from the dish will affect the two microphones equally Result: the focused sound will be presented in mono, while the background will be stereo, to L&R channels.
- Page 9 THE FOLDABLE 22” TELINGA DISH The V2 Telinga foldable dish is 22" (57 cm) and weighs only 0.33 kg / 0.72 lbs. The improved polycarbonate mix offers greater performance and plastic memory. Featuring a gray rim (standard on delivery) allows super easy folding and also protects the dish surface from scratches and dents.
- Page 10 High Wind Cover for example. After travelling the dish will retain it´s shape quickly. If you go for longer travels, 8-12 hours (+) where your Telinga is stored inside an airplane as carry on luggage (for example) let the dish rest for some time, unfolded, to retain it´s shape before using the parabola again.
- Page 11 Telinga system. When storing your complete setup inside the Telinga Soft Case you may also use it as a good "wrap around" cloth, protecting your microphone further. The Rycote HWC...
- Page 12 USING THE (OPTIONAL) TRIPOD MOUNT: Place the Tripod Mount in the top handle screw, and secure it with the "bridge" of the mount into the handle. Make sure it is fastened properly before attaching it to the stand.
-
Page 13: Important Notes
THE HANDLE AND MIC: On dusty roads, keep in a plastic bag or case. Wipe off now and then with a piece of cloth. AFTER USE: When the Telinga is not used for several days - loosen the screw tightening the handle, and the rings holding the dish. -
Page 14: User Notes
USER NOTES:...
