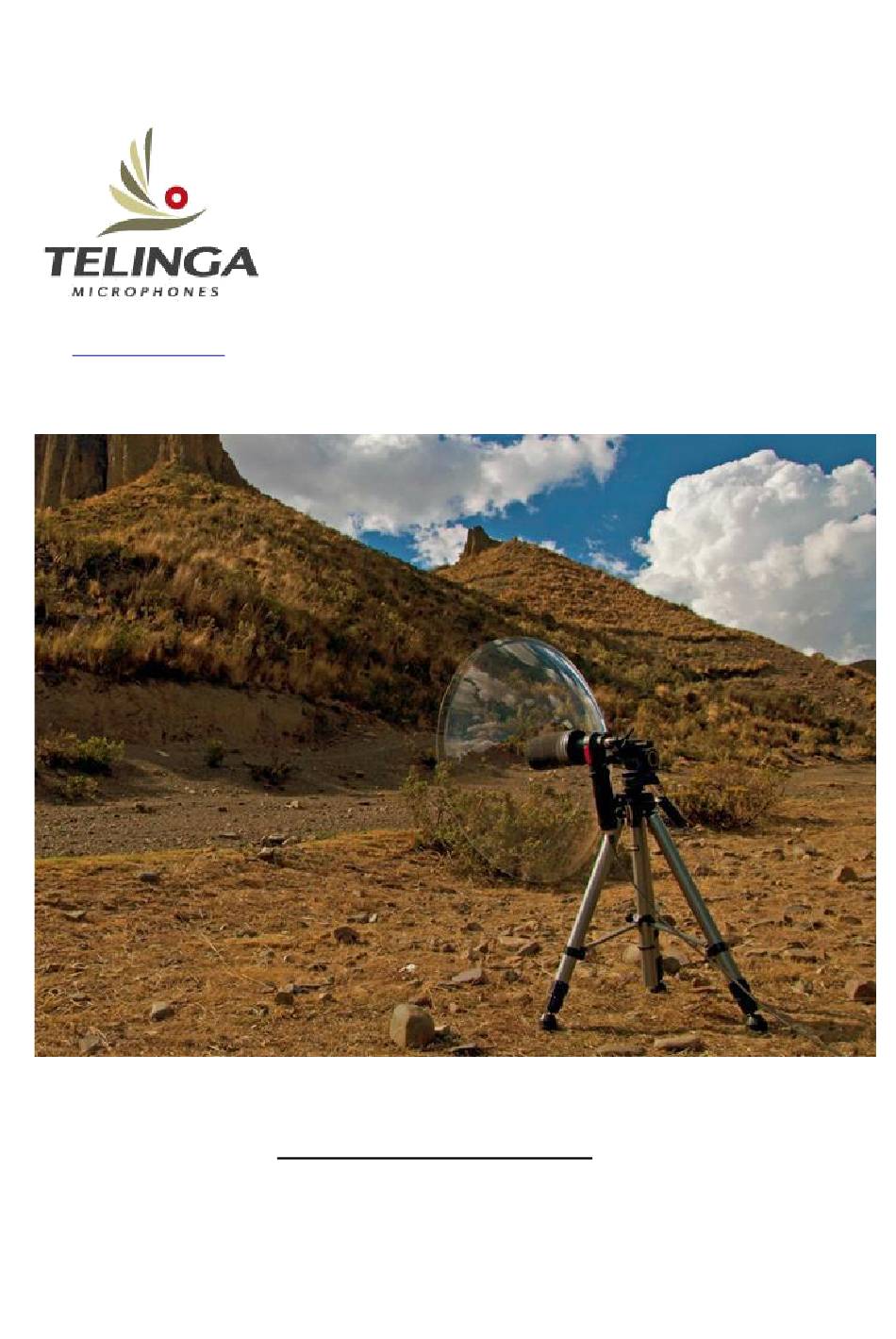

- Page 1 V.1.0 INT. PRO-X V.2 System Manual...
- Page 2 Great care has been taken to solve the most common problems with parabolic dishes - wind and handling noise, as well as inherent noise from the microphone. Telinga designs are developed in co-operation with film makers, ornithologists and researchers in the field of bio-acoustics.
- Page 3 Stereo MK3 inside the gray tube. The dish should not be able to move between the gray rings or handling noise will occur. Use a Telinga/or Rycote dish HWC (high wind cover) when recording in windy conditions, or side winds may cause turbulence inside the dish.
- Page 4 RECOMMENDED STEREO MK3 FOCUS POSITIONS. Setting up the correct focus is very easy! To set the correct focus of your TELINGA STEREO MK3 please mount it in the the dish with the front of the black foam aligned with the opening of the dish.
- Page 5 30 meters / 100 feets or so, away from the parabola - now use your Telinga as a "radar", move it side to side and learn how it performs by using your ears!
- Page 6 TELINGA STEREO MK3 The Stereo MK3 microphone has an Equivalent Noise Level of aprx. 12 dB(A)only. Thereby, it does great justice to the dynamic range of modern recorders. The focused sound of the dish will be picked up in mono, while the background will be presented in stereo.
- Page 7 FOCUS Smaller than actual size. Microphone movable for optimal performance. STEREO MK3: The plate separates the two sides from each other, while the focused sound will affect the two microphones equally Result: the focused sound will be recorded mono, while the background will be presented in stereo, to L&R channels.

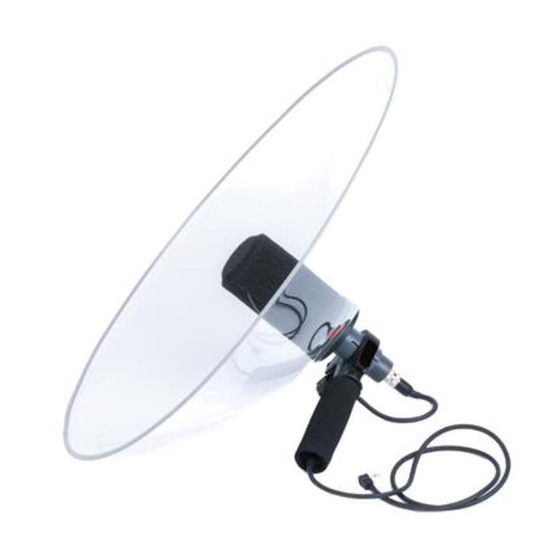

- Page 8 THE FOLDABLE 22” TELINGA DISH The V2 Telinga foldable dish is 22" (57 cm) and weighs only 0.33 kg / 0.72 lbs. The improved polycarbonate mix offers greater performance and plastic memory. Compatible with ALL Telinga handles and microphones - including earlier models such as the PRO-5/6/7/8 handles and microphones.
- Page 9 High Wind Cover for example. After travelling the dish will retain it´s shape quickly. If you go for longer travels, 8-12 hours (+) where your Telinga is stored inside an airplane as carry on luggage (for example) let the dish rest for some time, unfolded, to retain it´s shape before recording.
- Page 10 When storing your complete setup inside the Telinga Soft Case you may also use it as a good "wrap around" cloth, protecting your microphone further. The Rycote HWC offers up to 35...
- Page 11 USING THE (OPTIONAL) TRIPOD MOUNT: Place the Tripod Mount in the top handle screw, and secure it with the "bridge" of the mount into the handle. Make sure it is fastened properly before attaching it to the stand.
- Page 12 Wipe off now and then with a piece of cloth. The PRO-X is designed for outdoor use connected to battery powered equipment only. AFTER USE: When the Telinga is not used for several days - loosen the screw tightening the handle, and the rings holding the dish.
