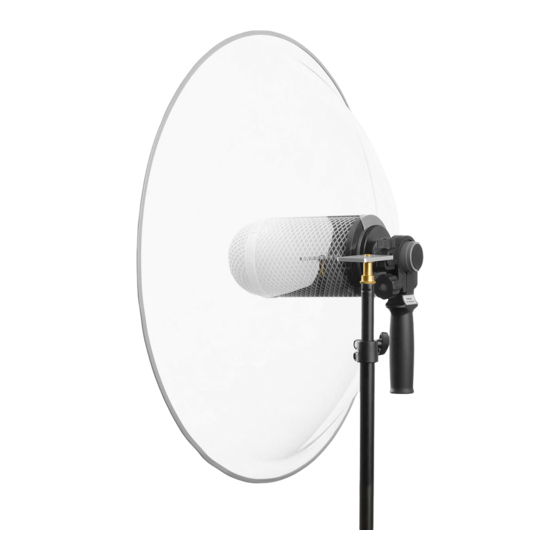

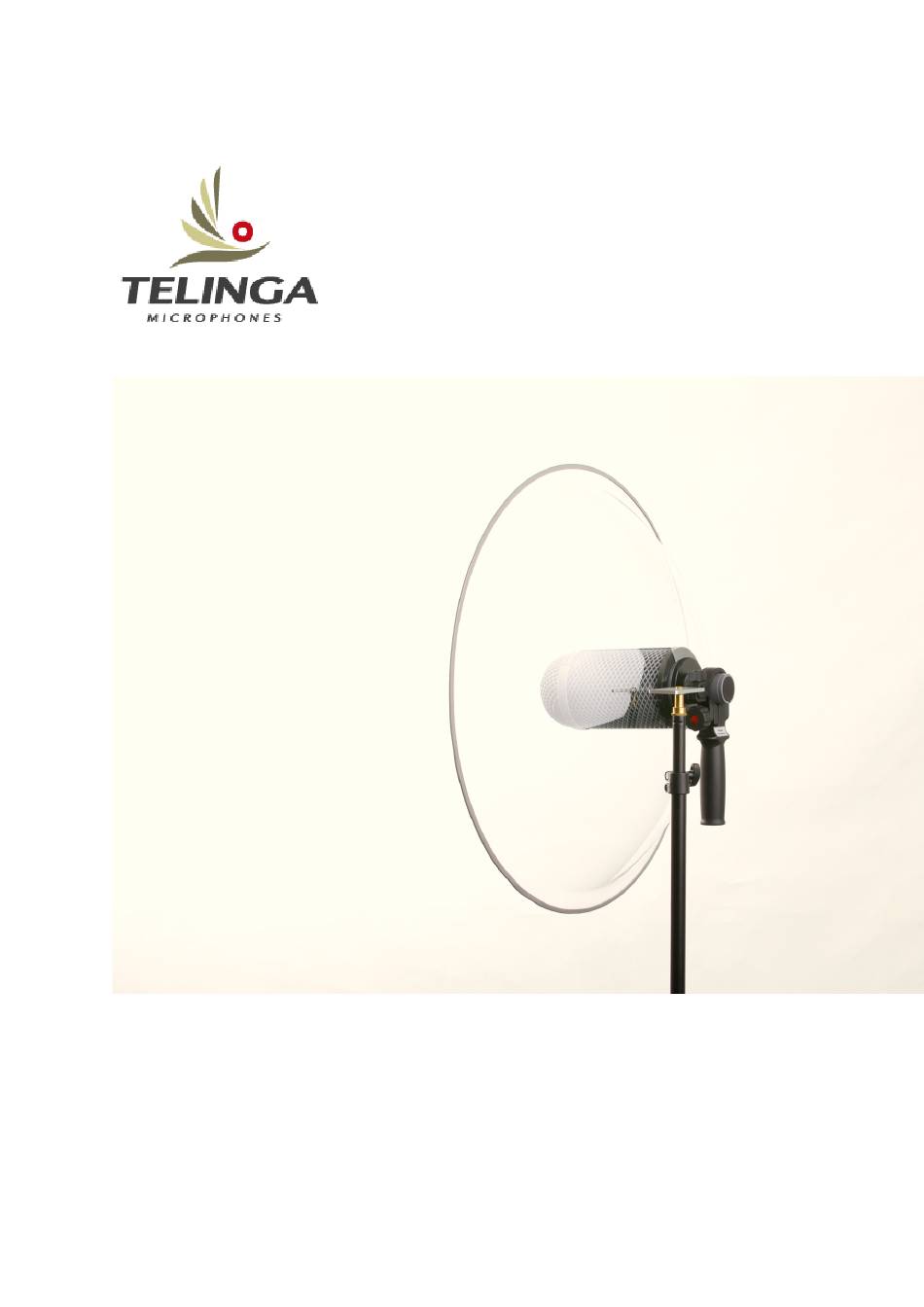

- Page 1 TELINGA MODULAR V 1.0 USER MANUAL (PDF)
- Page 2 To prevent this you must then hold the cable or secure it around the handle. Please see page. 7. 5) If you wish to use the Telinga Modular on a Tripod Stand you will need the optional Telinga Tripod Mount, please see:...
- Page 3 TELINGA MODULAR MOUNTING AND INSTALLATION PLEASE MAKE SURE ALL PARTS ARE SECURED FIRMLY BEFORE USE!
- Page 4 & black NEOPRENE cable holder cylinder (removable) found in the gray tube. 2) 22” Telinga Modular Parabolic Dish to be placed in the mounting kit, in- between the black ring and gray ring. The gray ring with thread should always be secured INSIDE the dish while the black ring without thread supports the dish from BEHIND.
- Page 5 USING A SHORTER MICROPHONE (OMNI OR CARDIOID) FACING THE DISH: 1. Please take out the black (removable) foam from the basket. 2. Allocate the sliced cable lane of the foam and place your cable (NOT MIC) thru the cable lane of the foam. We recommend a angled low profile cable as photo.
- Page 6 FORWARD 1. Please mount complete dish as picture page 3. Please leave the foam inside the Rycote Telinga OEM basket after removing the front cap. (Do not remove the foam.) 2. Remove the black cylinder shaped Neoprene cable holder out of the GRAY TUBE of the handle.
- Page 7 If you are still experiencing handling noise from your cable, please remove the cable and mic. Connect cable and mic (ONLY) without the Telinga Modular - to your recorder. Hold your microphone with one hand and move the cable with...
- Page 8 6. FINAL STEP BEFORE RECORDING: CLOSE THE TELINGA RYCOTE BASKET WITH ITS GRAY FRONT CAP. RECOMMENDED! PLEASE DO NOT LEAVE YOUR MICROPHONE INSIDE THE FOAM OF THE BASKET WHEN NOT RECORDING. REMOVE IT TO LET THE FOAM GO BACK TO SHAPE BY REMOVING THE FRONT CAP AND TAKE OUT YOUR MIC OR SENSOR FROM THE FOAM.
- Page 9 Only your microphone/sensors and headphones are operating with your recorder electronically (by input and output levels). Please use your Telinga Modular outside, inside there are too many reflections acoustical feedback might occur. Please watch your ears! + If your microphone or sensors requires +48V (Phantom Power) or PIP (Plug In Power) please enable this on your recorder.
-
Page 10: Specifications
SPECIFICATIONS: POLAR (TYPICAL) CARDIOID FACING THE DISH... - Page 11 Last edited 2021-05-12...
