pakoworld 318-000001 Assembling Instruction
  1. Manuals
  2. Brands
  3. pakoworld Manuals
  4. Indoor Furnishing
  5. 318-000001
  6. Assembling instruction

pakoworld 318-000001 Assembling Instruction

Hide thumbs

Advertisement

Quick Links

Download this manual
318-000001

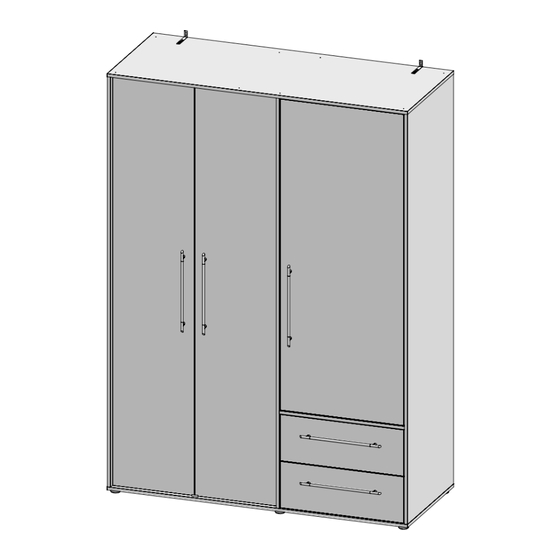

Assembling instruction
180 MIN
2001
10
5
588
1444
EN.Follow the manufacturer's assembly instructions, otherwise danger may occur.
1/37

Advertisement

loading
Need help?

Need help?

Do you have a question about the 318-000001 and is the answer not in the manual?

Questions and answers

Related Manuals for pakoworld 318-000001

Summary of Contents for pakoworld 318-000001

  • Page 1 318-000001 Assembling instruction 180 MIN 2001 1444 EN.Follow the manufacturer’s assembly instructions, otherwise danger may occur. 1/37...
  • Page 2 2/37...
  • Page 3 3/37...
  • Page 4 4/37...
  • Page 5 - EN – Furniture containing wood-based panels (particle board, fibreboard, plywood etc.) may emit into indoor air inconsiderable amounts of substances used in the production processes. The level of this emission is examined and it meets the applicable standards. After assembling the furniture, it is advised to regularly ventilate the room where the furniture stands, which should last about four weeks or until the smell is...
  • Page 6 Service 337230 021582 021523 337231 144658 337232 144659 42102 82035L 633674 633675 82338T 144660 337230 337233 82035P 74806 90866 6/37...
  • Page 7 Colli Colli Colli CODE DIMENSIONS -0001 -0002 -0003 1518x620x2 021523 1982x818x2 021582 1956x587x15 144658 1956x587x15 144659 1956x587x15 144660 1444x588x15 337230 797x508x15 337231 600x508x15 337232 600x586x15 337233 598x500x15 42102 1950x394x15 633674 1484x594x15 633675 594x221x15 74806 452x140x12 82035L 452x140x12 82035P 568x140x12 82338T 579x448x2 90866 7/37...
  • Page 8 S70969 S39450 S30211 S39449 Ø8x28 Ø12x10 S30212 S30106 S30157 S30158 Ø15x12 Ø3.5x15 Ø4x30 Ø3x12 S34654 S31298-14 S30102 S30142 Ø4x24 Ø4x14 Ø6,3x13 M4x9 S31299 S33396 S30312 S30544 Ø1,6x30 S30337-23 S36106 S30577 S20553N S34676-15 S36628 Ø10x50, L=450 Ø5x60 S32892-N S33652 L - 370/(320) S36124 S36067 L=791...
  • Page 9 S30211 144659 S30106 S36106 S30102 S36067 S30212 9/37...
  • Page 10 337232 S30212 S70969 S30212 337233 S70969 10/37...
  • Page 11 337232 337233 144659 11/37...
  • Page 12 S30211 144660 S30102 S36067 S30212 S70969 12/37...
  • Page 13 144660 13/37...
  • Page 14 S30211 S30106 144659 S33396 S30212 337231 S70969 14/37...
  • Page 15 337231 15/37...
  • Page 16 S30211 144658 S30106 S33396 S30212 S70969 16/37...
  • Page 17 144658 17/37...
  • Page 18 S30211 337230 S30106 S36106 337230 18/37...
  • Page 19 S34654 S30544 337230 180 ° S30211 337230 19/37...
  • Page 20 337230 20/37...
  • Page 21 021523 021582 21/37...
  • Page 22 a = b S31299 S30312 S31299 7,5 mm 22/37...
  • Page 23 S36124 25 kg S30106 S36106 23/37...
  • Page 24 15 kg 15 kg 15 kg S30577 24/37...
  • Page 25 Before suspending or fixing furniture to the -EN- wall (in order to prevent falling over), check the type and strength of the wall. Select wall plugs and screws appropriate for the given type of the wall. In the case of doubts, contact a specialist. The installation must performed...
  • Page 26 EN -To prevent the piece of furniture from falling over, please attach it permanently to the wall.. S36628 S36628 S31298-14 S32892-N 26/37...
  • Page 27 S3-S34611 633674 633674 27/37...
  • Page 28 633674 S33652 633674 S30157 28/37...
  • Page 29 S3-S34611 633675 29/37...
  • Page 30 633675 S33652 S30157 30/37...
  • Page 31 82035L 82035P S39449 S70969 82338T S70969 31/37...
  • Page 32 S39450 82338T 82035L 82035P S30211 74806 32/37...
  • Page 33 74806 90866 a = b S34676-15 S30158 33/37...
  • Page 34 S30142 5 kg 74806 S30157 S33652 34/37...
  • Page 35 S30337-23 42102 15 kg 35/37...
  • Page 36 - EN- GUIDELINES FOR FURNITURE CARE Please follow the below specified remarks in order to properly take care of your furniture: A clean dry soft fabric must be used for cleaning. If the furniture requires thorough cleaning, then you can slightly moistened it with water or cleaning agent designed for furniture cleaning, and subsequently the cleaned elements must be wiped until they’re dry.
