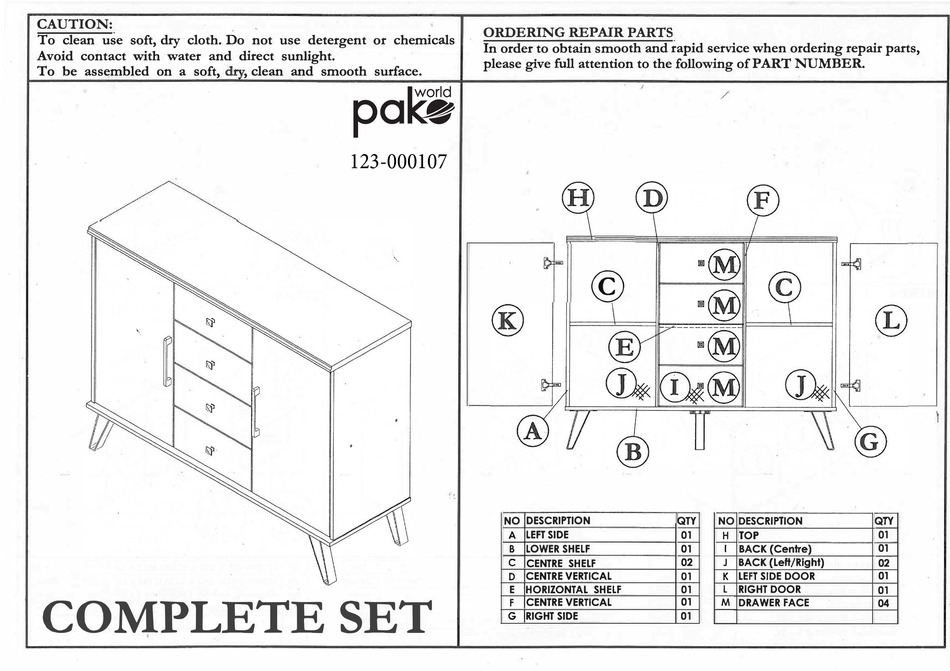

CAUTION:
To clean use soft, dry cloth. Do not use detergent or chemicals
Avoid contact with water and direct sunlight.
To be assembled on a soft,
COMPLETE SET
.
, clean and smooth surface.
123-000107
ORDERING REPAIR PARTS
In order
to obtain sm ? oth and rapid service when ordering repair parts,
_
please give full attention to the following of PART NUMBER.
©
NO
DESCRIPTION
LEFT SIDE
A
B
LOWER SHELF
C
CENTRE SHELF
CENTRE VERTICAL
I:>
E
HORIZONTAL SHELF
F
CENTRE VERTICAL
G
RIGHT SIDE
NO
DESCRIPTION
QTY
01
H
TOP
01
I
BACK (Centre)
02
BACK (Left/Right)
J
01
K
LEFT SIDE DOOR
01
L
RIGHT DOOR
01
DRAWER FACE
M
01
QTY
01
01
02
01
01
04
