Quoizel NY8318B Assembly Instruction Sheet

Advertisement

Quick Links

6 CORPORATE PARKWAY
,
.
GOOSE CREEK SC 29445
.
.
www quoizel com
Quoizel, Inc.
6 Corporate Parkway
Goose Creek, SC
29445
Customer Service
Phone 631.273.2700
Fax
631.231.7102
www.quoizel.com
Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing
the fixture. We strongly recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool
before removal. Do not subject glass parts to any shock while in operation or shattering may result.

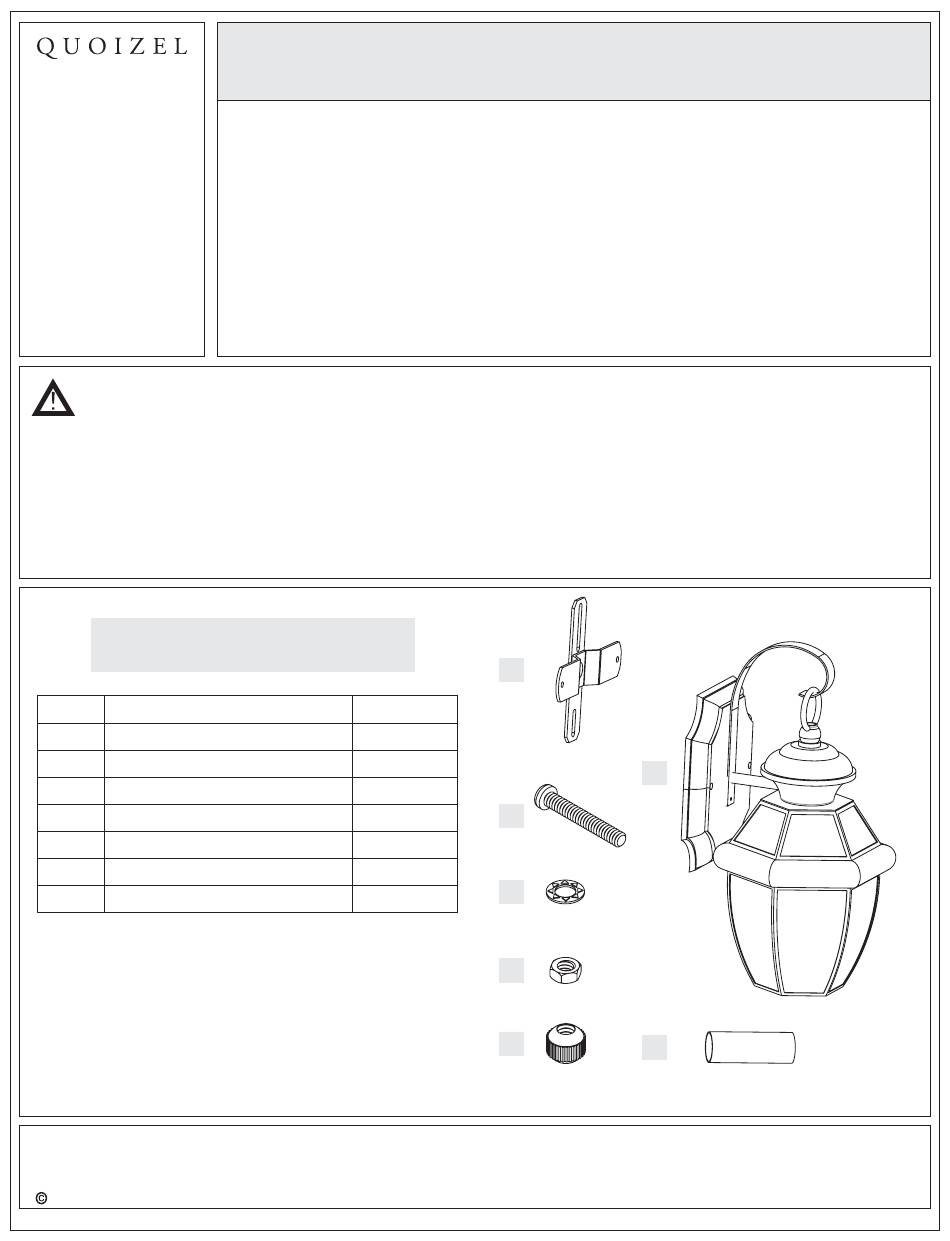

Package Contents
Part
Description
A
Crossbar
Mounting Screw
B
C
Lock Washer
D
Hex Nut
E
Mounting Ball
F
Fixture Body
Candle Cover
G
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2012 QuoizelInc.
Assembly Instruction Sheet #IS-NY8318B
Tools Required: Flathead screwdriver, Phillips screwdriver, pliers, wire cutters, wire
strippers, electrical tape, safety glasses.
Bulb Recommended: (3)
Estimated Assembly Time: 20-30 minutes
Preparation: Identify and inspect all parts before beginning installation. Check package
content list and diagrams below to be sure all parts are present. If any parts are missing
or damaged, do not attempt to assemble, install, or operate the fixture. Contact customer
service for replacement parts.
Quantity
1 pc.
2 pcs.
2 pcs.
2 pcs.
2 pcs.
1 pc.
3 pcs.
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
For Style NY8318B
Candelabra Base
60W Maximum
A
B
C
D
E
1of6
F
G
March2012

Advertisement

loading
Need help?

Need help?

Do you have a question about the NY8318B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Quoizel NY8318B

  • Page 1 2 pcs. Mounting Ball 1 pc. Fixture Body Candle Cover 3 pcs. Thank you for purchasing a Quoizel product. Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700 or visit us on-line at www.quoizel.com 2012 QuoizelInc. March2012 1of6...
  • Page 2 NY8318B FINISH: POLISHED BRASS 22.5” 15.5” 11” 11.5” (3) 60W Candelabra base bulbs NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/2" (not Supplied) PART NUMBER REPLACEMENT PART DESCRIPTION REQ. M2238CCB CANDLE COVER POLISHED BRASS 3.125"H 9450KIT MOUNTING HARDWARE POLISHED BRASS 4"D...
  • Page 3 Mounting Holes on the Outlet Box. Tighten until snug. Outlet Box Outlet Box Figure 2 Screw Thank you for purchasing a Quoizel product. Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700 or visit us on-line at www.quoizel.com 2012 QuoizelInc. March2012 3of6...
  • Page 4 Mounting Screws (B) and secure with Mounting Balls (E). Hand tighten until snug. Mounting Screw Mounting Ball Thank you for purchasing a Quoizel product. Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700 or visit us on-line at www.quoizel.com 2012 QuoizelInc. March2012 4of6...
  • Page 5 (E) and then install them onto the mounting screws (B). Wipe off excess caulk. Thank you for purchasing a Quoizel product. Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700 or visit us on-line at www.quoizel.com 2012 QuoizelInc.
  • Page 6 Your fixture is now assembled and ready to use. Enjoy! Exterior Wall Surface Thank you for purchasing a Quoizel product. Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700 or visit us on-line at www.quoizel.com 2012 QuoizelInc. March2012...
