Quoizel NY8316P Assembly Instruction Sheet

6 CORPORATE PARKWAY
, .
GOOSE CREEK SC 29445
. .
www quoizel com
Quoizel, Inc.
6 Corporate Parkway
Goose Creek, SC
29445
Customer Service
Phone 631.273.2700
Fax 631.231.7102
www.quoizel.com
Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing
the fixture. We strongly recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool
before removal. Do not subject glass parts to any shock while in operation or shattering may result.
Package Contents
Part Description
A Crossbar
Mounting Screw
B
C Lock Washer
D Hex Nut
E Mounting Ball
F Fixture Body
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2013 QuoizelInc.
Assembly Instruction Sheet #IS-NY8316P
Tools Required: Flathead screwdriver, Phillips screwdriver, pliers, wire cutters, wire
strippers, electrical tape, safety glasses.
Bulb Recommended: (1) Medium Base 150W Maximum
Estimated Assembly Time: 20-30 minutes
Preparation: Identify and inspect all parts before beginning installation. Check package
content list and diagrams below to be sure all parts are present. If any parts are missing
or damaged, do not attempt to assemble, install, or operate the fixture. Contact customer
service for replacement parts.
Quantity
1 pc.
2 pcs.
2 pcs.
2 pcs.
2 pcs.
1 pc.
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com

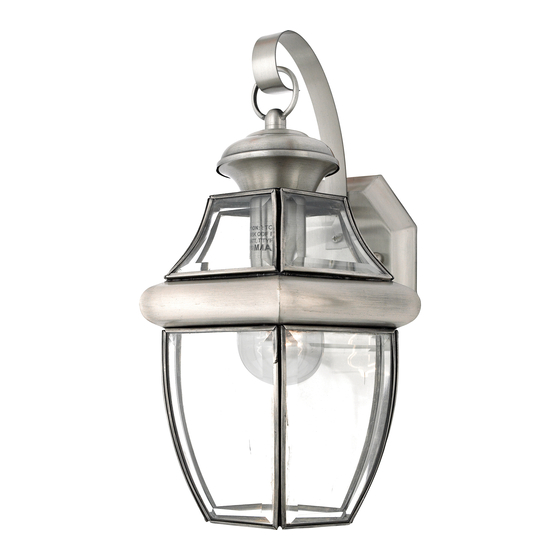

For Style NY8316P
A
B
C
D
E
1of5
F
November2013
