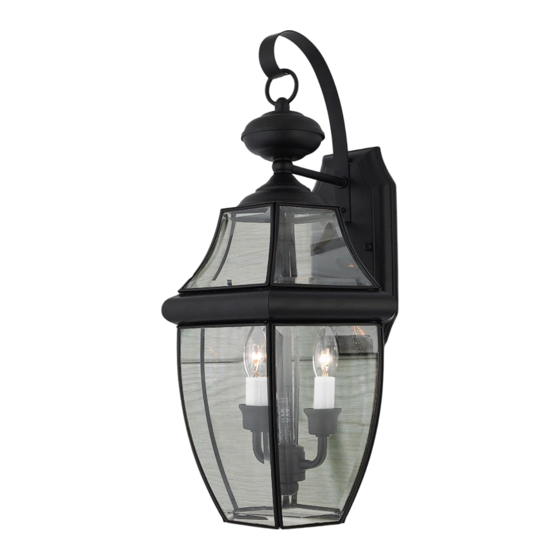

Quoizel NY8317K Assembly Instruction Sheet

6 CORPORATE PARKWAY
, .
GOOSE CREEK SC 29445
. .
www quoizel com
Please go to www.quoizel.com
Tools Required: Flathead screwdriver, Phillips screwdriver, pliers, wire cutters, wire strippers, electrical tape, safety
glasses.
Light Source: (2) Candelabra Base 60W Maximum
Estimated Assembly Time:
Preparation: Identify and inspect all parts before beginning installation. Check package content list and diagrams
below to be sure all parts are present. If any parts are missing or damaged, do not attempt to assemble, install, or
operate the fixture. Contact customer service for replacement parts.
Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing
the fixture. We strongly recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool
before removal. Do not subject glass parts to any shock while in operation or shattering may result.
Package Contents
Part Description
A Crossbar
Mounting Screw
B
C Lock Washer
D Hex Nut
Mounting Ball
E
F Fixture Body
Alternate Mounting Screw
G
Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184
2016 QuoizelInc.
Assembly Instruction Sheet #IS-NY8317K
for product cleaning tips. Go to the
20-30 minutes
Quantity
1 pc.
2 pcs.
2 pcs.
2 pcs.
2 pcs.
1 pc.
2 pcs.
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
For Style NY8317K
