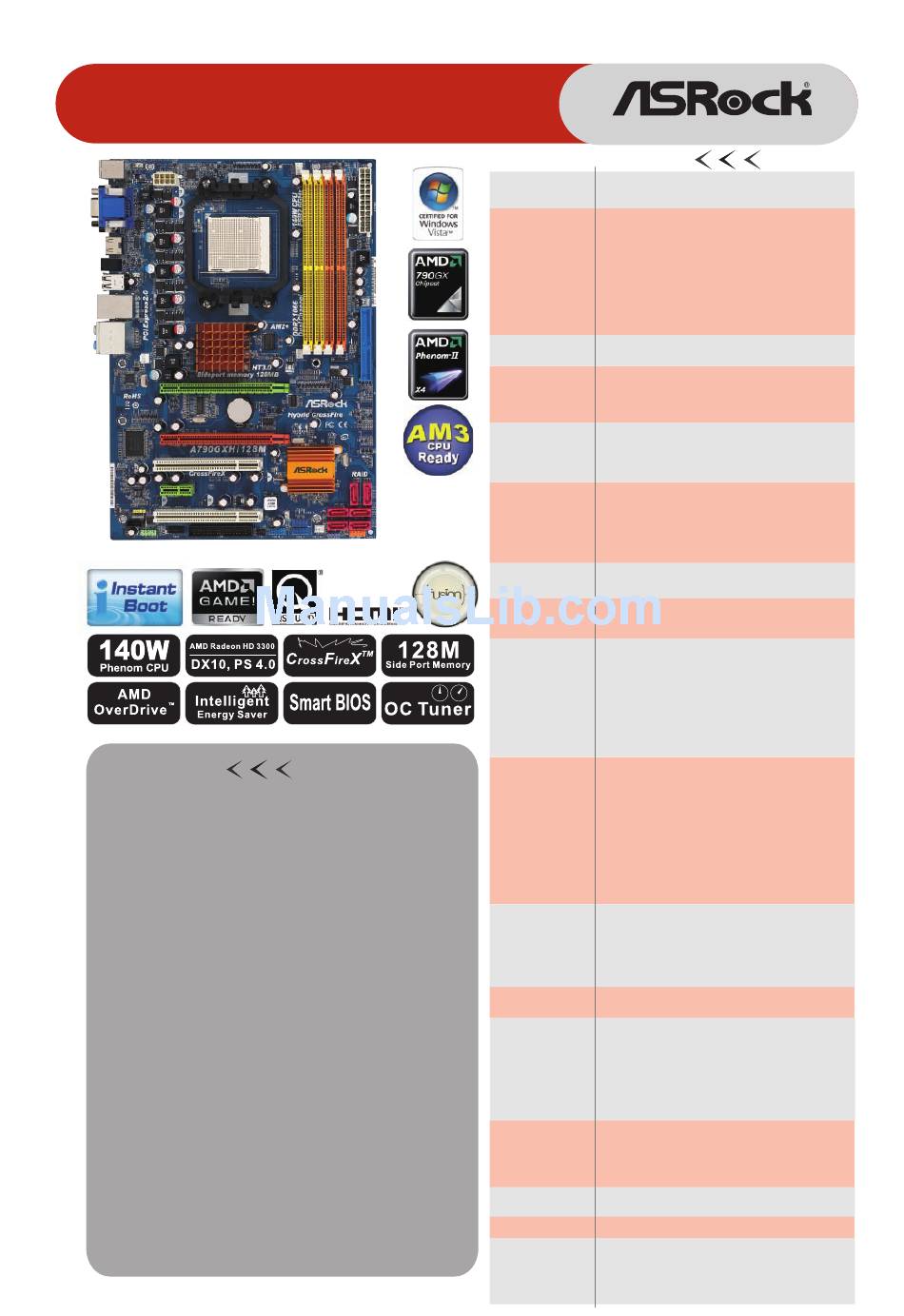

ASROCK A790GXH/128M Brochure

A790GXH/128M
AMD 790GX + SB750 Chipsets
Product Brief
- AM3 CPU Ready
- Supports CPU up to 140W
- Integrated AMD Radeon HD 3300 graphics,
DX10 class iGPU, Pixel Shader 4.0, Max.
shared memory 512MB
- Supports ATI TM CrossFireX
CrossFireX TM
- Integrated 128MB side port memory for iGPU
- Three VGA Output options: D-Sub, DVI-D and
HDMI
- Supports ASRock Instant Boot, Smart BIOS,
OC Tuner, Intelligent Energy Saver
The specification is subject to change without notice. The brand and product names are trademarks of their
respective companies. Any configuration other than original product specification is not guaranteed.
Platform
CPU
Chipset
Memory
Expansion Slot
Graphics
Audio
LAN
Rear Panel I/O
Connector
BIOS Feature
TM and Hybrid
Support CD
Unique Feature
Hardware Monitor
OS
Certifications
Accessories
www.as rock.com
Detail Specification
- ATX Form Factor: 12.0-in x 8.4-in, 30.5 cm x 21.3 cm
- Solid Capacitor for CPU power
- Support for Socket AM2+ / AM2 processors: AMD Phenom
FX / Phenom / Athlon 64 FX / Athlon 64 X2 Dual-Core / Athlon
X2 Dual-Core / Athlon 64 / Sempron processor
- AM3 CPU Ready
- Supports CPU up to 140W
- Supports AMD OverDrive™ with ACC feature (Advanced
Clock Calibration)
TM
- AMD LIVE! Ready
- Supports AMD's Cool 'n' Quiet Technology
- FSB 2600 MHz (5.2 GT/s)
- Supports Untied Overclocking Technology
- Supports Hyper-Transport 3.0 (HT 3.0) Technology
- Northbridge: AMD 790GX
- Southbridge: AMD SB750
- Dual Channel DDR2 memory technology
- 4 x DDR2 DIMM slots
- Supports DDR2 1066/800/667/533 non-ECC,
un-buffered memory
- Max. capacity of system memory: 16GB
- 2 x PCI Express 2.0 x16 slots (green @ x16 mode, orange @
x4 mode)
- 1 x PCI Express 2.0 x1 slot
- 2 x PCI slots
- Supports ATI TM CrossFireX
- Integrated AMD Radeon HD 3300 graphics
- DX10 class iGPU, Pixel Shader 4.0
- Max. shared memory 512MB
- Integrated 128MB side port memory for iGPU
- Three VGA Output options: D-Sub, DVI-D and HDMI
- Supports HDCP function
- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback
- 7.1 CH Windows
VT1708S Audio Codec)
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111DL
- Supports Wake-On-LAN
I/O Panel
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x VGA/D-Sub Port
- 1 x VGA/DVI-D Port
- 1 x HDMI Port
- 1 x Optical SPDIF Out Port
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass /
Line in / Front Speaker / Microphone
- 6 x Serial ATAII 3.0 Gb/s connectors, support RAID (RAID 0,
RAID 1, RAID 5, RAID 10 and JBOD), NCQ, AHCI and "Hot
Plug" functions
- 1 x ATA133 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x IR header
- 1 x COM port header
- 1 x HDMI_SPDIF header
- CPU/Chassis/NB/Power FAN connector
- 24 pin ATX power connector
- 8 pin 12V power connector
- CD in header
- Front panel audio connector
- 3 x USB 2.0 headers (support 6 USB 2.0 ports)
- 8Mb AMI BIOS
- AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- CPU, DRAM, NB Voltage Multi-adjustment
- Supports Smart BIOS
- Drivers, Utilities, AntiVirus Software (Trial Version), AMD
OverDrive TM Utility, AMD Live! Explorer, AMD Fusion
- ASRock OC Tuner
- Intelligent Energy Saver
- Instant Boot
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- ASRock AM2 Boost: ASRock Patented Technology to
boost memory performance up to 12.5%
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU/Chassis/NB/Power Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, Vcore
- Microsoft ® Windows
Vista TM / Vista TM
- FCC, CE, WHQL
- Quick Installation Guide, Support CD, I/O Shield
- Floppy/ATA 133 cables
- 2 x SATA data cables (optional)
- 1 x SATA 1 to 1 power cable (optional)
TM and Hybrid CrossFireX TM
® Vista™ Premium Level HD Audio (VIA ®
® XP / XP Media Center / XP 64-bit /
