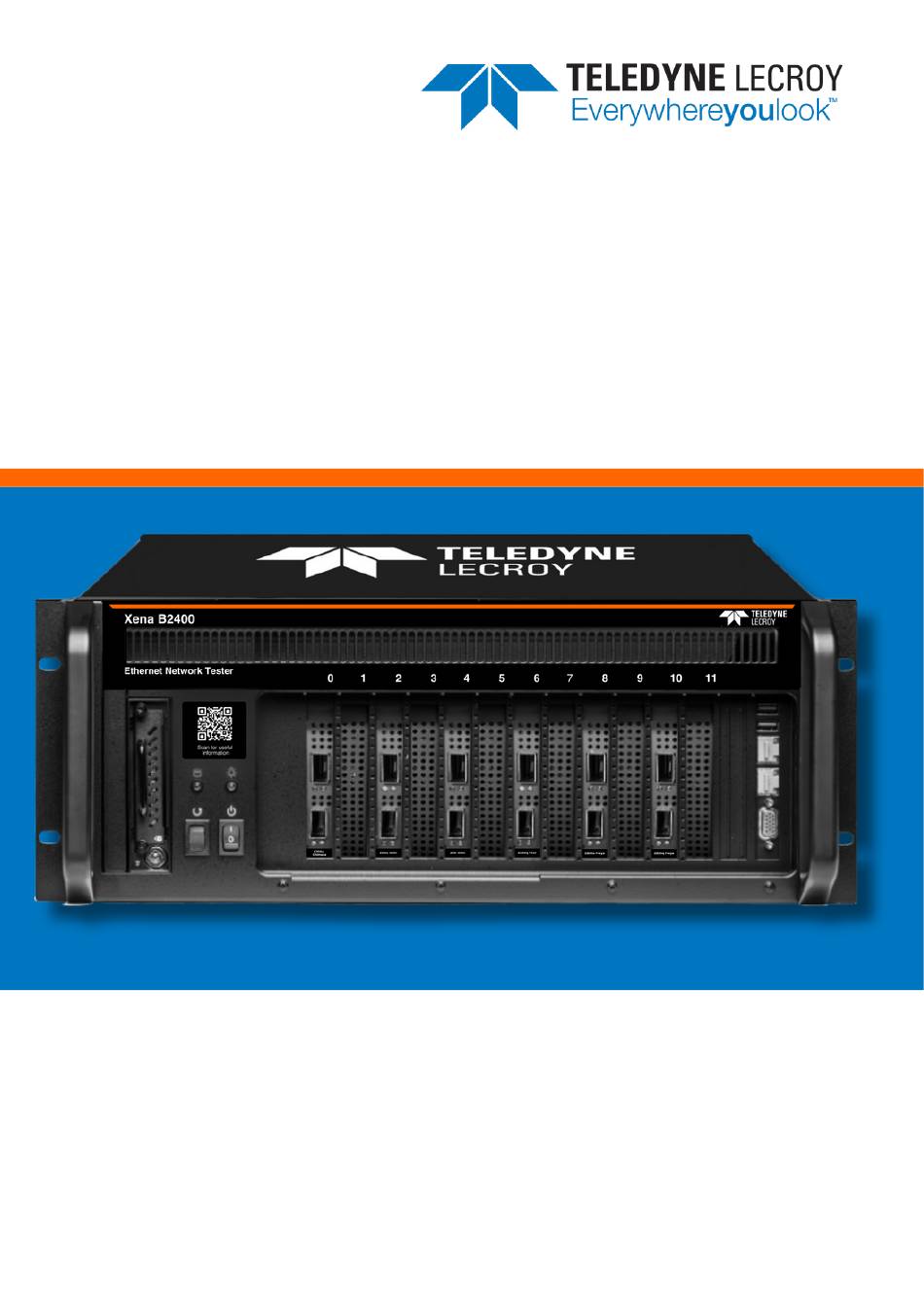

- Page 1 Xena B2400 Module Installation Guide © Teledyne LeCroy Xena – March 2024 Version 5.2...
- Page 2 YOUR XENA B2400 Chassis IP: Chassis Address: Chassis Port Number: Module Slot 0: Module Slot 1: Module Slot 2: Module Slot 3: Module Slot 4: Module Slot 5: Module Slot 6: Module Slot 7: Module Slot 8: Module Slot 9:...
-
Page 3: Specifications

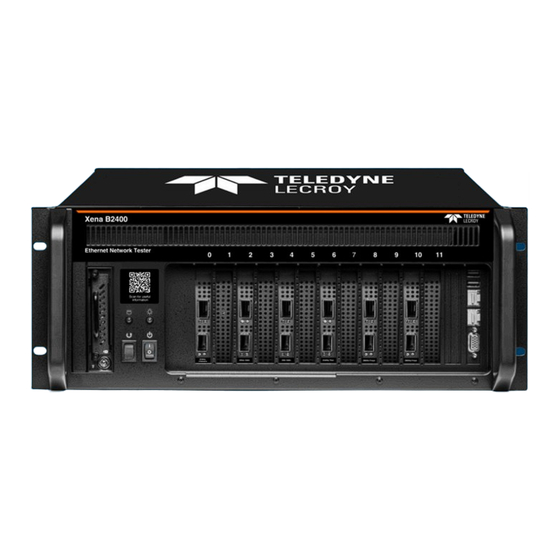

Specifications The Xena B2400 is a 12-slot, 4U heavy-duty steel rack mount chassis designed to operate reliably in a standard IT environment. This guide describes the installation of modules in: Dimensions (DxWxH): 483 x 177 x 447mm (19" x 7" x 17.6") Weight: 17.8 kg (39 lbs) without test modules... -
Page 4: Quick Overview
(Z400 Thor and Z800 Freya modules): power plug on the left. Preferably install your high-speed modules - with the corresponding blind board - in slot 2, 5, 8 and 11. © Teledyne LeCroy Xena – March 2024 Version 5.2 Page 4... - Page 5 Remove the top cover by unscrewing the two finger screws at the back of the chassis. STEP 2: Unscrew the restraining bar. STEP 3: Remove the air flow cover by unscrewing the two finger screws on top and sliding it backwards till it releases. © Teledyne LeCroy Xena – March 2024 Version 5.2 Page 5...
- Page 6 2 slots. You also need to reserve a slot to install the blind board on the heat 12V splitter cable included with the chassis: sink side of the module. © Teledyne LeCroy Xena – March 2024 Version 5.2 Page 6...
- Page 7 SLOT 2 SLOT 6 SLOT 8 Z400 THOR BLIND BOARD Z400 THOR BLIND BOARD SLOT 9 SLOT 3 SLOT 11 SLOT 5 Z400 THOR Z400 THOR BLIND BOARD BLIND BOARD © Teledyne LeCroy Xena – March 2024 Version 5.2 Page 7...
- Page 8 Mount the alignment bar by mounting the two finger screws. The alignment bar fixes the modules in place. Please ensure the top of the module goes into the appropriate slot in the alignment bar. © Teledyne LeCroy Xena – March 2024 Version 5.2 Page 8...
- Page 9 Position the restraining bar in place and screw the restraining bar tightly in place. If sideways adjustments of the modules are necessary, we recommend doing it from right to left (Port 11 to Port 0). © Teledyne LeCroy Xena – March 2024 Version 5.2 Page 9...
- Page 10 To minimize the risk of damage, remove Z800 Freya, Z400 Thor, Z100 Loki and E100 Chimera test modules before shipping. Failure to do so can void your warranty. Guidelines for shipping Xena Bay NEED NEW PICTURE NEED NEW PICTURE © Teledyne LeCroy Xena – March 2024 Version 5.2 Page 10...
- Page 12 ALWAYS REMOVE LONG TEST MODULES BEFORE SHIPPING To minimize the risk of damage, remove Z800 Freya, Z400 Thor, Z100 Loki and E100 Chimera test modules before shipping. Failure to do so can void your warranty. https://xenanetworks.com Version 5.2 © Teledyne LeCroy Xena – March 2024...
