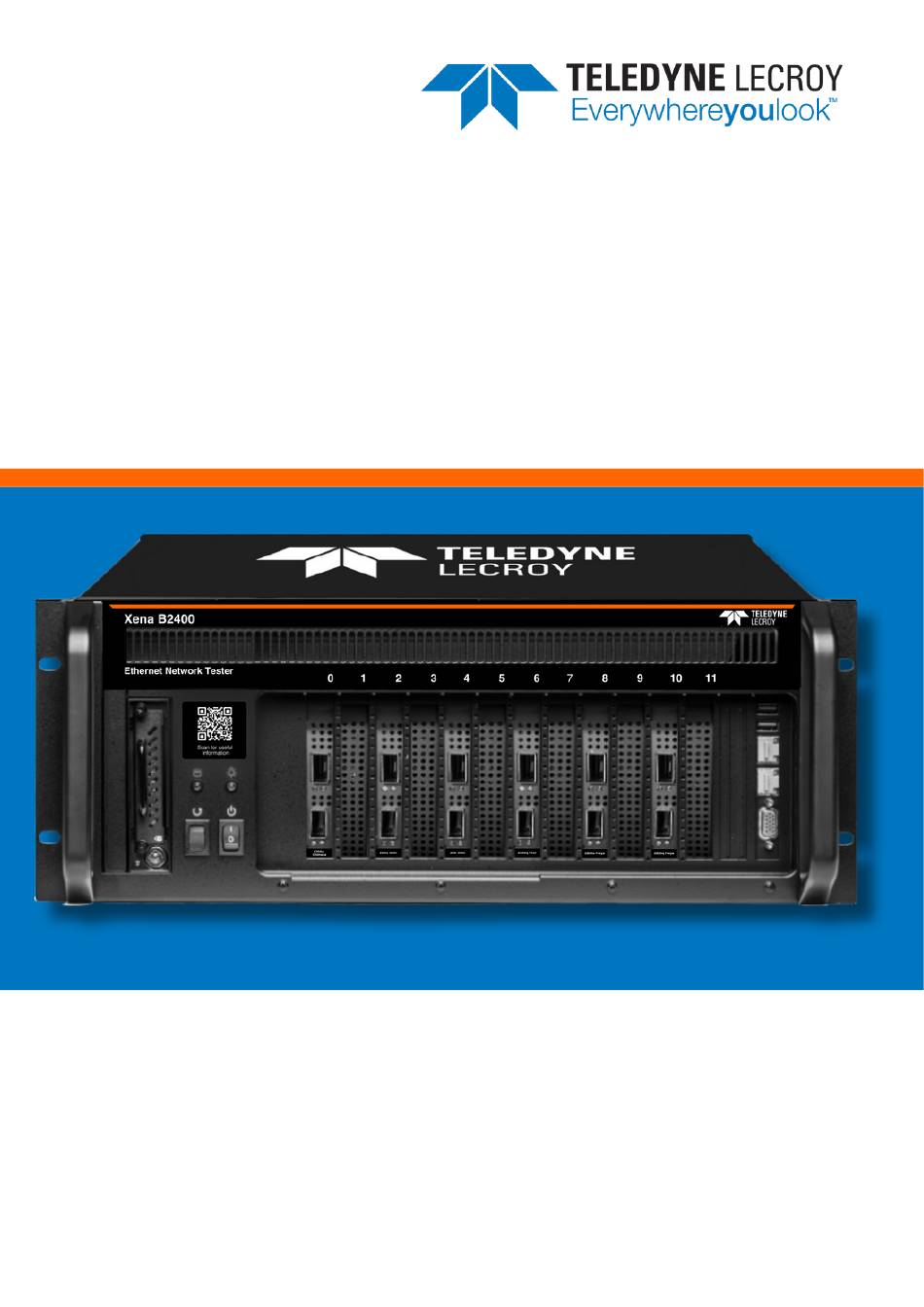

Xena B2400
Module Installation Guide
Version 5.4
© Teledyne LeCroy Xena – September 2024

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Xena B2400 and is the answer not in the manual?

Questions and answers

Summary of Contents for Teledyne Lecroy Xena B2400

  • Page 1 Xena B2400 Module Installation Guide Version 5.4 © Teledyne LeCroy Xena – September 2024...
  • Page 2 Module Slot 2: Module Slot 3: Module Slot 4: Module Slot 5: Module Slot 6: Module Slot 7: Module Slot 8: Module Slot 9: Module Slot 10: Module Slot 11: Notes: © Teledyne LeCroy Xena – September 2024 Version 5.4...
  • Page 3: Specifications

    Specifications The Xena B2400 is a 12-slot, 4U heavy-duty steel rack mount chassis designed to operate reliably in a standard IT environment. HW SPECIFICATIONS Form Factor Standard 4U, 19” wide Dimensions 483 x 187 x 495mm (19" x 7" x 19.5")
  • Page 4: Quick Overview

    E100 2. Then insert the Chimera, Z100 Loki, Z400 Thor and Z800 Freya modules as power plug on the left. described in Step 6. © Teledyne LeCroy Xena – September 2024 Version 5.4 Page 4...
  • Page 5 Remove the top cover by unscrewing the two finger screws at the back of the chassis. STEP 2: Unscrew the restraining bar. STEP 3: Remove the air flow cover by unscrewing the two finger screws on top and sliding it backwards till it releases. © Teledyne LeCroy Xena – September 2024 Version 5.4 Page 5...
  • Page 6 Please note that Z800 Freya and Z400 Thor modules occupy 2 slots. You also need to reserve a slot to install the blind board on the heat sink side of 12V splitter cable included with the chassis: the module. © Teledyne LeCroy Xena – September 2024 Version 5.4 Page 6...
  • Page 7 The picture below shows a configuration with 4 high-speed modules installed: SLOT 0 SLOT 2 SLOT 6 SLOT 8 Z400 THOR AIR-GUIDE Z400 THOR AIR-GUIDE SLOT 9 SLOT 3 SLOT 11 SLOT 5 Z400 THOR Z400 THOR AIR-GUIDE AIR-GUIDE © Teledyne LeCroy Xena – September 2024 Version 5.4 Page 7...
  • Page 8 Z100 LOKI or BLIND PLATE E100 Chimera E100 Chimera E100 Chimera STEP 7: If needed (see list on page 4), connect 12 V power cable, using the 12V cable provided. © Teledyne LeCroy Xena – September 2024 Version 5.4 Page 7...
  • Page 9 Please ensure the top of the module goes into the appropriate slot in the alignment bar. STEP 9: Remount the air flow cover by sliding it forward into place and securing the two finger screws on top. © Teledyne LeCroy Xena – September 2024 Version 5.4 Page 8...
  • Page 10 Ethernet Network Tester E100q Z01sx Odin Z10r Odin Z400q Thor Z800o Freya Z800q Freya Chimera Fasten it with the two finger screws. Do not operate the chassis without the top lid. © Teledyne LeCroy Xena – September 2024 Version 5.4 Page 9...
  • Page 11 Packing guide of Z100 Loki, E100 Chimera, Z400 Thor and Z800 Freya modules (Always place the module in an antistatic bag - not shown here for better illustration): © Teledyne LeCroy Xena – September 2024 Version 5.4 Page 10...
  • Page 12 ALWAYS REMOVE LONG TEST MODULES BEFORE SHIPPING To minimize the risk of damage, remove Z800 Freya, Z400 Thor, Z100 Loki and E100 Chimera test modules before shipping. Failure to do so can void your warranty. www.xenanetworks.com Version 5.4 © Teledyne LeCroy Xena – September 2024...
