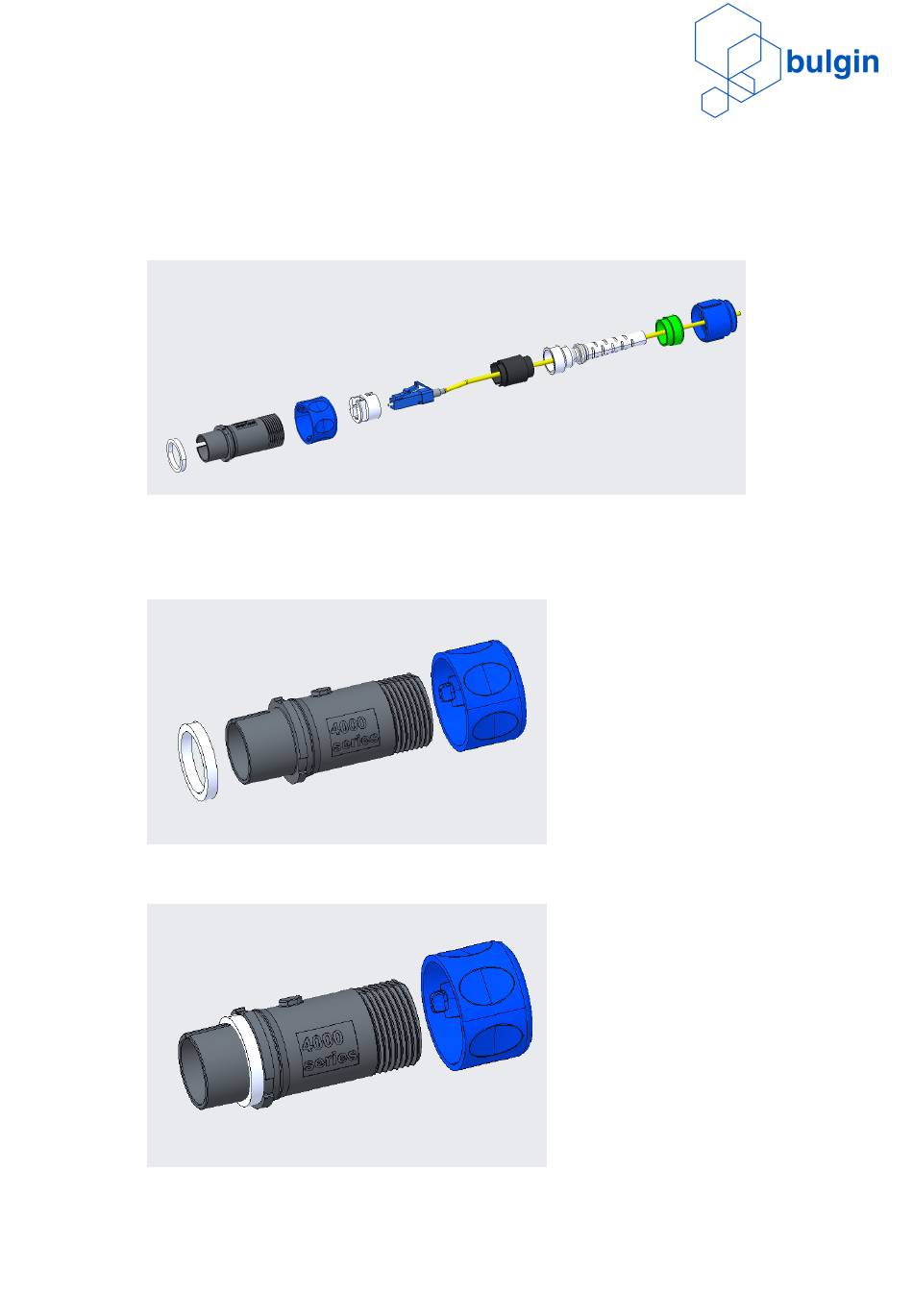

- Page 1 4000 Series Fibre Connector PXF4050 Assembly Instruc9ons. 1. Exploded view of connector. 2. Assemble Coupling Seal and Coupling Ring to Flex Body.
- Page 2 4000 Series Fibre Connector PXF4050 Assembly Instruc9ons. 3. Assemble Sealing Ring to Gland.
- Page 3 4000 Series Fibre Connector PXF4050 Assembly Instruc9ons. 4. Before terminaDng LC connectors assemble Cable Nut, Sealing Gland and Sleeve on to cable onto cable in order and orientaDon shown. 5. Strip cable and fit LC connector (LC connector to have no strain relief boot). LC connector to be fiMed in line with manufactures instrucDons. 6. Clip LC into Flex Retainer as shown below.
- Page 4 4000 Series Fibre Connector PXF4050 Assembly Instruc9ons. 7. Slide Sleeve and Gland assembly along cable and link together behind Flex Retainer as shown below. 8. Fit Cable Nut and Dghten to a torque of 0.5Nm Ensuring cable and body do not rotate when Dghtening nut.
- Page 5 4000 Series Fibre Connector PXF4050 Assembly Instruc9ons. 9. Finished assembly. SecDon through finished assembly, showing posiDon of components.
