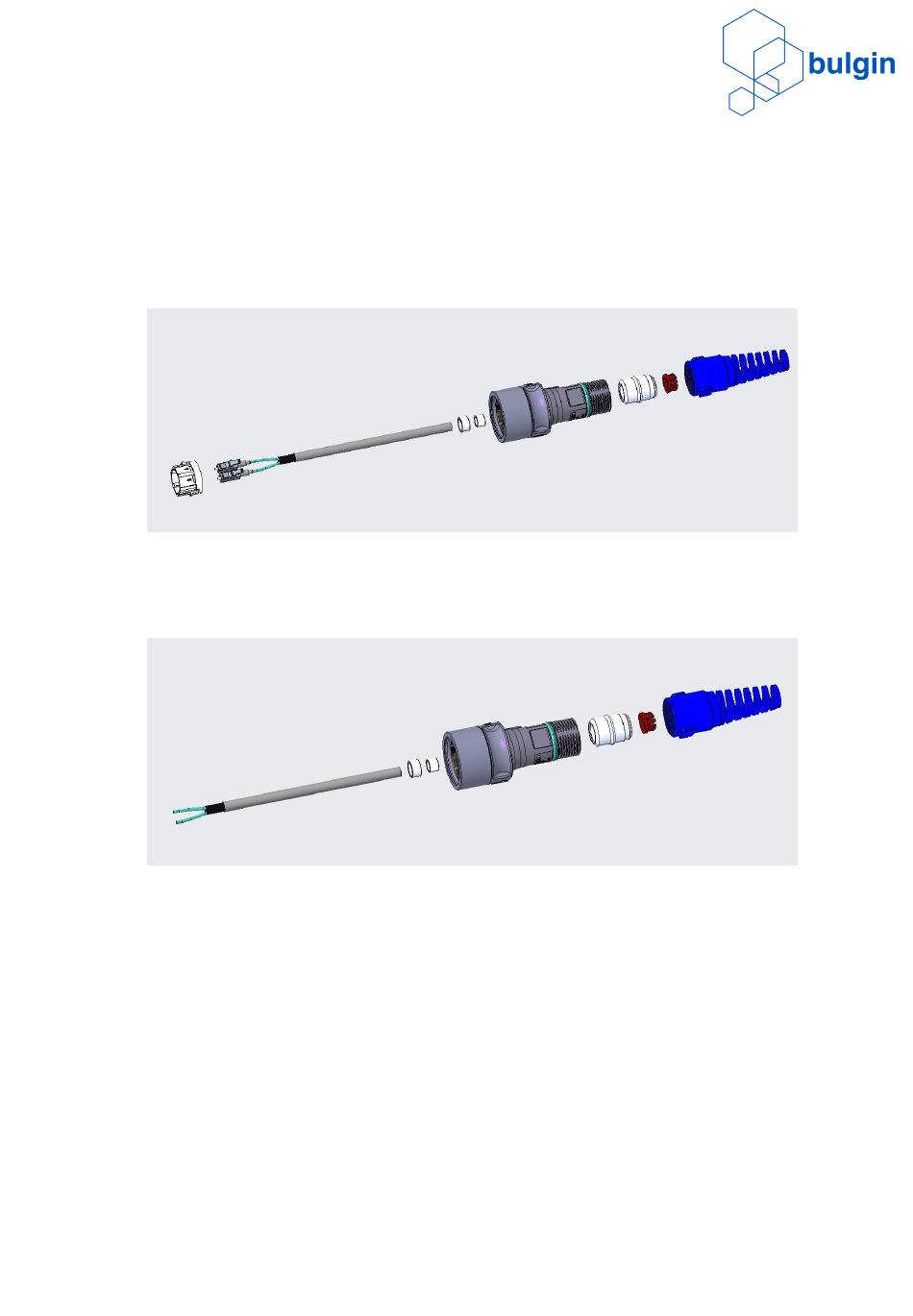

- Page 1 6000 Series Fibre Connector PXF6050 Assembly Instruc9ons. 1. Exploded view of finished connector. 2. Before termina9ng LC connectors assemble connector parts onto cable in order shown.
- Page 2 6000 Series Fibre Connector PXF6050 Assembly Instruc9ons. 3. Strip cable and fit LC connectors (short form connectors no strain relief boot). LC connectors to be fiMed in line with manufactures instruc9ons. Length between cable outer jacket and ceramic 9p of LCs to be 49.0mm ±1.0mm. Leave aramid strength member long and trim later, this will aid crimping. 4. Slide crimp rings along cable un9l inner ring level with stripped end of outer jacket.
- Page 3 6000 Series Fibre Connector PXF6050 Assembly Instruc9ons. 5. Slide outer crimp back over inner crimp and cable strength member ensuring aramid fibre is wrapped 9ghtly around cable jacket end and inner crimp. 6. Secure crimps in place using hexagonal crimp tool with an across flats dimension of 8.25mm.
- Page 4 6000 Series Fibre Connector PXF6050 Assembly Instruc9ons. 7. Trim aramid fibre to within 5mm of crimp rings. 8. Clip LC’s into duplex retainer. Note LC’s are to be fiMed into retainer together to avoid damage to fibre if fiMed one at a 9me.
- Page 5 6000 Series Fibre Connector PXF6050 Assembly Instruc9ons. 9. Assemble duplex retainer into body. 10. Slide Back Seal along cable over crimp and into body. NOTE! For two part seal see appendix A.
- Page 6 6000 Series Fibre Connector PXF6050 Assembly Instruc9ons. 11. Slide Cage along cable up to rear of seal. 12. Fit Fibre Nut. Ensuring cable and body do not rotate when 9ghtening nut. Screw nut home un9l it reaches the dead stop. Then 9ghten to a torque of 1.1Nm.
- Page 7 6000 Series Fibre Connector PXF6050 Assembly Instruc9ons. 13. Distance between body and nut when complete. 14. Finished assembly.
- Page 8 6000 Series Fibre Connector PXF6050 Assembly Instruc9ons. Appendix A Two part seal. Some models are fiMed with a two part seal please see below.
