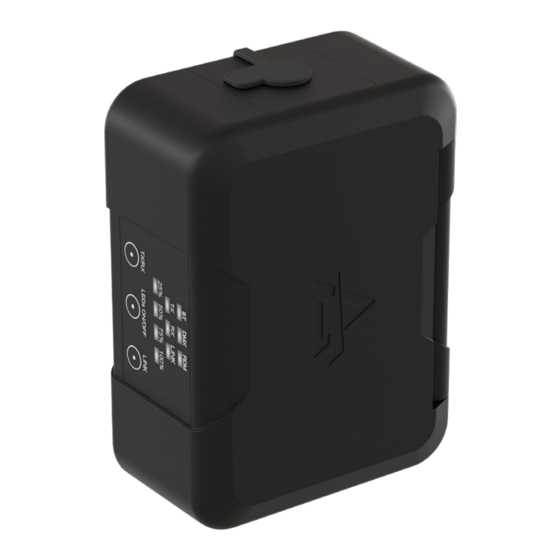

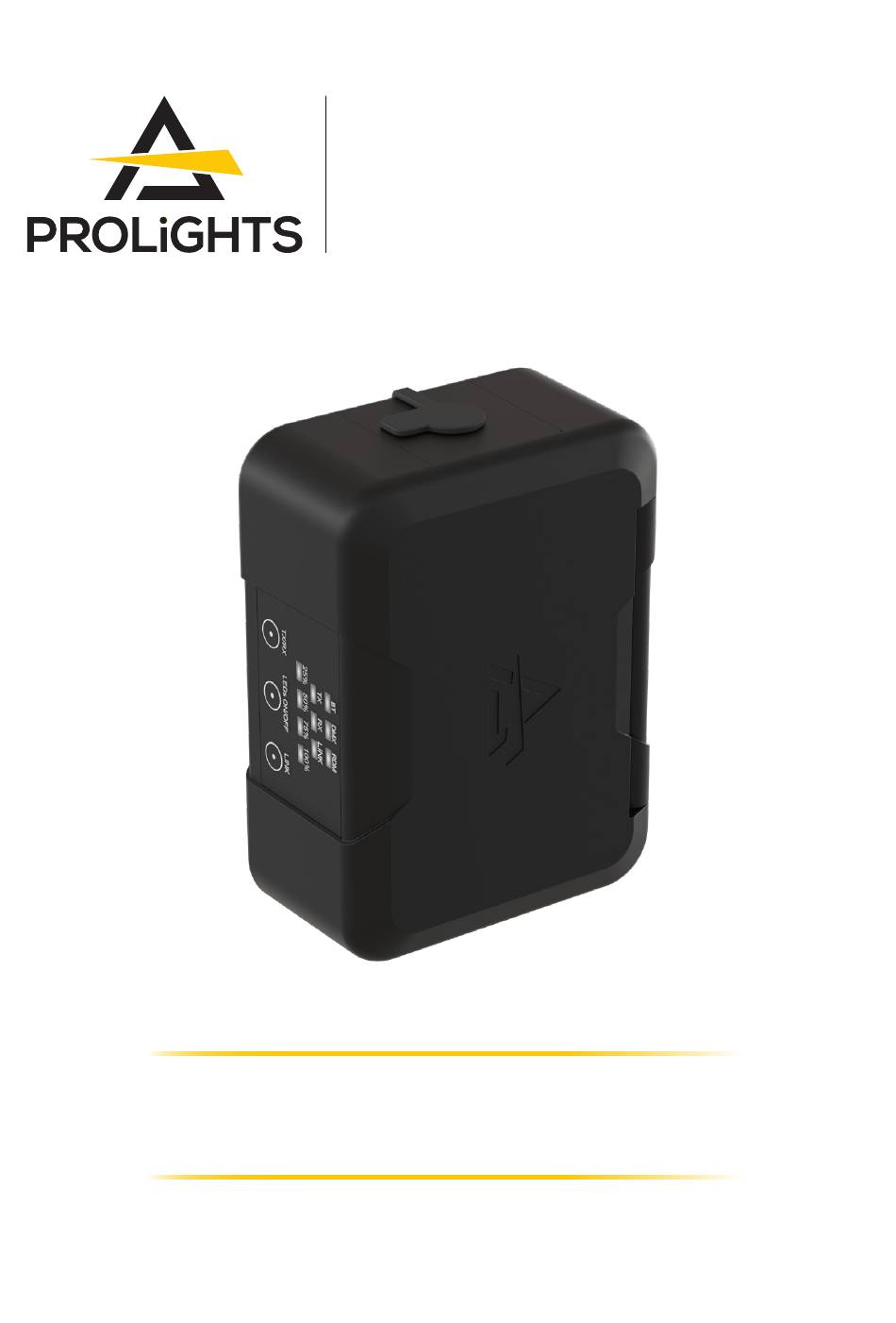

- Page 1 ÆtherBox LITE 1 Universe CRMX Wireless Transceiver USER MANUAL English version Rev. 01 - 04/24...
- Page 2 PROLIGHTS product are trademarks OWNED or licensed by Music & Lights S.r.l., its affiliates, and subsidiaries. PROLIGHTS is a registered trademark by Music & Lights S.r.l. All right reserved. Music & Lights – Via A. Olivetti, snc - 04026 - Minturno (LT) ITALY.
- Page 3 BUTTONS LAYOUT ......................07 7 - USE 8 - RDM FUNCTIONS 9 - ACCESSORIES INSTALLATION TRACK ADAPTER (CODE ECLFRCTPSKPOYO) ............. 11 10 - MAINTENANCE MAINTENANCE THE PRODUCT ..................12 VISUAL CHECK OF PRODUCT HOUSING ..............12 TROUBLESHOOTING ..................... 12 PROLIGHTS - ÆtherBoxLITE...
-
Page 4: Safety Information
• Do not reapply power until repairs have been completed. • Refer any service operation not described in this manual to PROLIGHTS Service team or an authorized PROLIGHTS service center. - Page 5 • Warning! Before starting any maintenance work or cleaning of the unit, disconnect the fixture from AC mains power and allow to cool for at least 10 minutes before handling. • Only technicians who are authorized by PROLIGHTS or Authorised service partners are permitted to open the fixture.
-
Page 6: Package Content
• 1 x AETHERBOXLITE • User Manual OPTIONAL ACCESSORIES Check the updated accessories list, description and informations of the product at the following link: https://www.prolights.it/product/AETHERBOXLITE#accessories 2 - TECHNICAL DRAWING 140 mm 63 mm [5.5 in] [2.5 in] Fig. 01 PROLIGHTS - ÆtherBoxLITE... -
Page 7: Product Overview
6. BOTTOM COVER: allows the access to track adapter connections; 7. TRACK ADAPTER PLATE: allows an easy access to install the track adapter accessory; 8. RUBBER COVER: cover for the track adapter hole when not used. Fig 02 PROLIGHTS - ÆtherBoxLITE... -
Page 8: Connection To The Mains Supply
• Connect the power connector into the Mains input socket (100-240 VAC-50/60 Hz). • The product is then ready for its operations and can be controlled through the available input sig- nals on board. • To disconnect power from the product, disconnect the Mains from the socket. PROLIGHTS - ÆtherBoxLITE... -
Page 9: Control Panel Overview
The product has a display and buttons for access to the control panel functions: • To select Transmitter or Receiver mode. TX/RX LEDs • Push to power ON/OFF the LEDs. ON/OFF • To reset connections or link fixtures. LINK Fig. 04 PROLIGHTS - ÆtherBoxLITE... - Page 10 (3s) The status LEDs will be ON/OFF Status LEDs ON/OFF Short press (0.1s - 1s) LED ON/OFF Button Hold TX/RX + LINK Buttons at the same To reset all factory settings Factory reset time while connecting Mains PROLIGHTS - ÆtherBoxLITE...
-
Page 11: Rdm Functions
0x0050 PARAMETER_DESCRIPTION 0x0051 DEVICE_MODEL_DESCRIPTION 0x0080 Product MANUFACTURER_LABEL 0x0081 Information DEVICE_LABEL 0x0082 FACTORY_DEFAULTS 0x0090 SOFTWARE_VERSION_LABEL 0X00C0 DMX_PERSONALITY 0x00E0 DMX512 Setup DMX_PERSONALITY_DESCRIPTION 0x00E1 DMX_START_ADDRESS 0x00F0 SENSOR_DEFINITION 0x0200 Sensors SENSOR_VALUE 0x0201 DEVICE_HOURS 0x0400 Power/Lamp Settings DEVICE_POWER_CYCLES 0x0405 Control IDENTIFY_MODE 0x1040 PROLIGHTS - ÆtherBoxLITE... - Page 12 0x8316 1: On 0: No identify IDENTIFY 0x8317 1: RDM identify active 0: 20 1: 16 TX RF OUTPUT POWER 0x8318 2: 11 3: 5 dBm 0: Disable LED STATUS 0x833D 1: Enable LINK QUALITY 0x831A 0-255 PROLIGHTS - ÆtherBoxLITE...
-
Page 13: Accessories Installation
Assemble the track adapter as shown in figure (3), then connect the screw terminal blocks as shown in figure (4). NOTE: AETHERBOXLITE is designed to be connected to both power input at the same time, to avoid any risk it is recommended not connecting two power supplies at the same time. Fig. 5 PROLIGHTS - ÆtherBoxLITE... -
Page 14: Maintenance The Product
WARNING: the use of alcohol or any other detergent could damage the lenses. • All other service operations on the product must be carried out by PROLIGHTS, its approved service agents or trained and qualified personnel. - Page 15 Note...
- Page 16 Note...
- Page 17 Note...
- Page 18 Note...
- Page 20 PROLIGHTS is a trademark of prolights.it Via A.Olivetti snc MUSIC & LIGHTS S.r.l. support@prolights.it 04026 - Minturno (LT) ITALY musiclights.it Tel: +39 0771 72190...
