Avtech SATURN700RGB User Manual

700w led tilt moving strobe
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SATURN700RGB
700W LED tilt moving strobe
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SATURN700RGB and is the answer not in the manual?

Questions and answers

Related Manuals for Avtech SATURN700RGB

Summary of Contents for Avtech SATURN700RGB

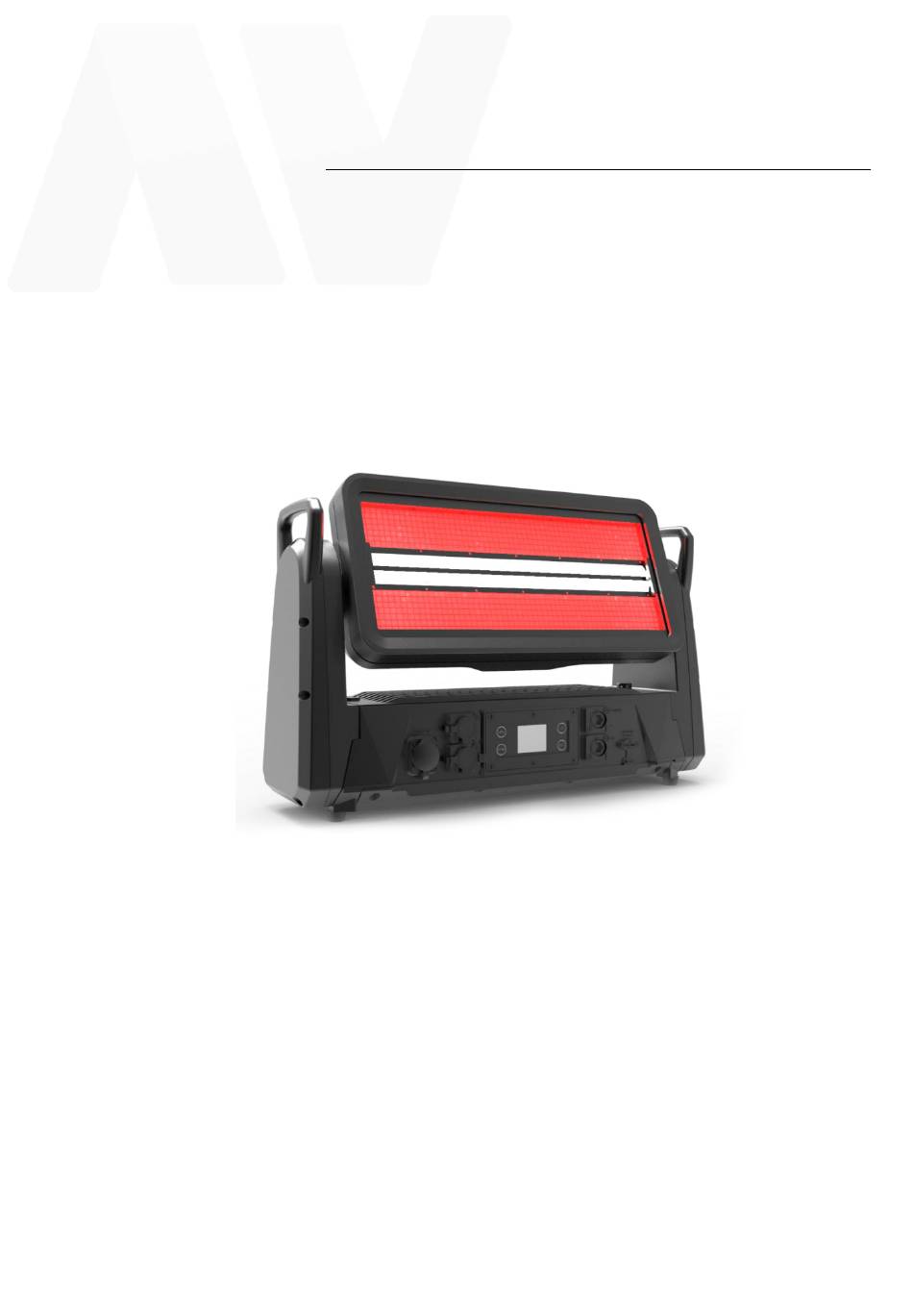

  • Page 1 SATURN700RGB 700W LED tilt moving strobe USER MANUAL...

  • Page 2: Table Of Contents

    Content 1 Safety warning instructions ------------------------------------------------------------------------------------01 2 Dimensions --------------------------------------------------------------------------------------------------------02 3 Control Panel --------------------------------------------------------------------------------------------------------03 4 Technical data--------------------------------------------------------------------------------------------------------04 5 Menu ------------------------------------------------------------------------------------------------------------------05 6 Installation -------------------------------------------------------------------------------------------- ---------------07 6.1 Installation ----------------------------------------------------------------------------------------- --- ------07 6.2 Power connection ------------------------------------------------------------------------ ----- ----- ------09 6.3 Signal connection ---------------------------------------------------------------------------------- --------10 6.4 DMX Channel List ------------------------------------------------------------------------------------ ---------12 7 Troubleshooting -----------------------------------------------------------------------------------------------------26 Before using this lamp, please read this manual thoroughly...

  • Page 3: Safety Warning Instructions

    1.Safety instructions After receiving the lights, please open to check whether there is any damages caused by transportation. In case of damages caused of transportation, please don’t this device and contact your dealer or manufacturer as soon as possible. he projector is for indoor and outdoor use, IP65. Do not install the fixtures onto inflammable surfaces directly.

  • Page 4: Dimensions

    Dimensions...

  • Page 5: Control Panel

    3.control Panel Panel operation buttons：mode、UP、Down、Enter 2. power input：IP65 POWER CON cable Input voltage： 100-240V 50/60HZ 3.Power Output：IP65 POWER CON power cable Output voltage： 100-240V 50/60HZ 4.ART-NET input：Connect network input 5. DMX input：3-core DMX waterproof signal line input 6.DMX output：3-core DMX waterproof signal line output 7.ART-NET output：Connect network output The specific operations of the panel functions are as follows: Display panel function description...

  • Page 6: Technical Data

    4.Lighting parameter 4.1Technical Data Sheet Optical parameters light source 1.56W white 392pcs 2835 lamp beams,1W RGB3 in1 784pc 5050 lamp beads color temperature 2800K-8000K Optical output of the R:5480 Lm；G：11760 lm；B：1560 lm；W：45000 lm；ALL：63880 lm whole machine Illumination ALL:/ Lux；R：/ Lux；G：/ Lux；B：/ Lux；W：/ Lux； @5m Color rendering Ra≥90 index...
  • Page 7 control control method Art-net/DMX512/RDM DMX Channel 8/11/13/24/30/74/97CH Display refresh rate 600Hz/1200 Hz/2000 Hz/4000 Hz/6000 Hz/25KHz pixel matrix white light 2*14，rgb 2*7 Accessories Standard Standard power cord 1PC; manual 1PC Optional 5 menu function Main Level Programming Levels DMX512 Protocol Art-Net sACN 1–512* Address...
  • Page 8 Plate FX 8 Plate FX 9 Foreground Color Beam 000-255 Intensity Beam Flash 000-255 Duration Beam Flash 000-255 Rate Tilt 000-255 Tilt Offset 000-255 Tilt Invert Plate1 Invert Plate2 Invert Pixel Invert Tube1 Invert Tube2 Invert Plate Swap LED Array Swap Beam Swap Master...
  • Page 9 600Hz 1200Hz 2000Hz Frequency 4000Hz 6000Hz 25000Hz Auto Fan Mode Display Invert Backlight 2Min Always On Key Lock 0–255 (ArtNet) Ethernet Universe 1–255 (sACN) Setting IP Address 2.192.0.1 Fixture Hours: _ _ _Hours LED Hours: _ _H Disp Ver: V_._ _ _ _ _ _ Information Drv-Y Ver: V_._...

  • Page 10: Installation

    6. Installation and connection 6.1.1 Installation diagram 6.1.2 Precautions This product is suitable for indoor and outdoor use, and its protection level is IP65. The lamp should be kept clean and should not be used in a humid or dusty environment. It should be maintained every three months.

  • Page 11: Power Connection

    6.2 power connection This product uses Power con in/out input power cord Note: Due to the power, a 1.5 square power cord Do not connect too many lamps to a single power cord, or overload it. Do not use the power cord with damaged insulation, and do not put the power cord on other wires. When the lamp is not in use or cleaning, please unplug the power cord。...

  • Page 12: Signal Connection

    6.3 signal connection Internet connection DMX Connection...
  • Page 13 DMX connection instructions In order to reduce signal errors and avoid signal weakening and interference during transmission, a 120 ohm 1/4W resistor can be added between the 2-core and 3-core of the DMX output of the last machine. Use the XLR signal cable to connect the lamps, one end to the output port of the lamp, and the other end to the input port of the next lamp.
  • Page 14 6.4.1 channel table 97CH Channel Function Value Percent/Setting Tilt 000-255 0-100％ Fine tilt 000-255 0-100％ Master dimmer 000-255 0-100％ Plate dimmer 000-255 0-100％ Beam dimmer 000-255 0-100％ Classic shutter 000-009 mode:disables duration Plate flash duration control 010-250 Slow to fast 251-255 100％On,no flash/strobe 000-009...
  • Page 15 Plate pixel 7 green 000-255 0-100％ Plate pixel 7 blue 000-255 0-100％ Plate pixel 8 red 000-255 0-100％ Plate pixel 8 green 000-255 0-100％ Plate pixel 8 blue 000-255 0-100％ Plate pixel 9 red 000-255 0-100％ Plate pixel 9 green 000-255 0-100％...
  • Page 16 Beam pixel 21 000-255 0-100％ Beam pixel 22 000-255 0-100％ Beam pixel 23 000-255 0-100％ Beam pixel 24 000-255 0-100％ Beam pixel 25 000-255 0-100％ Beam pixel 26 000-255 0-100％ Beam pixel 27 000-255 0-100％ Beam pixel 28 000-255 0-100％ 000-005 No function 006-042...
  • Page 17 Red/Green- R:255 126-162 R:255 Red/Blue+ R:255 164-200 Magenta R:255 B:255 Red-/Blue 202-238 B:255 Blue B:255 240-247 Color index,fast to slow 248-255 Color snap,fast to slow Plate foreground 000-255 0-100％ dimmer 000-000 No function 001-002 White(2700K) 003-004 White(3200K) 005-006 White(4200K) 007-008 White(5600K) 009-010 White(8000K)
  • Page 18 Red+/Green 088-124 G:255 Yellow R:255 G:255 Red/Green- R:255 126-162 R:255 Red/Blue+ R:255 164-200 Magenta R:255 B:255 Red-/Blue 202-238 B:255 Blue B:255 240-247 Color index,fast to slow 248-255 Color snap,fast to slow Plate background 000-255 0-100％ dimmer Plate 1(pixels 1-7) 000-002 Plate FX All select(all on) FX select 003-255...
  • Page 19 FX movement speed 006-124 Left to right,fast to slow ＆ direction 125-130 No function (see Pixel Mapping) 131-249 Right to left,slow to fast 250-255 No function Plate 2(pixels 8-14) 000-002 Snap from cell to cell FX crossfade 003-255 Fade duration:short to long (see Pixel Mapping) Beam 1(pixels 1-14) 000-002...
  • Page 20 071-075 Plate 1 invert off 076-080 Plate 1 invert on 081-085 Plate 2 invert off 086-090 Plate 2 invert on 091-095 Beam 1 invert off 096-100 Beam 1 invert on 101-105 Beam 2 invert off 106-110 Beam 2 invert on 111-115 Plate swap on 116-120...
  • Page 21 Plate pixel 7 green 000-255 0-100％ Plate pixel 7 blue 000-255 0-100％ Plate pixel 8 red 000-255 0-100％ Plate pixel 8 green 000-255 0-100％ Plate pixel 8 blue 000-255 0-100％ Plate pixel 9 red 000-255 0-100％ Plate pixel 9 green 000-255 0-100％...
  • Page 22 Beam pixel 21 000-255 0-100％ Beam pixel 22 000-255 0-100％ Beam pixel 23 000-255 0-100％ Beam pixel 24 000-255 0-100％ Beam pixel 25 000-255 0-100％ Beam pixel 26 000-255 0-100％ Beam pixel 27 000-255 0-100％ Beam pixel 28 000-255 0-100％ 30CH Channel Function...
  • Page 23 001-002 White(2700K) 003-004 White(3200K) 005-006 White(4200K) 007-008 White(5600K) 009-010 White(8000K) Blue B:255 Green+/Blue 012-048 B:255 Cyan G:255 B:255 Green/Blue- 050-086 G:255 Green G:255 Red+/Green 088-124 G:255 Yellow R:255 G:255 Red/Green- R:255 126-162 R:255 Red/Blue+ R:255 164-200 Magenta R:255 B:255 Red-/Blue 202-238 B:255 Blue...
  • Page 24 240-247 Color index,fast to slow 248-255 Color snap,fast to slow Plates foreground 000-255 0-100％ dimmer 000-000 No function 001-002 White(2700K) 003-004 White(3200K) 005-006 White(4200K) 007-008 White(5600K) 009-010 White(8000K) Blue B:255 Green+/Blue 012-048 B:255 Cyan G:255 B:255 Green/Blue- 050-086 G:255 Green Plates background G:255 Red+/Green...
  • Page 25 Red-/Blue 202-238 B:255 Blue B:255 240-247 Color index,fast to slow 248-255 Color snap,fast to slow Plates background 000-255 0-100％ dimmer Plate 1(pixels 1-7) 000-002 Plate FX All select(all on) FX select 003-255 see Plate Patterns (see Pixel Mapping) 000-005 No function Plate 1(pixels 1-7) 006-124 Left to right,fast to slow...
  • Page 26 Beam 2(pixels 15-28) 000-002 Beam FX All select(all on) FX select see Beam Patterns 003-255 (see Pixel Mapping) 000-005 No function Beam 2(pixels 006-124 Left to right,fast to slow 15-28)FX movement 125-130 No function speed ＆ direction 131-249 Right to left,slow to fast (see Pixel Mapping) 250-255 No function...
  • Page 27 Master dimmer 000-255 0-100％ Plate dimmer 000-255 0-100％ Beam dimmer 000-255 0-100％ Classic shutter 000-009 mode:disables duration Plate flash duration control 010-250 Slow to fast 251-255 100％On,no flash/strobe 000-009 100% Plate flash rate 010-250 Slow to fast 251-255 100% Classic shutter 000-009 mode:disables duration control...
  • Page 28 Green/Blue- 050-086 G:255 Green G:255 Red+/Green 088-124 G:255 Yellow R:255 G:255 Red/Green- R:255 126-162 R:255 Red/Blue+ R:255 164-200 Magenta R:255 B:255 Red-/Blue 202-238 B:255 Blue B:255 240-247 Color index,fast to slow 248-255 Color snap,fast to slow Plates foreground 000-255 0-100％ dimmer 000-000 No function...
  • Page 29 Green+/Blue 012-048 B:255 Cyan G:255 B:255 Green/Blue- 050-086 G:255 Green G:255 Red+/Green 088-124 G:255 Yellow R:255 G:255 Red/Green- R:255 126-162 R:255 Red/Blue+ R:255 164-200 Magenta R:255 B:255 Red-/Blue 202-238 B:255 Blue B:255 240-247 Color index,fast to slow 248-255 Color snap,fast to slow Plates background 000-255 0-100％...
  • Page 30 FX select see Plate Patterns 003-255 (see Pixel Mapping) 000-005 No function Plates 1＆2 006-124 Left to right,fast to slow FX movement speed 125-130 No function ＆ direction 131-249 Right to left,slow to fast (see Pixel Mapping) 250-255 No function Plates 1＆2 000-002 Snap from cell to cell...
  • Page 31 111-115 Plate swap on 116-120 Plate swap off 121-125 Beam swap on 126-130 Beam swap off 131-255 No function 13CH Channel Function Value Percent/Setting Tilt 000-255 0-100％ Fine tilt 000-255 0-100％ Plate dimmer 000-255 0-100％ Beam dimmer 000-255 0-100％ Classic shutter 000-009 mode:disables duration control...
  • Page 32 026-030 600 Hz 031-035 1200 Hz 036-040 2000 Hz 041-045 4000 Hz 046-050 6000 Hz 051-055 25 KHz 056-060 Fan mode auto 060-065 Fan mode on 066-070 Tilt reset 071-075 Plate 1 invert off 076-080 Plate 1 invert on 081-085 Plate 2 invert off 086-090 Plate 2 invert on...
  • Page 33 251-255 100% Plates red 000-255 0-100％ Plates green 000-255 0-100％ Plates blue 000-255 0-100％ Beam 000-255 0-100％ Channel Function Value Percent/Setting Tilt 000-255 0-100％ Fine tilt 000-255 0-100％ Dimmer 000-255 0-100％ 000-009 Open 010-079 Strobe,slow to fast Strobe 080-149 Pulse,slow to fast 150-219 Random Strobe,slow to fast 220-255...

  • Page 34: Troubleshooting

    7 Troubleshooting Symptom cause of issue Approach 1. No AC input 1. Check the power supply line 2. The switching power supply is 2. Check whether the switching No menu displayed damaged power supply has voltage output 3. Display board failure 3.
