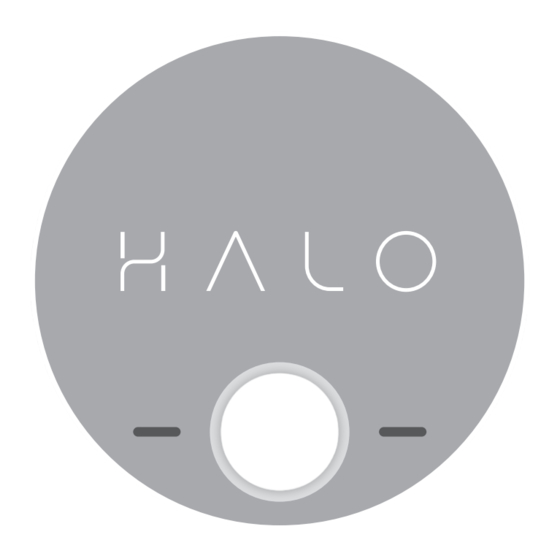

- Page 2 HALO AIR RF & WI-FI UIN: 234791 (RF), 234792 (Wi-Fi) Comprising of 234821 ( Halo Air Thermostats) & 234825 ( Halo Air interface ) and 235327 (Halo Air bracket). Internet connected* wireless Programmable Room Thermostat (PRT). Compatible with the following heat pumps : Logic Air.
-
Page 3: Getting Started
The Ideal Halo Air is a wireless PRT that is These instructions are written specifically paired with the Halo Smart Interface installed for installation of this product with an Ideal alongside the Heat Pump. The Smart Heating Logic Air Heat pump. -
Page 4: Kit Contents
A. KIT CONTENTS 3. Trim plate x2 1. Halo PRT display unit x2 2. PRT rear housing x2 HP Comms 4. Desk stand x2 5. Smart Interface 6. Smart Interface bracket 8. AA Batteries x 8 9. Screws x4 & Rawlplugs... -
Page 5: Location Guidelines
B. LOCATION GUIDELINES The Halo Air uses wireless Zigbee communication 1.2-1.5m between the control PRT and the Interface, up to a maximum range of 30 metres. Occasionally house construction and 1. Mounted 1.2-1.5m above the 2. Not above a radiator/heat... - Page 6 C. INSTALLING THE HALO PRT’S The Halo PRT’s can be either wall mounted or desk mounted. WALL MOUNTING THE HALO If there are any concerns regarding signal strength and location of the wall mounted PRT it is advisable to pair the control and check the signal strength before fixing to the wall.
- Page 7 C. INSTALLING THE HALO PRT’S (CON’T) DESK MOUNTING THE HALO 1. The Halo has an integrated rear housing and 2. Insert the 4 AA batteries provided into the desk stand. front housing of the Halo. Pay close attention that the orientation of the batteries is as indicated in the housing.
- Page 8 D. INSTALLATION OF THE SMART INTERFACE To install the Smart Interface into a new heat pump follow the steps below. The Smart Interface Bracket can be mounted straight to the wall or onto an existing single gang wall box. 1. Locate the bracket in a suitable location 2a.
- Page 9 D. INSTALLATION OF THE SMART INTERFACE (CONT.) Remove rear knock out Remove bottom knock out 4a. Rear cable mounting; From the fuse spur 4b. Surface cable mounting; From the fuse wire the spur wire the Live, Neutral and Earth into Live, Neutral and Earth connections into the left hand side connections in the Smart the left hand side connections in the Smart...
- Page 10 HALO AIR INTERFACE FLOW THERMISTOR 8. Wire the BSB connection from the bracket 9. Install the cover and screws. into the Halo Air Interface terminals making sure the polarity is correct, and cable retention is in place...
- Page 11 E. LOGIC AIR AND HALO SET-UP ideal Power HP Comms Connectivity Zigbee Override Pair Reset 1. Re establish power to both heat pump and 2. Once setup is complete the green Power smart interface bracket. The Halo Smart LED and HP Comms LED should be solid...
- Page 12 Halo Single Zone ZONE 1 Halo Multi Zone The Halo PRT controlling zone 1 will now need to be paired with the Smart Use dial to scroll and press select when complete Interface installed by the Heat Pump. Ensure the Smart Interface is still in select pairing mode with the Zigbee LED flashing red.
-
Page 13: Establishing Communication
HP Comms LED will be solid the Halo PRT will show the home screen. the Override button. The HP Comms LED GREEN will flash for up to 1 minute during which time the Halo PRT will display a CF05 information screen. - Page 14 Ideal Halo app onto the householders phone. (Available on Google Play or the Apple App Store.) 4. Open the Ideal Halo app, tap on create an account and follow the in-app instructions. 5. Once an account has been set up the app ill automatically guide the user through connection of the Halo.
- Page 15 I. HALO FEATURES AND CONFIGURATION To enter the settings menu press the menu button. Menu options Action Holiday mode allows the device to be switched off for a predefined period of time Holiday then automatically returns to the pre-programmed heating schedule.
- Page 16 Green (flashing) - Failsafe active* No illumination - Override OFF* † Only applicable for Halo Air Wi-Fi not Halo Air RF. *Override and Failsafe only active when communication is lost between the Halo PRT and Smart Interface. See Halo User Guide for more information.
- Page 17 L. ADVANCED SETTINGS HOT WATER - ZONE 1 PRT ONLY Description Factory setting New setting Timed hot water setting Disabled Emergency immersion heater M. CENTRAL HEATING TEMPERATURE SETTINGS Description Factory setting New setting Zone 1 Zone 2 Comfort 21° C Setback 18°...
-
Page 18: Commissioning Checklist
Halo home screen flashes to indicate again to exit “Identify” function. successful pairing Halo is positioned in the homeowners chosen location if desk mounted. Check RSSI (Received Signal Strength Indication) Target RSSI between 0 and -65 of the Zigbee wireless connection (accessed on and text green the PRT via Menu, Support). -
Page 19: Troubleshooting
“Deleting Halo from the Zigbee Network” instructions below. On the Halo PRT press the dial and the right hand key together until the Deleting Halo from the welcome screen is displayed. This will delete the Halo PRT from the Zigbee Zigbee Network network and factory reset the PRT. - Page 20 Hereby, Ideal Boilers Ltd declares that this device Ideal Boilers Ltd (model 234791 (RF) & 234792 (Wi-Fi)) is in compliance with: National Avenue Directive 2014/53/EU. Hull, HU5 4JB T: 01482 498660 The full text of the EU declaration of conformity is available E: enquiries@idealheating.com at the following internet address idealheating.com UIN: 235267 A03...
