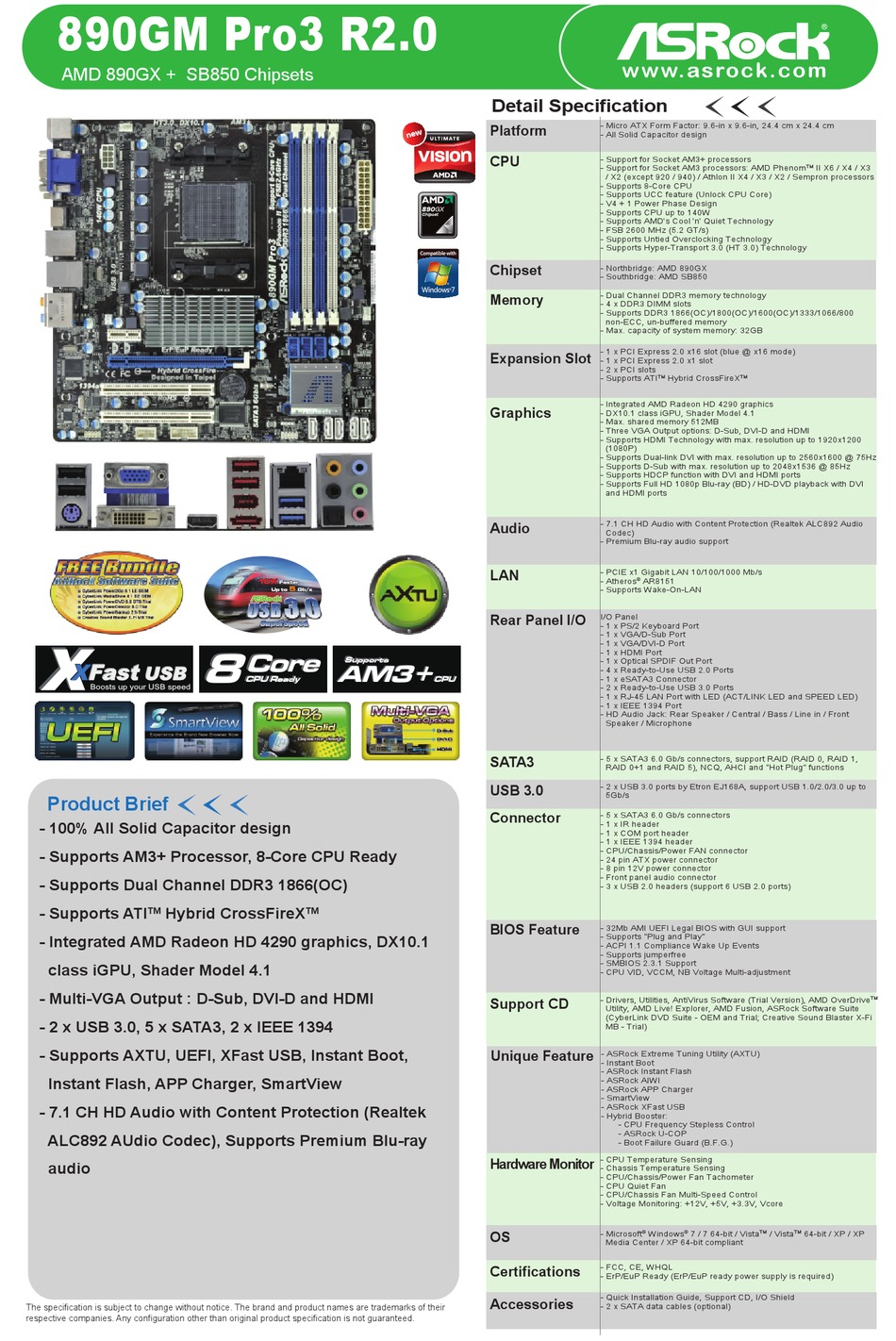

ASROCK 890GM PRO3 R2.0 Brochure & Specs

890GM Pro3 R2.0
AMD 890GX + SB850 Chipsets
Product Brief
- 100% All Solid Capacitor design
- Supports AM3+ Processor, 8-Core CPU Ready
- Supports Dual Channel DDR3 1866(OC)
- Supports ATI Hybrid CrossFireX
TM
- Integrated AMD Radeon HD 4290 graphics, DX10.1
class iGPU, Shader Model 4.1
- Multi-VGA Output : D-Sub, DVI-D and HDMI
- 2 x USB 3.0, 5 x SATA3, 2 x IEEE 1394
- Supports AXTU, UEFI, XFast USB, Instant Boot,
Instant Flash, APP Charger, SmartView
- 7.1 CH HD Audio with Content Protection (Realtek
ALC892 AUdio Codec), Supports Premium Blu-ray
audio
The specification is subject to change without notice. The brand and product names are trademarks of their
respective companies. Any configuration other than original product specification is not guaranteed.
8
8
Core
Core
Supports
Supports
AM3+
AM3+
CPU Ready
CPU Ready
TM
Detail Specification
- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
Platform
- All Solid Capacitor design
CPU
- Support for Socket AM3+ processors
- Support for Socket AM3 processors: AMD Phenom
- Supports 8-Core CPU
- Supports UCC feature (Unlock CPU Core)
- V4 + 1 Power Phase Design
- Supports CPU up to 140W
- Supports AMD's Cool 'n' Quiet Technology
- FSB 2600 MHz (5.2 GT/s)
- Supports Untied Overclocking Technology
- Supports Hyper-Transport 3.0 (HT 3.0) Technology
Chipset
- Northbridge: AMD 890GX
- Southbridge: AMD SB850
- Dual Channel DDR3 memory technology
Memory
- 4 x DDR3 DIMM slots
- Supports DDR3 1866(OC)/1800(OC)/1600(OC)/1333/1066/800
- Max. capacity of system memory: 32GB
- 1 x PCI Express 2.0 x16 slot (blue @ x16 mode)
Expansion Slot
- 1 x PCI Express 2.0 x1 slot
- 2 x PCI slots
- Supports ATI
- Integrated AMD Radeon HD 4290 graphics
Graphics
- DX10.1 class iGPU, Shader Model 4.1
- Max. shared memory 512MB
- Three VGA Output options: D-Sub, DVI-D and HDMI
- Supports HDMI Technology with max. resolution up to 1920x1200
- Supports Dual-link DVI with max. resolution up to 2560x1600 @ 75Hz
- Supports D-Sub with max. resolution up to 2048x1536 @ 85Hz
- Supports HDCP function with DVI and HDMI ports
- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI
- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio
Audio
- Premium Blu-ray audio support
LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Atheros
- Supports Wake-On-LAN
Rear Panel I/O I/O Panel
- 1 x PS/2 Keyboard Port
- 1 x VGA/D-Sub Port
- 1 x VGA/DVI-D Port
- 1 x HDMI Port
- 1 x Optical SPDIF Out Port
- 4 x Ready-to-Use USB 2.0 Ports
CPU
CPU - 1 x eSATA3 Connector
- 2 x Ready-to-Use USB 3.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- 1 x IEEE 1394 Port
- HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front
SATA3 - 5 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0, RAID 1,
- 2 x USB 3.0 ports by Etron EJ168A, support USB 1.0/2.0/3.0 up to
USB 3.0
Connector
- 5 x SATA3 6.0 Gb/s connectors
- 1 x IR header
- 1 x COM port header
- 1 x IEEE 1394 header
- CPU/Chassis/Power FAN connector
- 24 pin ATX power connector
- 8 pin 12V power connector
- Front panel audio connector
- 3 x USB 2.0 headers (support 6 USB 2.0 ports)
BIOS Feature
- 32Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- CPU VID, VCCM, NB Voltage Multi-adjustment
- Drivers, Utilities, AntiVirus Software (Trial Version), AMD OverDrive
Support CD
Unique Feature
- ASRock Extreme Tuning Utility (AXTU)
- Instant Boot
- ASRock Instant Flash
- ASRock AIWI
- ASRock APP Charger
- SmartView
- ASRock XFast USB
- Hybrid Booster:
- CPU Temperature Sensing
Hardware Monitor
- Chassis Temperature Sensing
- CPU/Chassis/Power Fan Tachometer
- CPU Quiet Fan
- CPU/Chassis Fan Multi-Speed Control
- Voltage Monitoring: +12V, +5V, +3.3V, Vcore
OS
- Microsoft
- FCC, CE, WHQL
Certifications
- ErP/EuP Ready (ErP/EuP ready power supply is required)
- Quick Installation Guide, Support CD, I/O Shield
Accessories
- 2 x SATA data cables (optional)
