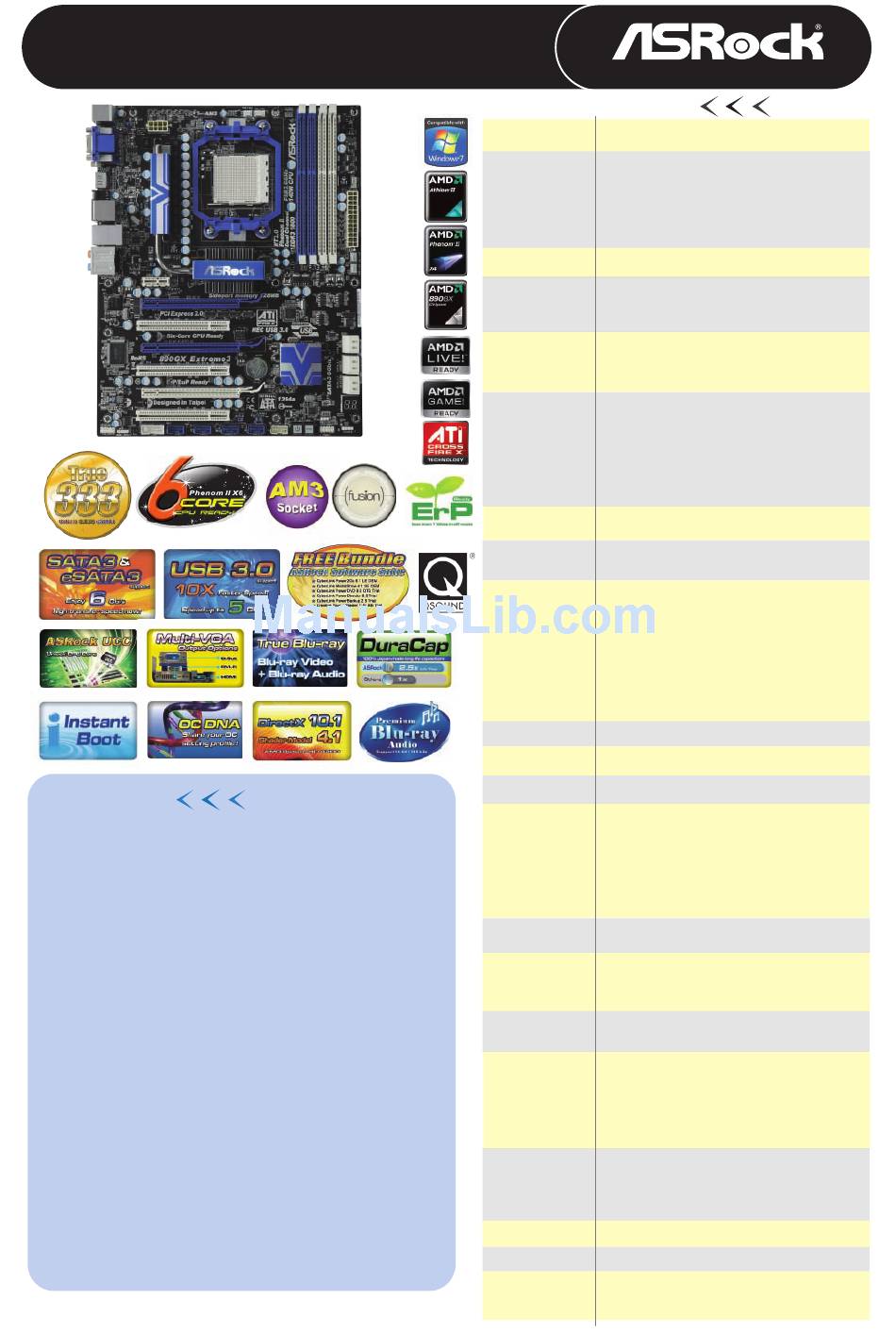

ASROCK 890GX EXTREME3 Specifications

890GX Extreme3
AMD 890GX + SB850 Chipsets
Product Brief
- Supports Exclusive ASRock UCC Chip - Unlock CPU
Core feature
- Six-Core CPU Ready
- ASRock DuraCap (2.5 x longer life time), 100%
Japan-made high-quality Conductive Polymer
Capacitors
- Advanced V8 + 2 Power Phase Design, supports
CPU up to 140W
- Supports Dual Channel DDR3 1800(OC)
- Supports ATI™ Quad CrossFireX™, 3-Way
CrossFireX™, CrossFireX™ and Hybrid CrossFireX™
- Integrated AMD Radeon HD 4290 graphics, DX10.1
Class iGPU, Shader Model 4.1, Max. shared memory
512MB
- Built-in 128MB DDR3 1333/1200MHz SidePort Memory
- Multi VGA Output options: D-Sub, DVI-D and HDMI
- 1 x eSATAIII Connector, 6 x SATA3 6.0 Gb/s connector,
2 x USB 3.0 Ports, 2 x IEEE1394 Ports
- ErP/EuP Ready, Dr. Debug
- Smart Swith Design : Power / Reset / Clear CMOS
Switch with LED
- Supports ASRock Instant Boot, Instant Flash,
OC DNA OC Tuner, IES, Multi-Speed Fan Control
- 7.1 CH HD Audio (VT2020 Audio Codec with QSound),
110dB & Premium Blu-ray audio support
- Free Bundle: CyberLink DVD Suite - OEM and Trial;
Creative Sound Blaster X-Fi MB - Trial
The specification is subject to change without notice. The brand and product names are trademarks of their
respective companies. Any configuration other than original product specification is not guaranteed.
ww w.a s ro ck. c o m
Detail Specification
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
Platform
- All Solid Capacitor design (100% Japan-made high-quality
Conductive Polymer Capacitors)
CPU
- Support for Socket AM3 processors: AMD Phenom
(except 920 / 940) / Athlon II X4 / X3 / X2 / Sempron processors
- Six-Core CPU Ready
- Supports UCC feature (Unlock CPU Core)
- Advanced V8 + 2 Power Phase Design
- Supports CPU up to 140W
- Supports AMD's Cool 'n' Quiet Technology
- FSB 2600 MHz (5.2 GT/s)
- Supports Untied Overclocking Technology
- Supports Hyper-Transport 3.0 (HT 3.0) Technology
Chipset
- Northbridge: AMD 890GX
- Southbridge: AMD SB850
- Dual Channel DDR3 memory technology
Memory
- 4 x DDR3 DIMM slots
- Supports DDR3 1800(OC)/1600(OC)/1333/1066/800 non-ECC,
un-buffered memory
- Max. capacity of system memory: 16GB
- 3 x PCI Express 2.0 x16 slots (blue: single at x16 or dual at x8/x8
Expansion Slot
mode; white: x4 mode)
- 1 x PCI Express 2.0 x1 slot
- 3 x PCI slots
- Supports ATI
TM
CrossFireX and Hybrid CrossFireX
TM
- Integrated AMD Radeon HD 4290 graphics
Graphics
- DX10.1 class iGPU, Shader Model 4.1
- Max. shared memory 512MB
- Built-in 128MB DDR3 1333/1200MHz SidePort Memory
- Multi VGA Output options: D-Sub, DVI-D and HDMI
- Supports HDMI Technology with max. resolution up to 1920x1200
(1080P)
- Supports Dual-link DVI with max. resolution up to 2560x1600 @ 75Hz
- Supports D-Sub with max. resolution up to 2048x1536 @ 85Hz
- Supports HDCP function with DVI and HDMI ports
- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI
and HDMI ports
Audio - 7.1 CH HD Audio with Content Protection
- DAC with 110dB dynamic range (VIA
- Premium Blu-ray audio support
LAN
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111E
- Supports Wake-On-LAN
- Supports LAN Cable Detection
Rear Panel I/O
I/O Panel
- 1 x PS/2 Keyboard Port
- 1 x VGA/D-Sub Port
- 1 x VGA/DVI-D Port
- 1 x HDMI Port
- 1 x Optical SPDIF Out Port
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x eSATA2 Connector
- 1 x eSATA3 Connector through the Bundled eSATA3 Bracket
- 2 x Ready-to-Use USB 3.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- 1 x IEEE 1394 Port
- 1 x Clear CMOS Switch with LED
- HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front
Speaker / Microphone
USB 3.0 - 2 x USB 3.0 ports by NEC MPD720200, support USB 1.0/2.0/3.0
up to 5Gb/s
SATA3
- 6 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0, RAID 1,
RAID 0+1 and RAID 5), NCQ, AHCI and "Hot Plug" functions
eSATA3 - 1 x eSATA3 6.0 Gb/s connector through the bundled eSATA3
bracket, supports NCQ, AHCI and "Hot Plug" functions
Connector
- 6 x SATA3 6.0 Gb/s connectors
- 1 x IR header
- 1 x COM port header
- 1 x IEEE 1394 header
- 1 x HDMI_SPDIF header
- 1 x Power LED header
- CPU/Chassis/Power FAN connector
- 24 pin ATX power connector
- 8 pin 12V power connector
- Front panel audio connector
- 4 x USB 2.0 headers (support 8 USB 2.0 ports)
- 1 x Dr. Debug (7-Segment Debug LED)
- 1 x Power Switch with LED
Smart Switch
- 1 x Reset Switch with LED
- 1 x Clear CMOS Switch with LED
BIOS Feature
- 8Mb AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- CPU, VCCM, NB, SB Voltage Multi-adjustment
Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), AMD OverDrive
Utility, AMD Live! Explorer, AMD Fusion, ASRock Software Suite
(CyberLink DVD Suite - OEM and Trial; Creative Sound Blaster X-Fi
MB - Trial)
Unique Feature
- ASRock OC Tuner
- Intelligent Energy Saver
- Instant Boot
- ASRock Instant Flash
- ASRock OC DNA
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- Turbo 25 / Turbo 30 Technology
Hardware Monitor - CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU/Chassis/Power Fan Tachometer
- CPU Quiet Fan
- CPU/Chassis Fan Multi-Speed Control
- Voltage Monitoring: +12V, +5V, +3.3V, Vcore
OS
- Microsoft Windows
®
Media Center / XP 64-bit compliant
Certifications - FCC, CE, WHQL
- ErP/EuP Ready (ErP/EuP ready power supply is required)
- Quick Installation Guide, Support CD, I/O Shield
Accessories
- 4 x SATA data cables (optional)
- 1 x SATA 1 to 1 power cable (optional)
- 1 x eSATA3 bracket (optional)
II X4 / X3 / X2
TM
Quad CrossFireX , 3-Way CrossFireX ,
TM TM
TM
VT2020 Audio Codec)
®
7 / 7 64-bit / Vista / Vista 64-bit / XP / XP
® TM TM
TM
