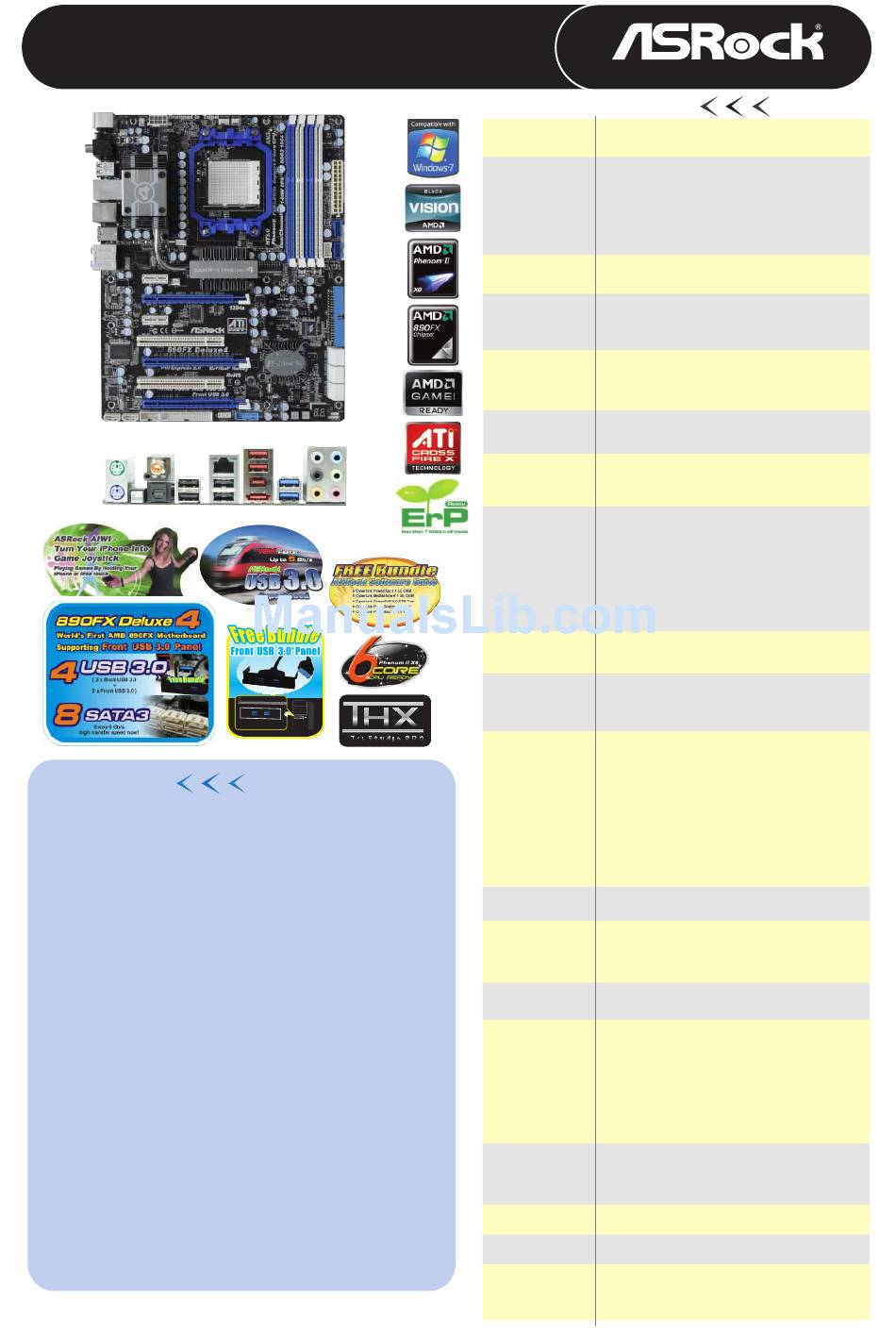

ASROCK 890FX DELUXE4 Specifications

890FX Deluxe4
AMD 890FX + SB850 Chipsets
Product Brief
- World's First AMD 890FX Motherboard
Supporting Front USB3.0
- ASRock DuraCap (2.5 longer life time),
100% Japan-made high-quality Conductive
Polymer Capacitors
- Phenom II X6 6-Core CPU Ready
- Supports ASRock Turbo UCC
- Supports ASRock UCC - Unlock CPU Core
- Supports Dual Channel DDR3 1866(OC)
- Supports ATI Quad CrossFireX
TM
3-Way CrossFireX
- 2 x Front USB 3.0 ports, 2 x Rear USB 3.0 ports,
8 x SATA3 connectors, 2 x IEEE1394 ports
- Dr. Debug, Smart Swith Design: Power/Reset/
Clear CMOS Switch with LED
- Supports ASRock Instant Boot, Instant Flash,
OC Tuner, IES, OC DNA, Good Night LED,
Multi-Speed Fan Control, AIWI, APP Charger
- 7.1 CH HD Audio with Content Protection
(Realtek ALC892 Audio Codec),
THX TruStudio PRO
audio support
- Free Software : CyberLink DVD Suite - OEM and
Trial
- ErP/EuP Ready
The specification is subject to change without notice. The brand and product names are trademarks of their
respective companies. Any configuration other than original product specification is not guaranteed.
,
TM
and CrossFireX
TM TM
and Premium Blu-ray
TM
ww w.a s ro ck. c o m
Detail Specification
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
Platform
- All Solid Capacitor design (100% Japan-made high-quality
Conductive Polymer Capacitors)
CPU
- Support for Socket AM3 processors: AMD Phenom
X2 (except 920 / 940) / Athlon II X4 / X3 / X2 / Sempron processors
- Six-Core CPU Ready
- Supports UCC feature (Unlock CPU Core)
- Advanced V8 + 2 Power Phase Design
- Supports CPU up to 140W
- Supports AMD's Cool 'n' Quiet Technology
- FSB 2600 MHz (5.2 GT/s)
- Supports Untied Overclocking Technology
- Supports Hyper-Transport 3.0 (HT 3.0) Technology
Chipset
- Northbridge: AMD 890FX
- Southbridge: AMD SB850
- AMD Vision Black
Memory - Dual Channel DDR3 memory technology
- 4 x DDR3 DIMM slots
- Supports DDR3 1866(OC)/1800(OC)/1600(OC)/1333/1066/800
non-ECC, un-buffered memory
- Max. capacity of system memory: 16GB
- 3 x PCI Express 2.0 x16 slots (PCIE2/PCIE4 @ x16 mode; PCIE5
Expansion Slot
@ x4 mode)
- 2 x PCI Express 2.0 x1 slots
- 2 x PCI slots
- Supports ATI
TM
CrossFireX
TM
Audio - 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio
Codec)
- Premium Blu-ray audio support
- Supports THX TruStudio PRO
LAN
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111E
- Supports Wake-On-LAN
- Supports LAN Cable Detection
- Supports Energy Efficient Ethernet 802.3az
Rear Panel I/O
I/O Panel
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Coaxial SPDIF Out Port
- 1 x Optical SPDIF Out Port
- 6 x Ready-to-Use USB 2.0 Ports
- 2 x Ready-to-Use USB 3.0 Ports
- 1 x eSATA3 Connector
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- 1 x IEEE 1394 Port
- 1 x Clear CMOS Switch with LED
- HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass /
Line in / Front Speaker / Microphone
USB 3.0 - 2 x Rear USB 3.0 ports by NEC UPD720200, support USB 1.0/2.0/
3.0 up to 5Gb/s
- 1 x Front USB 3.0 header (supports 2 USB 3.0 ports) by NEC
UPD720200, supports USB 1.0/2.0/3.0 up to 5Gb/s
SATA3 - 6 x SATA3 6.0 Gb/s connectors by AMD SB850, support RAID
(RAID 0, RAID 1, RAID 0+1 and RAID 5), NCQ, AHCI and "Hot Plug"
functions
- 2 x SATA3 6.0 Gb/s connectors by Marvell SE9120, support NCQ,
AHCI and "Hot Plug" functions
Connector
- 8 x SATA3 6.0 Gb/s connectors
- 1 x ATA133 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x IR header
- 1 x COM port header
- 1 x IEEE 1394 header
- 1 x HDMI_SPDIF header
- 1 x Power LED header
- CPU/Chassis/Power FAN connector
- 24 pin ATX power connector
- 8 pin 12V power connector
- CD in header
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
- 1 x Dr. Debug (7-Segment Debug LED)
- 1 x Power Switch with LED
Smart Switch
- 1 x Reset Switch with LED
- 1 x Clear CMOS Switch with LED
BIOS Feature
- 8Mb AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- CPU, VCCM, NB, SB Voltage Multi-adjustment
Support CD - Drivers, Utilities, AntiVirus Software (Trial Version),
AMD OverDrive
Suite - OEM and Trial)
Unique Feature
- ASRock OC Tuner
- Intelligent Energy Saver
- Instant Boot
- ASRock Instant Flash
- ASRock OC DNA
- ASRock AIWI
- ASRock APP Charger
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- Turbo 50 / Turbo 60 CPU Overclocking
- Turbo UCC
- CPU Temperature Sensing
Hardware Monitor
- Chassis Temperature Sensing
- CPU/Chassis/Power Fan Tachometer
- CPU Quiet Fan
- CPU/Chassis Fan Multi-Speed Control
- Voltage Monitoring: +12V, +5V, +3.3V, Vcore
OS
- Microsoft Windows
®
XP 64-bit compliant
Certifications - FCC, CE, WHQL
- ErP/EuP Ready (ErP/EuP ready power supply is required)
- Quick Installation Guide, Support CD, I/O Shield
Accessories
- Floppy/ATA 133 cables
- 4 x SATA data cables (optional)
- 2 x SATA 1 to 1 power cables (optional)
- 1 x Front USB 3.0 Panel
- 6 x Screws
