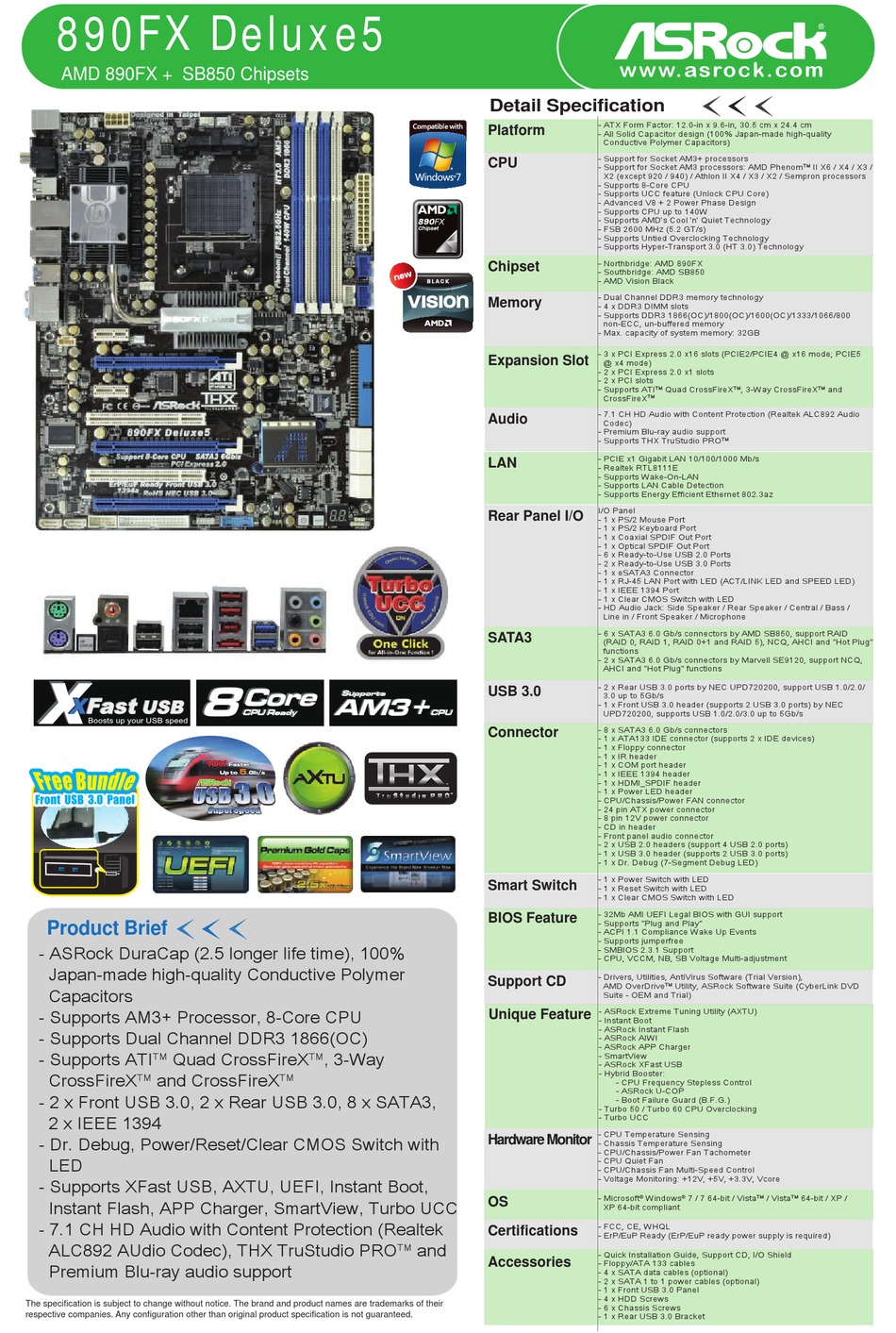

ASROCK 890FX DELUXE5 Specifications

890FX Deluxe5
AMD 890FX + SB850 Chipsets
Product Brief
- ASRock DuraCap (2.5 longer life time), 100%
Japan-made high-quality Conductive Polymer
Capacitors
- Supports AM3+ Processor, 8-Core CPU
- Supports Dual Channel DDR3 1866(OC)
- Supports ATI Quad CrossFireX
TM
CrossFireX and CrossFireX
TM
- 2 x Front USB 3.0, 2 x Rear USB 3.0, 8 x SATA3,
2 x IEEE 1394
- Dr. Debug, Power/Reset/Clear CMOS Switch with
LED
- Supports XFast USB, AXTU, UEFI, Instant Boot,
Instant Flash, APP Charger, SmartView, Turbo UCC
- 7.1 CH HD Audio with Content Protection (Realtek
ALC892 AUdio Codec), THX TruStudio PRO
Premium Blu-ray audio support
The specification is subject to change without notice. The brand and product names are trademarks of their
respective companies. Any configuration other than original product specification is not guaranteed.
8
8
Core
Core
Supports Supports
AM3+
AM3+
CPU Ready CPU Ready
, 3-Way
TM
TM
Detail Specification
Platform
CPU
Chipset
Memory
Expansion Slot
Audio
LAN
Rear Panel I/O
SATA3
USB 3.0
CPU
CPU
Connector
Smart Switch
BIOS Feature
Support CD
Unique Feature
Hardware Monitor
OS
Certifications
and
TM
Accessories
w w w. a s ro ck . c om
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- All Solid Capacitor design (100% Japan-made high-quality
Conductive Polymer Capacitors)
- Support for Socket AM3+ processors
- Support for Socket AM3 processors: AMD Phenom
X2 (except 920 / 940) / Athlon II X4 / X3 / X2 / Sempron processors
- Supports 8-Core CPU
- Supports UCC feature (Unlock CPU Core)
- Advanced V8 + 2 Power Phase Design
- Supports CPU up to 140W
- Supports AMD's Cool 'n' Quiet Technology
- FSB 2600 MHz (5.2 GT/s)
- Supports Untied Overclocking Technology
- Supports Hyper-Transport 3.0 (HT 3.0) Technology
- Northbridge: AMD 890FX
- Southbridge: AMD SB850
- AMD Vision Black
- Dual Channel DDR3 memory technology
- 4 x DDR3 DIMM slots
- Supports DDR3 1866(OC)/1800(OC)/1600(OC)/1333/1066/800
non-ECC, un-buffered memory
- Max. capacity of system memory: 32GB
- 3 x PCI Express 2.0 x16 slots (PCIE2/PCIE4 @ x16 mode; PCIE5
@ x4 mode)
- 2 x PCI Express 2.0 x1 slots
- 2 x PCI slots
- Supports ATI Quad CrossFireX , 3-Way CrossFireX
TM TM
CrossFireX
TM
- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio
Codec)
- Premium Blu-ray audio support
- Supports THX TruStudio PRO
TM
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111E
- Supports Wake-On-LAN
- Supports LAN Cable Detection
- Supports Energy Efficient Ethernet 802.3az
I/O Panel
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Coaxial SPDIF Out Port
- 1 x Optical SPDIF Out Port
- 6 x Ready-to-Use USB 2.0 Ports
- 2 x Ready-to-Use USB 3.0 Ports
- 1 x eSATA3 Connector
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- 1 x IEEE 1394 Port
- 1 x Clear CMOS Switch with LED
- HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass /
Line in / Front Speaker / Microphone
- 6 x SATA3 6.0 Gb/s connectors by AMD SB850, support RAID
(RAID 0, RAID 1, RAID 0+1 and RAID 5), NCQ, AHCI and "Hot Plug"
functions
- 2 x SATA3 6.0 Gb/s connectors by Marvell SE9120, support NCQ,
AHCI and "Hot Plug" functions
- 2 x Rear USB 3.0 ports by NEC UPD720200, support USB 1.0/2.0/
3.0 up to 5Gb/s
- 1 x Front USB 3.0 header (supports 2 USB 3.0 ports) by NEC
UPD720200, supports USB 1.0/2.0/3.0 up to 5Gb/s
- 8 x SATA3 6.0 Gb/s connectors
- 1 x ATA133 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x IR header
- 1 x COM port header
- 1 x IEEE 1394 header
- 1 x HDMI_SPDIF header
- 1 x Power LED header
- CPU/Chassis/Power FAN connector
- 24 pin ATX power connector
- 8 pin 12V power connector
- CD in header
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
- 1 x USB 3.0 header (supports 2 USB 3.0 ports)
- 1 x Dr. Debug (7-Segment Debug LED)
- 1 x Power Switch with LED
- 1 x Reset Switch with LED
- 1 x Clear CMOS Switch with LED
- 32Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- CPU, VCCM, NB, SB Voltage Multi-adjustment
- Drivers, Utilities, AntiVirus Software (Trial Version),
AMD OverDrive Utility, ASRock Software Suite (CyberLink DVD
TM
Suite - OEM and Trial)
- ASRock Extreme Tuning Utility (AXTU)
- Instant Boot
- ASRock Instant Flash
- ASRock AIWI
- ASRock APP Charger
- SmartView
- ASRock XFast USB
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- Turbo 50 / Turbo 60 CPU Overclocking
- Turbo UCC
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU/Chassis/Power Fan Tachometer
- CPU Quiet Fan
- CPU/Chassis Fan Multi-Speed Control
- Voltage Monitoring: +12V, +5V, +3.3V, Vcore
- Microsoft Windows 7 / 7 64-bit / Vista / Vista
® ® TM
XP 64-bit compliant
- FCC, CE, WHQL
- ErP/EuP Ready (ErP/EuP ready power supply is required)
- Quick Installation Guide, Support CD, I/O Shield
- Floppy/ATA 133 cables
- 4 x SATA data cables (optional)
- 2 x SATA 1 to 1 power cables (optional)
- 1 x Front USB 3.0 Panel
- 4 x HDD Screws
- 6 x Chassis Screws
- 1 x Rear USB 3.0 Bracket
II X6 / X4 / X3 /
TM
and
TM
64-bit / XP /
TM
