Samsung The Premiere Ultra Short Throw SP-LSP7TFAXZA User Manual
  1. Manuals
  2. Brands
  3. Samsung Manuals
  4. Projector
  5. The Premiere Ultra Short Throw SP-LSP7TFAXZA
  6. User manual

Samsung The Premiere Ultra Short Throw SP-LSP7TFAXZA User Manual

4k uhd smart single laser projector for home theater
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual of Product 1:

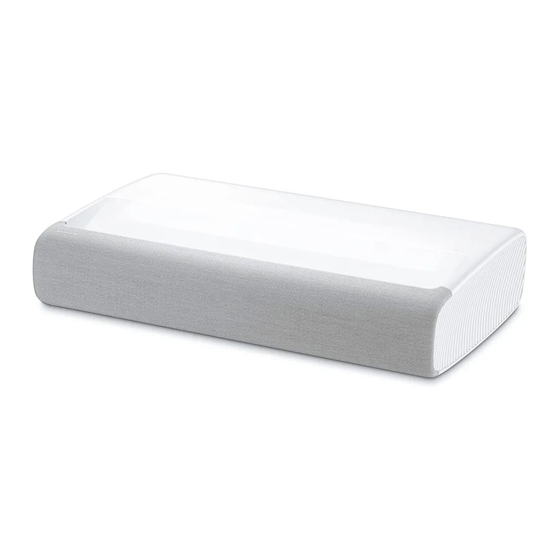

SAMSUNG 120" The Premiere Ultra Short Throw 4K UHD
Smart Single Laser Projector for Home Theater, HDR, 2.2Ch
Surround Sound System w/ Alexa Built-In (SP-LSP7TFAXZA,
Latest Model)
User Manual of Product 2:
SAMSUNG HW-Q990B/ZA 11.1.4ch Soundbar w/ Wireless
Dolby Atmos / DTS:X, Rear Speakers, Q Symphony, SpaceFit
Sound+, Airplay 2, Adaptive Sound, Game Pro Mode, Alexa
Built-In, 2022

Advertisement

Table of Contents

Troubleshooting

loading
Need help?

Need help?

Do you have a question about the The Premiere Ultra Short Throw SP-LSP7TFAXZA and is the answer not in the manual?

Questions and answers

Related Manuals for Samsung The Premiere Ultra Short Throw SP-LSP7TFAXZA

Summary of Contents for Samsung The Premiere Ultra Short Throw SP-LSP7TFAXZA

  • Page 1 User Manual of Product 1: SAMSUNG 120" The Premiere Ultra Short Throw 4K UHD Smart Single Laser Projector for Home Theater, HDR, 2.2Ch Surround Sound System w/ Alexa Built-In (SP-LSP7TFAXZA, Latest Model) User Manual of Product 2: SAMSUNG HW-Q990B/ZA 11.1.4ch Soundbar w/ Wireless...
  • Page 2 E-MANUAL Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com Model Serial No. To directly go to the page that provides instructions on how to use the manual for visually impaired users, select the Learn the Menu Screen link below.

  • Page 3: Table Of Contents

    Connection Notes Using the Sound Support Functions Peripherals System and Support 20 Controlling External Devices with a Samsung Remote Using the Time Functions and the Timers Control - Using the Universal Remote Using the Auto Protection Time and Energy Saving...
  • Page 4 Troubleshooting Accessibility Guidance Picture Issues Learn the Menu Screen 111 Testing the picture 130 Using the Accessibility Menu 134 Using the Projector with Voice Guide on Sound and Noise Issues 136 Using the guide 115 Testing the sound 138 Using Schedule Viewing Channel and Broadcast Issues 139 Using the Channel List External Device Connectivity Issues...

  • Page 5: Projector Screen Adjustment

    Guide Learn how to use various features. Projector Screen Adjustment Move the projector to adjust the size of the projected screen. Guide to screen adjustment When the screen looks skewed or blurry, adjust the screen. Move the projector to the left or right to adjust its angle. Or use the angle adjuster to make the screen rectangular.
  • Page 6 Move the projector back and forth to adjust the screen size. When the screen looks skewed or distorted, use the, Screen Adjustment Settings General Projector Settings Try Now Screen Adjustment) function. When the screen looks blurry, use the Focus Settings General Projector Settings Focus) function.

  • Page 7: Connections

    Connections You can watch live broadcasts by connecting a coaxial cable to your Projector and can get access to the Internet by using a LAN cable or wireless access point. Using various connectors, you can also connect external devices. Connection Guide You can view detailed information about external devices that can be connected to the Projector.

  • Page 8: Connecting An Antenna

    Connecting an Antenna You can connect a coaxial cable to your Projector. An antenna connection is not necessary if you connect a cable box or satellite box. - 7 -...

  • Page 9: Connecting To The Internet

    Connecting to the Internet You can get access to the Internet through your Projector. Settings General Network Open Network Settings Try Now Configure network settings to connect to an available network. Establishing a wired Internet connection Settings General Network Open Network Settings Wired If you connect a LAN cable, the Projector automatically accesses the Internet.
  • Page 10 Establishing a wireless Internet connection Settings General Network Open Network Settings Wireless Make sure that you have the wireless access point's SSID (name) and password settings before attempting to connect. The network name (SSID) and security key are available on the wireless access point's configuration screen.
  • Page 11 Turning this feature on may allow other IP control devices to control your Projector. We recommend turning this feature on only if an authorized third-party custom controller is installed and configured specifically for a Samsung Projector and if your Wi-Fi network is password protected.

  • Page 12: Screen Sharing (Smart View) With Your Mobile Device

    Screen Sharing (Smart View) with your Mobile Device You can watch the screen of your mobile device on the Projector screen through Smart View or Tap View. For information on how to share the screen with your mobile device, refer to Source Connection Guide Smartphone...
  • Page 13 Multi View or mobile device's screen through the Projector screen. This function may not be supported depending on the model. This function is available in Samsung mobile devices with Android 8.1 or higher. Enable Tap View on your mobile device.
  • Page 14 Using the Multi View While watching the TV, you can see content from your mobile device through mirroring (Smart View). To start Multi View, run the screen sharing (Smart View) for your mobile device. This function can be started or stopped by pressing the button on the remote control.

  • Page 15: Connection Cables For External Devices

    Connection Cables for External Devices You can view detailed information about the connection cables for external devices that can be connected to the Projector. Cable name Image Description Each cable simultaneously transmits digital video and audio signals from an external device to the HDMI port on the Projector. HDMI Cables are divided into various types according to the types of input or output ports on external devices.
  • Page 16 Cable name Image Description DVI to HDMI cables can transmit only digital video signals and not audio signals. We recommend that you use HDMI to HDMI cables. HDMI Optical cables are used to transmit audio signals to external speakers with low signal loss. Optical Optical cables do not transmit video signals.

  • Page 17: Switching Between External Devices Connected To The Projector

    HDMI port on the Projector, and then turn on the device. The output displayed on the Projector is automatically switched to the output of the device or you can configure universal remote control for the device automatically. For more information, refer to "Controlling External Devices with a Samsung Remote Control - Using the Universal Remote."...
  • Page 18 Universal Remote You can control external devices connected to the Projector using a Samsung remote control. To control external devices, register them by following the instructions on the screen. This function may not be supported depending on the model or geographical area.

  • Page 19: Connection Notes

    Connection Notes When connecting an external device, note the following: The number of connectors, and their names and locations may differ with the model. Refer to the external device's operating manual when connecting it to the Projector. The number of external device connectors, and their names and locations may differ with the manufacturer.
  • Page 20 Connection notes for computers • For the resolutions supported by the Projector, refer to "Read Before Connecting a Computer (Supported Resolutions)." • If you want to connect your PC and Projector wirelessly, both of them must be connected to each other on the same network.

  • Page 21: Peripherals

    Source Universal Remote You can control external devices connected to the Projector using a Samsung remote control. To control external devices, register them by following the instructions on the screen. This function may not be supported depending on the model or geographical area.

  • Page 22: Using Anynet+ (Hdmi-Cec)

    You can configure the Projector's Universal Remote to control third-party cable boxes, Blu-ray players, and home theaters that do not support HDMI-CEC. For more information, refer to "Controlling External Devices with a Samsung Remote Control - Using the Universal Remote."...

  • Page 23: Controlling The Projector With A Keyboard, Mouse, Or Gamepad

    Controlling the Projector with a Keyboard, Mouse, or Gamepad Connecting a keyboard, mouse, or gamepad to make it easier to control the Projector. Settings General External Device Manager Input Device Manager Try Now You can connect a keyboard, mouse, or gamepad to make it easier to control the Projector. Connecting a USB keyboard, mouse, or gamepad Plug the keyboard, mouse or gamepad cable into the USB port.
  • Page 24 Using the keyboard and mouse Button Description Directional keys Use to navigate the menu, or move the focus to highlight items on the Home Screen. Windows key Displays the Projector settings Enter key Selects or runs a focused item ESC key Returns to the previous screen F1 / F2 / F3 / F4 key Color buttons ―...

  • Page 25: Entering Text Using The On-Screen Virtual Keyboard

    Setting up the input devices Settings General External Device Manager Input Device Manager • Keyboard Settings You can set up the keyboard with the Keyboard Language Keyboard Type functions. • Mouse Settings You can set up the mouse with the Primary Button Pointer Speed functions.
  • Page 26 Options Select on the virtual keyboard screen. The following options are available: The options available may differ depending on the function running currently. • Recommended text • Reset Recommended Text Memory • Accented Character Preview • Predict Next Character (when using direction buttons) •...

  • Page 27: Smart Features

    Smart Features You can enjoy various apps with Smart Hub. Using Smart Hub View descriptions of Smart Hub's basic functions. From Smart Hub, you can use the Internet search function, install and use various apps, view photos and videos, or listen to music stored on external storage devices, and perform more functions.
  • Page 28 Displaying the Home Screen Press the button. Sources HDMI 1 Remote Access Connection Guide Universal Remote Source The image on your Projector may differ from the image above depending on the model and geographical area. On the Home Screen, you can easily run the apps you have used previously or frequently. The apps can also be moved or deleted from the screen.
  • Page 29 • Picture Mode You can select the picture mode that provides the best viewing experience. To change the picture mode, press the Select button. To make fine adjustments, press the up directional button, and then select Picture Setup. • Sound Mode You can select a sound mode to optimize your listening experience.
  • Page 30 • Color Tone You can select a color tone suitable for your viewing preferences. To change to a color tone that you want, press the Select button. • Picture Clarity You can optimize pictures that contain a lot of motions. To turn this function on or off, press the Select button. To set the detailed options, press the up directional button, and then select Picture Clarity Settings.
  • Page 31 Go to the Samsung Account screen to create a new account or sign out of your account. For more information, refer to "Using a Samsung account." • Notification You can view a list of notifications for all events that occur on your Projector. A notification appears on the screen when it is time to broadcast a scheduled program or when an event occurs on a registered device.
  • Page 32 Universal Guide can recommend content tailored to your preferences. You can use this feature on your mobile device with the Samsung SmartThings app. To enjoy the content from these apps on your Projector, they must be installed on the Projector.
  • Page 33 Move Remove The image on your Projector may differ from the image above depending on the model and geographical area. Moving an item on the Home Screen Move the focus to the app you want to move, press and hold the Select button on the remote control, and then select Move in option menu.
  • Page 34 Launching Smart Hub automatically Settings General Smart Features Autorun Smart Hub Try Now When you set Autorun Smart Hub to on, the Projector displays the Home Screen automatically when you turn the Projector on. You can turn this function on or off. Press the Select button at the current menu. Launching the last used app automatically Settings General...

  • Page 35: Using A Samsung Account

    Terms & Conditions, Privacy Policy after logging in to your Samsung account. You can create a Samsung account at http://account.samsung.com. Once you have an account, you can use the same ID on both the Projector and the Samsung website. Signing in to a Samsung account...
  • Page 36 You can view or manage your payment information. • Back up You can back up the Projector settings to your Samsung Cloud storage. When resetting or replacing the Projector, you can also restore its settings with the backed-up settings. •...

  • Page 37: Using Remote Access

    Using Remote Access Use the Projector to access your PC via Remote PC, Screen Sharing (Wireless) or Cloud Service. Source Remote Access You can use the Projector to access your PC via Remote PC, Screen Sharing (Wireless) or Cloud Service. For easy computer use, connect a keyboard and a mouse to your Projector in advance.
  • Page 38 • Mac OS: 1. Select Menu System Preferences and then click Sharing. 2. Select the Screen Sharing check box. 3. Run the resolution changing app downloaded from App Store and then change the resolution to 1440 x 900 or lower. If you do not change the resolution in Mac OS, the previous image may appear while connecting a remote computer.
  • Page 39 Use the bookmarking function of the browser, you can add or delete the cloud service link to or from Remote Access. To add the cloud service, you must be signed in to your Samsung account. The number of cloud services that can be added to Remote Access is limited.
  • Page 40 ID and password without biometric authentication on mobile devices. For this purpose, you must be signed in to your Samsung account. The password is encrypted to be safely stored on your Projector.

  • Page 41: Using The Apps Service

    If you are signed out of your Samsung account, select Sign In to sign in. If you want to download new apps using Apps, first sign in to your Samsung account. App Search You can search for available apps. Settings You can manage the installed apps.
  • Page 42 Installing an app Move to the app you want to install, and then press the Select button. The detailed information screen appears. Select Install. When the installation is complete, the Open menu appears. Select Open to run the app immediately. You can view installed apps on the Settings screen.
  • Page 43 Managing installed apps Select Settings on Apps. You can manage installed apps. Settings Copyright Auto Update : ON Delete Add to Home Lock Move Reinstall View Details The image on your Projector may differ from the image above depending on the model and geographical area. Removing an app 1.
  • Page 44 Locking and unlocking apps 1. Select an app to lock or unlock. 2. Select Lock/Unlock. The selected app is locked or unlocked. To lock or unlock an app, enter the PIN. The default PIN is "0000." You can set the PIN in Settings General System Manager...

  • Page 45: Using The Gallery App

    The image on your Projector may differ from the image above depending on the model and geographical area. You can enjoy various content synchronized with a mobile device that supports the Samsung Cloud. The available content types are photos, videos, stories, and other content shared through your groups.

  • Page 46: Using The Smartthings App

    SmartThings app installed on them. You can receive notifications about the statuses of your connected devices. To use this function, you must be logged in to your Samsung account. This function may not be supported depending on the model or geographical area.

  • Page 47: Using The E-Manual

    Open e-Manual You can view the embedded e-Manual that contains information about your Projector's key features. You can download a copy of the e-Manual from Samsung's website to view or print on your PC or mobile device (http:// www.samsung.com). Some menu screens cannot be accessed from the e-Manual.
  • Page 48 Using the buttons in the e-Manual e-Manual Guide Troubleshooting First Time Use Recently Viewed e-Manual Topics The image on your Projector may differ from the image above depending on the model and geographical area. (Search) Select an item from the search results to load the corresponding page. (Sitemap) It displays the lists for each item in e-Manual.
  • Page 49 e-Manual Internet Surf the Internet on your Projector. Before using the Internet, refer to "Read Before Using the Internet Function." Words in blue (e.g., Internet) indicate a menu item. The image on your Projector may differ from the image above depending on the model and geographical area. (Try Now) Allows you to access the corresponding menu item and try out the feature right away.

  • Page 50: Using The Internet

    Biometrics Authentication on your mobile device without entering your ID and password. However, this Samsung Pass login may not work depending on the website policy. For this purpose, you must have been logged in the mobile device with a Samsung account registered in Samsung Pass.

  • Page 51: Playing Pictures/Video/Music

    "Read Before Playing Photo, Video, or Music Files." Backup important files before connecting a USB device. Samsung is not responsible for damaged or lost files. You can use the following functions on the media content list screen of a storage device.
  • Page 52 Sort By Sorts the content list by Title or Date. This function may not be supported depending on the type of external device. Options Deletes or plays the selected media content in the media content list. When you select Refresh, the content list is reloaded.
  • Page 53 Listening to your mobile device sound through the Projector speaker using Sound Mirroring Search for and connect to your Projector from the (Bluetooth) device list on your mobile device. Select media content to play on your mobile device. The selected media is played through the Projector speaker. If the Projector and the sound bar are connected wirelessly, the operation may be restricted.
  • Page 54 • Move to a specific playback section, move up the focus on the playback bar, and then select one of the five thumbnails. This function may not be supported depending on the file format. • Stop Stop the contents being played. •...
  • Page 55 • Picture Off Plays music files with the screen off. • Screen Fit Fits a photo to the screen. • Rotate left Rotate right Rotates a photo left or right. • Zoom Zooms in a photo. • Background Music Pauses or resumes the background music while the Projector displays photos. This function is available after enabling the Background Music option.

  • Page 56: Using Bixby

    Bixby is available only when the Projector is connected to the Internet. To use Bixby, you must register and sign in to your Samsung account. Some functions may not be supported if you are not signed in to your Samsung account.
  • Page 57 Bixby generated for your voice. You can delete a voice ID after selecting Profile. When the voice ID is deleted, its icon also disappears. If you are signed out of your Samsung account, select My Profile to sign in.
  • Page 58 • Voice response You can change or turn off Bixby's voice. This function may not be supported depending on the language selected for Bixby. • Sound feedback Play a sound when Bixby starts and stops listening. • Privacy You can permit or prohibit Bixby from utilizing your personal information when you are using Bixby services. Recommended commands Displays recommended commands you can use to control the Projector with Bixby given the current context.
  • Page 59 • The existing functional specifications may be changed if Bixby is updated. • Bixby is available only on Projectors that support it and come with remote controls that have a microphone. • Symbols including "-" and special characters are not supported. Consequently, if a word or sentence contains numeric values or symbols, the function may not operate properly.

  • Page 60: Projector Viewing

    To view the Guide while watching Projector, press the (Channel) button on the Samsung Smart Remote. To see information about analog channels and use the analog channel functions of the Guide, you must finish the service provider settings in initial setup.

  • Page 61: Setting Up A Schedule Viewing

    Move the focus to the program you want in the Guide, and then press and hold the Select button. You can use the following functions: • Schedule Viewing You can schedule the viewing of a broadcast scheduled program. • Cancel Scheduled Viewing You can cancel scheduled viewings.
  • Page 62 Using schedule viewing to view programs at a specified time on a specified date Live TV Schedule Manager Add Viewing To schedule a viewing, set the values for Antenna, Channel, Repeat, Date, and Start Time of the broadcast program to view, and then select Save. Check the current time in Settings General...

  • Page 63: Using The Channel List

    It displays only the favorites list that includes the favorite channel. • Samsung TV Plus While the Projector is connected to the Internet, you can watch popular programs or highlights for each theme through a virtual channel at any time. As with regular channels, the Projector provides the daily program...

  • Page 64: Editing Channels

    Editing Channels Edit the channels stored on your Projector. Live TV Channel List Edit Channels Edit Channels screen contains the following icons: – : A favorite channel On the Edit Channels screen, you can select channels and use the following functions: •...

  • Page 65: Using A Personal Favorites List

    Using a Personal Favorites List Designate frequently watched channels as favorite channels. Favorite channels are highlighted in the Edit Channels Channel List screens with the symbol. You can create up to five favorites lists so that your family members can create their own personal favorites list. Create a favorites list Live TV Channel List...

  • Page 66: Projector-Viewing Support Functions

    Projector-Viewing Support Functions Use the functions that are available while watching Projector. Changing the broadcast signal Live TV Channel List Press the up directional button on your remote control, move the focus to or Cable, and then press the Select button.
  • Page 67 Watching blocked / restricted programs To watch a blocked program, enter the PIN when requested. When initially showing a restricted program or movie, the screen is blank because the Program Rating Lock Settings blocks it. Enter the PIN to unblock the program when a message appears requesting the code. Enable Data Service Settings Broadcasting...
  • Page 68 Configuring advanced broadcasting audio settings Settings Broadcasting Audio Options Audio Options functions differently for analog and digital channels. • Preferred Language This is the language you will hear while watching Projector if the language is included in the broadcast signal. •...

  • Page 69: Picture And Sound

    Picture and Sound You can change the settings for the picture and the sound according to your preference. Setting the Viewing Environment for Projector Adjust the Projector's mode options and installation settings for your viewing environment. Guide to screen adjustment Settings General Projector Settings...

  • Page 70: Adjusting The Picture Quality

    Adjusting the Picture Quality Change the Picture Mode and adjust Expert Settings. Choosing a picture mode Settings Picture Picture Mode Try Now You can select the Picture Mode that provides the best viewing experience. • Dynamic Makes the picture brighter and clearer in bright viewing environments. •...
  • Page 71 Configuring advanced picture settings Settings Picture Expert Settings Try Now Configure the screen settings to your taste by using the following functions: • Contrast Try Now • Sharpness Try Now • Color Try Now • Tint (G/R) Try Now • Apply Picture Settings Try Now •...

  • Page 72: Setting The Viewing Environment For External Devices

    Setting the Viewing Environment for External Devices You can optimize the Projector for viewing specific video formats. Playing games on an optimized screen Settings General External Device Manager Game Mode You can enable game mode to optimize the Projector's settings for playing video games with a gaming console, such as a PlayStation™, Xbox™, or Nintendo Switch™.
  • Page 73 Using Input Signal Plus Settings General External Device Manager Input Signal Plus Try Now Expands the input signal range for HDMI connections. When you select the HDMI connector you want to use for Input Signal Plus, and then press the Select button to set the Input Signal Plus function to On, the Projector screen may flicker.

  • Page 74: Changing The Picture Size And Position

    This function is available only if Picture Size is set to Custom. To change the picture position on analog channels, first enlarge the picture and then change the position. These functions may not be available on Samsung TV Plus and some applications. - 73 -...

  • Page 75: Configuring A Sound Mode And Expert Settings

    Configuring a Sound Mode and Expert Settings Change the Sound Mode and adjust Expert Settings. Choosing a sound mode Settings Sound Sound Mode Try Now You can select the available sound mode that you prefer for a content type or your listening environment. When an external device is connected, Sound Mode may change accordingly.
  • Page 76 Digital Output Audio Delay Try Now • This feature is only available when the external device is connected via HDMI (eARC) and SPDIF (Sony Philips Digital Interface). HDMI (ARC) is supported by some models. Check the HDMI port name of the purchased product's model. •...

  • Page 77: Using The Sound Support Functions

    Using the Sound Support Functions Configure the sound settings for your Projector. Selecting speakers Settings Sound Sound Output Try Now You can select which speakers the Projector uses for audio output. External speakers may not be controlled with the remote control. When an external speaker is enabled, some sound menus are not supported.
  • Page 78 Listening to the Projector through a Samsung audio device that supports the Wi-Fi function For more information about how to connect and use a Samsung audio device that supports the Wi-Fi function, refer to its user manual. Settings Sound Wi-Fi Speaker Surround Setup...

  • Page 79: System And Support

    System and Support You can configure system and support settings, such as clock, timers, energy usage and software updates. Using the Time Functions and the Timers Set the current time and use the timer function. Settings General System Manager Time Try Now You can set the Clock...
  • Page 80 Adjusting the clock for DST and time zone Settings General System Manager Time Clock Sets the right time by setting Daylight Savings Time (DST) and your local time zone. • Time Zone Selects your time zone. This function is only available when the Clock Mode is set to Auto.
  • Page 81 Setting the clock manually Settings General System Manager Time Clock Clock Mode Manual When Clock Mode is set to Manual, you can directly enter the current date and time. Select the Date Time using the directional buttons on the remote control. Using the sleep timer Settings General...

  • Page 82: Using The Auto Protection Time And Energy Saving Functions

    Using the Auto Protection Time and Energy Saving Functions Set the Auto Protection Time and reduce the Projector's energy consumption. Setting the Auto Protection Time Settings General System Manager Auto Protection Time Try Now Activate a screensaver when your Projector displays a still image for 2 hours or more. This function may not be supported in some viewing modes.

  • Page 83: Updating The Projector's Software

    Software Update Update Now After downloading the update file from the Samsung website and storing it on a USB device, connect the USB device to the Projector to update. To update using a USB device, download the update package from Samsung.com to your computer. Then, save the update package in the USB device's top-level folder.

  • Page 84: Audio And Video Functions For The Visually Or Hearing Impaired

    Multi-output Audio, Slow Button Repeat, Accessibility Settings, etc. On the Samsung Smart Remote, press and hold the (Volume) button for 1 second or more. Even if the Voice Guide is set to or muted, the voice guide for Accessibility Shortcuts is enabled.
  • Page 85 Changing the volume, speed, pitch, and the Projector background volume of the Voice Guide You can configure the volume, speed, pitch, and the Projector background volume of the voice guide. The Projector screen is turned off but audio continues Settings General Accessibility Picture Off...
  • Page 86 Setting the screen to black and white Settings General Accessibility Grayscale Try Now You can change the color of the Projector screen to black and white to sharpen blurred edges caused by colors. Grayscale is on, some Accessibility menus are not available. This function may not be supported depending on the model or geographical area.
  • Page 87 Showing captions Settings General Accessibility Caption Settings Try Now Caption to watch programs with the captions displayed. Captions are not displayed by programs that do not support captions. This function has no relationship with the features for controlling subtitles of DVD or Blu-ray players. To control DVD or Blu-ray subtitles, use the subtitle feature of the DVD or Blu-ray player and the player's remote control.
  • Page 88 Listening to the Projector through Bluetooth devices (for the hearing impaired) Settings General Accessibility Multi-output Audio You can turn on both the Projector speaker and Bluetooth headphone at the same time. When this function is active, you can set the volume of the Bluetooth headphone higher than the volume of the Projector speaker. This function may not be supported depending on the model.

  • Page 89: Using Voice Assistants On Projector

    Using Voice Assistants on Projector You can change the settings of a Voice Assistant after selecting it. Select the Voice Assistant Settings General Voice Voice Assistant Select which Voice Assistant you would like to help control your Projector. To use this function, the Projector must be connected to the Internet. This function may not be supported depending on the model or geographical area.

  • Page 90: Using Other Functions

    If you forget your PIN, you can reset it with your remote control. With the Projector turned on, press the following buttons on the remote control in the order shown to reset the PIN to "0000." On the Samsung Smart Remote: Press (Volume) button.
  • Page 91 Managing External Devices Settings General External Device Manager Device Connect Manager Try Now When you connect external devices, such as mobile devices or tablets connected to the same network as the Projector so you can share content, you can view the list of allowed devices and connected devices. •...

  • Page 92: Precautions And Notes

    • If you want to download new apps using Apps, first sign in to your Samsung account. • Due to the product characteristics featured on Samsung Smart Hub, as well as limitations in available content, certain features, applications, and services may not be available on all devices or in all territories. Visit http://www.samsung.com for more information on specific device information and content availability.

  • Page 93: Read Before Using The Internet Function

    Read Before Using the Internet Function Read this information before using the Internet function. • File download is not supported. • The Internet function may not be able to access certain websites, including websites operated by certain companies. • The Projector does not support playback of flash videos. •...
  • Page 94 Precautions for wireless Internet • This Projector supports the IEEE 802.11 a /b /g /n /ac communication protocols. Samsung recommends using IEEE 802.11n. Video files stored on a device connected to the Projector via a Home Network may not play back smoothly.

  • Page 95: Read Before Playing Photo, Video, Or Music Files

    • Certain files, depending on how they are encoded, may not play on the Projector. • Certain files are not supported on all models. • The DivX and DTS codecs are not supported by the Samsung Projector models released in 2020. - 94 -...
  • Page 96 Supported subtitles Subtitle formats Name Format MPEG-4 Timed text .ttxt SAMI .smi SubRip .srt SubViewer .sub Micro DVD .sub or .txt SubStation Alpha .ssa Advanced SubStation Alpha .ass SMPTE-TT Text .xml Video formats with subtitles Name Container Xsub SubStation Alpha Advanced SubStation Alpha SubRip VobSub...
  • Page 97 Supported image formats and resolutions File extension Format Resolution *.jpg JPEG 15360 x 9024 *.jpeg *.png 4096 x 4096 *.bmp 4096 x 4096 *.mpo 15360 x 8640 The MPO format is supported partly. Supported music formats and codecs File extension Format Codec Note...
  • Page 98 Supported video codecs File Bitrate Container Video codecs Resolution Frame rate (fps) Audio codecs format (Mbps) *.avi 3840 x 2160: 30 H.264 BP/MP/HP *.mkv 1920 x 1080: 60 3840 x 2160 *.asf HEVC (H.265 - Main, Main10) *.wmv Dolby Digital Motion JPEG *.mp4 LPCM...
  • Page 99 Other restrictions • Codecs may not function properly if there is a problem with the content. • Video content does not play or does not play correctly if there is an error in the content or container. • Sound or video may not work if they have standard bit rates/frame rates above the Projector’s compatibility ratings.

  • Page 100: Read After Installing The Projector

    Read After Installing the Projector Read this information after installing the Projector. Picture sizes and input signals Picture Size is applied to the current source. The applied Picture Size will remain in effect whenever you select that source unless you change them. Input signal Picture size Component...

  • Page 101: Supported Resolutions For Uhd Input Signals

    Supported Resolutions for UHD Input Signals Check the supported resolution for UHD input signals. • Resolution: 3840 x 2160p, 4096 x 2160p If Input Signal Plus is set to Off Color Depth / Frame rate (fps) Chroma RGB 4:4:4 YCbCr 4:4:4 YCbCr 4:2:2 YCbCr 4:2:0 Sampling...

  • Page 102: Read Before Connecting A Computer (Supported Resolutions)

    Read Before Connecting a Computer (Supported Resolutions) Check the resolutions supported for PC input signals. When you connect your Projector to a computer, set the computer's video card to one of the standard resolutions listed in the tables below or on the next pages. The Projector will automatically adjust to the resolution you choose. Note that the optimal and recommended resolutions are 3840 x 2160 at 60 Hz and 1920 x 1080 at 60 Hz.
  • Page 103 VESA DMT Horizontal Vertical Polarity Resolution Clock frequency frequency frequency Display format (horizontal / (Dots x lines) (MHz) vertical) (KHz) (Hz) 640 x 480 60 Hz 31.469 59.940 25.175 - / - 640 x 480 72 Hz 37.861 72.809 31.500 - / - 640 x 480 75 Hz...
  • Page 104 VESA CVT Horizontal Vertical Polarity Resolution Clock frequency frequency frequency Display format (horizontal / (Dots x lines) (MHz) vertical) (KHz) (Hz) 2560 x 1440 60 Hz 88.787 59.951 241.500 + / - CTA-861 Horizontal Vertical Polarity Resolution Clock frequency frequency frequency Display format (horizontal /...

  • Page 105: Supported Resolutions For Video Signals

    Supported Resolutions for Video Signals Check the resolutions supported for video signals. CTA-861 Horizontal Vertical Polarity Resolution Clock frequency frequency frequency Display format (horizontal / (Dots x lines) (MHz) vertical) (KHz) (Hz) 720 (1440) x 576i 50 Hz 15.625 50.000 27.000 - / - 720 (1440) x 480i...
  • Page 106 Horizontal Vertical Polarity Resolution Clock frequency frequency frequency Display format (horizontal / (Dots x lines) (MHz) vertical) (KHz) (Hz) 4096 x 2160 24 Hz 54.000 24.000 297.000 + / + 4096 x 2160 25 Hz 56.250 25.000 297.000 + / + 4096 x 2160 30 Hz 67.500...

  • Page 107: Read Before Using Bluetooth Devices

    Read Before Using Bluetooth Devices Read this information before using a Bluetooth device. Restrictions on using Bluetooth • You can't use Bluetooth devices and the Wi-Fi Speaker Surround Setup feature simultaneously. • Compatibility issues may occur, depending on the Bluetooth device (A Mobile exclusive headphone may not be available, depending on the environment).

  • Page 108: Blocking Programs Based On Their Projector Rating

    Blocking programs based on their Projector Rating Read this information before viewing a blocking program. To block content, select a rating category to lock. All programs at that level and higher are blocked and require the PIN to watch. To unblock a category, select the lock icon. To unblock all the categories in a row, select the lock under ALL.
  • Page 109 Blocking movies based on their Motion Picture Association of America (MPAA) rating This rating system applies to all materials with supplied ratings in the U.S.A. From the MPAA: “The Motion Picture Association of America (MPAA) has implemented a rating system that provides parents or guardians with advanced information on which films are appropriate for children.”...
  • Page 110 Blocking programs based on their Canadian French Rating This rating system applies to all rated material viewed on French-Canadian TV channels. Select a lock beside one of the rating categories to block that category and all higher categories. To unblock a category, select the lock icon.

  • Page 111: Licenses

    HDMI Licensing LLC in the United States and other countries. Open Source License Notice Open Source used in this product can be found on the following webpage (http://opensource.samsung.com). This license may not be supported depending on the model or geographical area.

  • Page 112: Troubleshooting

    Troubleshooting If you have a problem with your Projector, you can access various solutions while watching Projector. If your problem is not addressed in the Troubleshooting section, contact the Samsung Call Center. Picture Issues When the Projector has trouble with the picture, these steps may help resolve the problem.
  • Page 113 The problem Try this! If the colors on your Projector are correct but just a little too dark or bright, try adjusting the following settings first. • Settings Picture Expert Settings Contrast Screen Brightness • Settings Picture Expert Settings Sharpness •...
  • Page 114 UHD and set the resolution. For more information, contact your service provider. When using a Samsung TV Plus channel, check the network connection. When the network speed is slow, the app may not work or the image quality may be poor.
  • Page 115 External Device Manager Input Signal Plus If the test picture does not appear or there is noise or distortion, the Projector may have a problem. Contact Samsung’s Call Center for assistance. If the test picture is displayed properly, there may be a problem with an external device. Please check the connections.

  • Page 116: Sound And Noise Issues

    Sound and Noise Issues When the Projector has difficulties with sound, these steps may help resolve the problem. Testing the sound Settings Support Device Care Self Diagnosis Sound Test Try Now If the Projector plays the Sound Test melody without distortion, there may be a problem with an external device or the broadcast signal's strength.
  • Page 117 The problem Try this! Sound Test. • Settings Support Device Care Self Diagnosis Sound Test Make sure that the audio cable is connected to the correct audio output connector on the external device. The speakers are making an odd sound. For antenna or cable connections, check the Signal Information.
  • Page 118 When you connect the Samsung Soundbar to the Projector via Bluetooth, the power turns off and on together. It may not be supported depending on the Samsung Soundbar model. I want to turn off and on the...

  • Page 119: Channel And Broadcast Issues

    Channel and Broadcast Issues When the Projector has difficulties receiving broadcasts, these steps may help resolve the problem. The problem Try this! Make sure that the external device is connected securely and turned on. Move Sources to switch to other input sources. “Weak or No Signal”...

  • Page 120: External Device Connectivity Issues

    External Device Connectivity Issues When the Projector has difficulties connecting to external devices such as a PC, game console, or mobile device, these steps may help resolve the problem. The problem Try this! The "Mode Not Supported" message Adjust the output resolution of the external device to a resolution supported by appears.
  • Page 121 The problem Try this! When the PC screen does not appear or the PC is not recognized, check the power supply of the PC and then reconnect the HDMI cable between the PC and Projector. When the symptom persists, check that the PC is in Sleep mode. The PC screen does not appear or it flickers.

  • Page 122: Network Issues

    Network Issues When the Projector has difficulties connecting to the Internet, these steps may help resolve the problem. Settings Support Device Care Self Diagnosis Smart Hub Connection Test Try Now Try Now If the Projector has trouble with network connection or Projector services, check the Smart Hub connection status. The problem Try this! Make sure that no items that can generate electromagnetic interferences are...

  • Page 123: Anynet+ (Hdmi-Cec) Issues

    Anynet+ (HDMI-CEC) Issues When Anynet+ (HDMI-CEC) isn't working, these steps may help resolve the problem. The problem Try this! You can use the Projector's remote control to control external devices that support Anynet+ (HDMI-CEC) and that are connected to the Projector via an HDMI cable. For What is Anynet+? example, if a connected external device supports Anynet+, you can have the connected device turn on or off when you turn the Projector on or off.

  • Page 124: Remote Control Issues

    The problem Try this! You cannot use the remote control when the Projector is configuring Anynet+ or The message "Connecting to switching to the Projector viewing screen. Anynet+ device..." or "Disconnecting from Anynet+ Use the remote control after the Projector has completed the Anynet+ configuration device"...

  • Page 125: Media Files

    Apps When apps aren't working, these steps may help resolve the problem. The problem Try this! Languages supported by an app may be different from the Projector Language I launched an app, but it's in a different set in the menu. language.

  • Page 126: Voice Assistant Issues

    Assistant: Settings General Voice Google Assistant Settings With Samsung Smart Remote, the following features are available except for voice recognition. Try pairing the remote control with the Projector. There is no response even if the voice entry button is pressed.

  • Page 127: Other Issues

    Other issues Use these procedures to resolve other issues that may occur in relation to the product. The problem Try this! Watching Projector for an extended period of time causes the panel to generate heat. The heat from the panel is dissipated through internal vents running along the top of the Projector.
  • Page 128 Voice Guide. To Accessibility Shortcuts, see the following: The Projector narrates the screen events in voice-over. • Press and hold the (Volume) button on your Samsung Smart Remote. • Settings General Accessibility Voice Guide Settings Voice Guide - 127 -...

  • Page 129: Diagnosing Projector Operational Issues

    Device Care Self Diagnosis Signal Information Resets all Smart Hub settings to their factory defaults and deletes all information related to Samsung accounts, linked service accounts, Smart Hub service agreements, and Smart Hub applications. Reset Smart Hub • Settings Support...

  • Page 130: Getting Support

    Support About Projector You can view the address of the Samsung website, the call center phone number, your Projector's model number, your Projector's software version, Open Source License and other information you may need to get service support from a Samsung call agent or the Samsung website.

  • Page 131: Accessibility Guidance

    On the Samsung Smart Remote, there are 2 thin horizontal rocker buttons next to each other located slightly below the middle of the remote. The one on the left is the volume button. Press and hold the volume button to open the Accessibility Shortcuts menu.
  • Page 132 There are many commands you can say to control the Projector. These can be used together with Voice Guide give you voice input and voice output. You can use the Samsung Smart Remote but the Projector must be connected to the Internet.
  • Page 133 Learning about the Accessibility menu functions • Voice Guide Settings Provides voice guides to make it easier for the visually impaired to use the Projector. Voice guide supports basic operations such as changing channels and adjusting the volume, provides voice descriptions about the current broadcast and the following broadcast, and offers guidance on setting up Scheduled Viewing events.
  • Page 134 • Caption Settings You can view the caption in programs that provide broadcast captions. When watching a channel on an external device such as set-top box and cable box, turn on the caption function on the device. For more information, contact your service provider. –...

  • Page 135: Using The Projector With Voice Guide On

    Select button. • (Channel) button Of the 2 buttons that protrude from the center of the Samsung Smart Remote, the right one is the (Channel) button. Push up or pull down the (Channel) button to change the channel.
  • Page 136 (Volume) button on the left to change the volume. Every time you change the volume, the new volume level will be announced. Of the 2 buttons that protrude from the center of the Samsung Smart Remote, the left one is the (Volume) button.

  • Page 137: Using The Guide

    See an overview of each channel's program lineup. When you want to know the program information for each channel while watching a broadcast program, press the (Channel) button on the Samsung Smart Remote. Use the directional buttons to view the program information.
  • Page 138 When you open the Guide, a table grid of channels and programs is displayed. The top row displays Filter By : All then the day and times. Each row has a channel name on the left and programs on that channel on the right. In the Guide, use the up and down directional buttons to move between channels and use the left and right directional buttons to move between programs at different times within a channel.

  • Page 139: Using Schedule Viewing

    Using Schedule Viewing Configure the Projector to show a specific channel or program at a specific time and date. icon appears next to programs that have been configured for a schedule viewing. To set up a schedule viewing, you must first set the Projector's clock ( Settings General System Manager...

  • Page 140: Using The Channel List

    This function may not be supported depending on the incoming broadcast signal. • Samsung TV Plus While the Projector is connected to the Internet, you can watch popular programs or highlights for each theme through a virtual channel at any time. As with regular channels, the Projector provides the daily program...

  • Page 141: Using Smart Hub

    When the Smart Hub home screen appears, use the left or right directional button to move the focus to Live TV Samsung TV Plus. Press the up directional button to move to the top row. You will be on the Guide item.
  • Page 142 Using the Smart Hub Home Screen On the leftmost part of the Smart Hub home screen is the static menu listed below. You can quickly and easily use the listed menu items to access the main Projector settings or external devices, search, and apps. •...
  • Page 143 Go to the Samsung Account screen to create a new account or sign out of your account. For more information, refer to "Using a Samsung account." – Notification You can view a list of notifications for all events that occur on your Projector. A notification appears on the screen when it is time to broadcast a scheduled program or when an event occurs on a registered device.

  • Page 144: Launching The E-Manual

    Open e-Manual You can view the embedded e-Manual containing information about your Projector's key features. Alternatively, you can download a copy of the e-Manual from Samsung's website (http://www.samsung.com). Words in blue (e.g., Internet) indicate a menu item. The e-Manual contains 2 rows of menu icons. Use the up and down directional buttons to move between rows and the left and right directional buttons to move within a row.

  • Page 145: Using Bixby

    Using Bixby A guide to using Bixby to control your Projector. To use Bixby, your Projector must be connected to the Internet and you must use the microphone on your Samsung Smart Remote. To use Bixby, press and hold the button on the Samsung Smart Remote, say a command into the microphone on the remote, and then release the button to run Bixby.
  • Page 146 FULL MANUAL HW-Q990B Imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/register...

  • Page 147: Connecting Via Apple Airplay

    Dispose unwanted electronics through an approved recycler. To find plug out of the wall socket. Consequently, the power plug must be the nearest recycling location, go to our website:www.samsung.com/ easily and readily accessible at all times. recycling Or call, 1‐800‐SAMSUNG FCC NOTE (for U.S.A):...
  • Page 148 PRECAUTIONS Important Safety Instructions Read these operating instructions carefully before using the unit. 1. Ensure that the AC power supply in your house complies with the Follow all the safety instructions listed below. Keep these operating power requirements listed on the identification sticker located instructions handy for future reference.
  • Page 149 CONTENTS Checking the Components Product Overview Top Panel of the Soundbar..................... .7 Bottom Panel of the Soundbar .
  • Page 150 Installing the Soundbar in front of TV Component ....................... . . 31 Software Update Auto Update.

  • Page 151: 01 Checking The Components

    • For more information about the power supply and power consumption, refer to the label attached to the product. (Label: Rear of the Soundbar Main Unit) • To purchase additional components or optional cables, contact a Samsung Service Center or Samsung Customer Care. • For more information about the wallmount or rubber-foot, see pages 30~32.

  • Page 152: 02 Product Overview

    02 PRODUCT OVERVIEW Top Panel of the Soundbar (Multi Function) Button • In standby mode, press the (Multi Function) button to turn on the Soundbar. • Press the (Multi Function) button to change the input source. (Volume) Button Adjusts the volume. Mic Off Mic On (Mic On/Off) Button...

  • Page 153: 03 Using The Soundbar Remote Control

    03 USING THE SOUNDBAR REMOTE CONTROL Inserting Batteries before using the Remote Control (AAA batteries X 2) Slide the back cover in the direction of the arrow until it is completely removed. Insert 2 AAA batteries (1.5V) oriented so that their polarity is correct. Slide the battery cover back into position. •...
  • Page 154 By pressing the button, you can set the audio function such as Auto EQ, Spacefit sound, AVA, Voice enhance mode, Night mode, Sync, Surround speaker mode, Virtual. The desired item can be adjusted using the Up/Down Sound Control buttons. • You can use the Auto EQ function if a subwoofer is connected. •...

  • Page 155: Active Voice Amplifier (Ava)

    Active Voice Amplifier (AVA) • Analyzes external noise in real time while soundbar is playing, so that voice audio can always be heard clearly. • No data is saved during the analysis. Using the Hidden Buttons (Buttons with more than one function) Hidden Button Reference page Remote Control Button...

  • Page 156: Adjusting The Soundbar Volume With A Tv Remote Control

    • Set the TV speaker to External Speaker to use this function. • Manufacturers supporting this function: Samsung, VIZIO, LG, Sony, Sharp, PHILIPS, PANASONIC, TOSHIBA, Hisense, RCA 1. Turn Off the Soundbar. 2. Push up and hold the WOOFER button for 5 seconds.

  • Page 157: 04 Connecting The Soundbar

    04 CONNECTING THE SOUNDBAR Connecting the power and units Use the Power cord to connect the Subwoofer, Surround Speakers, and Soundbar to an electrical outlet in the following order: • For more information about the required electrical power and power consumption, refer to the label attached to the product. (Label: Rear of the Soundbar Main Unit) 1.

  • Page 158: Recommended Speaker Layout

    Recommended Speaker Layout CAUTION • Wireless receiving antennas are built into the wireless subwoofer and surround speakers. Keep the units away from water and moisture. Soundbar • For optimal listening performance, make sure that the areas around the Subwoofer 0° wireless subwoofer and surround speakers locations are clear of any obstructions.

  • Page 159: Manually Connecting The Subwoofer Or Surround Speakers

    Manually connecting the Subwoofer or Surround Speakers Before performing the manual connection procedure below: • Check whether the power cables for the Soundbar and subwoofer or Surround Speakers are connected properly. • Make sure that the Soundbar is turned off. 1.

  • Page 160: Led Indicator Lights On The Rear Of Subwoofer And Surround Speakers

    Surround Speakers Connect again. See the instructions for manual Connection failed connection on page 14. Subwoofer Red and blue See the contact information for the Samsung Service Blinking Malfunction Center in this manual. Surround Speakers Red and blue NOTE •...

  • Page 161: Auto Eq

    Auto EQ The Auto EQ technology of Samsung provides more natural and softer bass by calibrating low frequency detected via the mic on the subwoofer. Low frequency usually occurs due to the size of the room and the location of the subwoofer.

  • Page 162: 05 Connecting To A Tv

    • When connecting a TV that supports the eARC function, “eARC” appears on the display and the sound is heard. • To connect with eARC, the eARC function in the TV menu should be set to On. Refer to the TV user manual for details on setting. (e.g. Samsung TV : Home ( ) → Menu → Settings ( ) →...

  • Page 163: Connecting Using An Optical Cable

    Connecting using an Optical Cable Pre-connection Checklist • When both the HDMI cable and optical cable are connected, the HDMI signal is received first. • When you use an optical cable and the terminals have covers, be sure to remove the covers. Bottom of the Soundbar Optical Cable (not supplied) DIGITAL AUDIO IN...

  • Page 164: Connecting Via Bluetooth

    3. Select “Soundbar Q***B” from the list on TV’s screen. An available Soundbar is indicated with “Need Pairing” or “Paired” on the TV’s Bluetooth device list. To connect the Samsung TV to the Soundbar, select the message, and then establish a connection.

  • Page 165: Connecting Via Wi-Fi

    ) → Menu → Settings ( ) → All Settings ( ) → Sound → Sound Output → Soundbar Q***B (Wi-Fi) NOTE The Wi-Fi Dolby Atmos connection is available in some Samsung TVs and some Soundbar models. ENG - 20...

  • Page 166: Using The Q-Symphony Function

    Using the Q-Symphony Function For Q-Symphony, the Soundbar syncs with a Samsung TV to output sound through two devices for optimum surround effect. When the Soundbar is connected, the menu, “TV+Soundbar” appears under the Sound Output menu of the TV. Select the corresponding menu.

  • Page 167: Using The Spacefit Sound

    ( Up ) → “Spacefit sound On”) • This is available in all Sound modes. Method 2. Connecting via TV To enable this function, turn on the Adaptive Sound+ mode on your Samsung TV menu. (Home ( ) → Menu → Settings ( ) →...

  • Page 168: 06 Connecting An External Device

    Open the audio output options on the settings menu of your BD player or other device and make sure that “No Encoding” is selected for Bitstream. For example, on a Samsung BD Player, go to Home Menu → Sound → Digital Output and then select Bitstream (unprocessed).

  • Page 169: Method 2. Connecting Using An Optical Cable

    Method 2. Connecting using an Optical Cable Top of the Soundbar BD / DVD player / Set- top box / Game console D.IN DIGITAL AUDIO IN (OPTICAL) Optical Cable OPTICAL OUT (not supplied) Bottom of the Soundbar 1. Use an optical cable (not supplied) to connect the DIGITAL AUDIO IN (OPTICAL) on the Soundbar main and the OPTICAL OUT port on the external device.

  • Page 170: 07 Connecting A Mobile Device

    What is the difference between BT READY and BT PAIRING? • BT READY : In this mode, you can reconnect any Samsung TV or mobile device that was connected before. • BT PAIRING : In this mode, you can connect a new device to the Soundbar.
  • Page 171 • A Bluetooth device may experience noise or malfunction under in the following conditions: ‒ When the body is in contact with the signal transceiver on the Bluetooth device or Soundbar ‒ In corners or when there is an obstacle in proximity, such as a wall or partition, where electrical changes may occur. ‒...

  • Page 172: Method 2. Connecting Via Wi-Fi (Wireless Network)

    Method 2. Connecting via Wi-Fi (Wireless Network) To connect a Soundbar to a mobile device via a wireless network (Wi-Fi), the SmartThings app is required. The initial connection 1. Install and launch the SmartThings app from your mobile device (smartphone or tablet). 2.

  • Page 173: Using The Tap Sound

    Tap the Soundbar with your mobile device to play the sound of content on the mobile device through the Soundbar. • This function may not be supported, depending on the mobile device. • This function is only compatible with Samsung mobile devices with Android 8.1 or later. SmartThings App...
  • Page 174 • This Samsung Soundbar supports AirPlay 2 and requires iOS 11.4 or later. With AirPlay 2, you can stream music, podcasts, and other audio from your Apple devices to the Samsung Soundbar. • Make sure the Soundbar is powered on and connected to the same Wi-Fi network as your Apple device.

  • Page 175: Installing The Wall Mount

    09 INSTALLING THE WALL 2. Align the Wall Mount Guide’s Center Line with the center of your TV (if you are mounting the Soundbar below your TV), and then fix MOUNT the Wall Mount Guide to the wall using tape. •...

  • Page 176: Installing The Surround Speakers On A Wall

    Wall Mount Brackets and the speakers on the wall. • Samsung Electronics is not liable for any damage to the product due to the product being installed inappropriately. • Take care not to install the speakers sideways or upside down.

  • Page 177: 11 Software Update

    ID SET ID SET (WOOFER, REAR) NETWORK Samsung may offer updates for the Soundbar’s system firmware in the future. When an update is available, you can update the Soundbar by connecting the USB drive that contains the update firmware to the SERVICE port of the Soundbar.

  • Page 178: Initialization

    • When any external device (STB, Bluetooth device, mobile device, etc.) is connected, adjust the volume of the external device. • For sound output of the TV, select Soundbar. (Samsung TV: Home ( ) → Menu → Settings ( ) →...
  • Page 179 • Your device is unable to play the input signal. Change the mode. Then no sound is output from the TV. TV’s audio output to PCM or Dolby Digital. (For a Samsung TV: Home ( ) → Menu → Settings ( ) →...

  • Page 180: 13 License

    • If you have a problem with this product, we strongly recommend you read the appropriate section of this manual, visit the Support page for your product at www.samsung.com, or call Samsung The terms HDMI and HDMI High-Definition Multimedia Interface,...

  • Page 181: 16 Specifications And Guide

    Rated Output power 210 W NOTE • Samsung Electronics Co., Ltd reserves the right to change the specifications without notice. • Weight and dimensions are approximate. Precaution : The Soundbar will restart automatically if you turn on/turn off Wi-Fi. Wi-Fi...
  • Page 182 SAMSUNG or SAMSUNG’s authorized service center. Transportation of the product to and from the service center is the responsibility of the purchaser. SAMSUNG will repair or replace this product, at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specified above.
  • Page 183 QUESTIONS OR COMMENTS? Country Samsung Service Center  Web Site Address Samsung Electronics America, Inc. IN THE US 1-800-SAMSUNG (726-7864) www.samsung.com/us/support 85 Challenger Road Ridgefield Park, NJ 07660 © 2022 Samsung Electronics Co., Ltd. All rights reserved.

Table of Contents
