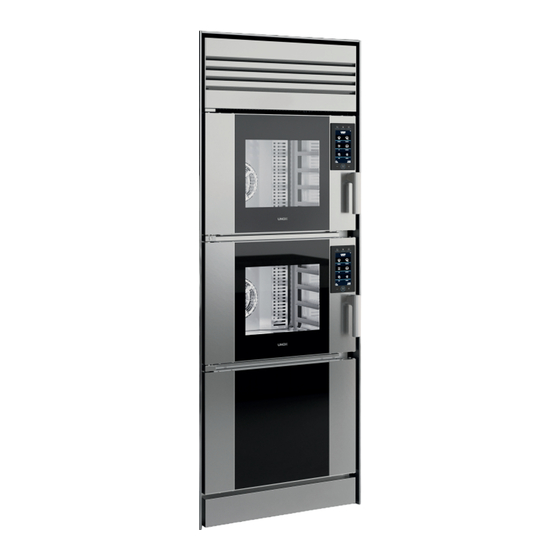

USE AND MAINTENANCE
MODEL 1
MODEL 1S

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CASA 1 and is the answer not in the manual?

Questions and answers

Related Manuals for Unox CASA 1

Summary of Contents for Unox CASA 1

  • Page 1 USE AND MAINTENANCE MODEL 1 MODEL 1S...
  • Page 2 Designed to capture the attention of those who seek excellence in the kitchen as well as in life. This manual contains all the information you need to use this appliance at its best. If you do not fully understand any of the contents, please contact UNOX for further information.
  • Page 4 Safety Pictograms Safety information Warnings and advice for using your appliance safely.
  • Page 5 - If the appliance is not working or if you notice any changes to the structure or opera- tion, disconnect the electricity supply and contact an authorised UNOX customer as- sistance service. Do not attempt to repair the appliance yourself. For any repairs, please request UNOX original spare parts.
  • Page 6 - The humidity sensing system must be calibrated when the oven is first installed (con- tact the UNOX Service Centre), and as and when the oven requires it. - Do not use aggressive abrasive agents or sharp metal scrapers to clean the oven’s glass door to prevent scratches and breakage.
  • Page 7 (optional), etc.). SAFETY INFORMATION FOR USING HYPER.SMOKER - This appliance can only be used for smoking food inside UNOX cooking cavities. Any other use is not compliant with the scope of use and is therefore hazardous. - Do not allow children, persons with physical, sensory, or mental impairment or with poor experience or knowledge use Hyper.Smoker.
  • Page 8 - Once smoking is complete, open the door slowly and carefully, waiting for the smoke to escape from the oven cavity. - Always pay attention and use thermal protective clothing to remove Hyper.Smoker from the cavity’s heating element. The latter remains hot for several minutes after oven is switched off.
  • Page 10 GENERAL INFORMATION Suggestions and warnings Using the core probe LCD control panel | HOME screen 13 How to set values Let’s discover a few functions of your appliance so that you can always use it at its best. MODEL 1S MODEL 1...
  • Page 11 ■ Use the UNOX grills and trays; try to distribute food uniformly on these while avoiding stacking and excessive quantities. Always respect the loading instructions for your appliance. ■...
  • Page 12 DOOR OPENING The UNOX Model 1 - Model 1S column is fitted with a two-stage safety opening to prevent hot air and steam to invest the user. 1 0 5 ° M Turn the handle by 90°: the Bring the handle back...
  • Page 13 SWITCHING ON THE OVEN Press ON to switch on the oven. After you have pressed it: ■ the UNOX logo is displayed ■ and the oven lights up internally. After 15 minutes of non-use and after the components have cooled, the appliance goes into standby mode.
  • Page 14 HOW TO SET VALUES 30 °C 30 °C PREHEATING SAVE STEP 2/1 PREHEATING SAVE STEP 2/1 DRAG THE CURSOR USING THE BUTTONS Tap the symbol of the parame- Tap the symbol of the parame- ter to be set; this then chang- ter to be set;...
  • Page 15 A | Special function “FAVORITES” BEEF STEAK BEEF STEAK AUTOCOOK MULTI.TIME SMART.Preheating IS WORKING: OPTIMIZING SMART.Preheating IS WORKING: OPTIMIZING HEAT ACCUMULATION HEAT ACCUMULATION 242 °C 242 °C SAVING PROGRAMS 240 °C 240 °C HEAT ACCUMULATION IN PROGRESS HEAT ACCUMULATION IN PROGRESS RINSE WASHING 09:09...
  • Page 16 UIP (UNOX INTELLIGENT PERFORMANCE) If activated as shown in the figure, UIP technology allows the operator to constantly monitor each preheating and cooking cycle during manual cooking. Thanks to this feature, the oven software is able to make changes to the user settings autonomously, where necessary, without the operator needing to intervene.
  • Page 17 When this key is pressed, information on the corresponding UIP technology is displayed UNOX INTELLIGENT PERFORMANCE UNOX INTELLIGENT PERFORMANCE SMART.Preheating AUTO.Soft SMART.Preheating ADAPTIVE.Cooking AUTOMATICALLY ADJUSTS PREHEATING TIME AND TEMPERATURE, TO ENSURE OPTIMUM COOKING UNIFORMITY SMART.Drain AND ENERGY EFFICIENCY. DONE During a cooking cycle, the icons in...
  • Page 18 USING THE CORE PROBE During the cooking cycle, the probe detects the temperature at the core of the product. It reaches the temperature set by the user when the product is perfectly cooked both on the surface and on the inside.
  • Page 19 (H. 12 mm) STEEL.GRID GRP 806 Flat stainless steel grid (H. 8.5mm) UNOX CASA MODEL 1 UNOX CASA MODEL 1S Choose the tray based on the dish to cook. Place the food evenly inside the tray. OK!!! Insert the trays by sliding them into the side guides.
  • Page 20 HYPER.SMOKER Hyper.Smoker is ideal for smoking roast beef, meat or fish skewers, mashed potato, duck breast, salmon, ricotta cheese, etc. For information about its loading, see page 38. Loading Hyper.Smoker The amount of wood that the Hyper.Smoker can load varies depending on the wood weight (generally ranging be- tween 70 and 100 g).
  • Page 21 At the end of every smoking process, remove Hyper.Smoker from the cavity and pour the wood residues into a fire- proof bin with a cover to prevent them from coming into contact with flammable material.
  • Page 22 The oven automatically sets the best cooking cycle by selecting the category, the type of food and its characteristics. In this section, you can use the UNOX pre-set programs, which are conceived and tested by professional chefs. The programs available are: ■...
  • Page 23 BEEF SKEWERS Moreover, if you tap the symbol on the top right, you BEEF MARKING enable the UNOX INTELLIGENT PERFORMANCE (UIP) technology . For further details, see page 16 Press START/STOP. Select the type of food (e.g. BEEF...
  • Page 24 This screen indicates that the SMART.Preheating function is in progress: wait for the end of the preheating cycle before putting the food in the oven BEEF STEAK Save the recipe as a favourite for more details, see page 15 SMART.Preheating IS WORKING: OPTIMIZING HEAT ACCUMULATION 242 °C Oven cavity temperature...
  • Page 25 Current cooking cycle time remaining < 15 sec. Cooking complete time remaining < 5 sec. If you tap , you enable the UNOX INTELLIGENT PERFORMANCE INSERT CORE PROBE (UIP) technology . For further details, see page 16 10:19 2020-11-10 SAVE The preheating cycle is complete;...
  • Page 26 MULTITIME It often happens to simultaneously cook products that need different cooking times but same conditions (temperature, humidity, etc.). The “MULTI.TIME” menu allows you to use the oven continuously and set up to 10 timers for each dish. Using this function, the oven maintains the set temperature and humidity indefinitely. The example shows that 3 trays containing different foods are inserted into the oven cavity at 10:00, 10:15 and 10:18.
  • Page 27 CATEGORY FAKIRO GRILL GRILLING FAKIRO GRILL FAKIRO PIZZA AUTOCOOK MULTI.TIME PAN FRYING FRYING COMBI START COOKING PROGRAMS BAKING STEAMING HOLDING RINSE WASHING 09:09 2020-11-05 To access, tap the “MULTI.TIME” Select the program suitable for The preheating cycle is complete. the dish you want to cook (e.g. FA- Place the first tray inside the oven.
  • Page 28 Moreover, if you tap on the top right, you enable the UNOX INTELLIGENT PERFORMANCE (UIP) technology . For further details, see page 16 Press the START/STOP button to start the timer.
  • Page 29 Setting a timer manually If you set the timers manually, you must set a time or the core probe temperature. If you set: ■ a time, the timer expires based on the time set (e.g. 16 minutes). ■ the core temperature, the timer will expire when the set temperature is reached (e.g.
  • Page 30 For manual cooking, based on experience, you must set the following parameters for preheating and each cooking step: ■ cooking time or core temperature (the two parameters exclude each other); ■ temperature in the oven cavity or Delta “T” (choosing one of these parameters excludes the other); steam input/extraction in the cavity;...
  • Page 31 AUTOCOOK MULTI.TIME “HYPER.Smoker” PROGRAMS “PRESSURE Special optional special function STEAM” function For more details, see p. For more details, see p. RINSE WASHING 09:09 2020-11-05 By activating the MULTI.Product function, at the end of the step, an image and a note entered by the user will be displayed (e.g.
  • Page 32 Once the cooking cycle has been started and regardless of the mode selected, it is possible to interrupt the preheating stage at any time (if needed) and move to STEP 1. Activate SMART.Preheating (recommended mode) UNOX INTELLIGENT PERFORMANCE 0:00:00 0:00:00 SMART.Preheating...
  • Page 33 Setting preheating in manual mode PREHEATING PREHEATING 0:00:00 30 °C 0:27:00 0:27:00 221 °C 221 °C PREHEATING SAVE STEP 2/1 STEP 1/1 STEP 1/1 Tap the “PREHEATING” icon: the Set the preheating parameters: Go to the settings for step 1. ■...
  • Page 34 SETTING THE COOKING STEPS To be enabled, a cooking cycle needs the following settings: ■ cooking time (from 0 minutes to 9h:59min:59sec then INDEFINITE, i.e. the oven operates continuously) or the core probe temperature: these two parameters exclude the other. In the first case (time), the cooking cycle ends after the set time;...
  • Page 35 UNOX INTELLIGENT PERFORMANCE 0:50:00 SMART.Preheating 30 °C 100 °C AUTO.Soft ADAPTIVE.Cooking 120 % SMART.Drain DONE PREHEATING SAVE STEP 2/1 PREHEATING SAVE STEP 2/1 Set the cooking parameters For prefect results every time, If necessary, set up to nine you can use UIP technology . For other cooking steps in the same based on your needs.
  • Page 36 C | Special function MULTI.Product The MULTI.Product function lets you select a photo and write a note which will appear at the end of the step for which the function has been activated. MULTI.PRODUCT IMAGES 0:50:00 STEP 1/1 100 °C 0:05: 120 % 230 °C...
  • Page 37 D | Special function Pressure Steam With the Pressure Steam function, it is possible to cook dishes that require a large amount of steam (e.g. Jiaozi - Chinese Dumplings) and short cooking times.. active function Activate this function by pressing the related icon, function which turns from grey to blue.
  • Page 38 E | Special function HYPER.Smoker Hyper.Smoker is ideal for smoking roast beef, meat or fish skewers, mashed potato, duck breast, salmon, ricotta cheese, etc. For information about its loading, see page 20. Set the size of the wood you want to use. The fan rotation speed CANNOT be changed during a step with smoking cycle.
  • Page 40 STARTING A COOKING CYCLE After having set all the parameters (time, temperature, etc.), you can: ■ start the cooking cycle directly without saving it page 40. In this case the parameters set are not saved and must be entered during each subsequent cooking cycle; ■...
  • Page 41 Save and start the set cooking cycle Saving a cooking cycle means that it can be used later, at any time, without having to reset the parameters each time. The screen will show: assign a name to the recipe (e.g. CROISSANT); tap the camera symbol to select PROG PICTURE an image for the program;...
  • Page 42 GROUP1 can be changed as you wish (e.g., FIRST COURSES). To do so, tap the writing GROUP1 and enter the name using the keypad. Press OK to confirm. PROGRAMS LASAGNE LASAGNE GROUP 1 BIGNE LASAGNE COOKING ESSENTIALS DELETE THIS? VIEW/MODIFY DUPLICATE DELETE DELETE...
  • Page 43 WHAT HAPPENS AFTER STARTING A COOKING CYCLE? After starting a cooking cycle, there are three possible situations depending on the settings which have been entered previously: p. 43 |preheating or cooling of the cavity not necessary put the food in the oven immediately; p.
  • Page 44 Automatic or manual preheating, or SMART.Preheating Preheating always starts if the oven cavity is at a lower temperature than the temperature set for the first step of the cooking cycle. If, during parameter setting: ■ NEITHER manual NOR SMART.Preheating has been set, automatic preheating of the cavity will start in any case and will end when the temperature set for step 1 is reached;...
  • Page 45 This screen indicates that the SMART.Preheating function is in progress: wait for the end of the preheating cycle before putting the food in the oven SMART.Preheating Access the UIP technology setting for more details, see page 16 SMART.Preheating IS WORKING: OPTIMIZING HEAT ACCUMULATION 242 °C Oven cavity temperature...
  • Page 46 Manual cooling or SMART.Preheating If the actual temperature detected in the cavity is higher than the set temperature (for example because the oven has recently finished cooking at a much higher temperature than required preheated temperature), the oven will start to cool the cavity using the fans. To speed up the operation, a screen will prompt you to open the door (it is normal for the fans to continue to operate even when the door is open).
  • Page 47 COOKING CYCLE IN PROGRESS Cooking end time (in this example, the dishes will be ready at 11:48) Time remaining until the end of the cooking cycle in progress 0:12: 30 END OF COOKING 0:28:00 0:05: 30 READY AT Current cooking cycle 11:48 time remaining >...
  • Page 48 COOKING END Cooking ends when the set time interval or core probe temperature is reached. The end of cooking is indicated by a long beep and the screen below. From this screen you can: Home button save the completed cooking cycle (if this has not already been done); repeat the cooking cycle as soon as it has finished, modifying the parameters if necessary;...
  • Page 50 PROGRAMS This menu provides access to a list of cooking cycles saved previously using the SET menu. PROGRAMS LASAGNE GROUP 1 BIGNE LASAGNE AUTOCOOK MULTI.TIME COOKING ESSENTIALS PROGRAMS RINSE WASHING VIEW/MODIFY DUPLICATE DELETE 09:09 2020-11-05 Tap the “PROGRAMS” icon to Tap one of the cooking cycles The screen that appears allows open the list of cooking cycles previ-...
  • Page 51 Home button LASAGNE LASAGNE LASAGNE COOKING ESSENTIALS SMART.Preheating IS WORKING: OPTIMIZING HEAT ACCUMULATION 242 °C 240 °C ADD TIME MOVE PROBE ADD TEMP. HEAT ACCUMULATION IN PROGRESS VIEW/MODIFY DUPLICATE DELETE REPEAT SAVE SP OFF To start the cooking cycle, press You can mark your favourite When the cooking cycle is the START/STOP.
  • Page 52 RINSING WASHING IMPORTANT SAFETY PRECAUTIONS Before starting a cleaning cycle, make sure that there are NO trays in the oven chamber, otherwise the washing is ineffective. Carefully read the product safety data sheet before handling and using the detergent. Do not open the oven door during a washing cycle as this could cause injury to eyes, mucous membranes and skin because of contact with the cleaning chemicals used.
  • Page 53 WASHING SHORT AUTOCOOK MULTI.TIME WARNING! WASHING IN PROGRESS DO NOT OPEN THE DOOR PROGRAMS END OF WASHING 1:09:30 RINSE WASHING 09:09 2020-11-05 Warning: DO NOT open the door during Tap the “RINSE” or “WASH” Tap the name of the program you washing.
  • Page 54 ■ Open the lid of the tank. ■ Grab the bottle of UNOX detergent (1 litre), hold it vertically. Face the cap upwards and remove it. DO NOT remove or pierce the protective film. ■ Make sure that the protective film is intact. Turn the bottle upside down and screw it on the tank (by screwing the bottle, a pin in the tank breaks the protective film, which allows the detergent to come out).
  • Page 55 STOP! Push pull Soft close...
  • Page 56 AMERICAN ENGLISH USER SETTINGS DATE AND TIME UNIT OF MEASURE NETWORK OPTIONS SERVICE MENU UNOX SERVICE DEVICE INFO NETWORK Tap the “USER SETTINGS” Enter the password 4456. A list with settable parameters icon related to the oven parameter Tap OK to confirm.
  • Page 57 LANGUAGE DATE AND TIME UNIT OF MEASURE TIME ZONE TEMPERATURE AMERICAN ENGLISH Rome °C DAYLIGHT SAVING TIME VOLUME AUTOMATIC LITERS YEAR THICKNESS BAHASA INDONESIAN 2020 MONTH WEIGHT BRITISH ENGLISH ENERGY HOUR CESKY CURRENCY MINUTE LANGUAGE TIME AND DATE UNIT OF MEASUREMENT Here you can select the language, This lets you modify the oven date The user can select the unit of...
  • Page 58 NETWORK OPTIONS | USER INTERFACE The network menu allows you to connect the UNOX Seconds to show slides in cooking Set the number of seconds after which (after opening Model 1 e Model 1S column to the internet. Once you...
  • Page 59 INFORMATION ON THE AUTOCOOK DEVICE Add the list of programs for a specific Here you can find the telephone country to the list of saved UNOX numbers to be contacted for This screen provides device-related chef programs. customer services. information, such as model, serial...

  • Page 60: Table Of Contents

    Cleaning and support Cleaning the appliance Inactivity Disposal After-sales assistance Certification Thorough and correct cleaning maintains the beauty and performance of your oven over time.

  • Page 61: Cleaning The Appliance

    Wait for the surfaces to cool off. Use only a soft cleaning cloth dampened with soapy water. Rinse and dry thoroughly. Alternatively, only use detergents recommended by UNOX; other products may cause damage, thereby invalidating the warranty*. Read the usage instructions provided by the detergent manufacturer.
  • Page 62 CONDENSATION COLLECTION TRAY Periodically, remove the condensation collection tray pulling it firmly (it is anchored magnetically). Clean it with hot water and soap. Rinse and dry thoroughly before putting it back in place. Pay attention not to pinch your fingers between the tray and the deflector above it.

  • Page 63: Inactivity

    INACTIVITY During periods of inactivity, take the following precautions: ■ disconnect the power, water and gas supplies to the appliance (only for gas ovens); ■ preferably rub a soft cloth lightly doused with Vaseline oil on all stainless steel surfaces; ■...

  • Page 64: After-Sales Assistance

    In case of any malfunctions, disconnect the appliance from the power supply and consult the solutions proposed in the table G | Troubleshooting. If the solution is not listed in the table, contact an authorised UNOX technical service centre, providing the following information: ■...

  • Page 65: Certification

    CERTIFICATION EU declaration of conformity for electrical and gas appliances Manufacturer: UNOX S.p.A. Address: Via Majorana, 22 - 35010 Cadoneghe, Padua, Italy Declares, under its own responsibility, that the product UNOX MODEL 1 complies with the Machinery Directive 2006/42/EC through the following standards:...
  • Page 68 - COLOMBIA - BRASIL - MÉXICO UNOX Inc. UNOX ARGENTINA UNOX COLOMBIA UNOX BRASIL SERVICOS LTDA UNOX MÉXICO, S. DE R.L. DE C.V. E-mail: info.mx@unox.com E-mail: info.usa@unox.com E-mail: info.ar@unox.com E-mail: info.co@unox.com E-mail: info.br@unox.com Tel: +52 55 8116-7720 Tel: +1 800 489 8669...
