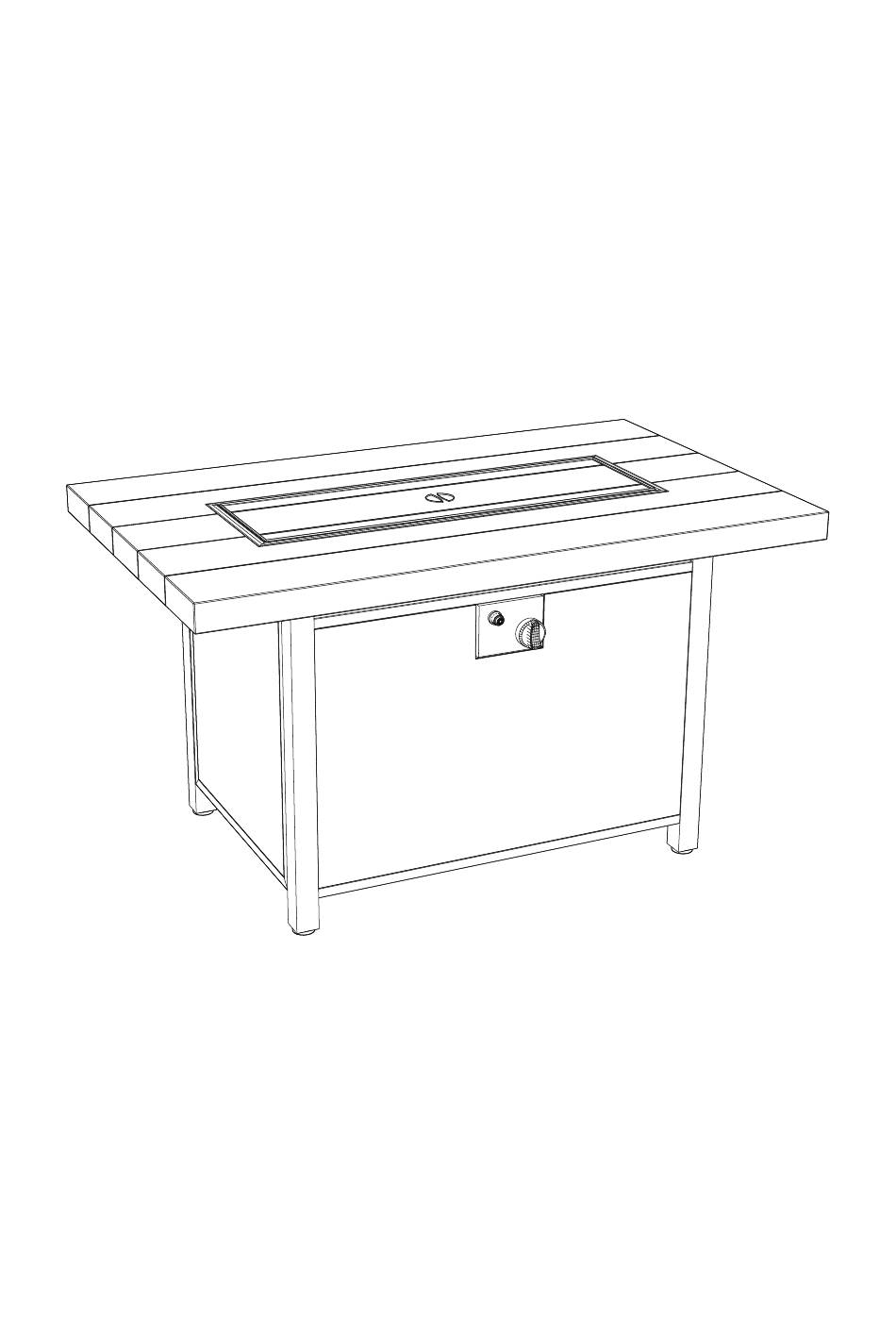

- Page 1 Gas Fire Pit Table Assembly & Care instructions Model : 4527FTMB-23 Please read & retain for future reference...
- Page 3 Keep the instructions for future reference Do not use this equipment if any part is flooded with water. Call technical service immediately to inspect the equipment and replace any part of the control system and any gas controller.
-
Page 4: Warning Safety Rules
WARNING SAFETY RULES PLEASE READ THE FOLLOWING SAFETY RULES PRIOR TO OPERATION OF THE HEATER DANGER FIRE OR EXPLOSION HAZARD WARNING: For Outdoor Use Only. Installation and service must be performed by a qualified installer,service agency,or the gas supplier. 1) For use outdoors or in amply ventilated areas. 2) An amply ventilated area must have a minimum of 25 % of the surface area open. - Page 5 WARNING Read the instructions before installation and use. This appliance must be installed and the gas cylinder stored in accordance with the regulations in force; Do not obstruct the ventilation holes of the cylinder housing; Do not move the appliance when in operation; Shut off the valve at the gas cylinder or the regulator before moving the appliance;...
-
Page 6: Table Of Contents
TABLE OF CONTENTS Warning Safety Rules ............3 Caution ................6 Heater Stand and Location ..........8 Gas Requirements ............8 Leakage Test ..............8 Operation And Storage ............9 Cleaning and Care ............11 Parts and Specifications ..........11 Parts List..............13 Problems Check List............22... -
Page 7: Caution
C A UTION PLE ASE R E AD CAREFULLY THE F OLL O WING S AFETY GUIDELINES BE F ORE OPERATION. Do not use the fire pit indoors, as it may cause personal injury or property damage. This outdoor fire pit is not intended to be installed on recrea�onal vehicles and/or boats. Installa�on and repair should be done by a qualified service person. - Page 8 Pay a�en�on when put the cylinder to the cylinder during opera�on. Never put spare cylinder in the same cylinder enclosure. Never block the way of shu�ng off ff t Fig.1 The hose assembly must be replaced prior to the appliance being put into opera�on if there is evidence of excessive abrasion or wear or if the hose is damaged.
-
Page 9: Heater Stand And Location
HEATER STAND AND LOCATION CEILING adequate fresh air ven�la�on is provided. Always maintain proper clearance to combus�ble materials, i.e. 122 C M l fi r fl GAS REQUIREMENTS Use propane, butane or their mixtures gas only. The pressure regulator and hose assembly to be used must conform to local standard codes. The installa�on must conform to local codes, or in the absence of local codes, with the standard for the storage and handling of liquid petroleum gases. -
Page 10: Operation And Storage
OPERA TION AND S T ORA GE Warning: User shall pour lava rocks fully to cover the whole burner before opera�on. T O TURN ON THE FIRE PIT 1. Turn the control knob to the “OFF”posi�on (Figure a). 2. Fully open LP cylinder valve. Note: For ini�al start or a�er any cylinder change, hold Control Knob IN for 10 seconds to purge air from gas lines before proceeding. - Page 11 Transportable terrace/fire pit with tank housing Casing in steel with powder-coa�ng or stainless steel. Gas hose connec�ons with metal clamp Use propane,butane or their mixtures gas only. Max. wa�age:50000BTU/Hr(14.65KW) The hose and regulator assembly must conform to local standard codes. Regulator outlet pressure should meet the corresponding appliance category in B.
-
Page 12: Cleaning And Care
CLEANING AND CARE Wipe off powder coated surfaces with soft, moist rag. Do not clean the heater with cleaners that are combustible or corrosive. Remove debris from the burner to keep it clean and safe for use. Cover the burner unit with the optional protective cover when the heater is not in use. - Page 13 ASSEMBL Y P ARTS...
-
Page 14: Parts List

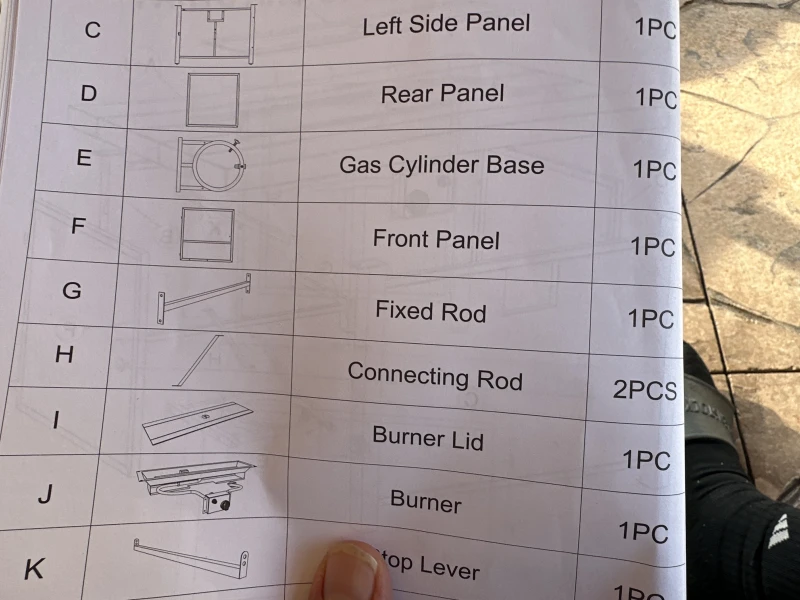

P A R TS LIST Part Description Description T able T op Right Side Panel Left Side Panel Rear Panel Gas Cylinder Base Front Panel Fixed Rod Connecting Rod 2PCS Burner Lid Burner Stop Lever Bolt 1/4*12 24PCS... - Page 15 P A R TS LIST Part Description Description 2PCS Bolt 1/4*35 Knob 1/4*15 4PCS Allen wrench Knob M8*35 Adjustable foot 4PCS 6KGS Glass Stones M6 Spacer 4PCS M6 Large spacer 4PCS Cover...
- Page 16 Extra Part Description Description Bolt 1/4*12 2PCS Bolt 1/4*35 Knob 1/4*15 M6 Spacer M6 Large spacer W ARNING : Failure to locate parts in accordance with these diagrams, or failure to use special parts provided with this equipment, may result in property damage or personal injury.
- Page 17 Step 1 :Connect the gas cylinder base (E) to the front panel (F) with bolts (M). NOTE :Please fully tighten all bolts at this time. 1/4*35 Step 2 : A l i g n t h e h o l e s a t b o t h e n d s o f t h e c o n n e c t i n g r o d ( H ) t o t h e h o l e s o f t h e f r o n t p a n e l ( F ) a n d t h e g a s c y l i n d e r b a s e ( E ) respectively,and then fix them with bolts(L).
- Page 18 Step 3: Attach right side panel(B) and left side panel(C) to table top(A) using bolts(N) . NOTE: Please do not fully tighten bolts until unit is fully assembled. Carefully and gently to prevent damage to the burner equipment. 1/4*15 Step 4: Align the holes around the burner (J) with the holes on the Left Side Panel(C).
- Page 19 Step 5: Attach burner(J) to Left Side Panel(C) using bolts(L). NOTE: Please align the holes well and determine the direction of the fire switch(J) controller,do not reverse the top and bottom.Please do not fully tighten bolts until unit is fully assembled. 1/4*12 Step 6: Attach fixed rod(G) to right side panel(B) and left side panel(C)
- Page 20 Step 7: After aligning the stop lever (K), screw on the bolt (L). NOTE: Please do not fully tighten bolts until unit is fully assembled. 1/4*12 Step 8: Attach rear panel(D) to right side panel(B) and left side panel (C) using bolts(L). NOTE: Please do fully tighten bolts until unit is fully assembled.
- Page 21 Step 9: Mount adjustable foot(Q) on the Leg. NOTE: Please fully tighten all bolts at this time. Step 10: Insert the pressed door into the Right Side Panel(B) through the bolt.
- Page 22 Step 11: Check if the hook on the right panel is intact. Step 12: In the use process,the hook is used to store the Burner Lid(I).
- Page 23 Step 13: Please wear gloves to prevent the broken glass stone(R) from scratching your hands. Pour the glass stone (R) into the burner and place it evenly. Step 14: Cover the lid and install the product.
- Page 24 Step 15: Put the installed windshield on the gas stove table.
- Page 25 Cover NOTE: We recommend the use of furniture covers to protect the patio fire pit when not in use; Please remove the wind guard before you use waterproof table cover. CLEANING AND MAINTENANCE Clean frame with mild soapy water,rinse thoroughly. Dry frame parts completely.Do not use bleach,acid, or other solvents on the fabric and metal parts.
-
Page 26: Problems Check List
Pilot light assembly bent Place pilot properly Not in correct location Position properly and retry If the appliance is in case of any defaults or problems with assembly or use, please don't try to modify it by yourself. Contact with: E-mail:Service@alaulm.com... - Page 27 HANGZHOU HANGGE INTERNA TIONA L TRADE CO. L TD. Room 1309 building 1 No. 650 Bin'an Road, Changhe street, Binjiang District, Hangzhou, Zhejiang, CN,310000 Questions, problems, missing parts? Do not hesitate to contact our customer service before returing the item. Customer Service Email: service@alaulm.com...
