5021119

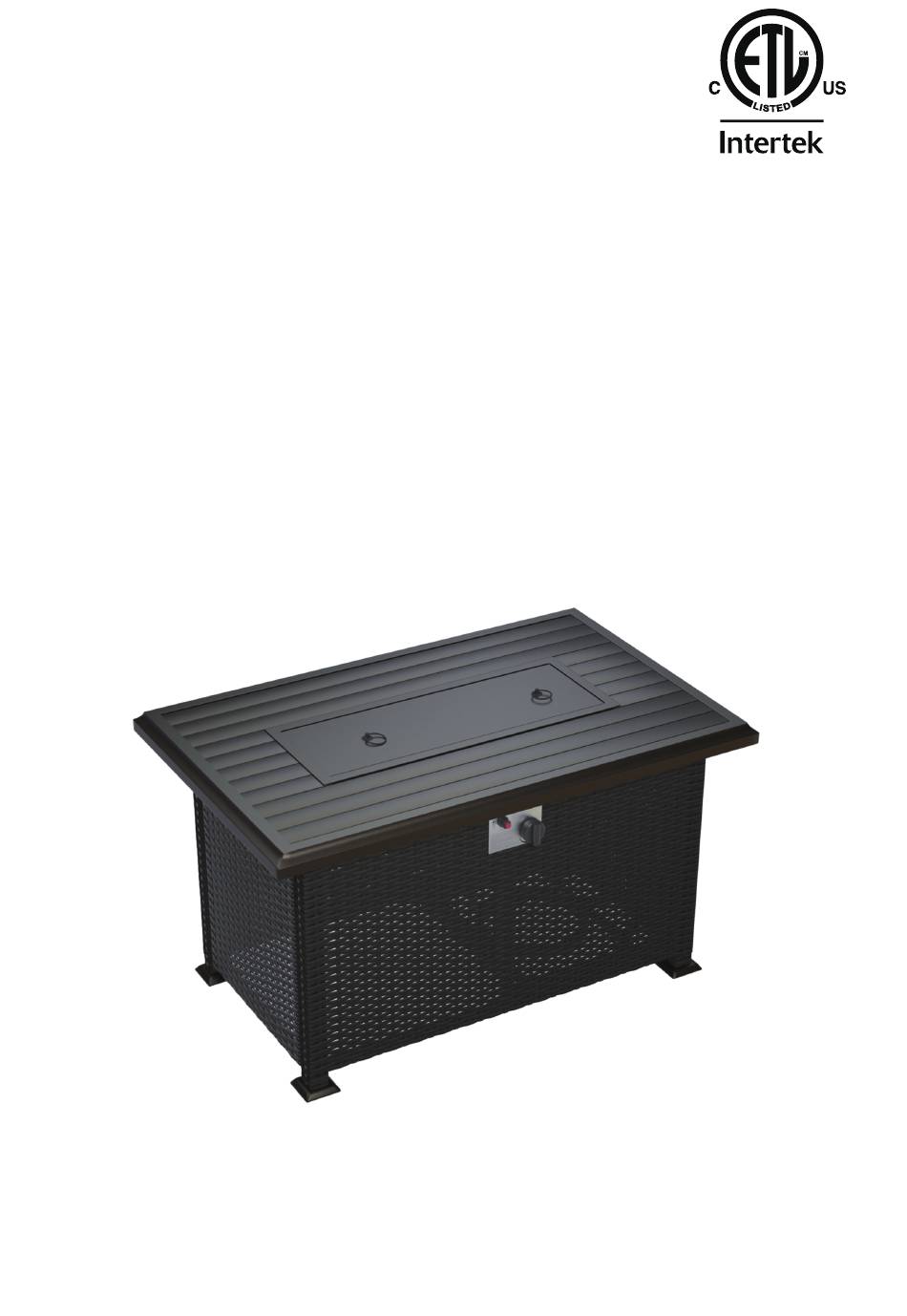

Gas Fire Pit Table
Assembly & Care instructions
Model:4327FTB
Please read & retain for future reference

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4327FTB and is the answer not in the manual?

Questions and answers

Related Manuals for ALAULM 4327FTB

Summary of Contents for ALAULM 4327FTB

  • Page 1 5021119 Gas Fire Pit Table Assembly & Care instructions Model:4327FTB Please read & retain for future reference...
  • Page 2 Keep the instructions for future reference Do not use this appliance if any part has been under water. Immediately call a qualified service technician to inspect the appliance and to replace any part of the control system and any gas control that has been under water;”...

  • Page 3: Warning Safety Rules

    WARNING SAFETY RULES PLEASE READ THE FOLLOWING SAFETY RULES PRIOR TO OPERATION OF THE HEATER DANGER FIRE OR EXPLOSION HAZARD If you smell gas: Shut off gas to the appliance. Extinguish any open flame. If odor continues,leave the area immediately. After leaving the area,call your gas supplier or fire department.
  • Page 4 FOR YOUR SAFETY 1.Do not store or use gasoline or other flammable vapors and liquids in the vicini- ty of this or any other appliance. 2.An LP cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS Warning Safety Rules............4 Caution..............6 Heater Stand and Location...........7 Gas Requirements............7 Leakage Test..............7 Operation And Storage..........9 Cleaning and Care ............11 Parts and Specifications..........12 Parst List..............15 Problems Check List............22...

  • Page 6: Caution

    CAUTION PLEASE READ CAREFULLY THE FOLLOWING SAFETY GUIDELINES BEFORE OPERATION. Do not use the fire pit indoors, as it may cause personal injury or property damage. This outdoor fire pit is not intended to be installed on recreational vehicles and/or boats. Installation and repair should be done by a qualified service person.
  • Page 7 Do Not use this appliance with an adjustable regulator. We suggest use this appliance with LPG cylinder of 5KG. The maximum diameter and the maximum height of the cylinder is 380mm and 450mm as shown in (Fig.1). Pay attention when put the cylinder to the cylinder hole, ensure the hose connect to the cylinder not 1: maximum diameter touch the hot surface.

  • Page 8: Heater Stand And Location

    HEATER STAND AND LOCATION CEILING The heater is primarily for outdoor use only. Always ensure that adequate fresh air ventilation is provided. Always maintain proper clearance to combustible materials, i.e. top 153 cm and sides 122 cm minimum. 122 CM Heater must be placed on level firm ground.

  • Page 9: Operation And Storage

    OPERATION AND STORAGE Warning: User shall pour lava rocks fully to cover the whole burner before operation. TO TURN ON THE FIRE PIT 1. Turn the control knob to the “OFF”position (Figure a). 2. Fully open LP cylinder valve. Note: For initial start or after any cylinder change, hold Control Knob IN for 10 seconds to purge air from gas lines before proceeding.
  • Page 10 A. Construction and characteristics Transportable terrace/fire pit with tank housing Casing in steel with powder-coating or stainless steel. Gas hose connections with metal clamp B. Specifications Use propane,butane or their mixtures gas only. Max. wattage:50000BTU/Hr(14.65KW) Consumption: The hose and regulator assembly must conform to local standard codes. Regulator outlet pressure should meet the corresponding appliance category in B.

  • Page 11: Cleaning And Care

    CLEANING AND CARE Wipe off powder coated surfaces with soft, moist rag. Do not clean heater with cleaners that are combustible or corrosive. Remove debris from the burner to keep it clean and safe for use. Cover the burner unit with the optional protective cover when the heater is not in use. PARTS AND SPECIFICATIONS 70 CM Table...
  • Page 12 ASSEMBLY PARTS...
  • Page 13 Parts List Part Image Description Table Top 1 Pc Right Side Panel 1 Pc Left Side Panel 1 Pc Rear Panel 1 Pc 1 Pc Gas Cylinder Base Door 1 Pc Stiffener Panel 1 Pc Bracket 2 Pcs Caster 1 Pc 1 Pc Burner Burner Lid...
  • Page 14 Parts List Part Image Description Bolt M4x6 2 Pcs Washer M1 2 Pcs Bolt M6x15 16 Pcs Bolt M6x35 4 Pcs Bolt M6x40 6 Pcs Washer M6 22 Pcs Allen Wrench 1 Pc Knob 1 Pc Glass Stones 6 KGS Cover 1 Pc...
  • Page 15 Extra Part Image Description Bolt M4x6 1 Pc Washer M1 1 Pc Bolt M6x15 2 Pcs Bolt M6x35 1 Pc Bolt M6x40 1 Pc Washer M6 3 Pcs WARNING: Failure to position the parts in accordance with these diagrams or failure to use onlu parts specificaly apprived with this appliance may result in property damage or personal injury.
  • Page 16 Step 1:Attach gas cylinder base(E) to door (F) using bolts(Q) and washers(R). Install theknob(T) Note:Please do not fully tighten bolts until unit is fully assembled. Step 2:Attach brackets(H) to gas cylinder base(E) and door (F) using bolts(O) and washers(R). NOTE:Please fully tighten all bolts at this time. You can scan the QR code to watch the install video.
  • Page 17 Step 3:Screw caster(I) to gas cylinder base(E). Step 4:Attach right side panel(B) and left side panel(C) to table top(A) using bolts(O) and washers(R). Note:Please do not fully tighten bolts until unit is fully assembled. You can scan the QR code to watch the install video.
  • Page 18 Step 5:Attach rear panel(D) to right side panel(B) and left side panel(C) using bolts(O) and washers(R). Note:Please do not fully tighten bolts until unit is fully assembled. Step 6:Attach stiffener panel(G) to side panel(B) and left side panel(C) using bolts(P) and washers(R).
  • Page 19 Step 7:Attach burner(J) to table top(A) using bolts(O). NOTE:Please fully tighten all bolts at this time. Step 8:Insert Door and gas cylinder base(E&F) into the guide rail and push it to the end. NOTE:Please pour the glass stones(U) into the burner at this time and place them evenly.
  • Page 20 Step 9:Attach pull ring (L) to burner lid (K) using bolts (M) and washers (N). NOTE:We recommend the use of furniture covers to protect the patio fire pit when not in use; Please remove the wind guard before you use waterproof table cover. You can scan the QR code to watch the install video.
  • Page 21 CLEANING AND MAINTENANCE Clean frame with mild soapy water,rinse thoroughly. Dry frame parts completely.Do not use bleach,acid, or other sol- vents on the fabric and metal parts. We recommend the use of furniture covers to protect the patio fire pit when not in use. Inspect and tighten all bolts on a regular basis to ensure proper performance and safety.

  • Page 22: Problems Check List

    Pilot light assembly bent Place pilot properly Not in correct location Position properly and retry If the appliance is in case of any defaults or problems of assembly or use, please don't try to modify it by yourself. Contact with: E-mail:Service@alaulm.com...
  • Page 23 HANGZHOU HANGGE INTERNATIONAL TRADE CO., LTD. Room 1309 building 1 No. 650 Bin'an Road, Changhe street, Binjiang District, Hangzhou, Zhejiang, CN,310000 Questions, problems, missing parts? Do not hesitate to contact our customer service before returing the item. service@alaulm.com Customer Service Email:...
