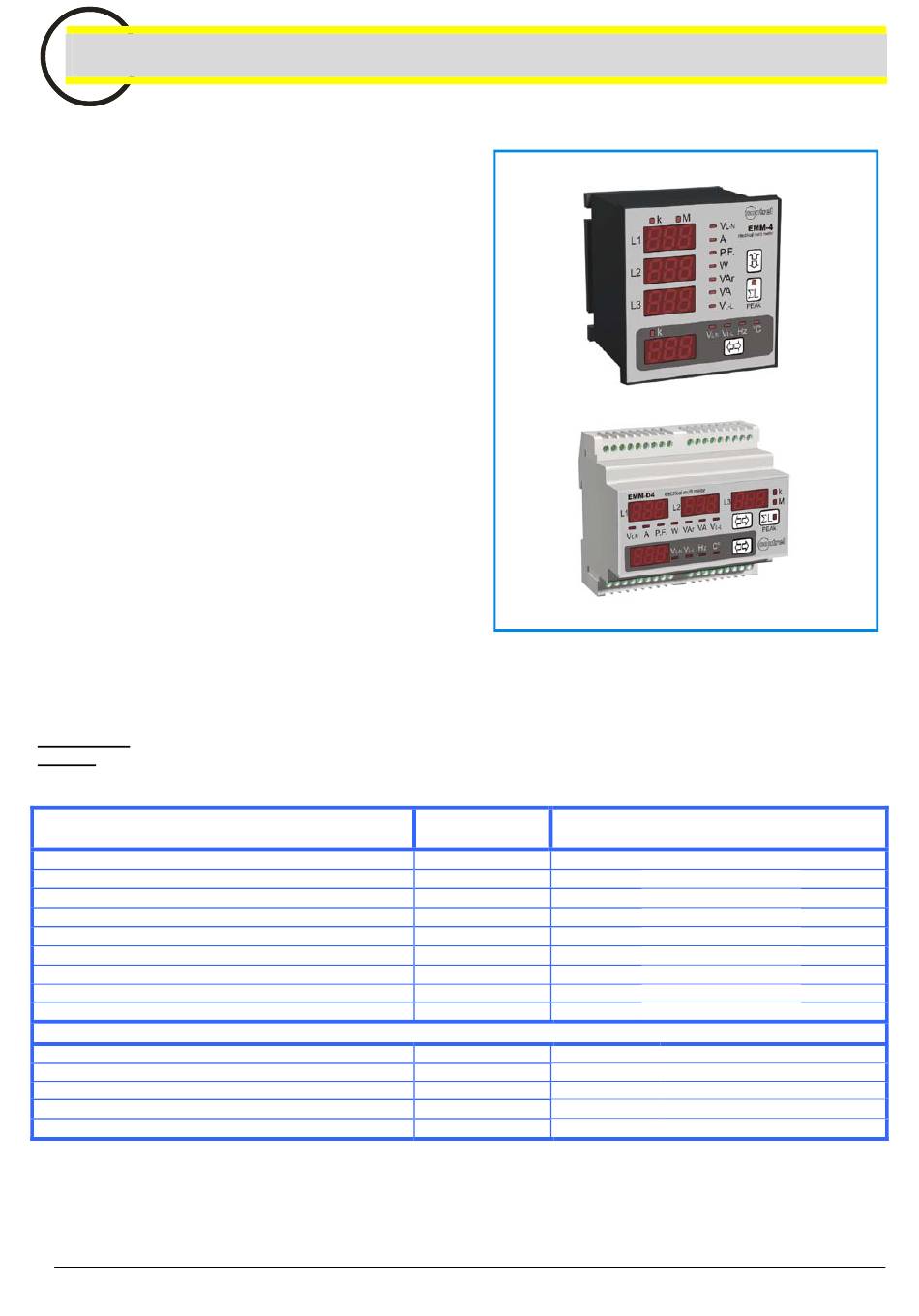

Contrel EMM-4 Instruction Manual

INSTRUCTION MANUAL
IM401-U v2.0
EMM-4
EMM-D4
GENERAL INFORMATION
The EMM digital multimeters allow the measurement of the
main electric quantities in the distribution networks. The local
display of more than 30 measurable quantities is performed
by means of four red LED displays, thus providing an easy
legibility and the simultaneous display of several measures. A
simple front panel easier the intuitive selection of several
electric quantities, supplying a great number of information.
These instruments, besides the instantaneous measures,
display the maximum peak of the main parameters
(maximum peak and maximum demand or maximum average
value).
The EMM multimeters group in a single instrument the
functions of voltmeters, ammeters, power factor meters,
wattmeters, varmeters, frequency meters, thermometers,
allowing remarkable financial savings, a reduction of the
dimensions and of the time required for the wiring; also the
purchase and the management of this instrument is easier,
as all the above functions can be performed by one product
only, which can be used for all local measurement
requirements in switchboards, machines etc.
AVAILABLE MODELS
They are available in 4 types:
- EMM-4 in flush mounted version for panel DIN 96X96mm with minimize depth
- EMM-D4 in modular version, for DIN rail35mm mounting
ACCESSORIES AND OPTIONS
accessories: protection transparent cover COP-96 type.
options: currents measure inputs with internal current transformer
MEASURED ELECTRIC QUANTITIES
Electric quantities
phase and three phase system voltages
voltages between lines and three phase system voltages
phase and three phase system currents
phase and three phase system power factors
phase and three phase system active powers
phase and three phase system reactive powers
phase and three phase system apparent powers
frequency
temperature
peak values (maximum):
phase voltages
phase currents
average phase currents (maximum demand)
three phase system powers
average three phase system powers (maximum demand)
EMM-4 / EMM-D4
DIGITAL MULTIMETER
measurement
unit
[V-kV]
[V-kV]
[A-kA]
[W-kW-MW]
[VAr-kVAr-MVAr]
[VA-kVA-MVA]
[Hz]
[°C]
[V-kV]
[A-kA]
[A-kA]
[W-VAr-VA (k-M)]
[W-VAr-VA-(k-M)]
instruction manual
(-t)
identification initials
V V V
L1-N L2-N
V V V
L1-L2 L2-L3
I I I L3
L1 L2
PF PF PF
L1 L2
W W W
L1 L2
VAr VAr VAr
L1 L2
VA VA VA
L1 L2
Hz
L1
T1
V V
L1-N max L2-N max
I I
L1 max L2 max
I I
L1 max (avg) L2 max (avg)
Σ W Σ VAr
max max
Σ W Σ VAr
max (avg) max (avg)
IM401-U v2.0
Σ V
L3-N
L-N
Σ V
L3-L1
L-L
Σ I
Σ PF
L3
Σ W
L3
Σ VAr
L3
Σ VA
L3
V
L3-N max
I
L3 max
I
L3 max (avg)
Σ VA
max
Σ VA
max (avg)
