Arkbird -Tiny3 Manual

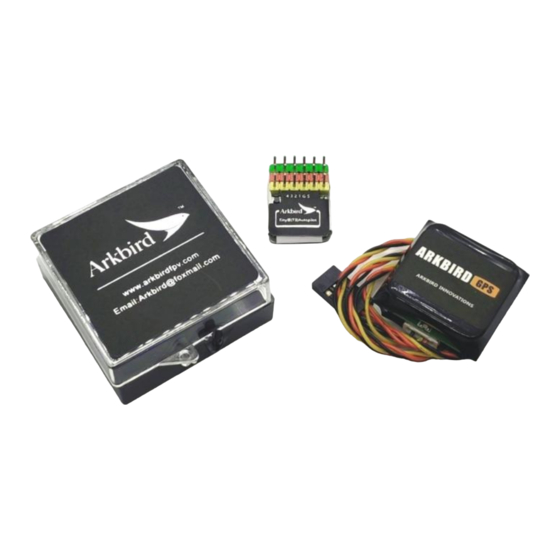

ARKBIRD-Tiny3（T3）Product Features:
ARKBIRD System is a high-accuracy autopilot designed for fixed-wing, which has capability of
auto-balancing to ease the manipulation while flying.
(Extreme small, only 1.8 * 1.5cm, weight only 1.7 grams),
Super stable , plug and play. Capable of high-precision control of level flight, 3D flight, etc.,
combined with GPS, it can achieve RTH(return to home), fence mode (Out of area or under safe
altitude, it returns automatically, best helper for beginner), etc;
When only be connected to the steering wheel , used as a taxiing rectifying gyro, It corrects
the airplane off tracking tendency, and accurately responds to the direction of the rocker steering
action. for Electric Ducted Fan (EDF) and Jet power scale model airplane and so on.
automatically, best helper for beginner
7.Semi-Balance Mode When the CH1 and CH2 of rocker is less than 50%, the plane is in
Balance Mode. When the rocker is more than 50%, the plane is in Gyro Mode.
Reminding：
For the first installation, please power up after a
(incontrollable) every time you power up. You can cancel it manually and adjust rudder angle directions in
Mode and auxiliary control
fail-safe protection for the receiver in case your autopilot loses control when returning home.
For the first flight, we suggest taking off with "Manual Mode". Check if the aircraft flies normally after
switching to "Balance Mode" in a level flight. Then switch to "RTH Mode" and check the autopilot by using
parameter (see the last chapter in the instructions:
important parameters during the flight (Vibration value, Satellite number, Speed and Altitude).
When the maiden flight test is done, Balance Mode can be used freely for taking off the autopilot, or you
can use extended functions such as waypoints, cruise flight or fence mode.
Arkbird
1.Controls the steering angle of the steering wheel.
2.Can be installed flat wise or sidewise, suitable for small aircraft.
3.One button auto-leveling, stick back to center, plane can fly levelly.
4. One button RTH (return-to-home), lost radio signal return-home.
5. Hover mode Regard the hover position as balance position, nose up
and keep steady;
6. Fence mode Out of rectangle area or safe height, it returns
in Balance Mode. A Neutral Point Check
Notes for Balance and
wire check. Forcible satellite search will be entered
for the sensor is necessary. Also, you need a
RTH). Please keep an eye on the
Manual
- 1 -
