Arkbird V3.1028 Features:

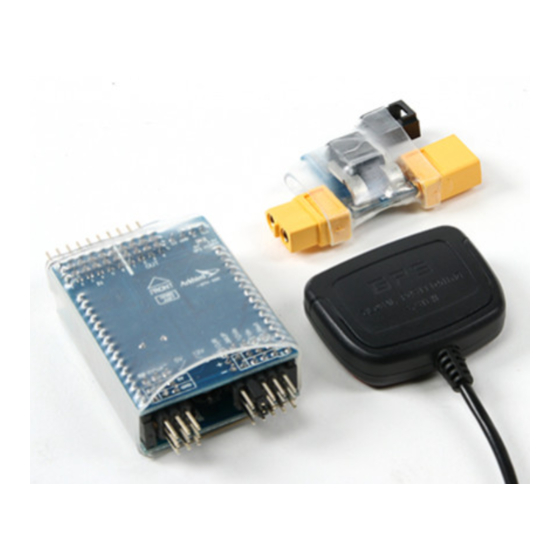

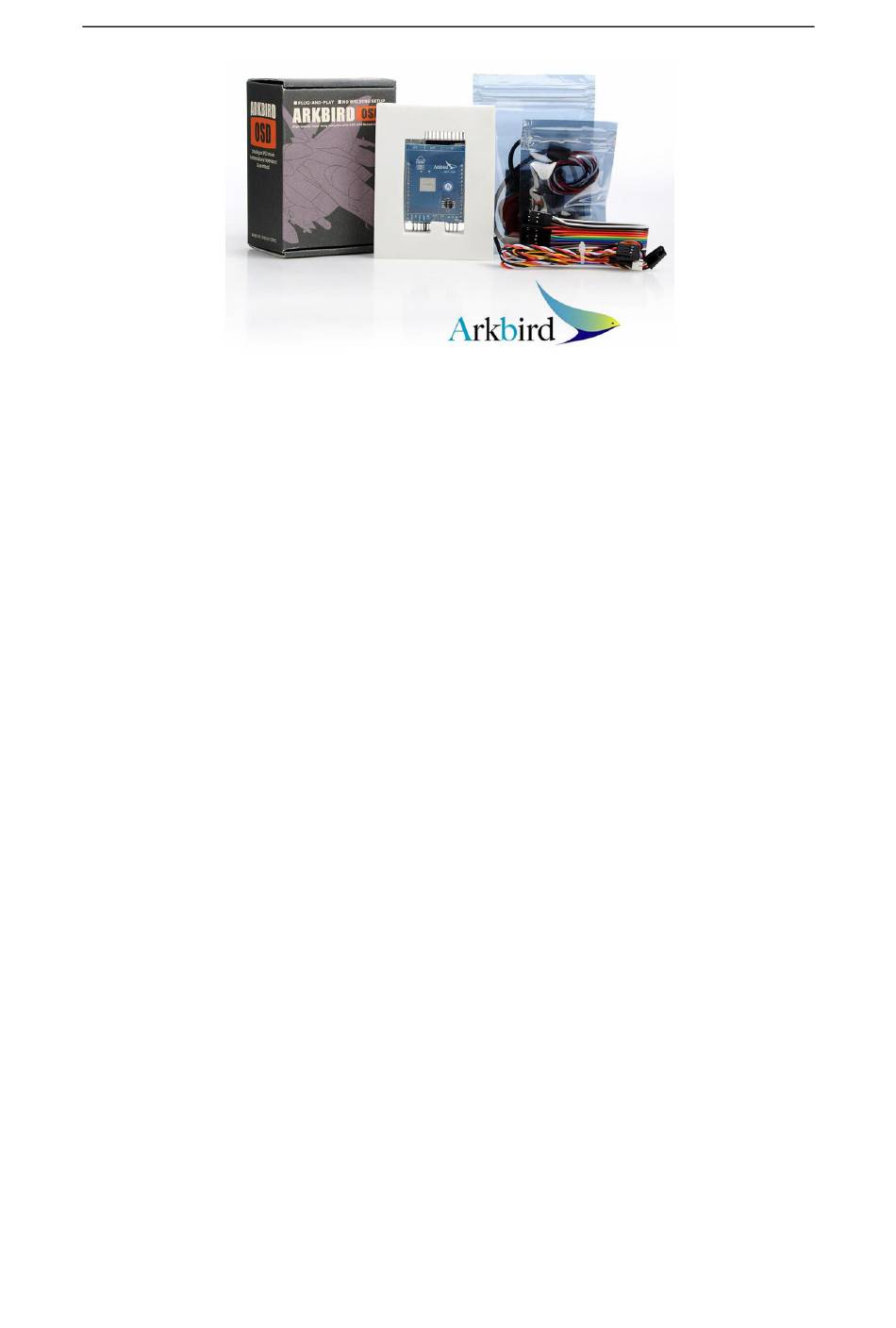

ARKBIRD is a high-accuracy autopilot designed for fixed-wing. It can superimpose OSD(OnScreenDisplay) data
on videos and at the same time control the balance, the return and many other maneuvers of your aircraft with
high precision.
The perfect auto-stabilization system and a plug-and-play design free you from worries and inconveniences
and enjoy the beauty of FPV in an instant.
1. Function all in one broad, on broad IMU (Inertial measurement unit), OSD (On Screen Display), barometer
Attitude sensor, 12V-5V regulation chip, "ESC + voltage regulation" dual power supply. Industrial reliable
designed.
2. Plug & Play design, no needed to weld any wire, Adjust parameters by OSD menu and radio stick.
3. Intelligent PID controller. Easy to adjust, support delta-wing, V-tail plane.
4. One button auto-leveling, one button RTH (return-to-home), lost radio signal return-home.
5. Cruise flight (Keep straight &constant-height flight).
6. Gyro normal balance and 3D balance. Hover mode.
7. Fence mode（Auto Switching to Return-to-Home Mode while flying out of the rectangle area specified.）
8. 4 Way point flight, coordinate set by radio stick.
9. "Launch Assist" function which can help to control throttle and elevate angle when take-off.
10.RSSI port available, 10 channel PPM port supportable.
11.Compatible with Arkbird airspeed sensor.
One board OSD features:
1. Power & OSD Voltage display, 3D Go-home arrow, radar mark, flight time, horizon, total distance, and power
consumption.
2. Customized interface: can set Fighter HUD interface, Simple interface, can choose the font size, the
demands of latitude and longitude.
3."Flight Record" records the time, voyage, data of power consumption and various maximum records of the
flights.
Reminding：
For the first installation， please power up after a wire check. Forcible satellite search interface will be
entered (incontrollable) every time you power up. You can pop-up manually and adjust rudder angle in Manual
Mode and auxiliary control in Balance Mode. A Neutral Point Check for the sensor is necessary. Also, you need a
fail-safe protection for the receiver in case your autopilot loses control when returning home. Adjust the OSD
Arkbird FPV
-1-

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FPV OSD V3.1028 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Arkbird FPV OSD V3.1028

Summary of Contents for Arkbird FPV OSD V3.1028

  • Page 1 Arkbird FPV Arkbird V3.1028 Features: ARKBIRD is a high-accuracy autopilot designed for fixed-wing. It can superimpose OSD(OnScreenDisplay) data on videos and at the same time control the balance, the return and many other maneuvers of your aircraft with high precision.
  • Page 2 Arkbird FPV voltage value before you can take off. For the first flight, we suggest take off with "Manual Mode". Check if the aircraft flies normally after switching to “Balance Mode” in a level flight. Then switch to "RTH Mode" and check the autopilot by using OSD parameter (see the last chapter in the instructions: Notes for Balance and RTH).
  • Page 3 All the details can be found in our instructions. Please read carefully before operating and pay close attention to the details and important parameters, in case you miss any important information which may leave hazards or cause damage. Arkbird V3.1025 Features Extended Functions Catalogue...
  • Page 4 Arkbird FPV Wirings Use 3P wires “black (ground), red (power), white (data)” （Note the polar of camera wire, DO NOT POWER ON before carefully check. Especially 12V, incorrect wiring will damage the autopilot permanently!） （If The camera needs a 5V supply, please connect a BEC from 12V or main power, Do not connect CPU 5V...

  • Page 5: Power Supply Mode

    Arkbird FPV The AR port in the bottom right corner can be used as PPM output interface, which supports Arkbird 433 receiver to achieve single-wire 10 Channel transmission and signal strength RSSI (automatically identified when plugged in). Power Supply Mode...
  • Page 6 Schematic drawing of Independent Power Supply Wiring （You can also choose the new Arkbird current sensor with 12V regulated output （ accessories） which shares one battery with motor and the video sector. Please see as below:）...

  • Page 7: Dual Power Supply

    Arkbird FPV 5V Dual Power Supply On broad OSD 12V to 5V regulator , with 5V BEC(form ESC) supplies power to the CPU module at the same time. If OSD function is not used, please plug in OSD 12V power as well to prevent a lack of power supply for 5V electronic speed controller.
  • Page 8 Arkbird FPV 2 ways of installation...

  • Page 9: Switch Modes Through Ch5 And Ch6

    Arkbird FPV Switch Modes through CH5 and CH6: 1. After installation, test OSD and the radio control. Use CH5 and CH6 (0% to 100%) to switch flight mode. ）, Autopilot is not involved in the control. 2. While CH5 < 50%, it switches to Manual Mode（OSD shows ）;...

  • Page 10: Gps & Save Home Position

    Arkbird FPV GPS & Save Home Position After power on, Arkbird will start to search GPS satellite and save the first valid position as Home. During searching, the elevator will be up and any manipulation of radio stick is invalid. If need to skip the searching, please push CH6 more than 75% and push CH1 to left or right side for 1 second.

  • Page 11: Manual Mode

    Manual Mode Radio Stick and SUB-TRIM back to center, set radio travel range as 100%. Switching to Manual Mode , Arkbird will not participate control, set manual control’s reverse through radio, adjust plane’s CG and travel angle, make sure plane can fly stably in horizontal without Autopilot.
  • Page 12 Arkbird FPV If the compensation direction is not correct, please move the Dip switch 3 to the other side. GPS and Return to Home Instruction While switching to RTH Mode (CH5 to 100% and CH6 to 100%), it will adjust the flying height to safe height to go home.

  • Page 13: Osd And Menu

    Arkbird FPV OSD and Menu CH5 switches to Manual Mode(<50%), throttle to 0%, and push CH1 to left or right side for 6 seconds, it will enter into main menu. Exit the main menu if CH5 switches to auto mode(>50%).
  • Page 14 Arkbird FPV Set CTL Parameters Roll Control（%） （equivalent to travel range on radio, Roll Ctl Please adjust the travel range on OSD, do not adjust through radio） Pitch Ctl Pitch Control（%） Yaw Ctl Yaw Control（%） ------------------------------------------------------------------------------------------------------------ ------------------------------------ Neutral Check Neutral Point Check: Neutral point alignment needed under first installation, not used for weeks, or temperature variation is more than 10 degrees.
  • Page 15 Arkbird FPV Custom Mode Custom Mode（CH5> 50% and 30% < CH6 < 70%）: RTH : Return to Home（Default） Way Point : Way Point Mode, it is able to trace the Way Point Set by WayPoint menu. HOVER : Hover mode, regard the hover position as balance position Gyro : Gyro Mode, it will do compensation for unintentional attitude changes.
  • Page 16 Arkbird FPV Safe Height （ The minimum height of return to home, 80 to 200 m Safe Height recommended.） Throttle Safe Throttle Safe（When distance and height are less than 30m, for safety concern, there is no throttle output under RTH Mode.）...
  • Page 17 Arkbird FPV Note：Delta-wing mixed control will not work after setting the V-tail mixed control. You cannot set it back to delta-wing mixed control by adjusting Dip Switch 4. Fence Area Set Switching to CH5 > 50% and 30 %< CH6< 70%, within rectangle area and above safe height it is Balance Mode, otherwise it switches to RTH mode.
  • Page 18 ---------Waypoint 3 South-North distance away from Home (m) “︾”means South and “︽” means North Height ---------Waypoint 3 Height(m) Balance Mode and RTH Adjustment (Very Important) Arkbird’s default parameters will be ok for most plane types. But if the most ideal situation expected, please refer to the following methods: -18-...
  • Page 19 Arkbird FPV First time installation, do a neutral point alignment. Plane shall be put paralleled to the ground before neutral point check, moving aileron stick left and right to get start. (Refer to CTL menu） Roll the plane to right and left 45 degree after neutral point check to see if OSD horizon line tilts accordingly and quickly.

  • Page 20: Faq And Solutions

    CG and travel angle to make plane balanced. Arkbird can produce compensation when CG & travel angle is not appropriate, but it is not mechanical stable, there would be hidden trouble under RTH mode. So firstly make sure plane can fly stably in horizontal under Manual Mode.
  • Page 21 Arkbird FPV “Debugging Skills for Balance and RTH Mode” chapter of our instructions. Make ground video recordings. When switching to RTH or other autonomous flight modes, Roll/ Pitch inclination value and throttle control value will be shown at the bottom right corner of OSD. These data will tell you if the control values are proper and will help you judge which parameter needs to be sub-trimmed.
