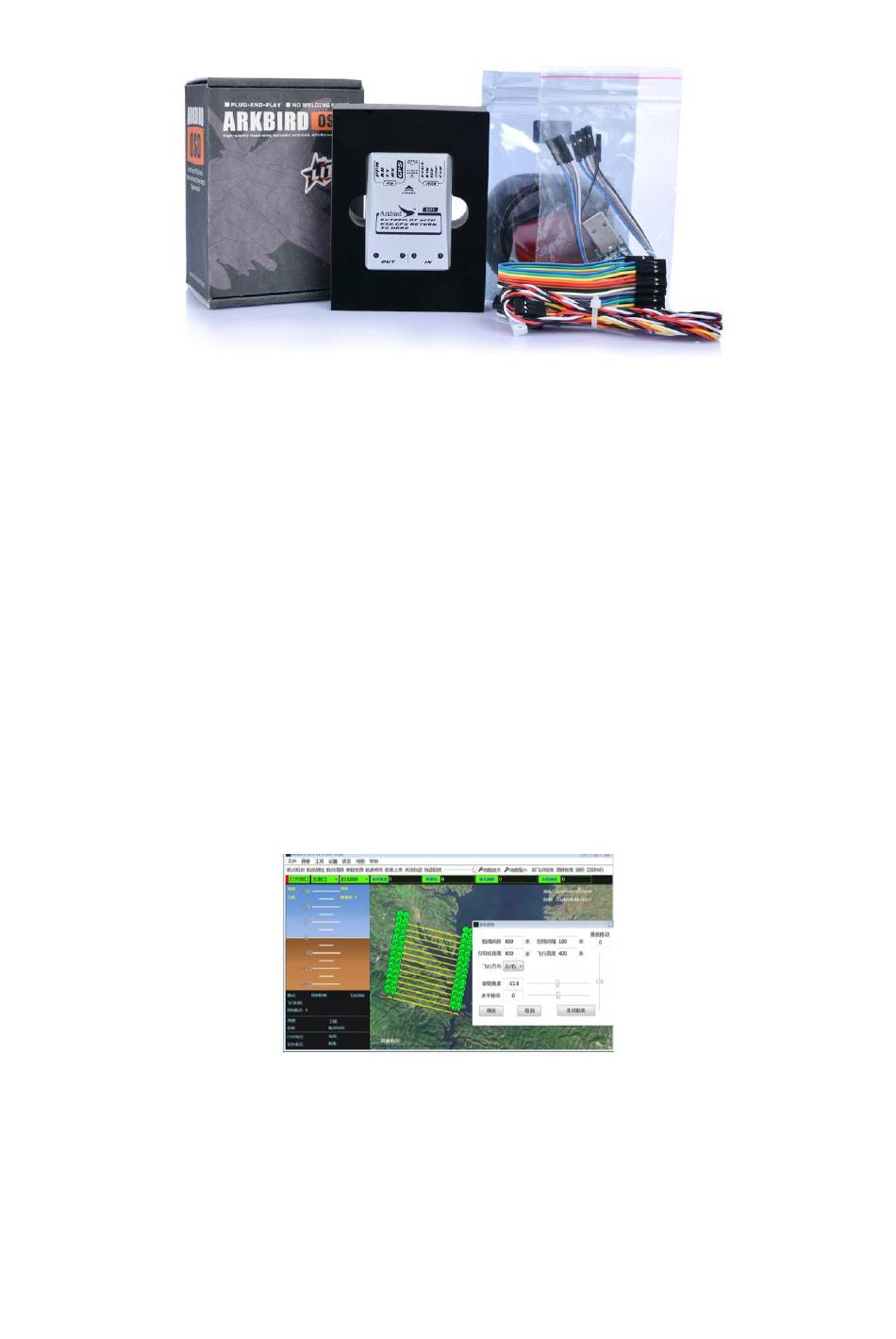

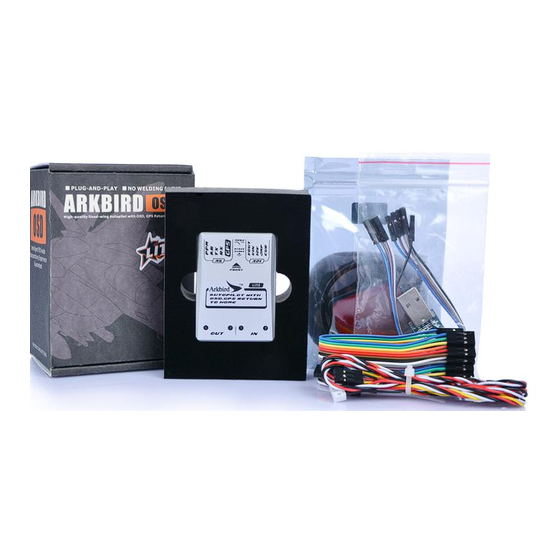

ARKBIRD is a high-accuracy autopilot designed for fixed-wing. It can superimpose OSD (On Screen Display)
data on videos and at the same time control the balance, the return and many other maneuvers of your aircraft
with high precision.
The perfect auto-stabilization system and a plug-and-play design free you from worries and inconveniences
and enjoy the beauty of FPV in an instant.
Arkbird OSD 2.0 LITE Includes：
1. High accuracy air-speed meter interface; with air-speed and ground speed control and protection.
2. New design of shell and internal framework; flight performance optimized.
3. 7 input channels and 7 output channels; with stability augmentation output on the PTZ.
4. Flap can be intelligent controlled by speed , channel1-7 (aileron-flaps) mix-control selectable; with slow
release function, flap value can be displayed on the OSD.
5. More ways of mixed control include delta wing and V-tail wing, and Bi-motor plane, Bi-motor flying wing
and butterfly brake (mixed control of 1247channel).
6. Analog RSSI port and PPM port; support Arkbird 433 10channel+RSSI single wire transmission.
7. Supports Arkbird GCS（Ground Control System）Support the import and export of waypoint table;
multi-language. track replay;(refer to "Arkbird GCS &Two Planes' Formation Flight manual")
8 Basic functions Escorts your flight
1. Function all in one broad, on broad IMU (Inertial measurement unit), OSD (On Screen Display), barometer
Attitude sensor, 12V-5V regulation chip, "ESC + voltage regulation" dual power supply. Industrial reliable
designed.
2. Plug & Play design, no needed to weld any wire.
3.Can be installed flatwise or sidewise, suitable for small aircraft.
4. Intelligent PID controller. Easy to adjust.
-1-

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OSD 2.0 LITE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Arkbird OSD 2.0 LITE

Summary of Contents for Arkbird OSD 2.0 LITE

  • Page 1 ARKBIRD is a high-accuracy autopilot designed for fixed-wing. It can superimpose OSD (On Screen Display) data on videos and at the same time control the balance, the return and many other maneuvers of your aircraft with high precision. The perfect auto-stabilization system and a plug-and-play design free you from worries and inconveniences and enjoy the beauty of FPV in an instant.
  • Page 2 This function allows you making a turn with a large dip angle, even vertical rise and roll or other actions. After finished these actions, you only need to move the stick to the center to make the plane back. VTOL plane A unique fpv fixed wing plane with vertical taken off and landing function Demonstration of Arkbird VTOL Mode: https://www.youtube.com/watch?v=uQibL09skJ8...
  • Page 3 Attention All the details can be found in our instruction. Please read carefully before operating and pay close attention to the details and important parameters, in case you miss any important information which may leave hazards or cause damage. Reminding： For the first installation, please power up after a wire check.

  • Page 4: Table Of Contents

    CONTENTS 1. Wirings 2. Power Supply Mode 3. 5V Dual Power Supply 4. Installation 5. Switch Modes through CH5 and CH6 6. GPS&Save Home Position 7. Manual Mode & Balance Mode 8. Fail-Safe to RTH mode 9. OSD and Menu 10.

  • Page 5: Wirings

    12v and 5v so as not to cause damage to the equipment. If your need to use RSSI function, please connect AIRSPEED METER on RX port, RSSI connect AR port. Mixed control output Arkbird 2.0 provides various intelligent mixed control Bi-motor Butterfly Ordinary...
  • Page 6 5V camera in case of the power supply shortage. Connect Receiver's CH1-7 to IN PORT or use a PPM connection.PPM interface supports Arkbird 433 receiver to achieve single-wire 10 Channel transmission and signal strength RSSI (automatically identified when plugged in).

  • Page 7: Power Supply Mode

    Power Supply Mode Recommend using one single 3S (12V) battery to supply motor power and Arkbird OSD, Video TX & camera (Shared supply), Otherwise, use one battery (4S-6S) to supply motor power, another 3S battery to supply OSD & Video (Separated supply).
  • Page 8 Power Port (12Vin) on the third row. Schematic drawing of Independent Power Supply Wiring (You can also choose the new Arkbird current sensor with 12V regulated output (accessories) which shares one battery with motor and the video sector.) Please see as below : Note：...

  • Page 9: 5V Dual Power Supply

    If OSD function is not used, please plug in OSD 12V power as well to prevent a lack of power supply for 5V electronic speed controller. Installation: The pins of GPS and 12V ports shall stay forward (toward flying direction); the side with Arkbird LOGO shall upward vertical toward right wing.
  • Page 10 Vertical Installation 2 ways of installation -10-...

  • Page 11: Switch Modes Through Ch5 And Ch6

    Switch Modes through CH5 and CH6: After installation, test OSD and the radio control. Use CH5 and CH6 (0% to 100%) to switch flight mode.  While CH5 < 50%, it switches to Manual Mode, autopilot is not involved in the control. ...

  • Page 12: Gps&Save Home Position

    GPS & Save Home Position After power on, Arkbird will start to search GPS satellite and save the first valid position as Home. During searching, the elevator will be up and any manipulation of radio stick is invalid. If need to skip the searching, please push CH6 more than 75% and push CH1 to left or right side for 1 second.

  • Page 13: Manual Mode & Balance Mode

    Radio Stick and SUB-TRIM back to center, set radio travel range as 100%. Switching to Manual Mode, Arkbird will not participate control, set manual control’s reverse through radio, adjust plane’s CG and travel angle, make sure plane can fly stably in horizontal without Autopilot.

  • Page 14: Fail-Safe To Rth Mode

    If the compensation direction is not correct, please adjust the Yaw inverse in OSD menu -> Flight parameters. If using Mixed-control, check the compensations for a leveling flight, pay attention to differential steering speed if using Bi-motor control. GPS and Return to Home Instruction While switching to RTH Mode (CH5 to 100% and CH6 to 100%), it will adjust the flying height to safe height to go home.

  • Page 15: Osd And Menu

    OSD and Menu CH5 switches to Manual Mode(<50%), throttle to 0%, and push CH1 to left or right side for 6 seconds, it will enter into main menu. Exit the main menu if CH5 switches to auto mode(>50%). Moving stick up and down to change the value, pushing to right side to select, and pushing to left side to exit and save parameters.
  • Page 16 Set CTL Parameters Roll Ctl Roll Control(%)(equivalent to travel range on radio, Please adjust the travel range on OSD, do not adjust through radio) Pitch Ctl Pitch Control (%) Yaw Ctl Yaw Control (%) ------------------------------------------------------------------------------------------------------------ ------------------------------------ Neutral Check Neutral Point Check: Neutral point alignment needed under first installation, not used for weeks, or temperature variation is more than 10 degrees.
  • Page 17 changes. Lock Dir/Heig: Lock direction and height (Cruise flight): Under balance mode, when CH3>20% CH1 and CH2 stick back to center, height and direction will be locked and keep straight &constant-height flight. Aileron and elevator can also be controlled through CH1 and CH2. Lock Dir: lock direction only Lock Heg:...
  • Page 18 Set OSD Parameters Language Chinese/English Page switching Show Lat-long Show longitude and altitude AD Calibrate Battery voltage calibration OSD Pattern OSD interface selection Default: Normal interface Fighter:HUD interface P or N (Xin) PAL/ NTSC selection Show RSSI Display the AR port's voltage, 0-3.3V is corresponding to 0-100% Cur Man Calibrate Current calibration %.
  • Page 19 Yaw Reverse More ways of mixed control include delta wing and V-tail wing, and Bi-motor plane, Bi-motor flying wing and butterfly brake (mixed control of 1247channel). Gimbal roll Norm/Inverse：Gimbal output of channel 5 left and right positive/negative compensation; CH8 : port CH5 is directly output of CH8 in Gimbal Pitch Norm/Inverse：Gimbal output of channel 6 up and down positive/negative compensation;...
  • Page 20 advised to use a three section switch to control the flap wing so as to avoid accidence. When install the servos, please adjust the CH7 to make the “flap/brake value "on the OSD is 100% (zero point),then install a level rudder surface.
  • Page 21 Brake Ctl CH7 (default): CH7 controls the rudder amounts of brake. InnerBrake Max Inner Brake Max: It is the maximum position at the two control surfaces in inner side when it brakes (OSD displays F, 100% output brake quantity). When this item gets into the adjusting, the servos will output the adjusting value, Correct InnerBrake value can be set according to the rudder position.
  • Page 22 Way Point Set Set four way points (WP1~WP4), allow to turn on/off separately. Set Custom Mode as Way Point Mode (CH5 > 50% and 30 %< CH6< 70%). The plane will fly in a loop upon the sequence of 1 to 4, skip the waypoint turned off, and return to home while over the safe time. WP safe time ---------WP safe time.
  • Page 23 ---------Waypoint 4 South-North distance away from Home (m) “︾”means South and “︽” means North Height ---------Waypoint 4 Height(m) Arkbird VTOL Plane Adding selection of “Quadcopter/VTOL Plane” in the OSD main menu; New mode of “BimoFwing” for VTOL plane added in the "mix" menu.
  • Page 24 Both DIY fly wing plane and Arkbird VTOL plane are compatible with VTOL mode. For DIY fly wing, increasing aileron surface, adjusting CTL value if needed. Keep default values for Arkbird-VTOL plane.

  • Page 25: Balance Mode And Rth Adjustment11

    Balance Mode and RTH Adjustment (Very Important) Arkbird’s default parameters will be ok for most plane types. But if the most ideal situation expected, please refer to the following methods: First time installation, do a neutral point alignment. Plane shall be put paralleled to the ground before neutral point check, moving aileron stick left and right to get start.

  • Page 26: Faq And Solutions

    CG and travel angle to make plane balanced. Arkbird can produce compensation when CG & travel angle is not appropriate, but it is not mechanical stable, there would be hidden trouble under RTH mode. So firstly make sure plane can fly stably in horizontal under Manual Mode.
  • Page 27 A： Adjust remote control rudder angle to 100% and sub-trim back to center. Check carefully in reference to the “Debugging Skills for Balance and RTH Mode” chapter of our instructions. Make ground video recordings. When switching to RTH or other autonomous flight modes, Roll/ Pitch inclination value and throttle control value will be shown at the bottom right corner of OSD.

  • Page 28: Attentions

    Attentions Please read through carefully: 1. The design purpose of autopilot is to keep balance of flight, it is not able to manipulate plane or prevent stall. You must have sufficient experiences of fixed wing to control the flight. 2. The autopilot is only for small-scale RC model. For safety concern, please do not install in plane for aerial photography which might fly over crowd.
