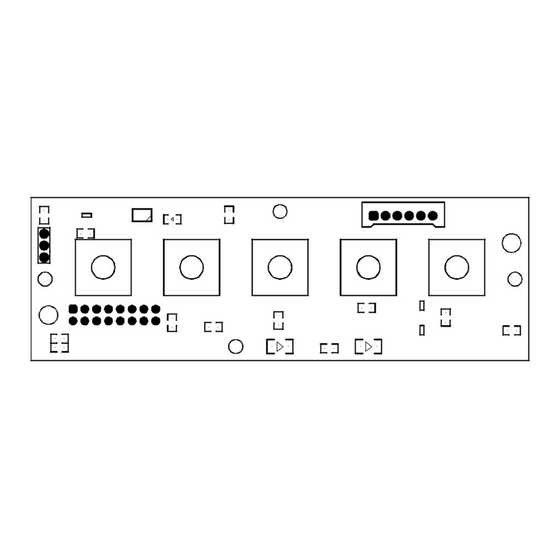

  • Page 1 S21-059 Coffee Machine Control Board CEP2G Instruction Manual...
  • Page 2 S21-059 PREFACE Thank you for purchasing our CEP2G, Control board for the Coffee machine. This manual contains instructions for the mounting, functions, operations, and notes when operating the CEP2G. To ensure safe and correct use, thoroughly read and understand this manual before using this instrument.
  • Page 3 S21-059 WARNINGS: Note: TIFATECH Co., Ltd declines all responsibility for damage to persons or property resulting from failure to follow the instructions and warning listed below when installing and using this board.  Ensure every part of the machine including actuators and sensors is working properly before replacing the new control board.
  • Page 4 S21-059  Ensure the board surface is completely dry before powering.  Periodic cleaning will reduce the risk of damaging the board.

  • Page 5: Table Of Contents

    S21-059 *** CONTENTS *** GENERAL ......................1 1. Introduction ...................... 1 II. TECHNICAL SPECIFICATIONS ..............1 1. Dimensions (mm) ..................... 1 2. Specifications ....................1 III. WIRING ......................2 IV. PROGRAMMING AND USE ................3 1. Programming standard dose ................3 2.

  • Page 6: General

    GENERAL 1. Introduction  This manual contains important instructions regarding the safe intended use of the machine.  If any damaged or loss to this manual, request a copy from the TIFATECH manufacturer. II. TECHNICAL SPECIFICATIONS 1. Dimensions (mm) 2. Specifications ...

  • Page 7: Wiring

    S21-059 III. WIRING Important: Any mistake in connecting actuators will affect the normal operation of the coffee machine, and even cause damage. Terminal Description Heating SLiv Water level probe KTea Hot water button FLOW Water flow meter LED (+ -) Hot water light FILL Filling solenoid...

  • Page 8: Programming And Use

    S21-059 IV. PROGRAMMING AND USE 1. Programming standard dose Keys will be identified by a number between 1 and 5 like the image above. To program coffee doses dispensed automatically by each drink button, follow the steps below: Step 1: Press and hold the key for 5 seconds to enter the setting mode.

  • Page 9: Coffee Dispensing

    S21-059 Step 5: Press and hold the fifth button for 5s or wait for 10 seconds until all lights turn off to finish the setting process. 2. Coffee dispensing  Press any drink button between 1 and 4 to start to dispense coffee. The light on pressed button is on and the rests are off.

  • Page 10: Error Detection And Troubleshooting

     Tried restarting the machine and check for the level sensor, filling solenoid valve or the water supply source if the situation continue. TIFATECH Co., Ltd Address: 14 Tran Tu Binh Street, Hoa Chau Ward, Hoa Vang District, Da Nang City, Viet Nam Email: tifatech.vn@gmail.com...
