S21-037

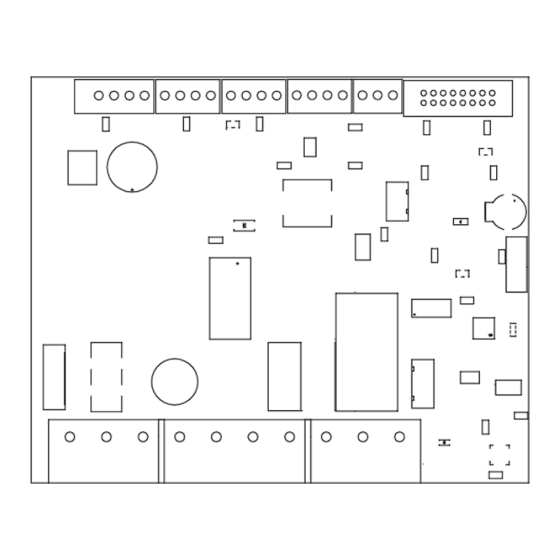

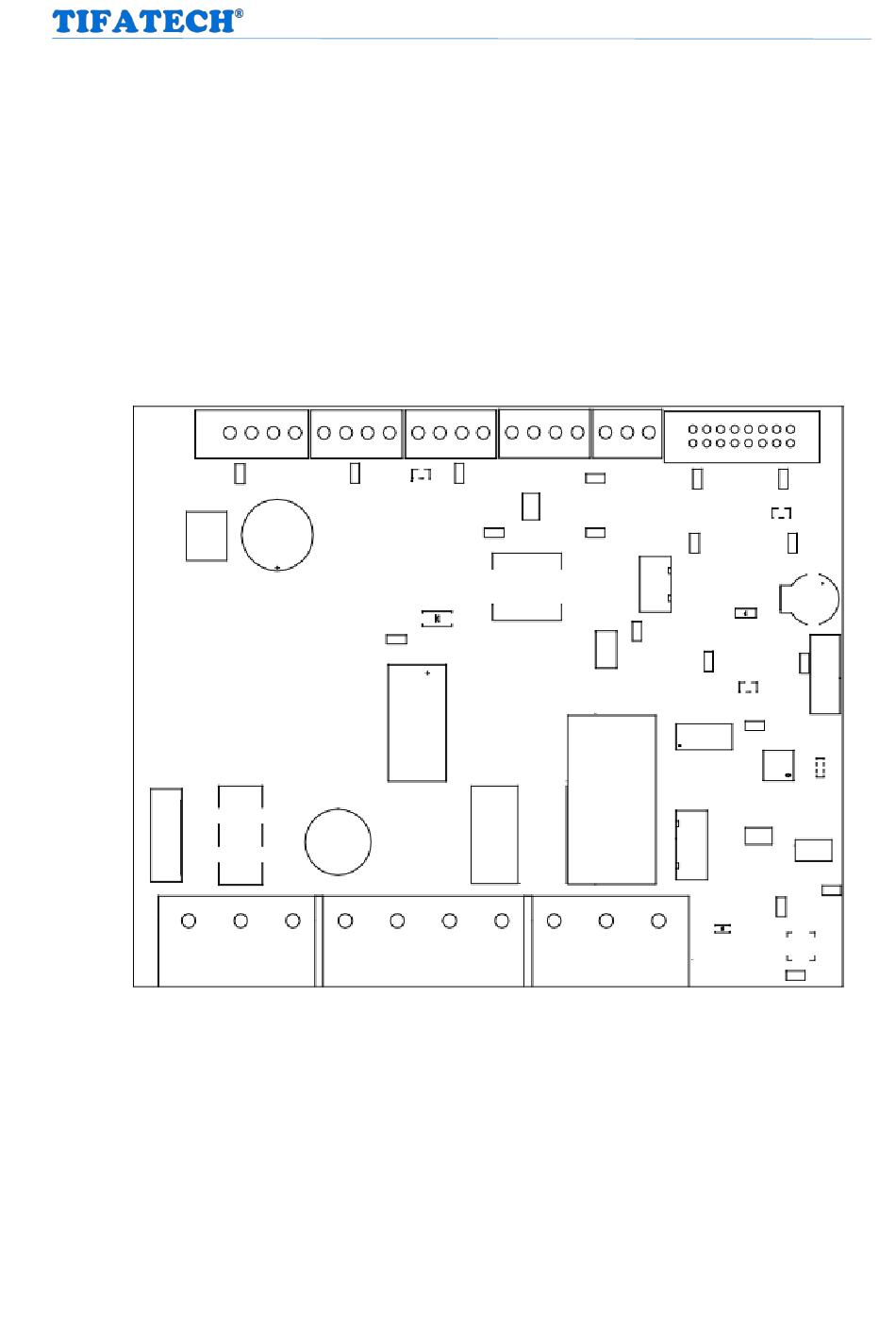

Coffee Machine Control Board
HTCLW
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HTCLW and is the answer not in the manual?

Questions and answers

Related Manuals for TIFATECH HTCLW

Summary of Contents for TIFATECH HTCLW

  • Page 1 S21-037 Coffee Machine Control Board HTCLW Instruction Manual...
  • Page 2 S21-037 PREFACE Thank you for purchasing our HTCLW, Control board for the Coffee machine. This manual contains instructions for the mounting, functions, operations, and notes when operating the HTCLW. To ensure safe and correct use, thoroughly read and understand this manual before using this product.
  • Page 3  This board is intended to only use for the espresso coffee machine control board. Do not use it for any other purpose. PRECAUTIONS  Installation precautions Read thoroughly the following conditions before installing the HTCLW board to the coffee machine. The mounting location must be:  No flammable, explosive gases ...
  • Page 4 S21-037  Do not touch live terminals. This may cause an electrical shock or problems in operation.  Ensure the board surface is completely dry before powering.  Periodic cleaning will reduce the risk of damaging the board.

  • Page 5: Table Of Contents

    S21-037 *** CONTENTS *** GENERAL ......................1 1. Introduction ...................... 1 II. TECHNICAL SPECIFICATIONS ..............2 1. Dimensions (mm) ..................... 2 2. Specifications ....................2 III. WIRING ......................3 IV. PROGRAMMING AND USE ................5 1. Programming standard dose ................5 2.

  • Page 6: General

     This manual contains important instructions regarding the safe intended use of the machine.  If any damaged or loss to this manual, request a copy from the TIFATECH manufacturer. Important: Please note the following conditions for your machine to function properly: ...

  • Page 7: Technical Specifications

    S21-037 II. TECHNICAL SPECIFICATIONS 1. Dimensions (mm) HTCLS-LT display HTCLW control board 2. Specifications  Power supply: 230V AC 50/60Hz  Actuator voltage: 230V AC  Button and LED nominal voltage: 12V...

  • Page 8: Wiring

    S21-037 III. WIRING (13) WL1 ((17) V5 (1) V12 (9) V12 (5) V12 (18) OUT (2) 2ShotLED (6) 1ShotLED (10) SettingLED (14) GND (19) OUT (7) GND (15) GND (3) GND (11) GND (4) 2ShotBtn (8) 1ShotButton (12) SettingBtn (16) WL2 (20) DISPLAY (4) Filling (1) AC(L)
  • Page 9 S21-037 Display cable input Important: Any mistake in connecting actuators will affect the normal operation of the coffee machine, and even cause damage. Đầu nối Mô tả 2ShotLED 2 Shot espresso LED input 2ShotBtn 2 Shot espresso button input 1ShotLED 1 Shot espresso LED input 1ShotBtn 1 Shot espresso button input...

  • Page 10: Programming And Use

    S21-037 Pump Pump input Heat Heating element input K-, K+ Type K thermocouple IV. PROGRAMMING AND USE Three buttons are integrated into this control board and each serves a particular purpose. The 1 Shot and 2 Shot espresso buttons allow for automatic coffee delivery, while the Stop button is for continuous coffee brewing.

  • Page 11: Coffee Dispensing

    S21-037 Repeat the procedure above for programming on the remaining button. 2. Coffee dispensing  Press the Stop button once to start the coffee brewing process, then press it again to stop  Press the 1 shot espresso button or 2 shot espresso button to dispense a preset coffee dose that is previously programmed.

  • Page 12: Setting Of Operational Parameters

    S21-037 Note: The water source should always be available for filling operation. 6. Setting of operational parameters In addition to the core functions, a machine’s operational parameters can be changed to improve the user experience. Button Name Replace function 1 shot espresso Increase (+) 2 shot espresso Change/Confirm...

  • Page 13: Other Parameters Setting

    S21-037  Temperature range: 0 -120°C  Step: 1  Default: 114°C Press and hold the Confirm button for 3 seconds to exit the setting process. Other parameters setting Press and hold the 2 shot espresso and the Stop button simultaneously for 3 seconds until the siren sound.
  • Page 14 S21-037...

  • Page 15: Error Detection And Troubleshooting

    S21-037 Table of parameters explanation : Parameter Range Step Default Description Propotional coefficient 0 - 100 (Recommend: P = 0) The smallest temperature difference 1 - 10 required to activate the heating element 1 - 10 Auto cleaning time Period of the cleaning 1 - 10 process Pre-infusion time...
  • Page 16 Thermocouple To protect the Replace the new one or contact is broken heating element us for support TIFATECH Co., Ltd Address: 14 Tran Tu Binh Street, Hoa Chau Ward, Hoa Vang District, Da Nang City, Viet Nam Email: tifatech.vn@gmail.com Tel: +84(0)899.600.009...
