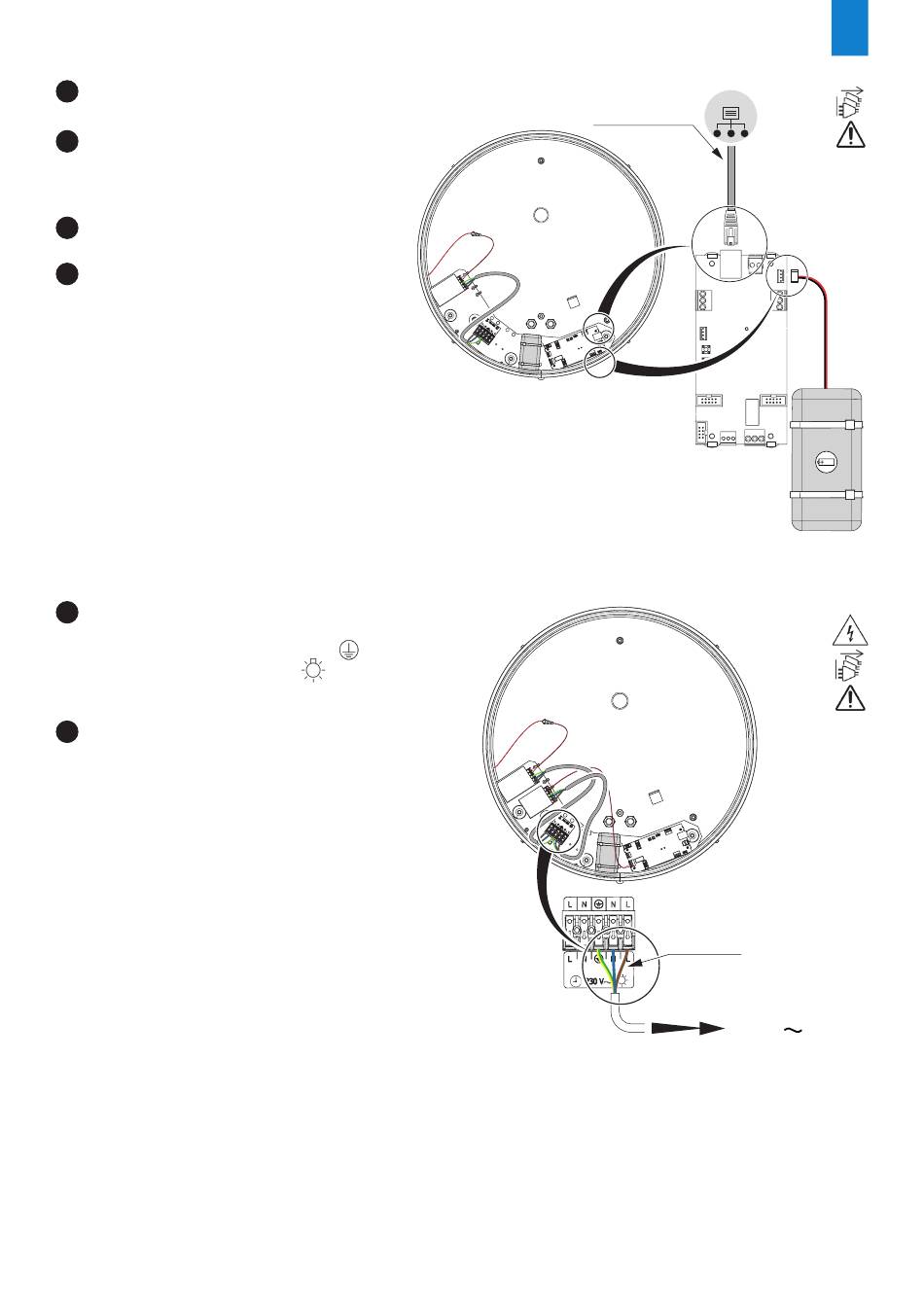

2.1.2.2 NTP PoE model

Run the Ethernet cable through the
1
smallest central cable gland.
Crimp the RJ45 male plug onto this
2
cable only once it has been run
through the clock, and check the
crimping using a network tester.
Connect this cable to the electronic
3
card via the Ethernet port.
4 Connect the backup battery cable
(if available) to the electronic card.

2.1.2.3 Lighting option

Run a mains cable through the left-hand
1
cable gland, then connect this cable to
the terminal block in the L-N-
reserved for lighting (icon
2 Connect this mains cable to the
plate with a cable retainer.
terminals
).
NTP
Ethernet cable
Ø 1,5 mm
2
230 V
