E Schaudt GmbH, Elektrotechnik und Apparatebau, Daimlerstraße 5, 88677 Markdorf, Germany, Tel. +49 7544 9577-0, Fax +49 7544 9577-29, www.schaudt- -gmbh.de
811.302 BA / EN
Instruction Manual
Electrobloc EBL 99 I with OVP
Table of contents
1
1.1
1.2
2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.1
3.2
3.3
3.4
4
4.1
4.2
5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
2
2
3
3
3
4
5
6
7
8
9
9
10
Date: 01.04.2008
Advertisement
Table of Contents
Related Manuals for Schaudt Electrobloc EBL 99 I with OVP
Summary of Contents for Schaudt Electrobloc EBL 99 I with OVP
-
Page 1: Table Of Contents
..........E Schaudt GmbH, Elektrotechnik und Apparatebau, Daimlerstraße 5, 88677 Markdorf, Germany, Tel. +49 7544 9577-0, Fax +49 7544 9577-29, www.schaudt- -gmbh.de 811.302 BA / EN... -
Page 2: Safety Information
Operating instructions electroblock EBL 99 I with OVP Safety Information Meaning of Safety Symbols DANGER! Failure to heed this warning may result in death or serious injury. WARNING! Failure to heed this warning may result in personal injuries. ATTENTION! Failure to heed this warning may result in damage to the device or connected consumers. -
Page 3: Introduction
3.2 and assembly instructions EBL 99). Overvoltage protection The electrobloc EBL 99 I with OVP is suitable for all cases of application in which the danger of overvoltage is especially large. This can e. g. be lightning strikes in the public mains, generator operation, bad electronic installations or trips to foreign countries. -
Page 4: Changing The Battery
Operating instructions electroblock EBL 99 I with OVP Changing the battery ATTENTION! Utilisation of wrong battery types or incorrectly rated batteries! Damage to the battery or devices connected to the electrobloc: Batteries should only be changed by qualified personnel. Follow the instructions of the battery manufacturer. Only connect the electrobloc to 12 V power supplies with rechargeable 6 cell lead gel or lead acid batteries. -
Page 5: System Faults
If this is not possible, e.g. if you are abroad, you can have the electrobloc repaired at a specialist workshop. Please note that the warranty will be void if incorrect repair work is carried out. Schaudt GmbH does not accept liability for any damages resulting from such repairs. -
Page 6: Closing Down The System
Operating instructions electroblock EBL 99 I with OVP Fault Possible cause Remedy 12 V supply does not work 12 V main switch for the 12 V main switch for the in the living area in the living area living area battery is living area battery is living area battery must be living area battery must be... -
Page 7: Application And Functions In Detail
Operating instructions electroblock EBL 99 I with OVP Application and Functions in Detail EBL 99 electrobloc is the central power supply unit for all 12 V consumers in the vehicle’s electrical system. It is usually located in a cupboard or storage space and is accessible from the front in order to change fuses. -
Page 8: Battery Functions
Operating instructions electroblock EBL 99 I with OVP Battery functions Suitable batteries 6 cell lead acid or lead gel batteries 55 Ah and above Battery charging Simultaneous charging of the starter battery and the living area battery via during mobile operation the alternator, parallel connection of the batteries via a cut-off relay Battery disconnection The battery is separated through switching off the battery separation switch. -
Page 9: Additional Functions
Operating instructions electroblock EBL 99 I with OVP Additional functions Automatic switch This relay supplies the AES/compressor refrigerator with power from the function for starter battery when the vehicle engine is running and the D+ connection is AES/compressor live. An AES refrigerator is powered by the living area battery when the refrigerator vehicle engine is not running. -
Page 10: Appendix
Special fittings/accessories Switch panel Schaudt switch pannel IT ... / LT ... (required for operation) Accessory charging Schaudt battery charging device LAS ... with max. 18 A charging currency, device including fitting connection cable (MNL). Solar charging regulator Schaudt Solar charging regulator type LR ... for solar modules with an... - Page 11 Operating instructions electroblock EBL 99 I with OVP Fault report In the event of damage, please return the defective device together with the completed fault report to the manufacturer. Device type: _______________________ Article no.: _______________________ Vehicle: Manufacturer: _______________________ Model: _______________________ Own installation? Yes - No - Upgrade?

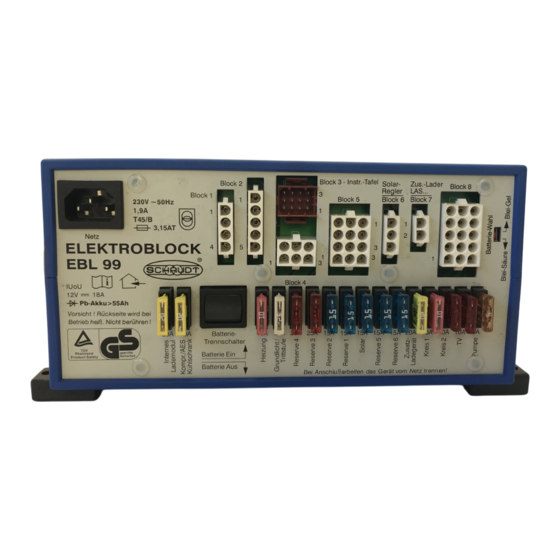

- Page 12 Operating instructions electroblock EBL 99 I with OVP Design Fig. 3 Design electrobloc EBL 99 (front) mains connections Connection block solar regulator Connection block refrigerator Connection block accessory charger Connection block refrigerator supply D+, battery Connection block TV, pump, consumer sensor / control lines 10 Selector switch acid/gel battery Connection block frost protection valve, heating and...
- Page 13 Operating instructions electroblock EBL 99 I with OVP Block diagram/connection diagram Charging relay starter battery MNL connector sockets 2F -BL7 +Accessory charging device Negative charging unit Mains 230V~50Hz cold device socket Selector switch lead gel/ Battery disconnection lead acid/ The negative pole of the living area battery Main switch relay 60A Main switch relay 60A must be connected externally to the...
- Page 14 Operating instructions electroblock EBL 99 I with OVP (Leerseite) Date: 01.04.2008 811.302 BA / EN...
