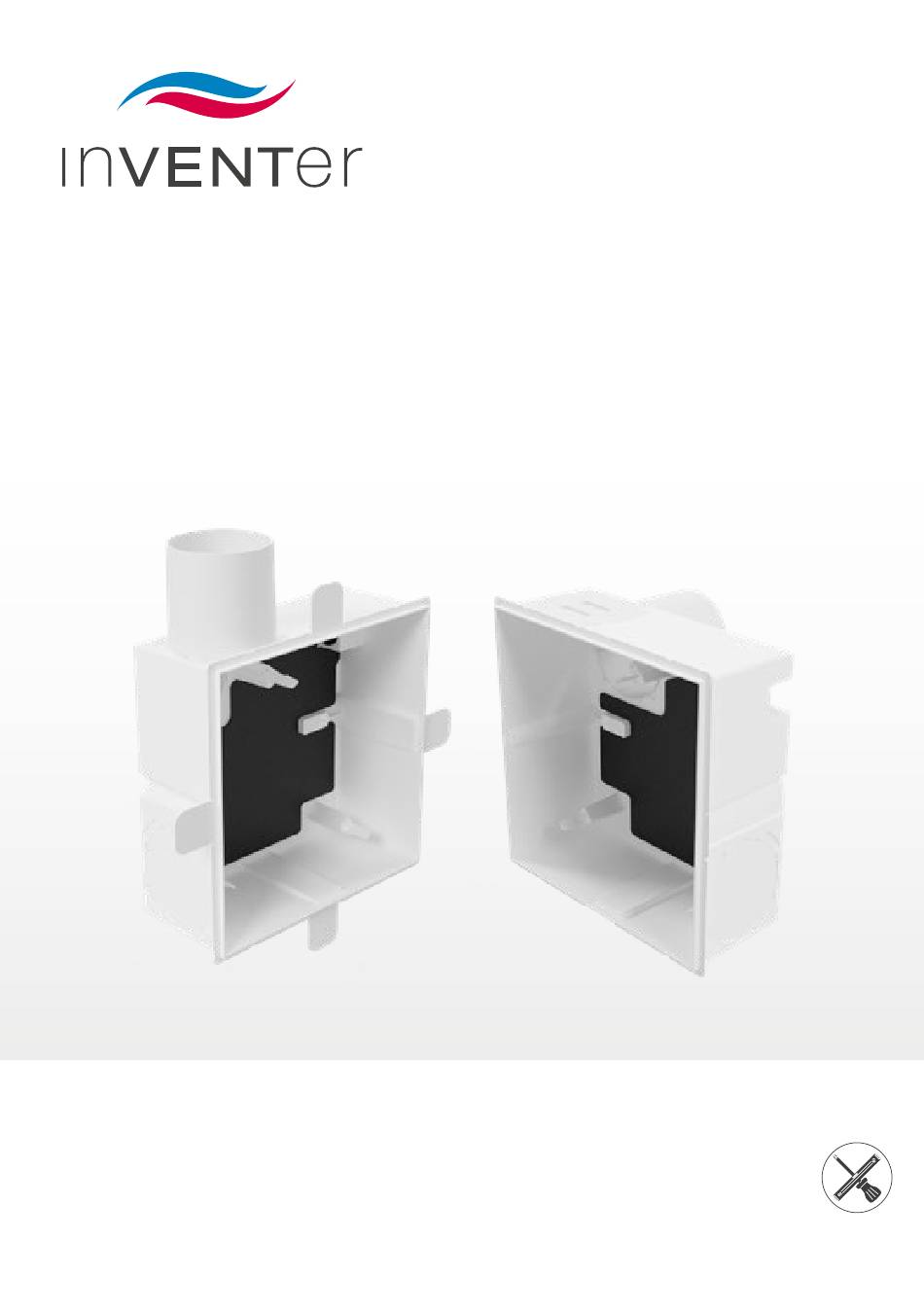

- Page 1 Installation instructions Taris extractor fan housing Read carefully and refer to the illustrations before handling the product. Keep these instructions for future reference. Original Installation instructions https://www.inventer.eu...
- Page 3 The function remains the same despite the difference in detail. This documentation is updated regularly. Necessary corrections and appropriate supplements are always included in the following releases. You can also find the latest version at www.inventer.eu/ downloads. Company information...
-
Page 4: Table Of Contents
7.4.4 Housing installation position .................. 25 Mounting the surface-mounted housing ................26 Installing the flush-mounted housing ................28 7.6.1 Installation in the outer wall ................... 28 7.6.2 Installation in the shaft wall ..................31 Taris extractor fan housing | 5011-0016... - Page 5 7.8.2 Installing the power cable ..................36 Warranty and guarantee......................37 Warranty ........................... 37 Manufacturer’s guarantee ....................37 Service ............................38 Complaints ........................38 Accessories and spare parts .................... 38 10 Disposal ............................ 38 Taris extractor fan housing | 5011-0016...
-
Page 6: About This Document
• They must always be available to the user and be stored for the entire product service life. • The Installation instructions are an excerpt of the Taris extractor fan installation and operating instructions. The Taris installation and operating instructions can be accessed at the following link: https://www.inventer.eu/downloads/... -
Page 7: Warnings And Other Notices
Describes the effects that may occur if the notice is not complied with. • Avoidance Describes how to prevent the hazard from occurring, or provides instructions for safety meas- ures if the hazard occurs. Taris extractor fan housing | 5011-0016... -
Page 8: Example Of A Warning
► This is the result of the second step. Operating and display elements Operating and display elements, such as buttons, switches, and control knobs, are written in bold. Example: The on/off switch is located on the controller. Taris extractor fan housing | 5011-0016... -
Page 9: Other Symbols
Any additional tools and aids required for the activities are listed before the instruc- tions. Red bar over a graphic: Illustration shows the inner wall. Blue bar over a graphic: Illustration shows the outer wall. Action focus: To be taken into account in the relevant assembly step. Taris extractor fan housing | 5011-0016... -
Page 10: Safety
Intended use The Taris extractor fan housing is a component product of the Taris extractor fan and serves as an installation housing for the fan unit. Any other product use constitutes improper use. Compliance with other regulations... -
Page 11: Operating Personnel Requirements
Safety / Personal protective equipment Operating personnel requirements The Taris extractor fan housing is a building product with electrical components. Only qualified specialists can assemble, install, and configure it. Only those who meet the following require- ments may handle the product: •... -
Page 12: Hazard Sources
• No environment that allows direct water ingress, • No environment that allows smoke or combustion gas backflow, • Only masonry that conforms to the dimensions indicated, • Ambient temperatures: -20 – +40 °C. Taris extractor fan housing | 5011-0016... -
Page 13: System Overview
4 Surface-mounted housing 1 The housing with item number 1002-0061 requires a second room connector (not shown in the figure) to achieve two-room extraction; otherwise its construction is identical to that of item number 1002-0060. Taris extractor fan housing | 5011-0016... -
Page 14: Product Variants
4.3.1 One-room and two-room design A Taris extractor fan can discharge the extract air from one or two rooms. The two-room design is available in the flush-mounted variant only. It has a second pipe on the housing’s intake (see Fig. -
Page 15: Surface-Mounted Housing
The device is installed on an opening in the wall structure. The following figure shows the Taris extractor fan with a surface-mounted housing. Optional accessories are marked with “ * ”. Fig. 2: Surface-mounted variant – masonry installation... -
Page 16: Flush-Mounted Housing
This design allows exhaust discharge from two rooms. The follow- ing figure shows the Taris extractor fan housing with a flush-mounted housing in drywall installa- tion with a mounting bracket. Optional accessories are marked with “ * ”. -
Page 17: Technical Specifications
Technical specifications Dimensions The following figures show the dimensions of the individual housing variants and the cable pas- sage. 5.1.1 Surface-mounted housing □ □ Fig. 4: Dimensioned drawing – surface-mounted Taris extractor fan housing Taris extractor fan housing | 5011-0016... -
Page 18: Surface-Mounted Wall Openings
5.1.2 Surface-mounted wall openings Observe the following dimensions for creating the wall openings for the cable passage and ex- haust shaft: □ Fig. 5: Dimensioned drawing – surface-mounted Taris extractor fan housing cable passage Taris extractor fan housing | 5011-0016... -
Page 19: Flush-Mounted Housing, Axial
Technical specifications / Dimensions 5.1.3 Flush-mounted housing, axial □ Fig. 6: Dimensioned drawing – flush-mounted Taris extractor fan housing, axial Taris extractor fan housing | 5011-0016... -
Page 20: Flush-Mounted Housing, Radial
Technical specifications / Dimensions 5.1.4 Flush-mounted housing, radial Ø 78 □ Fig. 7: Dimensioned drawing – flush-mounted Taris extractor fan housing, radial Taris extractor fan housing | 5011-0016... -
Page 21: Storage And Transport
Section 5.1.2 “Surface-mounted wall openings” on page 18. • Exhaust duct(s) have been laid and are ready to be connected: If the planned structure involves the Taris wall installation set, equip the wall mounting ■ sleeve and weather protection hood as described in the relevant installation instructions. -
Page 22: Requirements For The Supply Shaft System
Installation instructions can be found in Section 4.1 “Structure and scope of delivery” on page 13. Installation location and installation positions For safe, flawless Taris extractor fan function, observe the following installation location conditions and possible device installation positions. 7.4.1... -
Page 23: Air Volume Flows
150 cm² in order to ensure an adequate supply of air. • We recommend placing an external air supply such as the inVENTer aV100 ALD positioned in the upper wall area, ideally above a radiator, in the room to be ventilated (this pre-warms the outdoor air flowing in). -
Page 24: Installation Positions
Install the surface-mounted variant in this orientation only: Fig. 9: Surface-mounted Taris extractor fan housing installation position Flush-mounted housing installation position Install the flush-mounted variant in one of the following orientations: Fig. 10: Flush-mounted Taris extractor fan housing installation positions, radial Taris extractor fan housing | 5011-0016... -
Page 25: Housing Installation Position
Installation and assembly / Installation location and installation positions Fig. 11: Flush-mounted Taris extractor fan housing installation positions, axial 7.4.4 Housing installation position Observe the following minimum distances for the wall opening: Fig. 12: Installation position dimensioned drawing – flush-mounted/surface-mounted axial housing with wall duct and... -
Page 26: Mounting The Surface-Mounted Housing
→ Observe the information in Section 7.1 “Prerequisites for installation” on page 21. Preparing connection pipes and electrical connections Prepare the connection pipe(s) and/or the Taris wall installation set so that the hous- ing’s exhaust opening and, as necessary, intake opening can be easily adapted. Lay the cables so that they can be routed into the housing from behind. - Page 27 7. Insert anchors into the boreholes. 8. Screw the housing to the inner wall. 9. Connect the mains cable leads. See Section 7.8 “Electrical installation” on page 35. ► The Taris extractor fan housing has been installed. Taris extractor fan housing | 5011-0016...
-
Page 28: Installing The Flush-Mounted Housing
→ Observe the information in Section 7.1 “Prerequisites for installation” on page 21. Preparing connection pipes and electrical connections Prepare the connection pipe(s) and/or the Taris wall installation set so that the hous- ing’s exhaust opening and, as necessary, intake opening can be easily adapted. Lay the cables so that they can be routed into the housing from behind. - Page 29 3. On the outer wall structure, create a horizontal support for the housing. 4. Position the housing with the exhaust opening exactly over the pre-installed Taris wall installa- tion set. Guide the mains cable (230 V, 50 Hz) into the housing. See Section 7.8 “Elec- trical installation”...
- Page 30 10. Plaster in the housing. 11. Remove the plastering cover from the housing. 12. Connect the mains cable leads. See Section 7.8 “Electrical installation” on page 35. ► The Taris extractor fan housing has been installed. Taris extractor fan housing | 5011-0016...
-
Page 31: Installation In The Shaft Wall
When connecting the ventilation device to the main supply line, ensure sufficient sound decoupling. For housing installation in high-resonance facing panels, use suitable elas- tic inserts (such as foam rubber) to avoid transmission of structure-borne noise. 1. Remove the plastering cover from the housing. Taris extractor fan housing | 5011-0016... - Page 32 7. Use the screws, washers, and wing nuts provid- ed to screw the two parts of the mounting bracket together so that the front of the housing with its tabs fits to the back side of the subsequent drywall. Taris extractor fan housing | 5011-0016...
- Page 33 11. Plaster in the housing. 12. Remove the plastering cover from the housing. 13. Connect the mains cable leads. See Section 7.8 “Electrical installation” on page 35. ► The Taris extractor fan housing has been installed. Taris extractor fan housing | 5011-0016...
-
Page 34: Removing Blind Covers And Adapting The Room Connector
2. Fix the blind cover in place by rotating it clock- wise on the housing. 3. Press the fixed blind cover out at the defined breaking point. As necessary, carefully use a cutting knife. 4. Position the room connectors on the housing openings. Taris extractor fan housing | 5011-0016... -
Page 35: Electrical Installation
The following sections explain electrical connection variants and contain instructions for connect- ing the power cable. 7.8.1 Connection variants The following figures show typical examples of Taris extractor fan connection variants. L N LS L N LS 230V AC 230V AC Fig. -
Page 36: Installing The Power Cable
2. Strip the cable to 70 mm. 3. Strip the cores to 6 mm. Observe the cable length inside the housing. Shorten the cables so that they do not kink and are not in the way. Taris extractor fan housing | 5011-0016... -
Page 37: Warranty And Guarantee
Use the device as intended in order to maintain the warranty claim. Manufacturer’s guarantee inVENTer GmbH grants a five-year guarantee on all electronic components. This covers prema- ture product wear. The warranty claim is an additional offer by the manufacturer and does not affect applicable law in any way. -
Page 38: Service
It will dispose of the product in accordance with applicable national regulations. Also dispose of product packaging correctly. You will find disposal recommendations in the following table. Table 3: Disposal recommendations Component Material Disposal Housing components PS plastic Recyclable waste Taris extractor fan housing | 5011-0016... - Page 40 GmbH Ortsstraße 4a D-07751 Löberschütz, Germany https://www.inventer.eu Subject to modifications. No liability for printing errors. Item no.: 5011-0016 Version: 1.0 – 04/2024...
