av100 extract air system
Avio N 100
Installation and operating instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the av100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for inVENTer av100

Summary of Contents for inVENTer av100

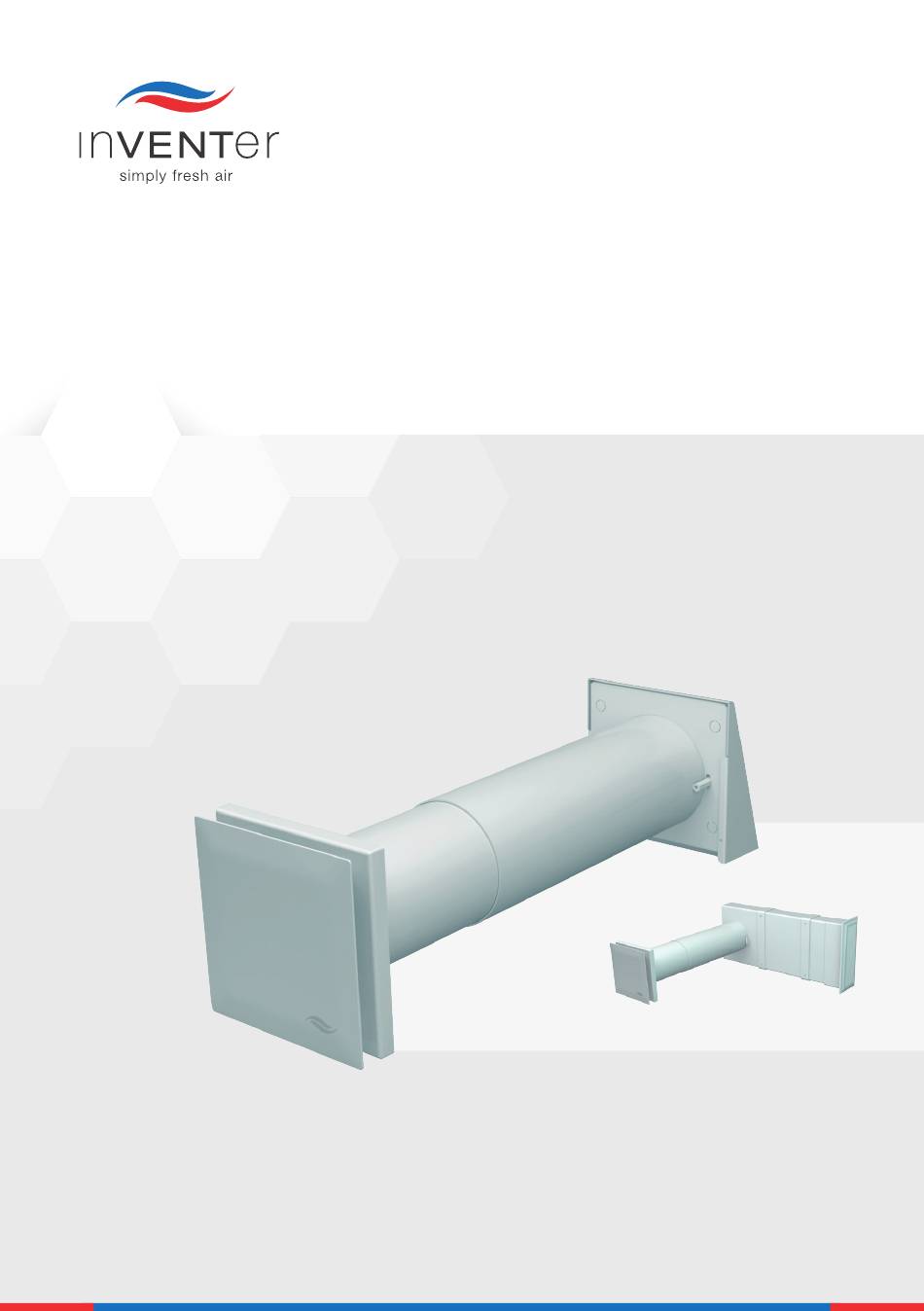

  • Page 1 Avio N 100 Installation and operating instructions...
  • Page 2 Brands inVENTer is a registered trademark of inVENTer GmbH. Other names in this documentation ® may be trademarks, whose use by third parties for their own purposes could violate the rights of the owner. Disclaimer This documentation is an English translation of the original German installation and operating instructions.

  • Page 3: Table Of Contents

    Install the aV100 extract air system with weather protection hood (standard model) .. 28 Install the aV100 extract air system with flat duct and reveal grille (corner model) ..32 Insert Avio N 100 extractor fan and connect power cable ..........38 Install inner cover ......................

  • Page 4: User And Safety Instructions

    Safety instructions Read all instructions contained in this section for installation, operation and maintenance of the aV100 extract air system and the Avio N 100 extractor fan. Also note the safety instructions that precede the described handling instructions. Carefully read the safety instructions before performing any work on the equipment/system.

  • Page 5: Intended Use

    Install a pressure monitor in rooms with open flues. Consult your chimney sweeper and/or build- ing planner about this. During the construction work, the aV100 extract air system must remain sealed against dust. It must not be put into operation and the dust cover must not be removed until after completion of the construction work.

  • Page 6: System Overview

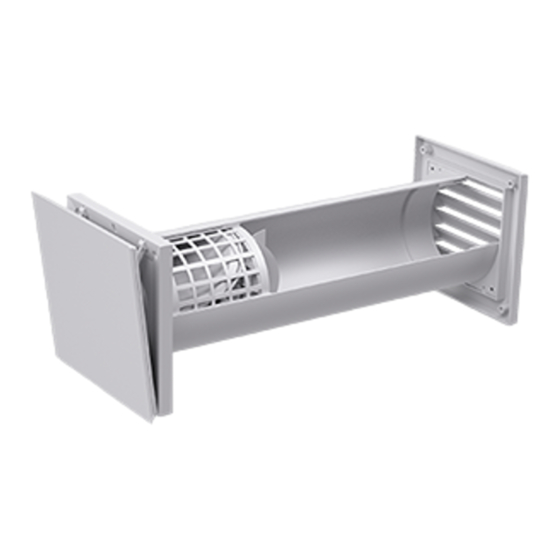

    The aV100 extract air system consists of a wall sleeve with non-return valve, an exterior outlet and the Avio N 100 extractor fan with inner panel, which is mounted in the wall sleeve.

  • Page 7: Layout

    Extract air system with Avio N 100 Extract air system with Avio N 100 standard model corner model Figure 1: Overview of aV100 extract air system with Avio N 100 extractor fan 1 Panel inner cover 8 Weather protection hood cover 2 Spacer...
  • Page 8 Figure 3: aV100 extract air system with wall sleeve extension 1 Sleeve of wall sleeve with non-return 3 Sleeve of wall sleeve extension...
  • Page 9 Standard model end plate: Corner model end plate: Weather protection hood aV100 Flat duct with reveal grille Figure 6: Weather protection hood for aV100 extract air system 1 Weather protection hood base plate 4 Weather protection hood cover (standard model)/...

  • Page 10: Functions

    The aV100 extract air system is used for removing spent air from a room. The Avio N 100 (N = run-on function) extractor fan is used in the aV100 extract air system. The aV100 extract air system operates without heat recovery and runs on alternating current.

  • Page 11: Control Elements

    Switch on Switch off Avio N 100 is Light switch/switch Run-on time is activated. switched on. Avio N 100 is switched Pushbutton on. Run-on time is – activated. aV100 extract air system – Avio N 100 • Installation and operating instructions...

  • Page 12: Preparations Prior To Installation

    PREPARATIONS PRIOR TO INSTALLATION Preparations prior to installation DANGER Ingress of water into aV100 extract air system or its components/power source. Electric shock and/or overheating due to short circuit (230V, 50Hz)! ► Install aV100 extract air system outside protection area 0.

  • Page 13: Dimensioned Drawings

    Dimensioned drawings Wall openings ≥ 250 Ø Figure 9: Dimensioned drawing of wall opening with weather protection hood aV100 (standard model) 1 Wall opening 3 Bottom edge of reveal grille (lintel) 2 Position of weather protection hood 4 Door/window frame aV100 ≥...
  • Page 14 PREPARATIONS PRIOR TO INSTALLATION Wall sleeve ≥ 50 Figure 11: Dimensioned drawing of wall sleeve aV100 1 Tube of wall sleeve 4 Fixing element 2 Interior wall side 5 Sleeve of wall sleeve 3 Exterior wall side Flat duct corner Ø...
  • Page 15 PREPARATIONS PRIOR TO INSTALLATION Weather protection hood aV100 Figure 13: Dimensioned drawing of weather protection hood aV100 1 Weather protection hood base plate 2 Weather protection hood cover Reveal grille Figure 14: Dimensioned drawing of reveal grille 1 Reveal grille 2 Flat duct sliding sleeve aV100 extract air system –...

  • Page 16: Installation Conditions

    Electrical protection areas in bathrooms in accordance with VDE 0100 DANGER Ingress of water into aV100 extract air system or its components/power source. Electric shock and overheating due to short circuit (230V, 50Hz)! ► Install aV100 extract air system outside electrical protection area 0.
  • Page 17 PREPARATIONS PRIOR TO INSTALLATION Airflow Install the aV100 extract air system in the air flow of the room to ensure optimal humidity re- moval and reliable detection of the humidity level by the humidity sensor.   Figure 17: Positioning in the air flow of the room...

  • Page 18: Electrical Connections

    Electric shock and overheating due to short circuit (230V, 50Hz)! ► Install aV100 extract air system outside protection area 0. ► Install the power source for the aV100 extract air system outside protection areas 0 to 2. NOTE Insufficient wire cross-section.

  • Page 19: Wiring Diagrams

    1 PCB for Avio N 100 5 Lamp 2 Terminal for power cable terminal 6 Switch (closing contact) 3 Hygrostat (optional) 7 Pushbutton 4 Light switch, 2-pole aV100 extract air system – Avio N 100 • Installation and operating instructions...

  • Page 20: Installation And Assembly

    RAL and is regulated normatively. Apply this procedure also for inVENTer ® ventilation devices. In addition to the supporting and insulating properties of the walls, there are...

  • Page 21: Creating A Plaster Slot/Wall Opening For The Wall Sleeve

    DANGER Ingress of water into aV100 extract air system Electric shock and/or overheating due to short circuit (230V, 50Hz)! ► Create wall opening for aV100 extract air system outside protection area 0. CAUTION Falling masonry when creating the wall opening.
  • Page 22 45°. Ö The wall opening for the wall sleeve and the plaster/masonry slot have been created. Ö aV100 extract air system – Avio N 100 • Installation and operating instructions...

  • Page 23: Lay Power Cable

    Ensure that the cable end (3) protrudes ap- proximately 500 mm into the interior space. ► Re-plaster the plaster/masonry slot (2). The power cable has been laid. Ö Ö aV100 extract air system – Avio N 100 • Installation and operating instructions...

  • Page 24: Install Hygrostat (Optional)

    ► Release the hygrostat's cover (3) at the notches (green arrow) on the right side with a screwdriver. ► Fold the hygrostat's cover (3) away to the left side. aV100 extract air system – Avio N 100 • Installation and operating instructions...
  • Page 25 (13). ► Press the rotary control (14) onto the hygrostat cover (15) in accordance with the guidance of the axis. The hygrostat is installed. Ö Ö aV100 extract air system – Avio N 100 • Installation and operating instructions...

  • Page 26: Adjust Length Of Wall Sleeve

    The length of the wall sleeve has been adjusted. Ö Ö aV100 extract air system with flat duct and reveal grille (corner model) Requirements: The interior and exterior walls are completed. ► Determine the exact wall thickness + 10 mm.
  • Page 27 Step 4: Seal the interface between the tube and sleeve airtight with durable waterproof fabric tape Not included. Available as an option. aV100 extract air system – Avio N 100 • Installation and operating instructions...

  • Page 28: Install The Av100 Extract Air System With Weather Protection Hood (Standard Model)

    INSTALLATION AND ASSEMBLY Install the aV100 extract air system with aV100 weather protection hood (standard model) Install wall sleeve for aV100 weather protection hood Requirements: The power cable has been laid. ► Insert the wall sleeve (1) into the wall opening (3) from the outside.
  • Page 29 INSTALLATION AND ASSEMBLY NOTE Contamination of the non-return valve. Incorrect functioning of the aV100 extract air system! ► Insert styrofoam discs before foam-sealing the wall sleeve. ► Insert the styrofoam protective discs (9) into the wall sleeve (10) from the outside and inside.
  • Page 30 (3). Before installing the weather protection hood base plate, remove the styrofoam disc from the wall sleeve (from the exterior wall side) to ensure adequate air flow. aV100 extract air system – Avio N 100 • Installation and operating instructions...
  • Page 31 Continue installation of the extract air system by referring to section 5.8: Installation and Assem- bly ‒ insert Avio N 100 extractor fan and connect power cable. aV100 extract air system – Avio N 100 • Installation and operating instructions...

  • Page 32: Install The Av100 Extract Air System With Flat Duct And Reveal Grille (Corner Model)

    INSTALLATION AND ASSEMBLY Install the aV100 extract air system with flat duct and reveal grille (corner model) Installing the wall sleeve for flat duct and reveal grille Requirements: The power cable has been laid. Before inserting the wall sleeve, rotate the fixing elements upwards.
  • Page 33 ► Insert styrofoam protective discs before foam-sealing the wall sleeve. ► Insert the styrofoam protective discs (12) into the wall sleeve (11) from the outside and inside. aV100 extract air system – Avio N 100 • Installation and operating instructions...
  • Page 34 (18) in the interior wall. ► Remove the styrofoam protective disc from the wall sleeve on the exterior wall side. The corner model wall sleeve is installed. Ö Ö aV100 extract air system – Avio N 100 • Installation and operating instructions...
  • Page 35 ► Add 35 mm to the calculated sum. (y+z) + 35 mm The installation length of the flat duct is calculated (L = (y+z) + 35 mm) Ö Ö installation aV100 extract air system – Avio N 100 • Installation and operating instructions...
  • Page 36 ► Install the flat duct corner with a slope of 1° – 2° to the window reveal. ► Screw the wall bracket (1) to the exterior wall with a slope of 1° – 2°. aV100 extract air system – Avio N 100 • Installation and operating instructions...
  • Page 37 ► Apply render (9) to the insulation and window reveal. ► Plaster the sliding sleeve (10) to the window reveal. The flat duct corner is installed. Ö Ö aV100 extract air system – Avio N 100 • Installation and operating instructions...

  • Page 38: Insert Avio N 100 Extractor Fan And Connect Power Cable

    (only when mounting subceiling!) between ceiling and subceiling to the hole for the fan instead of the wall sleeve. The connection between wall sleeve and extractor fan must be carried out on site. aV100 extract air system – Avio N 100 • Installation and operating instructions...
  • Page 39 (7) fan casing (8). ► From the interior, slide the fan casing (8) into the wall sleeve (6) as far as the interior wall. aV100 extract air system – Avio N 100 • Installation and operating instructions...
  • Page 40 Ö Ö Check functioning of the aV100 extract air system immediately after connecting the Avio N 100 extractor fan. To do this, connect the Avio N 100 to the power supply and activate the operating element (light switch, switch or pushbutton). Subsequently disconnect the extract air system from the power supply again.

  • Page 41: Install Inner Cover

    (8) of the inner panel base plate (9). Ensure the inVENTer logo (6) is visible on the bottom-right of the panel inner cover (5). ► Slide the panel inner cover (5) to the left in the detent lugs (7) of the inner panel base plate (9).

  • Page 42: Disassemble Inner Cover

    ► Gently pull on the bottom edge (red arrow) of the inner cover base plate (4) until the four corners audibly disengage. Ö The inner cover has been disassembled. Ö aV100 extract air system – Avio N 100 • Installation and operating instructions...

  • Page 43: Operation

    OPERATION Operation Operate light switch/switch/pushbutton Operation of the aV100 extract air system is carried out in combination with a light switch or a standard switch or pushbutton. Light switch operation Requirements: The aV100 extract air system is connected to mains voltage.

  • Page 44: Set The Run-On Time

    OPERATION Pushbutton operation Requirements: The aV100 extract air system is connected to mains voltage. ► Briefly press the pushbutton (1) (blue dot). The aV100 extract air system is switched Ö Ö The run-on time is activated. Ö Ö The extract air system will run until the end Ö...

  • Page 45: Set Hygrostat (Optional)

    (2). The relative humidity limit at which the Ö Ö 30 % RH extractor fan is activated has been lowered. The hygrostat is set. Ö Ö aV100 extract air system – Avio N 100 • Installation and operating instructions...

  • Page 46: Specifications

    6.4 W Width x Height x Depth 159 x 159 x 115 Weight 590 g Noise emission (rated) 28 dB(A) Run-on time 5 minutes – 30 minutes aV100 extract air system – Avio N 100 • Installation and operating instructions...
  • Page 47 Designation (W x H in Weight (g) depth (mm) Flat duct 60x204x500 (D100) Corner 204 x 60 Flat duct 60x204x1000 (D100) Corner 1000 204 x 60 1296 aV100 extract air system – Avio N 100 • Installation and operating instructions...
  • Page 48 Inner cover Avio N 100, white RAL 9010 159 x 159 Reveal grille with sliding sleeve Dimensions Length/ Designation (W x H in Weight (g) depth (mm) Reveal grille 93 x 232 aV100 extract air system – Avio N 100 • Installation and operating instructions...

  • Page 49: Scope Of Supply

    • Wall sleeve R-D103/107x300x550 RV with styrofoam discs and mounting wedges • Weather protection hood aV100 (white/grey/Nord (iron grey)) • Flat duct 60x204x500 (D100) corner or flat duct 60x204x1000 (D100) corner • Avio N 100 extractor fan with run-on function and inner cover •...

  • Page 50: Accessories And Spare Parts

    Self-adhesive fabric tape 50 m x 48 mm 1004-0051 Hygrostat 1002-0015 2K fitting foam (for companies only) 1004-0050 Spare parts Components Order number Grille for duct 60x204 2001-0070 Cover IB Avio V-159x159, RAL9003 3006-0240 aV100 extract air system – Avio N 100 • Installation and operating instructions...

  • Page 51: Servicing And Maintenance

    SERVICING AND MAINTENANCE Servicing and maintenance The aV100 extract air system is virtually maintenance free. In the "Servicing and Maintenance" section you will find a table with a list of all recommended maintenance activities. DANGER Exposed electrical components and rotating fan components.

  • Page 52: Troubleshooting And Disposal

    Wall sleeve Recyclable material Flat duct Recyclable material Inner cover Domestic waste Fan casing Domestic waste Collection point for electrical PCB for Avio N 100 Plastic/copper appliances aV100 extract air system – Avio N 100 • Installation and operating instructions...

  • Page 53: Warranty And Service

    • conversions and/or modifications are made to the aV100 extract air system • spare parts are used that are not original manufacturer spare parts for the aV100 extract air system • damage is caused by force majeure or environmental influences •...
  • Page 54 WARRANTY AND SERVICE NOTES Notes aV100 extract air system – Avio N 100 • Installation and operating instructions...
  • Page 55 WARRANTY AND SERVICE NOTES Notes aV100 extract air system – Avio N 100 • Installation and operating instructions...
  • Page 56 WARRANTY AND SERVICE NOTES Notes aV100 extract air system – Avio N 100 • Installation and operating instructions...

  • Page 57: Company Details

    © INVENTER GMBH 2015 ALL RIGHTS RESERVED: © INVENTER GMBH 2015 SUBJECT TO MODIFICATIONS. ALL INFORMATION IS SUPPLIED WITHOUT GUARANTEE. NO LIABILITY IS ACCEPTED FOR PRINTING ERRORS. aV100 extract air system – Avio N 100 • Installation and operating instructions...
  • Page 58 GmbH Ortsstraße 4a D-07751 Löberschütz Telephone: +49 (0) 36427 211-0 Fax: +49 (0) 36427 211-113 E-Mail: info@inventer.de Version 11/2015 Subject to technical changes Order number: 7002-0065 © inVENTer GmbH 2015...
