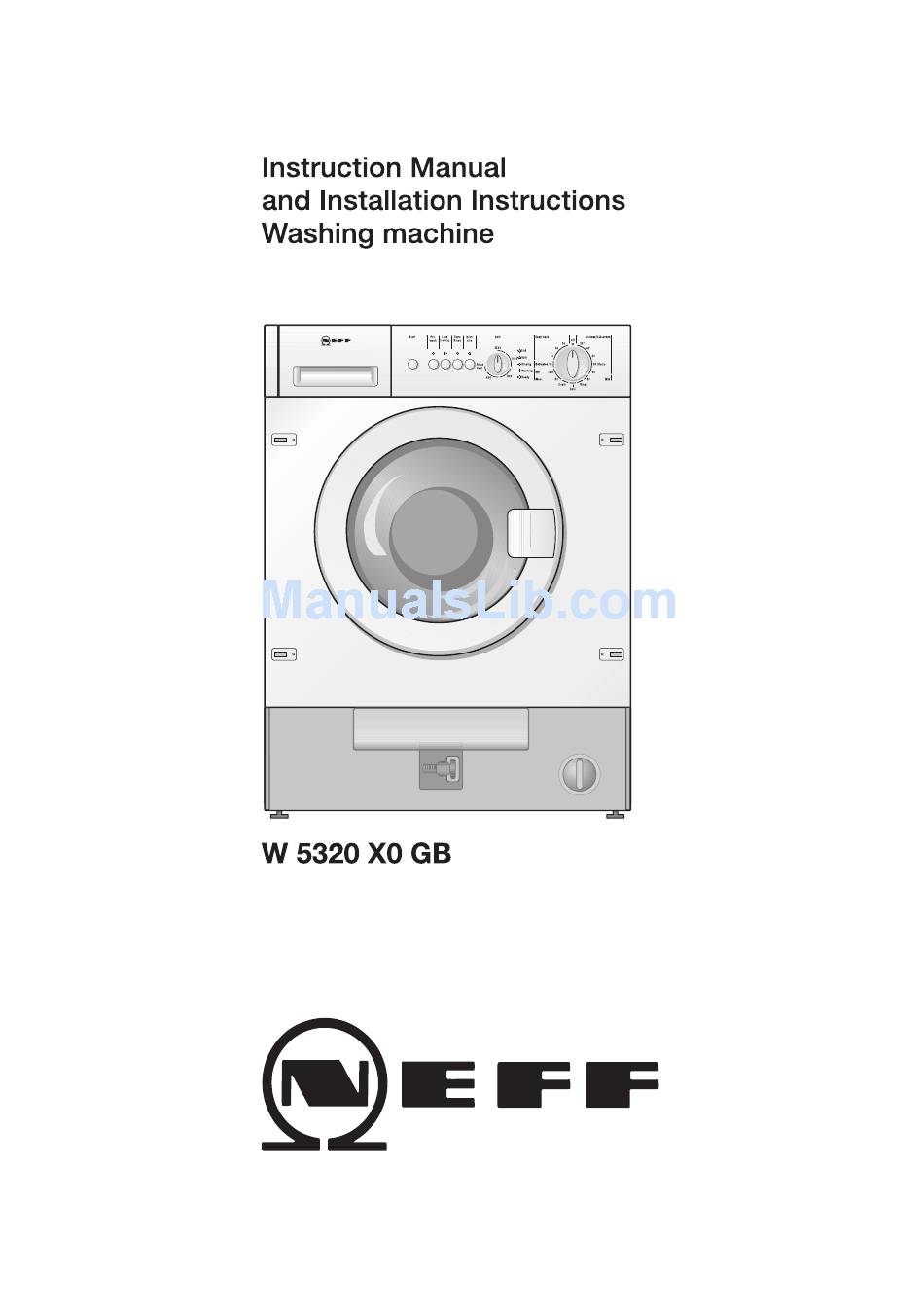

NEFF W5320X0GB - annexe 2 Manual

Hide thumbs Also See for W5320X0GB - annexe 2:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the W5320X0GB - annexe 2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NEFF W5320X0GB - annexe 2

Summary of Contents for NEFF W5320X0GB - annexe 2

  • Page 2 Table of Contents Operating Instructions...

  • Page 3: Table Of Contents

    Cleaning the drum ..... . Cleaning the detergent dispenser ..Cleaning the drain pump .
  • Page 4 Each washing machine which leaves our factory is checked carefully to ensure that it functions properly and is in perfect condition. If you have any questions - especially with respect to installing and connecting your washing machine - please do not hesitate to contact our customer service department.
  • Page 5 Information concerning waste disposal The shipping package has protected your new Disposing of the appliance on its way to your home. All utilised packaging materials are ecologically harmless and recyclable. Please contribute to a better environment by disposing of packaging materials in an environmentally conscious manner.
  • Page 6 Protection of the environment / Hints and tips Hints and tips Cottons/Coloureds 60 ºC Stains Cottons 90 ºC...
  • Page 7 Keep pets away from the washing machine. Do not insert/pull out the mains plug with wet hands. Do not pull out the mains plug by tugging the cable. Do not touch the loading door when washing at high temperatures.
  • Page 8 Detergent for prewash or starch. Dispenser II: Detergent for main wash, soaking agent, water softener, bleach or stain remover. Dispenser 2: Additives, e.g. fabric softener or former. (fill up to the max mark on insert Opening ... and closing the door Service division...
  • Page 9 Rinse Hold. Switching off the additional option: Press the button again. Indicator light goes out. See chapter Signal, page 26, for switching off acoustic signal or changing the volume.
  • Page 10 Turn the tap on. q Pull out the detergent drawer all the way. q Pour approx. 1 litre / 1 ¾ pt of water into cham ber II of the detergent dispenser. q ½ Half fill the measuring beaker with detergent and pour into chamber II.
  • Page 11 Preparing the Loose debris (e.g. coins, paper clips, needles, nails) washing can damage items of clothing as well as parts of the washing machine (e.g. drum). q Empty all pockets on items of clothing. q Brush sand out of pockets and cuffs/turn ups.
  • Page 12 - Light weight summer clothing and sportswear worn for several hours. - T shirts, shirts, blouses worn for up to one day. - Bed linen, guest towels used for one day. normally soiled Visible soiling and/or a few light stains.
  • Page 13 Visible soiling and/or stains. - Kitchen towels used for up to one week. - Fabric serviettes. - Baby bibs. - Children's outer clothing or football jerseys and shorts soiled with grass and/or earth. - Work clothes, e.g. mechanic's overalls, baker's and butcher's clothing.
  • Page 14 Sorting washing according Only wash laundry that is labelled with the following to the instructions on the care symbols: care labels a b c d e hard wearing textiles, heat resistant textiles e.g. made from cotton or linen, f g h for easy care textiles e.g.
  • Page 15 Before loading the laundry, check that there is no debris in the drum. q Open the washing machine door. q Unfold the sorted items of clothing and place them loosely into the drum. Mix large and small items. Laundry items which vary in size are more evenly distributed during the spin cycle.
  • Page 16 Keep detergents and additives out of the reach of children. Dose detergent according to q the water hardness. You can find out the water hardness from your water utility company. q the amount of laundry. q the degree of soiling.
  • Page 17 Dispenser 2 Cleaning product, e.g. fabric softener or fabric conditioner (fill up to the max mark on insert 1). i Concentrated or viscous fabric softener or fabric conditioner must be diluted with a little water before tt is poured into the dispenser (prevents the overflow from becoming blocked).
  • Page 18 Intensive button! Basic programmes Cottons/Coloureds 30, 40, 60 C For hard wearing textiles, e.g. made of cotton or linen. Cottons/Coloureds 60 C Stains For stained, heavily soiled textiles, e.g. cotton or linen. Energy and water saving programme. The longer...
  • Page 19 Time optimised programme for lightly soiled cotton textiles and easy care textiles. Different types of washing can be washed together. Even suitable for washing new textiles before they are worn for the first time. i Wash white and coloured items separately.
  • Page 20 In the Easy Care, Mix, Delicates and Wool programmes, a lower spin speed will automatically be used, irrespective of the position of the button - gentle treatment of delicate fabrics. i Between the rinse cycles the washing is given an intermediate spin only (not for Delicates).
  • Page 21 Less Ironing Gentler reduced spin cycle with subsequent fluffing. After the spin cycle, the laundry is loose in the drum - creasing is reduced. Additional rinsing of laundry. Extra Rinse Programme duration is extended accordingly.
  • Page 22 The washing time is extended so that highly soiled Intensive washing or 6 kg of cottons/coloureds are washed more intensively. Press the button in addition to the programme for the following combinations of load and degree of soiling: Amount of Programme and...
  • Page 23 Wash Example of Easy Care 40 ºC programme: q Turn the programme selector to the desired pro gramme (see also the programme overview). The Ready indicator light comes on. q If required, select spin speed or Rinse Hold. q If required, press the button(s) for additional op tion(s).
  • Page 24 The programme starts. i The newly selected programme starts at the pro gramme section at which the previous programme was cancelled, however with the new settings. If you would like to terminate a programme and remo Cancelling the ve the washing: programme q Turn the programme selector to Drain, Spin or Rinse.
  • Page 25 If the loading door cannot be opened: washing Wait 2 minutes (safety function is active) there is still water in the washing machine if the Rinse Hold option was selected. Select the Drain or Spin programme and press the Start button.
  • Page 26 The volume of the signal cannot be changed. Signal for programme The signal can be switched on and off and the volume status set before the start or after the end of the programme.
  • Page 27 Press the Start button. The programme starts. q After approx. 10 minutes, turn the programme selector to Off. The laundry is left to lie in the water. q Select a programme according to the required soaking time, the detergent solution is pumped out.
  • Page 28 Apply dyes according to the manufacturer's instructions. After dyeing: q Pour approx. ½ measuring beaker of detergent into dispenser II. q Without any laundry in the drum, allow the 90 C Cottons programme to run through. q Wipe out the rubber seal. Attention Bleaching Bleaches may contain sulphur or chlorine which can corrode components of the washing machine.

  • Page 29: Cleaning The Drum

    Never clean the washing machine with a water jet. d Risk of explosion! Never clean the appliance with solvents. As required: Clean housing, q Use hot soapy water or a mild, non abrasive fascia and supply cleaning agent. lines q Wipe dry with a soft cloth.

  • Page 30: Cleaning The Detergent Dispenser

    In the event that residual detergents or additives have Cleaning the deter accumulated: gent dispenser q Pull out the detergent drawer all the way, q Press down the insert and q remove the detergent drawer. q Lift out the insert.

  • Page 31: Cleaning The Drain Pump

    Keep children and pets away from the washing machine. q Turn the programme selector to Off. q Remove the drain hose from its holder and pull the hose out of the housing. q Pull down the closing cap and allow the washing lye to flow into a suitable container.
  • Page 32 Insert the pump cover and screw tight. To prevent unused detergent from flowing into the drain during the next wash cycle: q Pour 1 litre / 1 ¾ pt of water into chamber II. q Select the Drain programme.

  • Page 33: Cleaning Water Inlet Strainers

    This is necessary if very little or no water flows into the Cleaning water inlet washing machine. strainers First, reduce the water pressure in the inlet hose: q Turn off the tap. q Turn the programme selector to any programme (except Spin and Drain).

  • Page 34: Help With Minor Problems

    Help with minor problems If repairs are needed, and assuming that you cannot eliminate the fault yourself with the aid the following table q Turn the programme selector to Off. q Disconnect the washing machine from the mains. q Turn off the tap.
  • Page 35 Problems Cause Remedial action Drain Spin Rinse Hold Cottons 90 C Cleaning the drain pump Start Start...
  • Page 36 Problems Cause Remedial action Less Ironing Rinse Spin...
  • Page 37 Cause Remedial action Not a fault. Wash large and small items The programme takes Imbalance compensation system together in order to reduce the longer than usual. attempts to balance the laundry by imbalance. repeated distribution. The foam detection feature has...

  • Page 38: Consumption Values

    Consumption values Normal programme Additional Load Consumption values ** option Power Water Programme duration Intensive...

  • Page 39: Customer Service

    Rating plate These numbers are shown on the rating plate which can be found on the frame of the open door and also on the identification plate, enclosed by a thick line, on the front of the machine behind the nameplate.
  • Page 40 Frozen hoses may tear/burst. Do not install the washing machine in an area where there is a risk of frost or outdoors. The worktop must not have any cut outs in the area of the washing machine. In addition to the safety information listed here, the local water and electricity supplier may have special requirements.

  • Page 41: Removing The Transportation Protection Devices

    Removing the q Release screws 1, 2 and 3 using the A/F 13 transportation protection wrench until they can be moved freely. devices q Completely remove all transportation protection devices (A and B screw together with washer and bushing;...

  • Page 42: Installation Surface

    Installation surface...

  • Page 43: Connecting The Water

    Check the mains water pressure: - The water pressure should be between 1 and 10 bars (when the tap is turned on, at least 8 litres of water is discharged per minute). - If the water pressure is higher, install a pressure reducing valve.

  • Page 44: Connecting The Power

    7. Only this symbol can guarantee compliance with all current regulations. Do not insert/pull out the mains plug with wet hands. Do not pull out the mains plug by tugging the cable.

  • Page 45: Transport, E.g. When Moving

    Preparing and inserting the transport bolts q Prepare the transport bolts: Loosen the screw in the sleeve until the end of the screw is level with the end of the sleeve. q Through the open washing machine door have a second person pull the top of the drum forwards.
  • Page 46 If damage is caused by water due to a fault of our Aqua Stop system, we shall compensate the private user for the damage.

  • Page 47: Index

    Index...
  • Page 48 Packaging, 5 Safety instructions, 7, 40 Take out the drain hose., Preparing the washing, Signal, 26 Transporting the wash Soaking, 27 ing machine, 45 Problems, 34 Sorting the washing, 12 Product number, 39 Spin, 19 Production number, 39 Spin speed selector, 9, Wash, 23 Programme duration., 38...
  • Page 50 0304 en 9000 004 036...
  • Page 51 Programmes a b c d e f g h k f l g 6 k f l g...
  • Page 52 Quick reference instructions If required: If required: At the end of the programme: 0304 en 9000 004 036...
