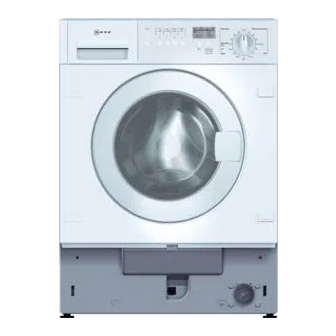

Front loading washing machine
Hide thumbs Also See for W5340X0GB - annexe 2:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual and Installation Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the W5340X0GB - annexe 2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NEFF W5340X0GB - annexe 2

Summary of Contents for NEFF W5340X0GB - annexe 2

  • Page 2 Table of Contents Operating Instructions...
  • Page 3 Installation Instructions Appendix...

  • Page 4: Safety Instructions

    Never leave children unattended in the proximity of the washing machine. Keep domestic pets away from the washing machine. Do not insert / remove the mains plug with wet or damp hands. Handle the plug body only when removing the plug from the socket.

  • Page 5: Control Panel

    Button Time delay/End Time in (mins) Switching off the additional option: Press the Selects the start time (delays the start button again. Indicator light goes out. of the programme). See chapter Signal, page 24, for switching off acoustic signal or changing the volume.

  • Page 6: Display Panel

    Display Display panel Programme status display " " Other displays at this location: * Examples of the display...
  • Page 7 The symbols indicate the programme sections which have not yet run and go out when the particular programme section has run. At the end of the programme all symbols have gone out and the progress bar is full.
  • Page 8 Reductions in time occur because of: - small loads, - reduced heating times, e.g. if the water is very hot. Increases in time occur because of: - Additional rinse cycle if excessive foam is in the laundry,...

  • Page 9: Before Using Your Washing Machine For The First Time

    Turn the tap on. q Pull out the detergent drawer all the way. q Pour approx. 1 litre / 1 ¾ pt of water into chamber II of the detergent dispenser. q Half fill the measuring beaker with detergent and pour into chamber II.

  • Page 10: Preparing, Sorting And Loading The Washing

    Preparing the Loose debris (e.g. coins, paper clips, needles, nails) washing can damage items of clothing as well as parts of the washing machine (e.g. drum). q Empty all pockets on items of clothing. q Brush sand out of pockets and cuffs/turn ups.
  • Page 11 Typical stains - Skin grease, cooking oil/fat, sauces, mineral oil, wax (containing fat/oil). - Tea, coffee, red wine, fruit, vegetables (which can be bleached). - Blood, egg, milk, starch (containing protein, carbohydrate). - Soot, earth, sand (pigments), tennis clothing soiled with red clay.

  • Page 12: Loading The Washing

    Before loading the laundry, check that there is no debris in the drum. q Open the washing machine door. q Unfold the sorted items of clothing and place them loosely into the drum. Mix large and small items. Laundry items which vary in size are more evenly distributed during the spin cycle.

  • Page 13: Dosing Detergent

    Keep detergents and additives out of the reach of children. Dose detergent according to - the water hardness. You can find out the water hardness from your water utility company. - the amount of laundry. - the degree of soiling.
  • Page 14 Intensive button! Basic programmes Cottons/Coloureds 30, 40, 60 C For hard wearing textiles, e.g. made of cotton or linen. Cottons/Coloureds 60 C Stains For stained, heavily soiled textiles, e.g. cotton or linen. Energy and water saving programme. The longer...
  • Page 15 Even suitable for washing new textiles before they are worn for the first time. i Wash white and coloured items separately. Do not wash new coloured washing with other washing. Short washing time. Delicates/Silk 30 C For delicate, washable textiles, e.g. silk, satin, synthetic materials or blended fabrics (e.g.

  • Page 16: Additional Option - Buttons

    Less Ironing Gentler reduced final spin cycle with subsequent fluffing. After the spin cycle, the laundry is loose in the drum - creasing is reduced. Additional rinsing of laundry. Extra Rinse Programme duration is extended accordingly.

  • Page 17: Demo Programme

    The washing time is extended so that highly soiled washing or 6 kg of cottons/coloureds are washed more intensively. Press the button in addition to the programme for the following combinations of load and degree of soiling: Amount of Programme and...

  • Page 18: Washing With Standard Settings

    If required, press the button(s) for additional option(s). The indicator light of the selected button is on. i The frame of the progress bar flashes in the display field and the following is displayed for the selected programme: - the symbols for the programme sections,...

  • Page 19: Washing With Individual Settings

    Washing with individual settings You can adjust the settings to your requirements. First find a quick overview of the adjustable settings. The steps for changing the settings are described in detail overleaf. Overview at a glance Select programme with programme selector.

  • Page 20: Spin Speed

    You can change other settings q Press the Start button. The programme starts. i The speed can be changed at any time by pressing the button Spin until the new speed is displayed. Setting ”---” (without final spin) is possible until...

  • Page 21: Time Delay

    Press the button Time delay/End Time until the desired number of hours is displayed. i The start time can be set in 1 hour steps. The time can be delayed up to a maximum of 19'h. If a start time of 19'h has been set, the remaining time mode is accessed by pressing the button Time delay/End Time again.
  • Page 22 The Time delay must be reselected (see also chapter Changing the programme, page 25 and Cancelling the programme, page 25). i The washing can be topped up at any time during the start time. Close the washing machine door.

  • Page 23: Childproof Lock

    - should the appliance be switched off and on while a programme is running the programme will continue at the point at which it was interrupted, - the washing can be topped up while the start time is running. Activating the childproof...
  • Page 24 The volume of the signal cannot be changed. Signal for programme The signal can be switched on and off and the volume status set before the start or after the end of the programme.

  • Page 25: During Washing

    If the childproof lock is active, temporarily deactivate; see Page 23. q Turn the programme selector to a newly selected programme. If Prewash is selected subsequently, set the pro gramme selector to Off and reselect the pro gramme.
  • Page 26 Turn the programme selector to Off. q Open the washing machine door. q Remove the washing. i If a programme was interrupted at a high temperature, the washing machine door may remain locked until the appliance has cooled down.

  • Page 27: After Washing

    Setting ”---” (without final i Display panel: spin) selected - the B symbol and the full bar are indicated on the programme status display, - the End Time is on ”---”. - if the childproof lock is selected, the G symbol...

  • Page 28: Removing The Washing

    If the loading door cannot be opened: washing Wait 2 minutes (safety function is active) there is still water in the washing machine if the ”---” (Without final spin) option was selected. Select the Drain or Spin programme and press the Start button.

  • Page 29: Special Applications

    Cottons/Coloureds 30 C. q Press the Start button. The programme starts. q After approx. 10 minutes, turn the programme selector to Off. The laundry is left to lie in the water. q Select a programme according to the required soaking time, the detergent solution is pumped out.

  • Page 30: Cleaning And Care

    Never clean the washing machine with a water jet. d Risk of explosion! Never clean the appliance with solvents. As required: Clean housing, q Use hot soapy water or a mild, non abrasive fascia and supply cleaning agent. lines q Wipe dry with a soft cloth.

  • Page 31: Cleaning The Detergent Dispenser

    In the event that residual detergents or additives have Cleaning the deter accumulated: gent dispenser q Pull out the detergent drawer all the way, q Press down the insert and q remove the detergent drawer. q Lift out the insert.

  • Page 32: Cleaning The Drain Pump

    Insert the pump cover and screw tight. To prevent unused detergent from flowing into the drain during the next wash cycle: q Pour 1 litre / 1 ¾ pt of water into chamber II. q Select the Drain programme.

  • Page 33: Cleaning Water Inlet Strainers

    Do not immerse Aqua Stop safety device in water strainers (contains electrically operated valve). This is necessary if very little or no water flows into the washing machine. First, reduce the water pressure in the inlet hose: q Turn off the tap.

  • Page 34: Help With Minor Problems

    Help with minor problems If repairs are needed, and assuming that you cannot eliminate the fault yourself with the aid the following table: q Turn the programme selector to Off. q Disconnect the washing machine from the mains. q Turn off the tap.
  • Page 35 Problems Cause Remedial action Drain Spin Cottons 90 °C Cleaning the drain pump Start Start...
  • Page 36 Problems Cause Remedial action Less Ironing Rinse Spin...
  • Page 37 See also explanations in the chapter Display field, End Time from page End Time reduced Not a fault. For small amounts of laundry, a reduction in time of approx. 30 minutes can result, depending on washing programme.
  • Page 38 10 minutes can occur imbalance. because of repeated distribution of the laundry. If very cold water must be heated up, an increase in time up to 20 minutes can result.

  • Page 39: Consumption Values

    Consumption values Normal programme Additional Load Consumption values ** option option Power Water Programme duration Intensive...

  • Page 40: Customer Service

    Rating plate These numbers are shown on the rating plate which can be found on the frame of the open door and also on the identification plate, enclosed by a thick line, on the front of the machine behind the nameplate.

  • Page 41: Installing, Connecting And Transporting The Appliance

    Frozen hoses may tear/burst. Do not install the washing machine in an area where there is a risk of frost or outdoors. The worktop must not have any cut outs in the area of the washing machine. In addition to the safety information listed here, the local water and electricity supplier may have special requirements.

  • Page 42: Removing The Transportation Pro Tection Devices

    The transport bolts must always be removed before transportation pro using the appliance for the first time. tection devices q Release screws 1, 2 and 3 using the A/F 13 Removing the transportation protection wrench until they can be moved freely.
  • Page 43 Installation surface...

  • Page 44: Connecting The Water

    Check the mains water pressure: - The water pressure should be between 1 and 10 bars (when the tap is turned on, at least 8 litres of water is discharged per minute). - If the water pressure is higher, install a pressure reducing valve.

  • Page 45: Connecting The Power

    7. Only this symbol can guarantee compliance with all current regulations. Do not insert/pull out the mains plug with wet hands. Do not pull out the mains plug by tugging the cable.
  • Page 46 Remove the 2 lower covers. transport bolts q Prepare the transport bolts: Loosen the screw in the sleeve until the end of the screw is level with the end of the sleeve. q Through the open washing machine door have a second person pull the top of the drum forwards.

  • Page 47: Aqua Stop Warranty

    If damage is caused by water due to a fault of our Aqua Stop system, we shall compensate the private user for the damage.
  • Page 48 Index...
  • Page 50 W5340X0GB / en 1005 / 9000 044 009...
  • Page 51 Programmes a b c d e f g h k f l g 6 k f l g...
  • Page 52 Quick reference instructions If required: If required: Symbols on the display panel: Prewash Washing Rinse Final spin/Drain Overdosage Childproof lock Recommended load At the end of the programme: W5340X0GB / en 1005 / 9000 044 009...
