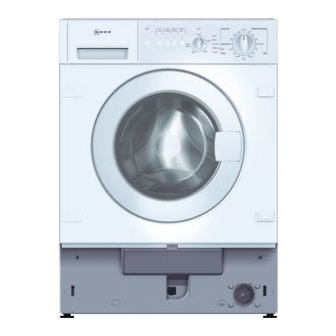

Front loading washing machine
Hide thumbs Also See for W5320X0GB - annexe 1:
Table of Contents

Advertisement

Quick Links

See also: Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the W5320X0GB - annexe 1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NEFF W5320X0GB - annexe 1

Summary of Contents for NEFF W5320X0GB - annexe 1

  • Page 2 Table of Contents Operating Instructions...

  • Page 3: Table Of Contents

    ..... . . Customer service ......Installing, connecting and transporting Installation the appliance .
  • Page 4 Never leave children unattended in the proximity of the washing machine. Keep domestic pets away from the washing machine. Do not insert / remove the mains plug with wet or damp hands. Handle the plug body only when removing the plug from the socket.
  • Page 5 Rinse Hold. Switching off the additional option: Press the button again. Indicator light goes out. See chapter Signal, page 18, for switching off acoustic signal or changing the volume.
  • Page 6 Turn the tap on. q Pull out the detergent drawer all the way. q Pour approx. 1 litre / 1 ¾ pt of water into cham ber II of the detergent dispenser. q ½ Half fill the measuring beaker with detergent and pour into chamber II.
  • Page 7 Preparing the Loose debris (e.g. coins, paper clips, needles, nails) washing can damage items of clothing as well as parts of the washing machine (e.g. drum). q Empty all pockets on items of clothing. q Brush sand out of pockets and cuffs/turn ups.
  • Page 8 Typical stains - Skin grease, cooking oil/fat, sauces, mineral oil, wax (containing fat/oil). - Tea, coffee, red wine, fruit, vegetables (which can be bleached). - Blood, egg, milk, starch (containing protein, carbohydrate). - Soot, earth, sand (pigments), tennis clothing soiled with red clay.
  • Page 9 Before loading the laundry, check that there is no debris in the drum. q Open the washing machine door. q Unfold the sorted items of clothing and place them loosely into the drum. Mix large and small items. Laundry items which vary in size are more evenly distributed during the spin cycle.
  • Page 10 Keep detergents and additives out of the reach of children. Dose detergent according to - the water hardness. You can find out the water hardness from your water utility company. - the amount of laundry. - the degree of soiling.
  • Page 11 Intensive button! Basic programmes Cottons/Coloureds 30, 40, 60 C For hard wearing textiles, e.g. made of cotton or linen. Cottons/Coloureds 60 C Stains For stained, heavily soiled textiles, e.g. cotton or linen. Energy and water saving programme. The longer...
  • Page 12 In the Easy Care, Mix, Delicates and Wool programmes, a lower spin speed will automatically be used, irrespective of the position of the button - gentle treatment of delicate fabrics. i Between the rinse cycles the washing is given an intermediate spin only (not for Delicates).
  • Page 13 If the prewash is cancelled, the detergent solution is pumped out and the programme continues with the main wash cycle. Gentler reduced final spin cycle with subsequent Less Ironing fluffing. After the spin cycle, the laundry is loose in the drum - creasing is reduced.
  • Page 14 The washing time is extended so that highly soiled washing or 6 kg of cottons/coloureds are washed more intensively. Press the button in addition to the programme for the following combinations of load and degree of soiling: Amount of Programme and...
  • Page 15 Wash Example of Easy Care 40 ºC programme: q Turn the programme selector to the desired pro gramme (see also the programme overview). The Ready indicator light comes on. q If required, select spin speed or Rinse Hold. q If required, press the button(s) for additional op tion(s).
  • Page 16 The programme starts. i The newly selected programme starts at the pro gramme section at which the previous programme was cancelled, however with the new settings. If you would like to terminate a programme and remo Cancelling the ve the washing: programme q Turn the programme selector to Drain, Spin or Rinse.
  • Page 17 If the loading door cannot be opened: washing Wait 2 minutes (safety function is active) there is still water in the washing machine if the Rinse Hold option was selected. Select the Drain or Spin programme and press the Start button.
  • Page 18 The volume of the signal cannot be changed. Signal for programme The signal can be switched on and off and the volume status set before the start or after the end of the programme.
  • Page 19 Cottons/Coloureds 30 C. q Press the Start button. The programme starts. q After approx. 10 minutes, turn the programme selector to Off. The laundry is left to lie in the water. q Select a programme according to the required soaking time, the detergent solution is pumped out.
  • Page 20 Never clean the washing machine with a water jet. d Risk of explosion! Never clean the appliance with solvents. As required: Clean housing, q Use hot soapy water or a mild, non abrasive fascia and supply cleaning agent. lines q Wipe dry with a soft cloth.
  • Page 21 In the event that residual detergents or additives have Cleaning the deter accumulated: gent dispenser q Pull out the detergent drawer all the way, q Press down the insert and q remove the detergent drawer. q Lift out the insert.
  • Page 22 Insert the pump cover and screw tight. To prevent unused detergent from flowing into the drain during the next wash cycle: q Pour 1 litre / 1 ¾ pt of water into chamber II. q Select the Drain programme.
  • Page 23 Do not immerse Aqua Stop safety device in water strainers (contains electrically operated valve). This is necessary if very little or no water flows into the washing machine. First, reduce the water pressure in the inlet hose: q Turn off the tap.
  • Page 24 Help with minor problems If repairs are needed, and assuming that you cannot eliminate the fault yourself with the aid the following table q Turn the programme selector to Off. q Disconnect the washing machine from the mains. q Turn off the tap.
  • Page 25 Problems Cause Remedial action Drain Spin Rinse Hold Cottons 90 C Cleaning the drain pump Start Start...
  • Page 26 Problems Cause Remedial action Less Ironing Rinse Spin...
  • Page 27 Cause Remedial action Not a fault. Wash large and small items The programme takes Imbalance compensation system together in order to reduce the longer than usual. attempts to balance the laundry by imbalance. repeated distribution. The foam detection feature has...

  • Page 28: Consumption Values

    Consumption values Normal programme Additional Load Consumption values ** option option Power Water Programme duration Intensive...

  • Page 29: Customer Service

    Rating plate These numbers are shown on the rating plate which can be found on the frame of the open door and also on the identification plate, enclosed by a thick line, on the front of the machine behind the nameplate.
  • Page 30 Frozen hoses may tear/burst. Do not install the washing machine in an area where there is a risk of frost or outdoors. The worktop must not have any cut outs in the area of the washing machine. In addition to the safety information listed here, the local water and electricity supplier may have special requirements.

  • Page 31: Removing The Transportation Protection Devices

    The transport bolts must always be removed before transportation pro using the appliance for the first time. tection devices q Release screws 1, 2 and 3 using the A/F 13 Removing the transportation protection wrench until they can be moved freely.

  • Page 32: Installation Surface

    Installation surface...

  • Page 33: Connecting The Water

    Check the mains water pressure: - The water pressure should be between 1 and 10 bars (when the tap is turned on, at least 8 litres of water is discharged per minute). - If the water pressure is higher, install a pressure reducing valve.

  • Page 34: Connecting The Power

    7. Only this symbol can guarantee compliance with all current regulations. Do not insert/pull out the mains plug with wet hands. Do not pull out the mains plug by tugging the cable.

  • Page 35: Transport, E.g. When Moving

    Remove the 2 lower covers. transport bolts q Prepare the transport bolts: Loosen the screw in the sleeve until the end of the screw is level with the end of the sleeve. q Through the open washing machine door have a second person pull the top of the drum forwards.
  • Page 36 If damage is caused by water due to a fault of our Aqua Stop system, we shall compensate the private user for the damage.
  • Page 37 Index...
  • Page 38 Rating plate, 29 Safety instructions, 30 Take out the drain hose., Remove the washing, 17 Signal, 18 Transporting the wash Removing stains, 8 Soaking, 19 ing machine, 35 Removing the trans Sorting the washing, 7 portation protection Spin, 12 devices, 31...
  • Page 39 Programmes a b c d e f g h k f l g 6 k f l g...

  • Page 40: Quick Reference Instructions

    Quick reference instructions If required: If required: At the end of the programme: 1105 / 9000 039 542...
