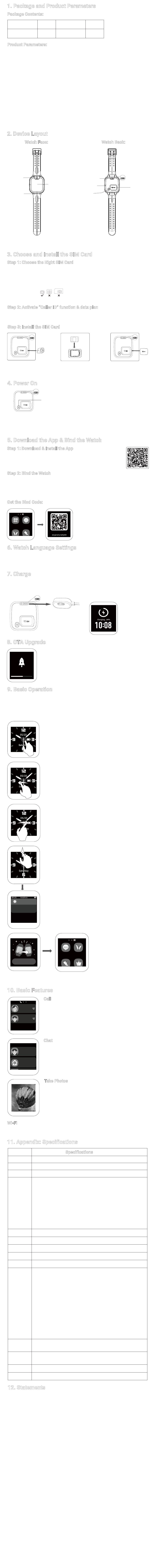

imoo Z1 Manual

1. Package and Product Parameters
Package Contents:
Watch Phone Z1
Manual
Product Parameters:
Product: Watch Phone
Model: W1923AO/W2123AO
Battery: Lithium Polymer Battery 3.85V 740mAh
Camera: 2MP
Charge Input: DC 5V 1200mA
Working Temperature: 0℃~35℃
Working Humidity: Noncondensable 15%~93%
Network Frequency Band:
W1923AO: 2G GSM
3G WCDMA
4G FDD-LTE
4G TDD-LTE
W2123AO: 2G GSM
3G WCDMA
4G FDD-LTE
4G TDD-LTE
2. Device Layout
Watch Face:
Camera
Speaker
*Remark: There is a difference between the charging contacts of W1923AO and W2123AO.
The W1923AO has 4 pins while the W2123AO has 2 pins.
3. Choose and Install the SIM Card
Step 1: Choose the Right SIM Card
Operator: Vodafone, O2, Three supported. For Mobile Network Virtual Operators (MNVO),
please go to imoo App-More-Watch Settings-Access Point Name (APN) to complete
relevant settings so as to use its services.
The Size of SIM Card: supports Standard Nano-SIM card only [as picture (1)].
Step 2: Activate "Caller ID" function & data plan
Please activate "Caller ID" function and enable GPRS data network. Watch phone can
access to either 2G/3G/4G network data.
Step 3: Install the SIM Card
*W2123AO:
1. Open up the SIM
card deck with a
SIM card picker.
4. Power On
*W2123AO:
1. If the new watch cannot be turned on, it is probably out of power. Please plug in the
charging cable until the watch is turned on automatically.
2. For general abnormal conditions (e.g., blank screen), press the On/Off button for 12
seconds to restart the watch phone.
5. Download the App & Bind the Watch
Step 1: Download & Install the App
Scan the QR code on the right to download and install the App or go to
Google Play or Apple App Store and search for "imoo" or "Watch Phone"
to download and install the App.
Step 2: Bind the Watch
1. Open the App, register or log in.
2. Turn on the watch and complete the binding process according to the instructions
displayed on the watch, or slide the watch interface to find the Bind Code, scan the QR
code, or manually enter the Bind Code for binding.
Get the Bind Code:
Bind Code Chat
6. Watch Language Settings
Go to "More-Watch Settings-Watch Language" on imoo App to switch the language
you'd like to switch to; or go to your watch, swipe left from the main interface, go to
"Settings-Language Selection" to switch the language you'd like to switch to.
7. Charge
Align the charging contactors on the watch with the contactors on the charging cable
until "Charging..." is displayed on the screen.
* Please use the CE certified power adapter.
*W2123AO:
8. OTA Upgrade
Upgrading, do not shut down
9. Basic Operation
Turn on the screen: Tap the screen to turn it on.
Turn off the screen: 1. Cover the screen with your hand to turn it off;
Chat
Mum
Take care of yourself.
Now
Start
Slide right from Add
Friends interface.
10. Basic Features
Mum
Sister
Chat
Sister
CMHK
Family Chat
Tap to shoot
Wi-Fi
Go to your watch's "More-Settings-WLAN" to set the Wi-Fi connection.
After binding your watch, enter "More-Watch's networks" on App to add a network.
11. Appendix: Specifications
Dimension 51.1×41.7×14.5 (mm)
Color Grapefruit Red/Bamboo Green
Screen 1.3 inches TFT (240×240)
W1923AO:
2G GSM
3G WCDMA
4G FDD-LTE
4G TDD-LTE
Network
W2123AO:
2G GSM
3G WCDMA
4G FDD-LTE
4G TDD-LTE
VoLTE Supported
CPU Spreadtrum UWS6131E
Sensor Accelerometer
Memory RAM: 128MB
Connectivity WiFi: TX/RX: 2412-2472MHz, Bluetooth 4.2
W1923AO:
GSM900: (33dBm±2dB)
GSM1800: (30dBm±2dB)
WCDMA B1/B5/B8: 24dBm(+1.7/-3.7dB)
FDD-LTE B1/B3/B5/B8: 23dBm(±2.7dB)
TDD-LTE B38/B39/B40/B41: 23dBm(±2.7dB)
Rated Output
WiFi＜20dBm
Power
W2123AO:
GSM900: (33dBm±2dB)
GSM1800: (30dBm±2dB)
WCDMA B1/B5/B8: 24dBm(+1.7/-3.7dB)
FDD-LTE B1/B3/B5/B8: 23dBm(±2.7dB)
TDD-LTE B34/B38/B39/B40: 23dBm(±2.7dB)
WiFi＜20dBm
Operation
Mocor OS
System
Locating
GPS, GLONASS, WIFI, LBS
Technology
Battery 740mAh
In the Box Watch Phone Z1, Charging Cable, Manual, SIM Card Picker
12. Statements
· Please read this manual carefully so that you can use this product correctly and safely.
· Please use the watch strap that is well matched with this product to avoid affecting the
watch's antenna signal. The use of other straps may result in poor call quality and
locating failure.
· This product is equipped with GPS locating, which is disabled until the watch is bound.
The watch's location can be obtained once the watch has been bound and the
permissions to the watch's location data has been given.
· The outdoor locating of this product may fail because of failure in searching satellite
signal in inclement weather.
· Please use the accessories that come with the package only. If the user does not use
this product in a correct way and connects it with incompatible accessories, it will
cause the automatic invalidation of the warranty and may cause irreparable damage
to the product, or even endanger the safety of your children and you. For the cases
mentioned above, we bear no liabilities.
· If you need to replace accessories, please buy them from our official service center
only.
· The color of the watch and its strap may fade over time, which will not affect the use
of the product and is harmless to human body.
· If you disassemble the case of this product without authorization, the product will no
longer enjoy the warranty service.
· This product works normally with smooth network connection only. We bear no
liabilities for any loss caused by interruptions in service due to network failure or any
other force majeure.
· We reserve the rights to modify and improve any product details described in the
document without prior notice for the purpose of constant improvement and
sustainable development. The contents stated in this manual are provided based
on the conditions when the products are manufactured. Unless otherwise indicated,
we do not guarantee the accuracy, reliability and the contents of the documents, either
expressed or implied.
· To the maximum extent permitted by applicable laws, in no event, whatever the cause,
shall our suppliers and we be liable for any special, incidental, consequential or indirect
loss or damage.
· Some features of this product (including but not limited to Maps) are provided by third
parties.
· This manual contains important information, which should be kept properly.
· This product is not equipped with the monitoring feature.
1 Charging Cable
1 SIM Card Picker
900/1800MHz
B1/B5/B8
B1/B3/B5/B8
B38/B39/B40/B41
900/1800MHz
B1/B5/B8
B1/B3/B5/B8
B34/B38/B39/B40
Touch
Screen
(1)
2. Put the Nano-SIM card on the
card deck with the gold chip
facing upward.
Power On: Press On/Off button for 6 seconds to power on
the watch phone.
Bind Code
When binding a watch, the app will detect the watch's version to
check if it needs to be upgraded. If needed, the watch will be
upgraded automatically when charging.
*Note: Please do not root or use informal methods to upgrade the watch. Otherwise,
there may be security risks of data leakage.
2. You can set the "Screen Timeout" in "Display & Brightness" of the
"Settings" on More interface. When the time is up, the screen will
be turned off.
Wallpaper:
Long press the home screen to enter Wallpaper. Slide left or right
to view more and select one as your wallpaper.
Slide left from the home screen to enter More interface, slide up or
down to choose corresponding features.
Slide right from the home screen to enter "Call".
Slide from top to bottom to check the status bar and some
important push notifications.
Chat
Go back to More
interface.
Call
Select a contact to make a voice call or video call. Video calls may
consume a lot of network data. We suggest you make video calls
when connected to Wi-Fi. If the App cannot receive the video call,
please check whether Notifications has been enabled or whether
the call was intercepted by the system.
Chat
Send voice messages: Tap "Hold to Talk" to record, and release
your finger to send your voice message. Play voice messages:
Unread voice messages will be shown on the screen. Tap to play
voice messages. Add friends: Tap "Start" on Add Friends interface.
Then you can add a friend by bumping your watches together
after you find a friend.
Take Photos
Tap the watch screen to take a photo.
Specifications
900/1800MHz
B1/B5/B8
B1/B3/B5/B8
B38/B39/B40/B41
900/1800MHz
B1/B5/B8
B1/B3/B5/B8
B34/B38/B39/B40
ROM: 128MB
1
1
Watch Back:
Charging
Contact
Mic
On/Off
1. Tap Bind Code on More
interface to get the bind
code.
2. Scan the QR code or
enter the Bind Code
manually.
After entering each feature, you can
slide right to exit the feature, as
shown on the left.
Add Friends
*W2123AO:
SIM
Card Deck
*W2123AO:
3. Insert the SIM card
deck into the watch's
back.
