Important Safety Information
See the Important Safety and Product Information guide in the product box for product warnings and other
important information.
To avoid possible personal injury, always wear safety goggles, ear protection, and a dust mask when drilling,
cutting, or sanding.
To avoid possible personal injury or damage to the device and vessel, disconnect the vessel's power supply
before beginning to install the device.
To avoid possible personal injury or damage to this device and vessel, only install this device when the vessel is
on land, or when properly secured and docked in calm water conditions.
When drilling or cutting, always check what is on the opposite side of the surface to avoid damaging the vessel.
FCC Compliance
In the USA, it is prohibited under FCC regulations to enter incorrect or improper data, and it is prohibited for any
person other than the manufacturer or the installing dealer to input an MMSI number.
It is a violation of the rules of the FCC to input an MMSI number that has not been properly assigned to the user,
or to otherwise input any inaccurate data in this device.
Assigning Data to the Device
When programmed with a valid MMSI number, this device allows you to transmit AIS signals with vessel
position data. This device is meant to enhance situational awareness and may not prevent vessel collisions in
all circumstances. It is your obligation to be aware of your surroundings and to ensure safe operation of the
vessel.

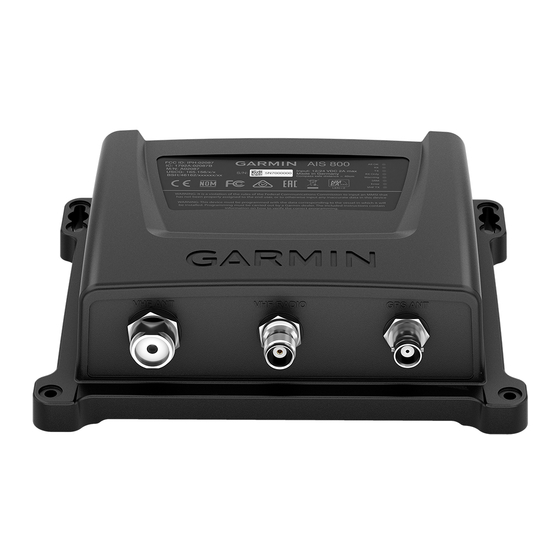

You must program the Garmin AIS 800 device with a valid vessel MMSI number before installing the device
on your boat. By default, the device operates in silent mode until you program the device with a valid vessel
MMSI number. In silent mode, the device receives, but does not transmit, AIS signals with position data. You
can program the device to transmit static vessel data including the vessel name, call sign, type, and dimensions,
including the location of the vessel's GPS antenna.
You can program the device to transmit vessel position data and static vessel data including the vessel name,
call sign, type, dimensions, and the location of the vessel's GPS antenna. It is also possible to temporarily revert
to silent mode (only receives, but does not transmit, vessel data) by means of a toggle switch (not included)
(Connecting the Device to Power,
May 2024
GARMIN AIS
INSTALLATION INSTRUCTIONS
WARNING
CAUTION
NOTICE
NOTICE
WARNING
CAUTION
page 5).
800
GUID-61A42529-ECEC-4B79-9F77-A5D87D90A579 v7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AIS 800 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Garmin AIS 800

  • Page 1 CAUTION You must program the Garmin AIS 800 device with a valid vessel MMSI number before installing the device on your boat. By default, the device operates in silent mode until you program the device with a valid vessel MMSI number.
  • Page 2: Tools Needed

    5 Select Save data to AIS 800. NOTE: The data is lost if the Garmin AIS 800 device is turned off. You must select Save data to AIS 800 to permanently save your data. 6 Select File > Exit.
  • Page 3: Mounting Considerations

    This device generates and radiates radio frequency (RF) electromagnetic energy (EME). Failure to observe these guidelines may expose people to RF radiation absorption exceeding the maximum permissible exposure (MPE). Garmin declares an MPE radius of 2.48 m (97.64 in.) for this system, which was determined using 5 W output ®...
  • Page 4: Connection Considerations

    Connection Considerations Device Ports Item Description USB port NMEA 2000 ® Power and NMEA 0183 ® AIS antenna (required, not included) VHF radio (optional) External GPS antenna (optional) Used with the included USB cable when connecting to a computer to program the device An external GPS antenna is required when the device is installed in a location where it cannot receive GPS signals, especially in metal-hulled vessels.
  • Page 5: Connecting The Device To Power

    Connecting the Device to Power WARNING When programmed with a valid MMSI number, this device allows you to transmit AIS signals with vessel position data. This device is meant to enhance situational awareness and may not prevent vessel collisions in all circumstances.
  • Page 6: Nmea 2000 Connections

    3 Optionally, connect a VHF interconnect cable (sold separately, part number 010-12824-01) to the VHF RADIO port on the Garmin AIS 800 device and to the antenna port on a VHF radio to share the antenna with the VHF radio.
  • Page 7 Compatible NMEA 2000 chartplotter or other device Garmin AIS 800 device Ignition or in-line switch NMEA 2000 power cable NMEA 2000 drop cable Garmin AIS 800 device power connection (Connecting the Device to Power, page 5) 12 Vdc power source NMEA 2000 terminator or backbone cable...
  • Page 8: Nmea 0183 Device Connections

    This diagram illustrates two-way connections for both sending and receiving data. You can also use this diagram for one-way communication. To receive information from a NMEA 0183 device, refer to items when connecting the Garmin device. To transmit information to a NMEA 0183 device, refer to items when connecting the Garmin device.
  • Page 9: Status Leds

    Garmin AIS 800 setup software to view detailed informa­ tion about the warning condition. The device is in silent mode or not ready to transmit. NOTE: The Garmin AIS 800 device does not transmit without a GPS signal or an RX Only Solid MMSI number, when the AIS base station commands a quiet time, or when the device encounters a critical error.
  • Page 10 5 W Class B, SOTDMA (1 W remote switchable by authorities) Antenna port impedance 50 ohm Wireless frequency/protocol 162 MHz @ 38 dBm maximum Compass-safe distance 40 cm (15  in.) The device withstands incidental exposure to water of up to 1 m for up to 30 min. For more information, go to www.garmin.com/waterrating.
  • Page 11: Nmea 2000 Pgn Information

    NMEA 2000 PGN Information Transmit Description 059392 ISO acknowledgment 060928 ISO address claim 126208 NMEA: Command, request, acknowledge group function 126464 PGN list 126992 System time 126993 Heartbeat 126996 Product information 126998 Configuration information 129025 Position rapid update 129026 COG/SOG rapid update 129029 GNSS position 129038...
  • Page 12 You should test for LED interference before mounting the VHF antenna. NOTICE If your LED lights interfere with the Garmin AIS 800 device, you must mount the VHF antenna farther away from the LED lights, or use non-jamming lights. 1 Turn off all LED lights.
  • Page 13 © 2018 Garmin Ltd. or its subsidiaries Garmin ® and the Garmin logo are trademarks of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. These trademarks may not be used without the express permission of Garmin. NMEA ®...
  • Page 14 © 2018 Garmin Ltd. or its subsidiaries support.garmin.com...
