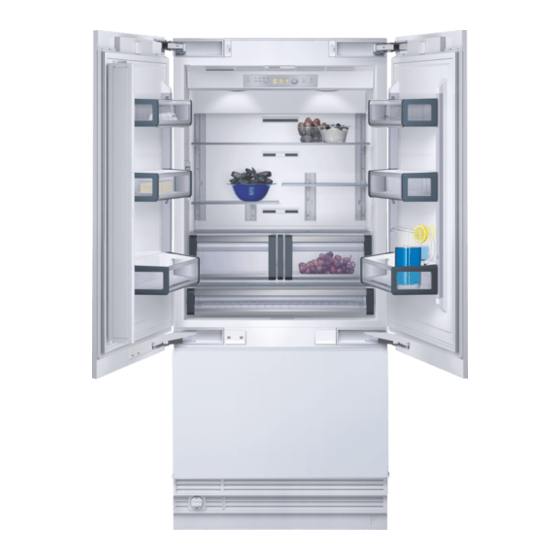

Summary of Contents for NEFF K7791X0

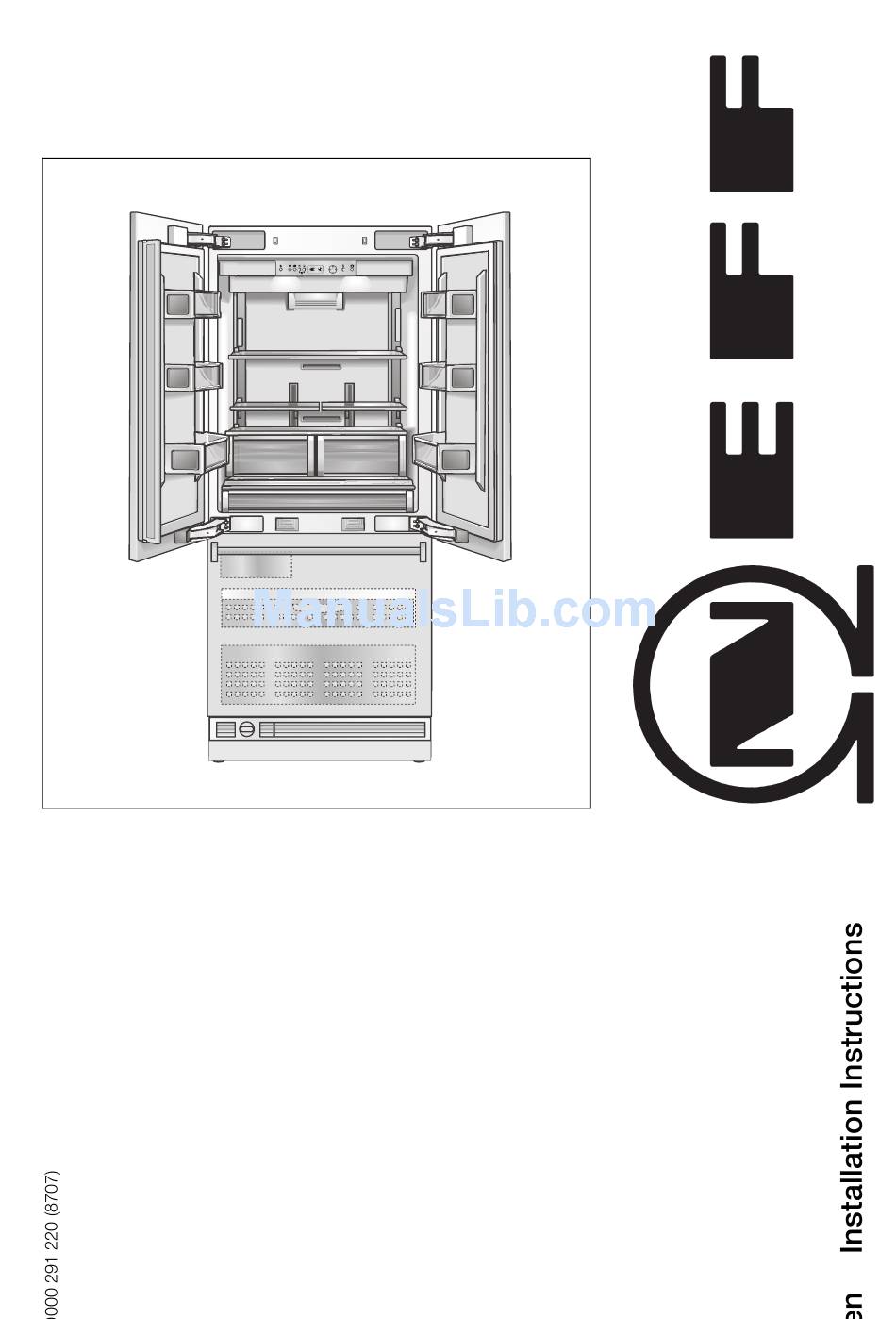

  • Page 1 K7791X0..

  • Page 2: Table Of Contents

    ........16 Stand alone appliance with dividing wall ....13. Connecting water to the appliance ....17 As an end section to a row of kitchen units ..... 14. Attaching the base strip ........17 Installing the appliance ........

  • Page 3: Important Information

    Stand alone appliance It is the duty of the person setting the appliance up to guarantee that it is set up and commissioned securely. Mistakes in setting the appliance up and damage resulting from this do not come under the warranty of the manufacturer.

  • Page 4: Installing The Appliance

    If installation next to a source of The floor of the installation space must have the same heat cannot be avoided, either a suitable insulating plate height as the rest of the space.

  • Page 5: Electrical Connection

    Electrical connection Water Connection Do not use an extension lead or a multi-plug socket. A cold water connection is necessary for operating the Connecting this appliance, only use a plug which has automatic ice maker. The water pressure must lie between been installed securely.

  • Page 6: Dimensions Of The Installation Niche

    Important! The upper niche wall must consist of a rigid, load bearing material (minimum thickness 16 mm). The upper niche wall must be completely even up to a depth of at least 100 mm and free from bumps. Important! The lateral niche walls must be completely even and free from bumps.

  • Page 7: Site Of The Water Connection

    Site of the water connection The mains supply can be laid to the appliance from the right-hand side (a), from the left-hand side (b) or from the space below the appliance (c). Key: Area for installation of the water connection...

  • Page 8: Appliance Dimensions

    Appliance dimensions Key: An example is shown with a continuous furniture frontage. This dimension can vary, depending on installation, thickness of the furniture door to be mounted and The adjustment range of the appliance feet is the neighbouring kitchen furniture.

  • Page 9: Tools And Accessories Which Are Needed

    Scope of delivery – Various size drills for various materials – Installation manual – Wood plank, (min. 8 x 10 cm) as an alternative anti-tip device. Length should correspond to the width of the – Operating instructions installation niche. –...

  • Page 10: Installation Manual

    (sack barrow, trolley or wheelbarrow). When transporting, secure the appliance from being tipped. The appliance has a height of 2134 mm. If it is not possible to support the appliance in a vertical position because of ̈ Move the appliance using a trolley, sack barrow or the structure of the building, the appliance can be wheelbarrow.

  • Page 11: Preparing The Appliance

    As far as possible, always screw the wooden plank to the rear wall of the niche. In the case of some fitted shapes, it may be necessary to screw in at an angle the wood screws used to fasten the anti-tilt ribs to the rear wall.

  • Page 12: Attaching An Additional Anti-Tilt Mechanism

    Subsurface wooden floors The wood screws (5 x 60 mm and 4 x 15 mm) which are supplied should be used for wooden floors. ̈ Drilling guide holes: 3 mm for woodscrews (5 x 60 mm) 2 mm for woodscrews (4 x 15 mm) Make sure that the screws 5 x 60 grip at least 19 mm into the solid subsurface.

  • Page 13: Preparing The Water Connection

    Attaching the edge protectors securely mounted. According to the subsurface: ̈ Look for the supports on the rear wall of the niche and mark the drill holes on the plank corresponding to the position of the support. ̈ Fasten suitable dowel into the rear wall.

  • Page 14: Sliding The Appliance Into The Installation Niche

    Note: Slide the appliance carefully into the niche until the height-adjustable wheels grip into the anti-tilt If the floor or appliance is skew in relation to the installation mechanism. niche, the height-adjustable wheels should be correspon- dingly adjusted before sliding the appliance into the niche.

  • Page 15: Adjusting The Appliance In The Niche

    7 of these mounting instruc- Front: with a fixed spanner SW 13 mm tions, turn the appliance as far as it will go against the wooden plank. Do not bend against the wooden Rear: with a socket spanner with flexible shaft plank.

  • Page 16: Fixing The Appliance To The Niche Ceiling

    ̈ Fasten the lateral bars of the fastening sheets (above) in each case, according to the installation conditions. If there is no or only a small crack available, the lateral bars do not have to be fixed. ̈ If there is a large crack available above the appliance,...

  • Page 17: Connecting Water To The Appliance

    Attach base panelling to the appliance. ̈ Remove the plugs from the appliance connection (1). ̈ Lay the water hose such that it ends at the appliance connection (2). ̈ Slide the union nut and the sealing element onto the water hose.

  • Page 18: The Appliance Is Switched On

    Actuate the appliance’s on/off button. Only for appliances with a water connection: In the case of possible damage of the water mains, keep the shut-off tap closed in order to avoid the risk of damage from water coming out. 16. Preparing the furniture doors Important note: ̈...

  • Page 19: Loading The Appliance Door

    Never screw into fillings or similar areas. Note: If only one door is to be mounted to an appliance with a width of 91 cm, attach the supplied sandwich plate to the adjusting rib and fix into position.

  • Page 20: Hang And Align The Furniture Door (Refrigeration Compartment)

    ̈ Adjust the furniture door using the threaded rod (Torx screwdriver) ̈ Mark this value X on the rear side of the furniture door. ̈ Determine the middle of the door and label it. ̈ Loosen the two nuts and remove the adjusting rib.

  • Page 21: Attach The Adjusting Rib To The Furniture Door (Freezer Compartment)

    Measure distance Y between the adjusting ribs and the bottom edge of the refrigerator compartment door. ̈ Mark this value Y on the rear side of the furniture door. ̈ Screw on the fixing plates (8x). ̈ Determine the middle of the door and label it.

  • Page 22: Hang And Align The Furniture Door (Freezer Compartment)

    Note: – Attach the adjusting rib with at least 10 screws on the furniture door. One screw should be screwed in under the threaded rod in each case. – The adjusting rib has a various holes for different furniture door design variations. Always carry out screwing jobs on the most stable part of the furniture door.

  • Page 23: Fix The Furniture Door (Refrigerator Compartment)

    Insert the fixing angle (with clip (2.)) on the right and left at position into the fixing plate and slide over the screws of the appliance door (3.). Slowly lower the ¡...

  • Page 24: Fix The Furniture Door (Freezer Compartment)

    Insert the fixing angle (with clip (2.)) on the right and left at position into the fixing plate and slide over the screws of the appliance door. Slowly lower the door in ¡...

  • Page 25: Fasten The Finger Protector

    ̈ Clamp the holding clips under the screws. Note: Screw tightly. The number of the lower fastening angles depends on the width and the design of the furniture door. 25. Fasten the finger protector ̈ Screw the fastening angle below the lower hinge.

  • Page 26: Attaching The Covers

    ̈ Attach the light switch cover. ̈ Push open the covering bar on the finger protection. Note: 2 similar bars are in the kit. The covering bars for the impact side has short blades. Appliance Cabinet part ̈ Screw on the angle for fastening the cover ribs.

  • Page 27: Mounting The Air Separator

    6 mm max. 28. Setting the door opening angle (refrigerator compartment door) According to the set up conditions, it may be necessary to limit the door opening angle. A door opening angle of 115° is set at the factory.
  • Page 28 (EUR 0,14/Min. DTAG) Subject to alterations. NEFF GMBH Carl-Wery-Straße 34, 81739 München www.neff.de 9000 291 220 en (8707)
