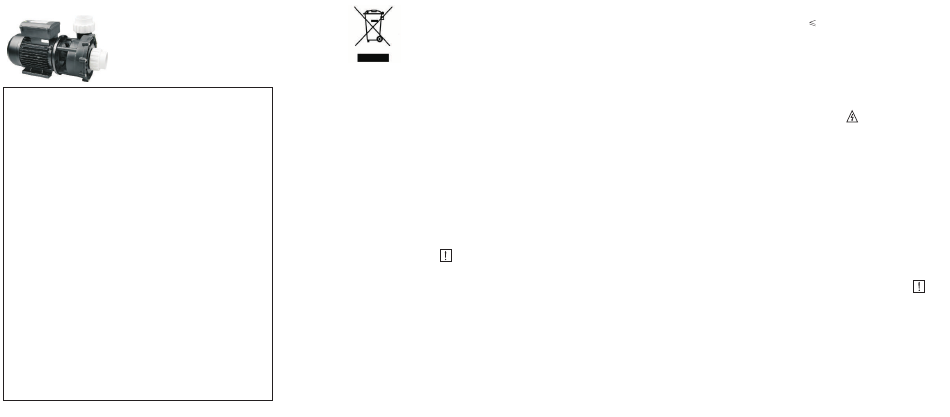

LX LP Series Instruction Manual

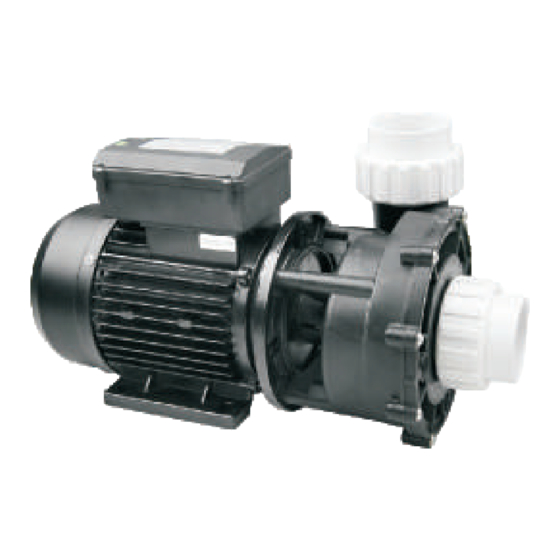

HYDROMASSAGE BATHTUB PUMP
INSTRUCTION MANUAL
LP SERIES PUMPS
IMPORTANT SAFETY INSTRUCTIONS
When installing and using this electrical equipment, basic safety
precautions should always be followed, including the following:
1.READ AND FOLLOW ALL INSTRUCTIONS
2.WARNING To reduce the risk of injury. Do not permit children to use this product
unless they are closely supervised at all times.
3.WARNING Risk of Electrical Shock . Connected only to grounding type receptacle
protected by a ground fault circuit interrupter (GFCI). Contact a qualified electrician
if you cannot verify that the receptacle is protected by GFCI.
4.CAUTION Do not bury cord . Locate cord to minimize abuse from lawnmowers,
hedge trimmers, and other equipment.
5.CAUTION In case the running parts will injure people, don't make the electric pump
running before then pipeline have been connected.
6.WARNING To reduce the risk of electrical shock, replace damaged cord immediately.
7.WARNING To reduce the risk of electrical shock, do not use extension cord to connect
unit electric supply; provide a properly located outlet.
8.CAUTION This pump is for used for fix-installed bath tub, It is not suitable for swimm-
ing pool spa.
9.Do not install within an outer enclosure or beneath the skirt of a hot tub unless so marked.
10. This appliance is not intended for use by persons with reduced physical sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by person respon sible for their
safety.
11.Children should be supervised to ensure that they do not play with the appliance.
12.Type Y attachment -Damaged supply cords to be replaced by the Manufacturer,service
agent or similarly qualified person to avoid hazard.
13. FOR INDOOR USE ONLY.
14. SAVE THESE INSTRUCTIONS.
-1-
most not be disposed together with the
This product
do mestic waste. This product has to be disposed at an
authorized place for recycling
-nic appliances.
By collecting and recycling waste,you help save natural
resources, and make sure the product is disposed in an
environmental friendlyand healthy way.
1.GENERAL
_
These instructions are for correct installation, and optimum performance
of the bath pumps, so they should be read carefully.
_
These are single - stage centrifugal pumps designed to operate with
compact hydromassage equipment, They are equipped with a total
emptying system to prevent the discharge of residual liquid in each
stopping.
_
V/Hz esp: See pump nameplate.
_
These units are designed to operate with clean water at a maximum water
O
temperature of 50 C.
_
O O
Storage temperature: -10 C ~ +50 C. Relative Air Humidity:95% Max.
_
Built of top quality materials, they are subjected to strict hydraulic and
electrical controls and are carefully verified.
_
Correct installation is ensured by following these instructions and those
of the wiring diagram; otherwise, over loads may be produced in the motor.
We decline responsibility for any damage caused by not following these
instructions.
2.INSTALLATION
_
Pumps must the level installment, Dimensions and position of the pump
for supporting and fixing the pump within this space(Pig.2).
_ Pump must be fixed by screw on the tub shelf, and fixed with silent block to
lower the noise and libration. Sticking and enlacing is forbidden.
_ The pump will be getting hot in operating , to speed up cooling, the
minimum distance between the motor of the pump and the surrounding
structure should not be less then 20mm.
_
The suction, pipe of the pump should be as short as possible.
_
The rating Label must be visible after installation.
_
Parts containing live parts, except parts supplied with safety extra low
voltage<12V, must be inaccessible to a person in the bath.
_
Class I appliances must be permanently connected to fixed wiring. Part
including electrical components except remote control devices must be
located or fixed so that they cannot into bath.
-2-
3.PIPE ASSEMBLY
_
The maximum inlet water pressure 0.15MPa.
of electrical and electro
_
The suction pipes should have a diameter equal to or larger than of the
discharge pipes. It can avoid the loss of the head and improve the efficiency.
_
The suction and discharge pipes should not rest above the pump in any case.
_
Seal all the connectors and unions well. Avoid any dripping on the motor,
which would unfailingly damage it.
_
Should be use the new hose module which supplements along with
the bathtub, the old hose module cannot be reused.
4.ELECTRICAL CONNECTION
_
The electrical install action should have a multiple separation system with
contacts opening at least 3mm.
_
For continued protection against possible electric shock this unit is to be
mounted to the base in accordance with the installation instructions.
1) The protection of the system should be based on a residual current
device (RCD) with a rated tripping current not exceeding 30mA.
The supply cable should comply with EMC standards.
2) Single-phase motors have built-in thermal protection.
_
The electric connection must be carried out by qualified staff following
strictly the "EN60335-2-60" standard.
_
Be sure that the earth cable connection is correctly made.
_
Wires serving as equipotential bonding conductors shall have a cross
sectional area between 2.5 mm and 6 mm and shall be equipped with
the terminal suitable receptacle.
5.CONTROLS PRIOR TO INITIAL START-UP
_
Verify that the pump shaft turns freely.
_
Check that the mains voltage and frequency are according to the name
plate.
_
The hydromassage assembly should be equipped with a system to prevent
the pump from starting up if a minimum water level is not present.
_
Check the rotating direction of the motor, which should concur with that
indicated on the fan cover.
_
If the motor does not start up, try to locate the problem in the table of most
common faults and their possible solutions that is provided further on.
_ THE PUMP SHOULD NEVER OPERATE DRY.
2 2
-3-
