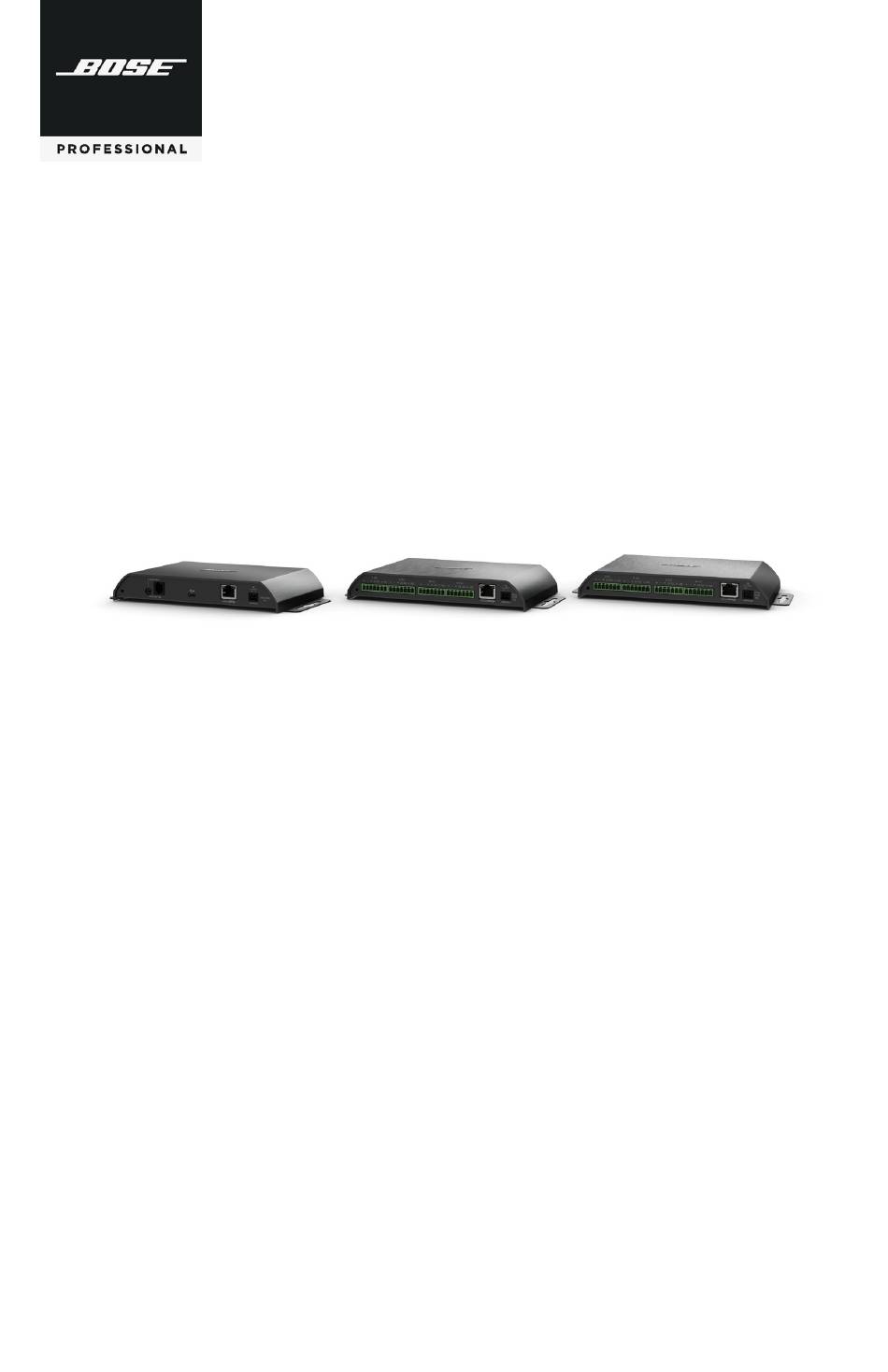

  • Page 1 ControlSpace EX EX-UH USB/Headset Dante® Endpoint EX-4ML 4-channel Mic/GPIO Dante® Endpoint EX-8ML 8-channel Mic/GPIO Dante® Endpoint Installation and Operation Guide Guía de instalación y funcionamiento Guide d’installation et d’utilisation Installations- und Bedienungsanleitung Manuale di installazione e funzionamento Installatie- en bedieningshandleiding...
  • Page 2: Important Safety Instructions

    • All Bose Professional products must be installed in accordance with local, state, federal and industry regulations. It is the installer’s responsibility to ensure installation of the product is performed in accordance with all applicable codes, including local building codes and regulations.
  • Page 3: Product Overview

    Introduction Product Overview Thank you for purchasing a Bose Professional ControlSpace EX Dante® endpoint. Each endpoint provides an audio interface for using Dante, a digital media networking technology from Audinate®. ControlSpace EX Dante endpoints are available in three models: EX-UH (USB/headset), EX-4ML (4-channel mic/GPIO), and EX-8ML (8-channel mic/GPIO).
  • Page 4: Mounting Instructions

    Installation and Operation Mounting Instructions The EX endpoints can be mounted using one of three methods: Mounting wing brackets as shipped (outside mount), mounting wing brackets rotated 180 degrees (inside mount), mounting using the optional EX Mounting Bracket. Note: Use only the hardware included in the package to mount this product. Mount with Wing Brackets Out To mount the endpoints with wing brackets out: Use “outside mount”...
  • Page 5 Installation and Operation Mount Using EX Mounting Bracket Install the Mounting Bracket To mount the endpoints using the optional EX Mounting Bracket Accessory: Use the included template to mark the correct drilling locations on the mounting surface. 2. Attach the mounting bracket to the surface using the screws included in the EX Mounting Bracket Accessory kit.
  • Page 6 Installation and Operation Front and Rear Panels EX-UH USB/Headset Endpoint EX-UH Front View +12 V DC in Dante/PoE+ in USB (MicroUSB) RJ-9 telephone headset in/out 3.5 mm TRRS analog in/out EX-UH Rear View Reset button Dante out +12 V DC out EX-4ML 4-Channel Mic/GPIO Endpoint EX-4ML Front View +12 V DC in...
  • Page 7 PoE as a source, do not exceed 12 watts in the chain. With PoE+, the total power must not exceed 24 watts. If you exceed the total power available on one PoE/PoE+ cable, consider running a second Cat 5 cable, or use a Bose Professional accessory power supply. Powering Using Optional External Power Supply...
  • Page 8: Network Configuration

    Installation and Operation Connecting Multiple Endpoints Daisy-chain a maximum of three (3) endpoints using PoE+, or up to six (6) endpoints using an external power supply. To connect multiple endpoints: Connect a port on the Dante network switch to the Dante/PoE+ port on the first endpoint in the chain using a Cat 5 cable.
  • Page 9 Installation and Operation EX-4ML and EX-8ML The EX-4ML and EX-8ML convert 4 or 8 analog audio channels to Dante channels. They appear as 4- or 8-channel Dante transmitters in ControlSpace Designer or Dante Controller software, respectively. They also convert 4 or 8 control inputs to networked messages. These networked GPI can be used within ControlSpace Designer to drive other logic states, or can be accessed using the ControlSpace API, Crestron Drivers, or AMX drivers.
  • Page 10: Audio Connections

    Installation and Operation Audio Connections EX-UH Connections The EX-UH allows you to use a telephone handset, cell phone, or PC to connect a call. The EX-UH supports both analog and USB audio connections to cellphones/PCs. Telephone Handset Connection To connect to a call using a telephone handset, connect the headset jack on the telephone handset to the RJ-9 HEADSET connection on the EX-UH endpoint, using the included RJ-9 cable.
  • Page 11 Installation and Operation USB Audio Cellphone/PC Connection Use the supplied USB cable (USB micro to USB A), or a cable appropriate to your device, to connect the USB port on the EX-UH to a PC or cellphone. Using the EX-UH with a telephone or PC equipped with a USB port To ControlSpace Dante PoE+ EX-1280C...
  • Page 12 Installation and Operation EX-4ML and EX-8ML Connections Audio Wiring The EX-4ML and EX-8ML endpoints include four (4) or eight (8) balanced, mic/line analog audio inputs, respectively. Connect devices to these inputs using the included 3.81 mm, 7-pin Euroblock connectors. Control Wiring Each analog audio input includes control connections for two general purpose outputs (GPO) and one general purpose input (GPI).
  • Page 13 Installation and Operation Shure MX396 Tri-Element Mic Signal Mic Wire Function EX UTB Color Connector Mic 1 Audio + White Audio + Ch 1 + Mic 1 Audio - Green Audio - Ch 1 - Mic 2 Audio + Orange Audio + Ch 2 + Mic 2 Audio -...
  • Page 14 Installation and Operation Clock Audio CS 1S Mic Signal Function Cat 5 Cat 5 Color EX UTB Wire Connector Color Mic 1 Audio + Audio + Ch 1 + Mic 1 Audio - Black or Audio - Ch 1 - White Shield Bare...
  • Page 15 Installation and Operation Clock Audio CS 3S-RF Mic Signal Mic Wire Function Cat 5 Cat 5 Color EX UTB Color Connector Mic 1 Audio + Audio + Ch 1 + Mic 1 Audio - Black Audio - Ch 1 - Mic 2 Audio + Yellow Audio +...
  • Page 16 Installation and Operation Audio Technica ES947 Microphone and AE8657/LED Mount Mic Signal Mic XLR Function EX UTB Connector Audio + Pin 2 Audio + Ch 1 + Audio - Pin 3 Audio - Ch 1 - Shield Pin 1 Shield Switch Out Pin 4 Switch...
  • Page 17: Technical Information

    Technical Information Technical Specifications Audio Inputs Input Channels EX-UH: RJ-9 mic/speaker headset jack; 3.5 mm TTRS unbalanced stereo input/microphone jack; Type B/Device USB EX-4ML: Four (4) analog, balanced microphone/line level 3.81 mm Euroblock connectors, 7-pin EX-8ML: Eight (8) analog, balanced microphone/line level 3.81 mm Euroblock connectors, 7-pin DC Power Out +12 V DC...
  • Page 18: Importer Information

    Additional Information Importer Information China Importer: Bose Electronics (Shanghai) Company Limited, Level 6, Tower D, No. 2337 Gudai Rd. Minhang District, Shanghai 201100 UK Importer: Bose Limited Bose House, Quayside Chatham Maritime, Chatham, Kent, ME4 4QZ, United Kingdom EU Importer: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, The Netherlands Mexico Importer: Bose de México, S.
  • Page 19 ©2023 Transom Post OpCo LLC. All rights reserved Framingham, MA 01701 USA AM788759 Rev. 03 May 2023 788759-0030...
