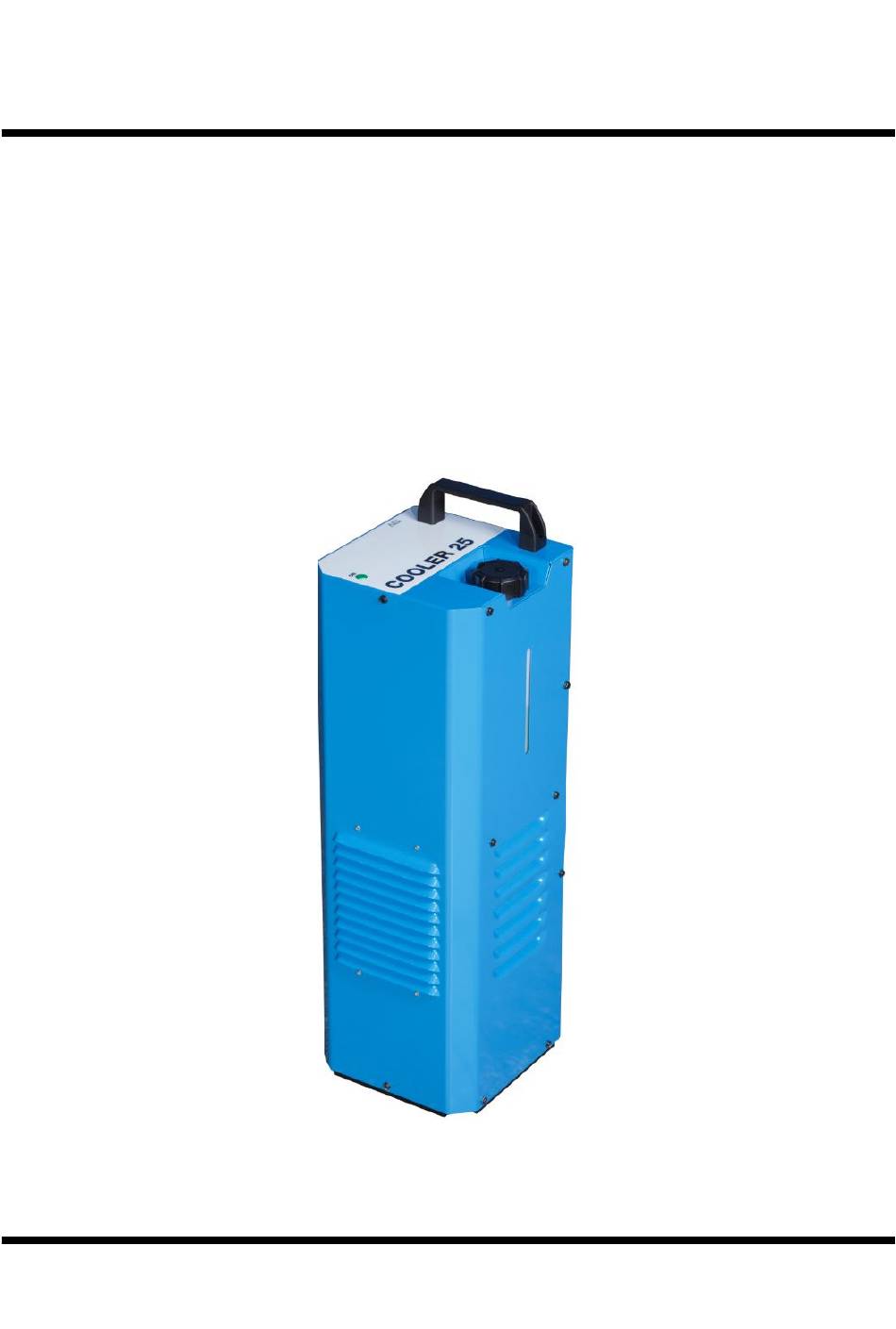

- Page 1 IM3096 07/2023 REV03 COOLER 25 OPERATOR’S MANUAL ENGLISH Lincoln Electric Bester Sp. z o.o. ul. Jana III Sobieskiego 19A, 58-260 Bielawa, Poland...
-
Page 2: Table Of Contents
12/05 THANKS! For having choosen the QUALITY of the Lincoln Electric products. Please Examine Package and Equipment for Damage. Claims for material damaged in shipment must be notified immediately to the dealer. For future reference record in the table below your equipment identification information. Model Name, Code & Serial Number can be found on the machine rating plate. -
Page 3: Technical Specifications
Technical Specifications NAME INDEX COOLER ® W000403601 INPUT Input Voltage Rated current Frequency EMC Class 230 10% 0,95A 50 Hz single phase RATED OUTPUT AT 40°C Flow range 0,5 to 3,3 l/min with torch 4,5m: 1,7 1,8 l/min with torch 3,8m: 1,3 ... -
Page 4: Electromagnetic Compatibility (Emc)
Lincoln Electric. Before installing the machine, the operator must check the work area for any devices that may malfunction because of electromagnetic disturbances. -
Page 5: Safety
Failure to follow the instructions in this manual could cause serious personal injury, loss of life, or damage to this equipment. Read and understand the following explanations of the warning symbols. Lincoln Electric is not responsible for damages caused by improper installation, improper care or abnormal operation. - Page 6 WELDED MATERIALS CAN BURN: Welding generates a large amount of heat. Hot surfaces and materials in work area can cause serious burns. Use gloves and pliers when touching or moving materials in the work area. CYLINDER MAY EXPLODE IF DAMAGED: Use only compressed gas cylinders containing the correct shielding gas for the process used and properly operating regulators designed for the gas and pressure used.
-
Page 7: Installation And Operator Instructions
Hot air is removed by the side and rear louvers. The fittings located on the back of the COOLER 25 are two a female left-hand threaded quick water fittings. Filling The Reservoir (type 21KATS09MPX). - Page 8 Be certain to replace the reservoir fill cap when the Take the two quick connect water adapters (5/8-18 left reservoir is full. Operation of the COOLER 25 cooler hand hose fitting to quick water fitting) supplied with without the fill cap in place can cause poor cooling the cooler and thread hoses nuts into the adapters.
- Page 9 Vertical Installation COOLER 25 on a Power Source Mounting with a Cylinder Undercarriage For the COOLER 25 vertically mounted on a power source with a cylinder undercarriage, you should use the main mounting bracket. For proper installation, you should see Figure 3a and Figure 3b. Using provided blackened screws and proper holes in the cooler case, fasten the bracket to the cooler back.
- Page 10 Never operate the cooler with the reservoir fill cap off. Never operate the cooler with the reservoir empty. The high cooling efficiency COOLER 25 offers a cooler, more comfortable weld than conventional air- cooled Operating Precautions procedures as well as leading competitors water cooled The following should always be observed when systems.
- Page 11 Lincoln Electric is not in a position to warrant or guarantee such advice, and assumes no liability, with Periodic maintenance (not less than once a year) respect to such information or advice.
- Page 12 Troubleshooting This Troubleshooting Guide is designed to be used by the machine Owner/Operator. Unauthorized repairs performed on this equipment may result in danger to the technician and machine operator and will invalidate your factory warranty. For your safety, please observe all safety notes and precautions detailed in the Safety Section of this manual to avoid electrical shock or danger while troubleshooting this equipment.
-
Page 13: Weee
12/05 Part List reading instructions Do not use this part list for a machine if its code number is not listed. Contact the Lincoln Electric Service Department for any code number not listed. Use the illustration of assembly page and the table below to determine where the part is located for your particular code machine. -
Page 14: Accessories
Accessories W000010167 FREEZCOOL 9,6L English English... -
Page 15: Dimension Diagram
Dimension Diagram 07/2023 English English...
