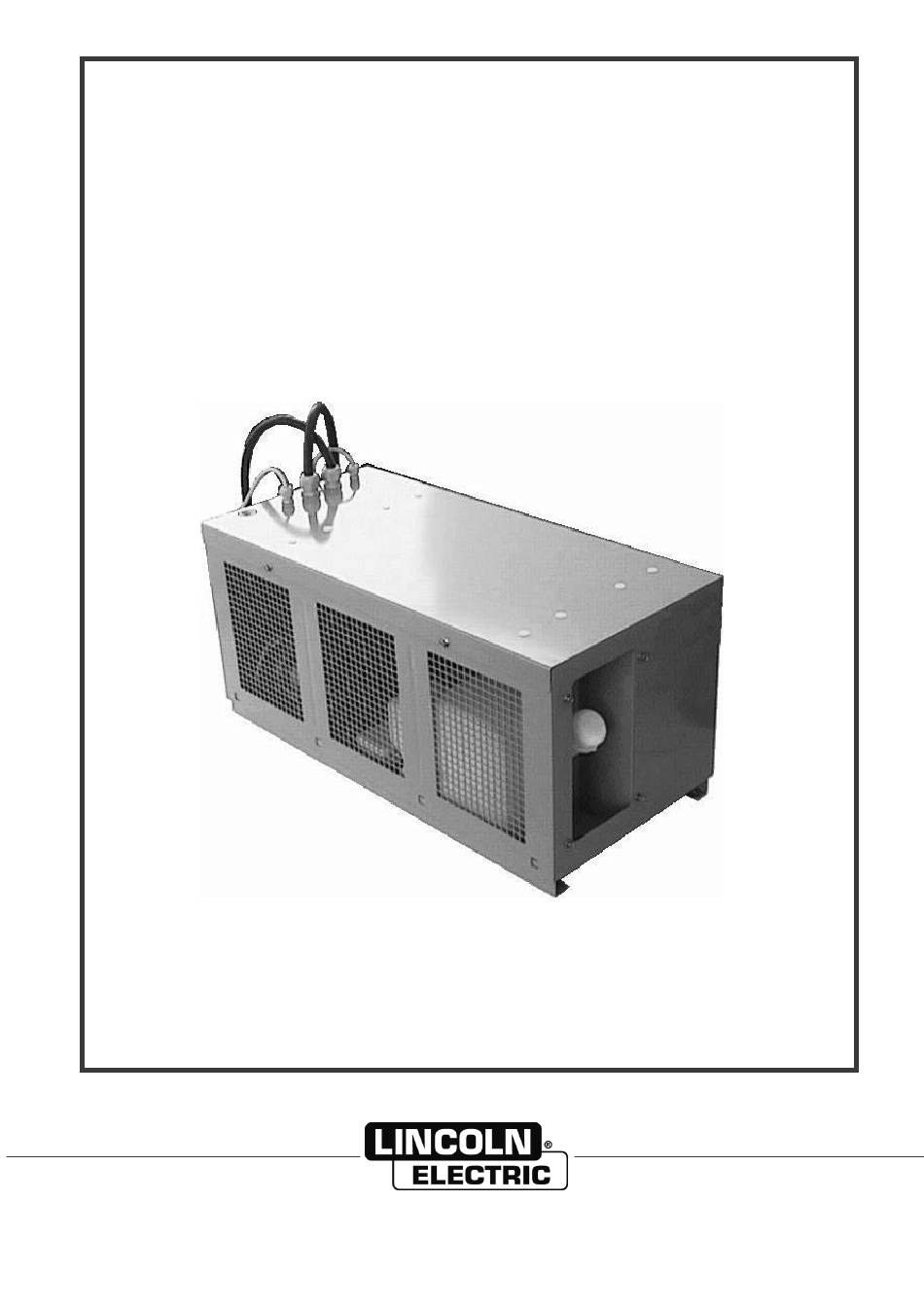

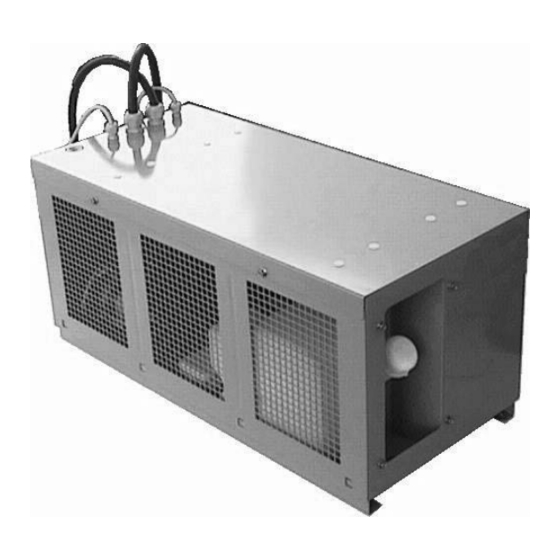

- Page 1 COOLING UNIT REFRIJET GR 51 SAFETY INSTRUCTIONS FOR USE AND MAINTENANCE MACHINE No W000315645 8695 5814 EDITION : EN Instructions for use REF : REVISION : I DATE : 03-2019 Original instructions...
- Page 2 Thank for the trust you have expressed by purchasing this equipment, which will give you full satisfaction if you follow its instructions for use and maintenance. Its design, component specifications and workmanship comply with applicable European directives. Please refer to the enclosed CE declaration to identify the directives applicable to it.
-
Page 3: Table Of Contents
F - MAINTENANCE ..........................12 1 - SERVICING ......................... 12 2 - TROUBLESHOOTING ......................13 3 - OPENING AND CLOSING THE REFRIJET GR 51 ............13 4 - FLUID CIRCULATION PLAN ....................14 5 - WIRING DIAGRAM ......................14 6 - SPARE PARTS ........................15 PERSONAL NOTES .......................... - Page 4 8695 5814 INFORMATIONS DISPLAYS AND PRESSURE GAUGES The measuring devices or displays for voltage, current, speed, etc., whether analog or digital, should be considered as indicators For operating instructions, adjustments, troubleshooting and spare parts see safety instructions for use and maintenance ISEE No.
- Page 5 8695 5814 REVISION I 03/19 DESIGNATION PAGE Update F-17 ; B-3 ; C-8 REFRIJET GR51...
- Page 6 8695 5814 REFRIJET GR51...
-
Page 7: A - Identification
8695 5814 / H A - IDENTIFICATION Please enter the number of your equipment in the following box. Quote this information in all correspondence. Manufacturing factory code Year manufactured Manufacturing year code Product type Product serial no. REFRIJET GR51... -
Page 8: B - Safety Instructions
8695 5814 / I B - SAFETY INSTRUCTIONS For general safety instructions, please refer to the specific manual supplied with the equipment. AIRBORNE NOISE Please refer to the specific manual supplied with the equipment. REFRIJET GR51... -
Page 9: Discharging Freezcool
B - SAFETY INSTRUCTIONS 8695 5814 / I DISCHARGING FREEZCOOL W000010167 (9.6L) W000010168 (20L) (pink heat transfer liquid 285) Freezcool should not be discharged in large You should inform them of: quantities into the natural environment. You should - The COD of the Freezcool (741000 mg/kg) observe local emission... -
Page 10: C - Description
The REFRIJET GR 51 reference W000315645 is a specific cooling unit of the MICRO PLASMA welding set: PLASMAFIX 51 . The REFRIJET GR 51 enables cooling in a closed circuit and thus independent of: The power electronics (linear amplifier) of the PLASMAFIX 51 ... - Page 11 C - DESCRIPTION 8695 5814 / I FLOW/PRESSURE GRAPH NOISE LEVEL The REFRIJET GR 51 sound level is 58 dB(A) REFRIJET GR51...
-
Page 12: Composition
C - DESCRIPTION 8695 5814 / I 3 - COMPOSITION REFRIJET GR51... - Page 13 C - DESCRIPTION 8695 5814 / I item designation Equipped cooler Motor pump Tank Water backflow (red) Water outlet (blue) Water filter Breaker Closing cover Basic frame Tank cap Safety cable (thermal) Supply cable Never run the equipment without heat transfer REFRIJET GR 51.Using a product other than the one we recommend will nullify the guarantee.
-
Page 14: Dimensions - Weight
C - DESCRIPTION 8695 5814 / I 4 - DIMENSIONS - WEIGHT Length: 780 mm Width: 380 mm Height (without pipe): 370 mm Height (with pipe): 420 mm weight (empty tank): 40 kg 5 - SUPPLY LIMITATIONS NOT INCLUDED IN THE SUPPLY FREEZCOOL EQUIPMENT W000010167... - Page 15 D - ASSEMBLY - INSTALLATION 8695 5814 / H D - ASSEMBLY - INSTALLATION 1 - HANDLING The REFRIJET GR 51 is designed to be mounted in the The PLASMAFIX 51 power source is to be placed on carriage no. W000315659. the Refrijet.
- Page 16 Run the torch through the front panel Trigger Central gas / pilot arc Annular gas yellow Water / power outlet green Water backflow blue 5 - FILLING UP THE TANK Fill the REFRIJET GR 51 with the cooling liquid: FREEZCOOL REFRIJET GR51 D-10...
-
Page 17: E - Operator's Manual
8695 5814 / H E - OPERATOR’S MANUAL 1 - PUTTING THE PLASMAFIX 51 INTO OPERATION Selector-switch A1 (secteur) Signal lamp A2 LED N47 N35 initial display-unit message Put N14 key in programming position LED N46 For 30 seconds, the N51 water safety device may be activated (circuit pressurization) Wait 2 minutes and validate the safety... -
Page 18: F - Maintenance
8695 5814 / I F - MAINTENANCE 1 - SERVICING So that the machine continues to provide good service for as long as possible, a certain minimum of care and maintenance is necessary The frequency of this maintenance work is given on the basis of the production of one work station per day. Maintenance should be more frequent if production is greater. -
Page 19: Troubleshooting
Insufficient heat freezcool. Top up with liquid. device. The fan is out. Check the motor supply. 3 - OPENING AND CLOSING THE REFRIJET GR 51 Remove the PLASMAFIX 51 Remove the upper cover of the REFRIJET GR 51 REFRIJET GR51 F-13... -
Page 20: Fluid Circulation Plan
F - MAINTENANCE 8695 5814 / I 4 - FLUID CIRCULATION PLAN 5 - WIRING DIAGRAM Item Designation Item Designation Motor – ventilator Filter Pump Breaker Tank Thermal controller Hot water inlet Filling up Cold water outlet Condenser REFRIJET GR51 F-14... -
Page 21: Spare Parts
F - MAINTENANCE 8695 5814 / I 6 - SPARE PARTS How to order: The photographs or sketches mark nearly all the parts making up a machine or installation. The descriptive tables comprise three types of article: items normally held in stock: ... - Page 22 F - MAINTENANCE 8695 5814 / I REFRIJET GR51 F-16...
- Page 23 F - MAINTENANCE 8695 5814 / I normally in stock not in stock on request Order Item Ref. Stock Designation P92580544 Equipped radiator P92580542 Motor pump from N°00261 LV 363 P90000592 Motor pump up to N°00260 LV 363 P91572324 Tank 5 liters + Tank cap with event hole Ø2mm Complete filter...
-
Page 24: Personal Notes
F - MAINTENANCE 8695 5814 / I PERSONAL NOTES Lincoln Electric France S.A.S. Avenue Franklin Roosevelt 76120 Le Grand Quevilly 76121 Le Grand Quevilly cedex www.lincolnelectriceurope.com REFRIJET GR51 F-18...
