Instructions
Pulse
For use with Pulse Fluid Management System components only.
Not approved for use in explosive atmospheres or hazardous (classified) locations. For
Indoor use only.
Part No. 25U972
Important Safety
Instructions
Read all warnings and instructions
in this manual and all related Pulse
manuals before using the
equipment. Save all instructions.
®
HUB Series 2
3A8903B
EN
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Graco Pulse 2 Series
Summary of Contents for Graco Pulse 2 Series
- Page 1 Instructions ® Pulse HUB Series 2 3A8903B For use with Pulse Fluid Management System components only. Not approved for use in explosive atmospheres or hazardous (classified) locations. For Indoor use only. Part No. 25U972 Important Safety Instructions Read all warnings and instructions in this manual and all related Pulse manuals before using the equipment.
- Page 2 Overview and Component ID Overview and Component ID Pulse HUB Series 2 Item Name Description Pressing the power button (A) powers the HUB. The power Power button (A) illuminates when power is applied. Button Plug the end of the power adapter into the power inlet port Power Inlet (B).

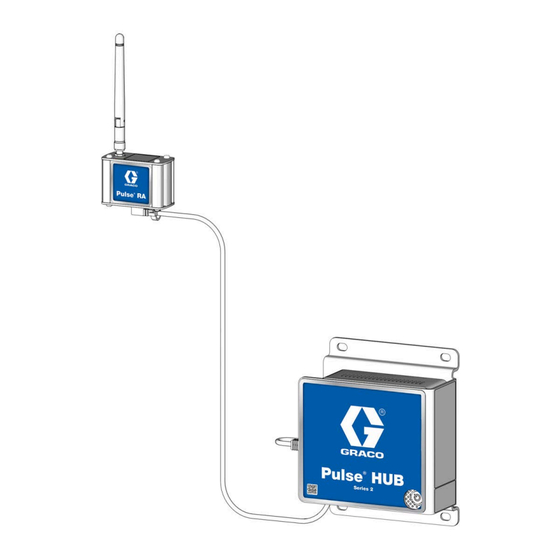

- Page 3 Overview and Component ID Pulse Remote Radio Antenna Item Name Description Plug mini end of the USB cable into the port. The other end of USB Mini the cable plugs into the USB Port (D) of the Pulse HUB Series Port External antenna for RF signal transmission, Antenna...
-
Page 4: Installation
Installation Installation Locate the Pulse HUB Series 2 in the main part of the shop, high on a wall or on the ceiling, in a location that provides an unobstructed line of sight, near the meters, PACs, and/or tank level monitors. Always comply with all applicable local, state and national fire, electrical, and safety regulations. -
Page 5: Connecting Hub To Lan (Local Area Network)
Installation Connecting HUB to LAN Plug the Pulse Hub Series 2 into an Uninterruptible Power Supply (UPS) that has (Local Area Network) surge protection. The minimum specifications are that the power There are two options available for con- requirements be at least 425 V-A and 260 W necting the HUB to the LAN: Ethernet Con- with 895 Joules of surge protection. -
Page 6: Operation
Operation Operation Once the Pulse HUB is installed, verify that the power button light (A) (F . 1) is ON and the HUB is functioning correctly. When the power light is illuminated, the unit is receiving power. HUB LAN Lights Indicator HUB State HUB Status... -
Page 7: Main Dashboard
Software Software Main Dashboard Dispenses: Based on user’s selections, displays as a list of pending, active, completed, and canceled dispenses. Tanks: Displays as a percentage, reports the amount of fluid remaining in the tank. The fluid is measured from the bottom of the tank to the full level. Reports: The Pulse Fluid Management System generates a variety of reports related to the data it collects while the system is operating. -
Page 8: Software Setup
Software Software Setup Application Settings: General system settings • General System Settings: Language, Units of Measurement, PIN size, Inactivity Duration • Time Settings • Business Schedule • E-mail Settings • Network Settings Device Settings: Device configuration and firmware settings • Fluids •... -
Page 9: Frequently Asked Questions
Software Frequently Asked Questions Q. What does the meter do if the batteries are removed when you are dispensing? A. When not using work orders, the accumulated dispense amount is saved. When fresh batteries are installed, the meter powers up. The next time a dispense ends, two entries are entered into the dispense complete log;... -
Page 10: Troubleshooting
TLMs within RF range of meters and TLMs Weak or no RF signal Changes/obstructions in RF Add Graco Extender to pathway (i.e., vehicles, Pulse system. Order Graco overhead doors, etc.) Part No. 17F885 - US, 17F776 - EU, 17F887 - UK, 17F888 - ANZ. - Page 11 Parts Parts Part No. Description 25U970 HUB Series 2 25U969 PULSE RA 25U971 Power Adapter HUB Series 2 Dimensions 3A8903B...
- Page 12 Parts Pulse Remote Radio Antenna Dimensions 3A8903B...
-
Page 13: Technical Specifications
Technical Specifications Technical Specifications Pulse HUB Series 2 Metric Weight 1.45 lbs 0.66 kg Operating Temperature Range 32F to 95°F 0°C to 35°C Operating Humidity 0 - 85%, non-condensing Power Supply To Power Supply 100 - 240 VAC 50-60 Hz To HUB 19 V, 2.37A WiFi... -
Page 14: California Proposition
California Proposition 65 California Proposition 65 CALIFORNIA RESIDENTS WARNING: Cancer and reproductive harm – www.P65warnings.ca.gov. 3A8903B... -
Page 15: Graco Extended Hub Warranty
Any action for breach of warranty must be brought within two (2) years of the date of sale Graco makes no warranty, and disclaims all implied warranties of merchantability and fitness for a particular purpose in connection with accessories, equipment, materials or components sold but not manufactured by Graco. - Page 16 All written and visual data contained in this document reflects the latest product information available at the time of publication. Graco reserves the right to make changes at any time without notice. Original instructions. This manual contains English. MM 3A8903...
