CyberPower Network Management System
Rev.1.2
www.cyberpowersystems.com
1

Advertisement

loading

Related Manuals for CyberPower CyberPower RMCARD201

Summary of Contents for CyberPower CyberPower RMCARD201

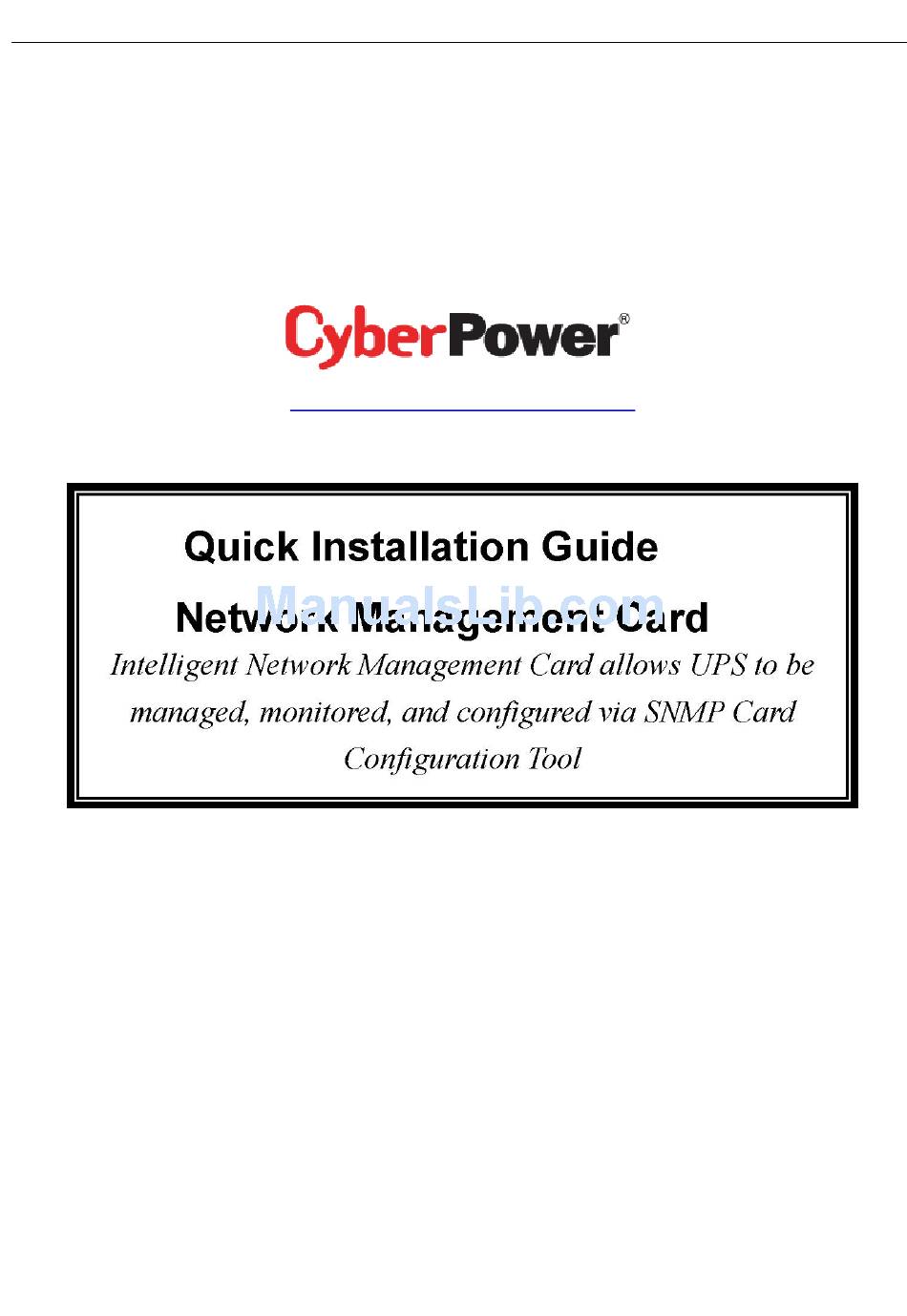

  • Page 1 CyberPower Network Management System Rev.1.2 www.cyberpowersystems.com...

  • Page 2: Installation Guide

    INSTALLATION GUIDE Step 1. Hardware and Tool Installations 1. Connect the Ethernet cable to the LAN port of the CyberPower Network Management Card. 2. Connect the CyberPower Network Management Card to the UPS communication port (serial port). The included serial cable may be used if needed. 3.
  • Page 3 In this section, it will be introducing the “SNMP Card Configuration Tool” program. If a DHCP network service is not available or you want to assign a new IP Address to the SNMP card, please follow the steps listed below: I.
  • Page 4 6. First, choose either IP or MAC address from device address option. 7. Then click on each checkbox to modify new IP, new subnet mask or new gateway address from modify option. Last, input the new address on the right for the chosen checkbox. 8.
  • Page 5 Note: 1. If your computer has installed firewall software that software may pop up the Windows Security Alert message shown as Figure 7. You need to unblock the“ wsnmpcfg.exe” program before you run the program. 2. Please refer to the SNMP card hardware manual to obtain the correctly user name and password if you forget user name or password.
  • Page 6 When the “SNMP Card Configuration Tool” program is unable to use, it can use the Command Line tool instead of the “SNMP Card Configuration Tool” program to setup IP. Please follow the steps listed below: II. IP setup using Command Line command: 1.Obtain the MAC address on the label of the Network Management Card.

  • Page 7: Appendix 1 Ip Address Settings Of Cyberpower Network Management Card

    Appendix 1 IP Address Settings of CyberPower Network Management Card Overview All devices on a computer network need to have an IP address. Each device’s IP address is must be unique. In order to assign an IP address to the CyberPower Network Management Card you must determine your network configuration.
  • Page 8 CyberPower Network Management System If the response is shown as below, the IP address is already in use by other equipment. Try another IP address until an available address is found.
