FEATURES
2 isolated groups (busses) of 10 GMT style fuses in each (20Amps/GMT position max).
Polarity insensitive (+/-24 or +/- 48 Vdc) battery voltage .
This panel can operate at 200 Amps of output current per panel (100 Amps per Bus).
Barrier terminal strips for fused outputs and isolated returns (grounds).
Two sets of Form C relay contacts are provided to extend alarms.
One set of alarm contacts for each; Bus A, and Bus B Alarm.
Single 1.75" mounting height (single panel space).
Mounting brackets are supplied for 1" & 1-3/4" spacing and are universal for 19" and 23" racks, with flush
and offset mounting options.
NEBS level 3 verified, with zone 4 earthquake.
UL Listed
______________________________________________________________________________________

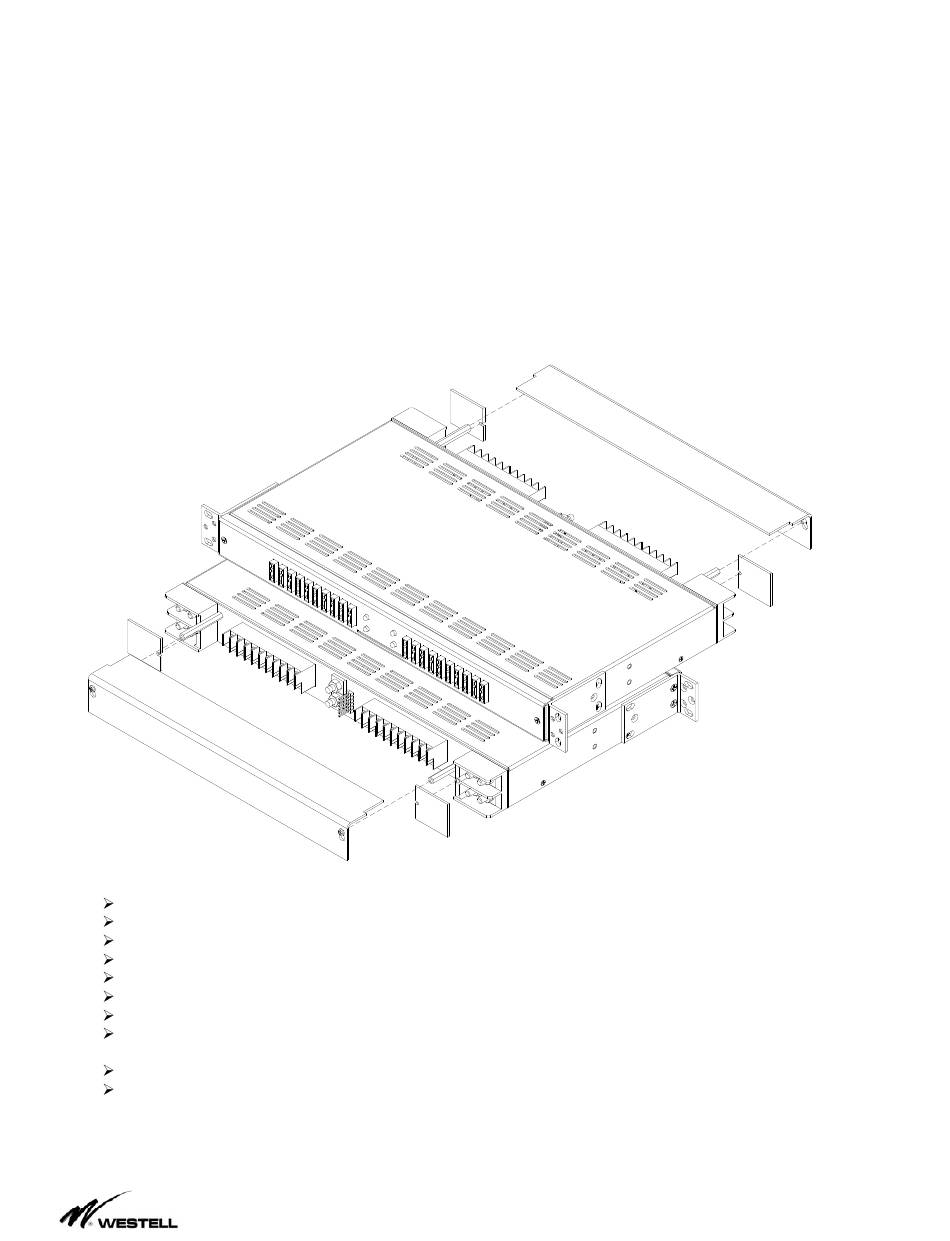

Westell
Fuse Panel
Technical Practice
NPGMT1107
10/10 GMT
NEBS Level 3 Verified
530-101745 Rev F
1107-03F
Nov 20, 2012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NPGMT1107 and is the answer not in the manual?

Questions and answers

Summary of Contents for Westell NPGMT1107

  • Page 1 1107-03F Nov 20, 2012 Westell Fuse Panel Technical Practice NPGMT1107 10/10 GMT NEBS Level 3 Verified FEATURES 2 isolated groups (busses) of 10 GMT style fuses in each (20Amps/GMT position max). Polarity insensitive (+/-24 or +/- 48 Vdc) battery voltage .
  • Page 2: General Description

    1. GENERAL DESCRIPTION 1.1. The Westell NPGMT1107 Fuse Panel C:\Projects\Other\Logos\westellc_transparent.gif provides up to 20 circuits for the distribution of C:\Documents and Settings\sdolinsky\Desktop\Westell_By_Noran_Tel_RED.bmp DC power to equipment. Each of the 20 circuits Noran Tel is individually protected by a GMT style...
  • Page 3 Particular attention should be given to supply PERSONNEL ONLY. connections other than direct connections to the branch circuit. 4.1. Unpack and inspect the Westell Fuse Panel for possible damage incurred during shipping. If damage is found, file a claim immediately with the 19" Mounting Position carrier, and notify the Westell Customer Service Department.
  • Page 4 (ABS) to 1A or less to protect below each fuse for identification of circuit rating the alarm wiring and circuitry. (see fig 1.4.1). For fuse color codes please see table 4.12.1 below. Contact Westell for amperage marking labels. ____________________________________________________________________________________...
  • Page 5: Specifications

    Amps Color Code 18/100 A Yellow 2/10 A Red/Black 1/4 A Violet 3/8 A Gray/White 1/2 A 65/100 A Black 3/4 A Brown Gray 1 1/3 A White 1 1/2 A White/Yellow Orange 2 1/2 A White/Orange Blue 3 1/2 A White/Blue White/Brown Green...
  • Page 6: Technical Services

    7. WARRANTY & REPAIRS Voice: (800) 377-8766 7.1 Westell warrants this product to be free of defects at the time of shipment. Westell also warrants this product to be fully Replacements will be shipped in the fastest functional for the time period specified by the...
  • Page 7 ____________________________________________________________________________________...
  • Page 8 BUS A BUS B ____________________________________________________________________________________...
  • Page 9 ____________________________________________________________________________________...
