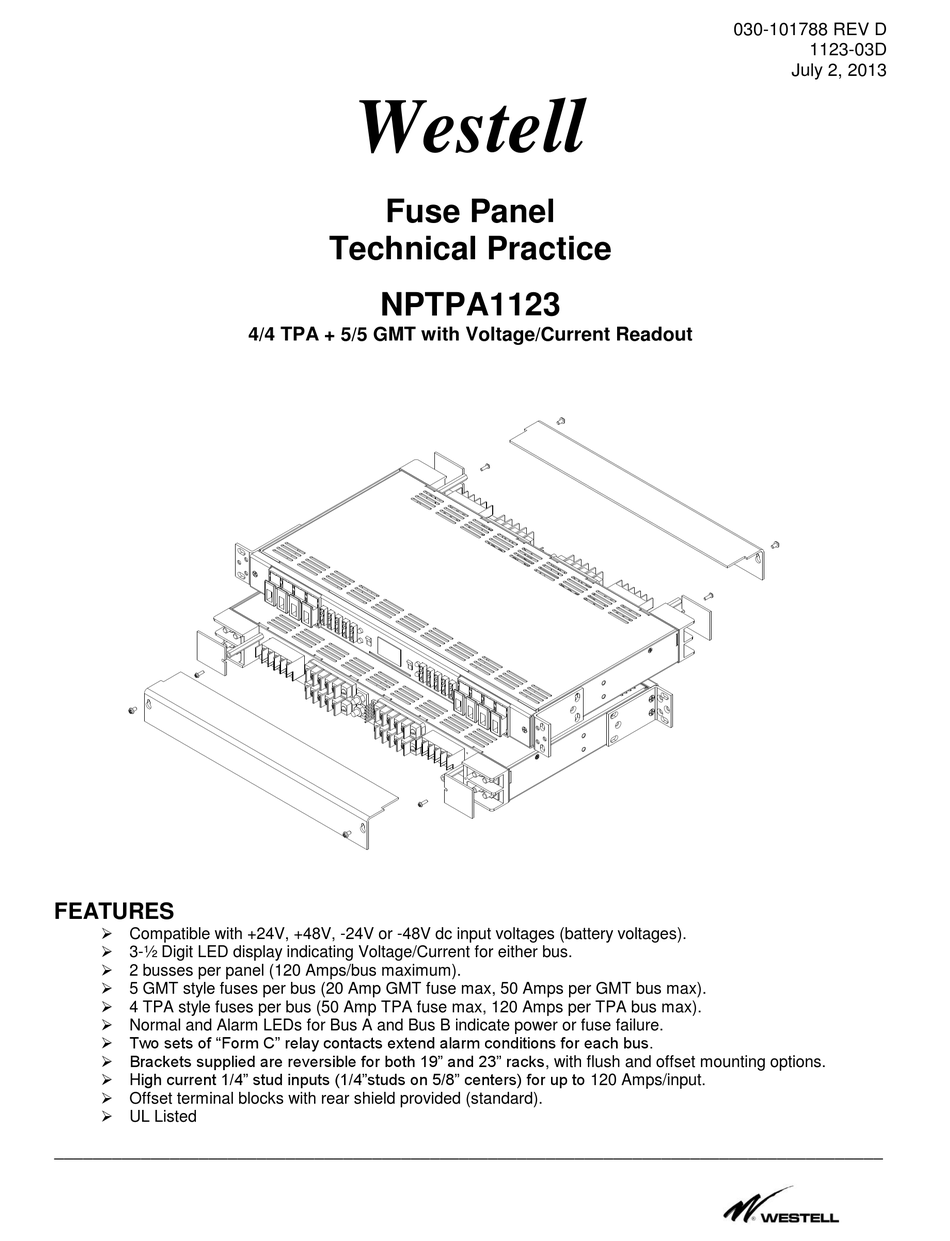

Westell NPTPA1123 Technical Practice

FEATURES
 Compatible with +24V, +48V, -24V or -48V dc input voltages (battery voltages).
 3-½ Digit LED display indicating Voltage/Current for either bus.
 2 busses per panel (120 Amps/bus maximum).
 5 GMT style fuses per bus (20 Amp GMT fuse max, 50 Amps per GMT bus max).
 4 TPA style fuses per bus (50 Amp TPA fuse max, 120 Amps per TPA bus max).
 Normal and Alarm LEDs for Bus A and Bus B indicate power or fuse failure.
 Two sets of "Form C" relay contacts extend alarm conditions for each bus.
 Brackets supplied are reversible for both 19" and 23" racks, with flush and offset mounting options.
 High current 1/4" stud inputs (1/4"studs on 5/8" centers) for up to 120 Amps/input.
 Offset terminal blocks with rear shield provided (standard).
 UL Listed
______________________________________________________________________________________
Westell
Fuse Panel
Technical Practice
NPTPA1123

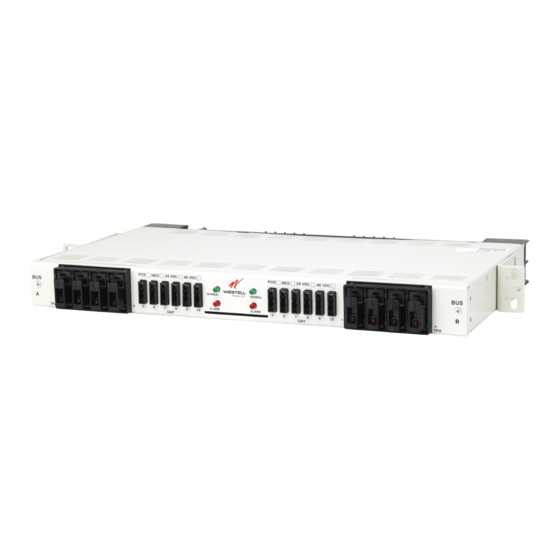

4/4 TPA + 5/5 GMT with Voltage/Current Readout
030-101788 REV D
1123-03D
July 2, 2013
